Made of steel to increase wear resistance and usage time.
Smooth transmission, simple operation.
Increase stability and accuracy.
Suitable for mechanical industrial transmission.
Slide the RC Hardened Pinion Gear onto the motor shaft; Align the teeth with the corresponding gears it will mesh with Ensure that the gear is securely seated on the shaft.

وصف

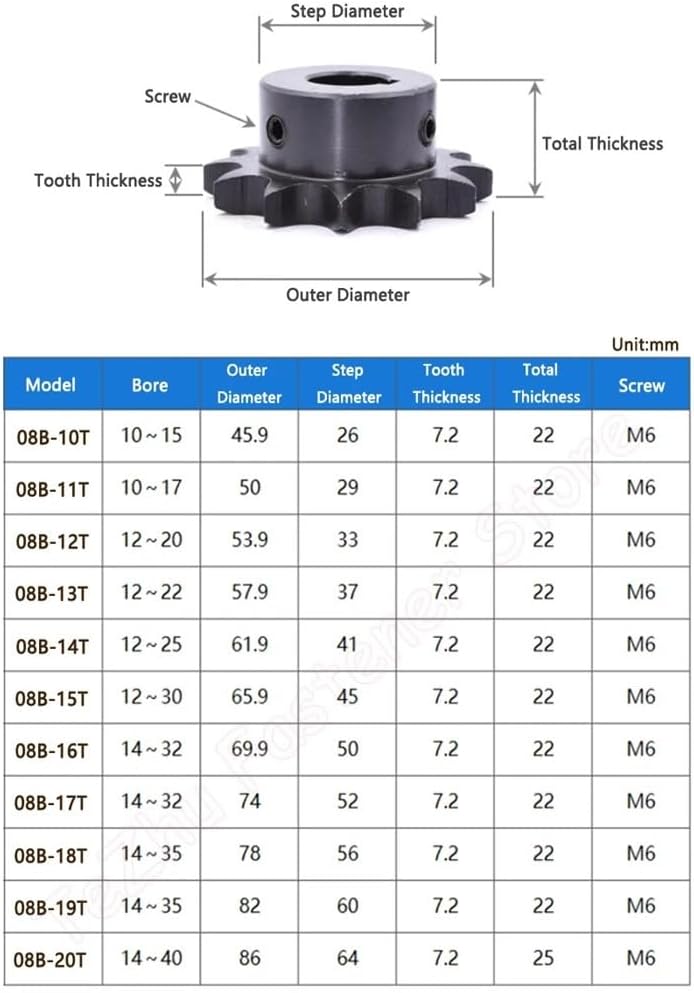

Specification:
Name: 08B Industrial Drive Sprocket Wheel
Type: Sprocket with Step
Material: 45# Steel
Tooth Surface Treatment: Blackening
Pitch: 12.7mm
Number of teeth: 10/11/12/13/14/15/16/17/18/19/20 Teeth
Keyway Bore: 10/12mm (keyway 4mm),14/15/16mm (keyway 5mm),18/19/20/22mm (keyway 6mm),24/25/28/30mm (keyway 8mm),32/35mm (keyway 10mm), 40mm (keyway 12mm)
Application: Used in various mechanical transmission parts
