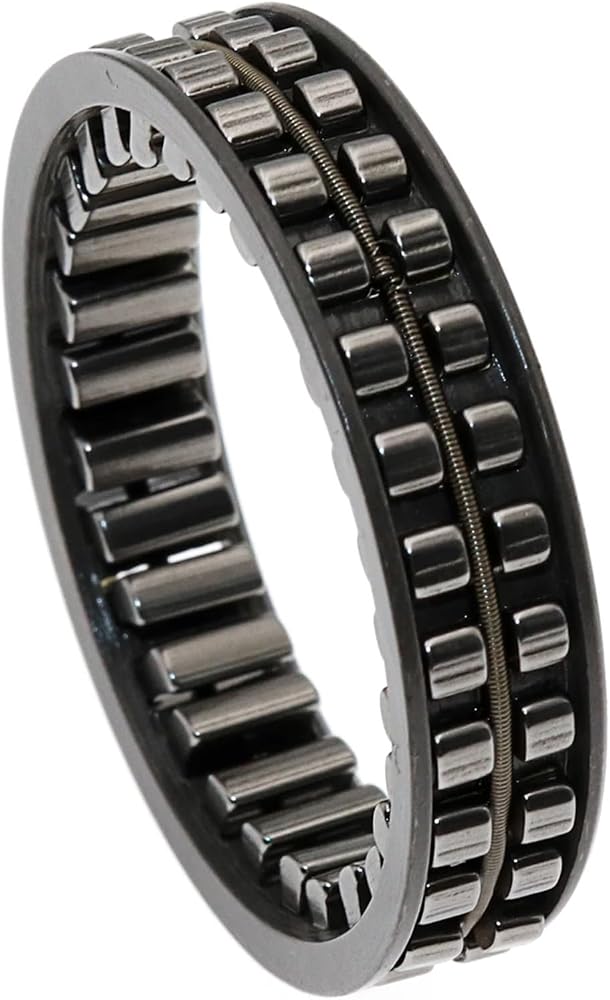

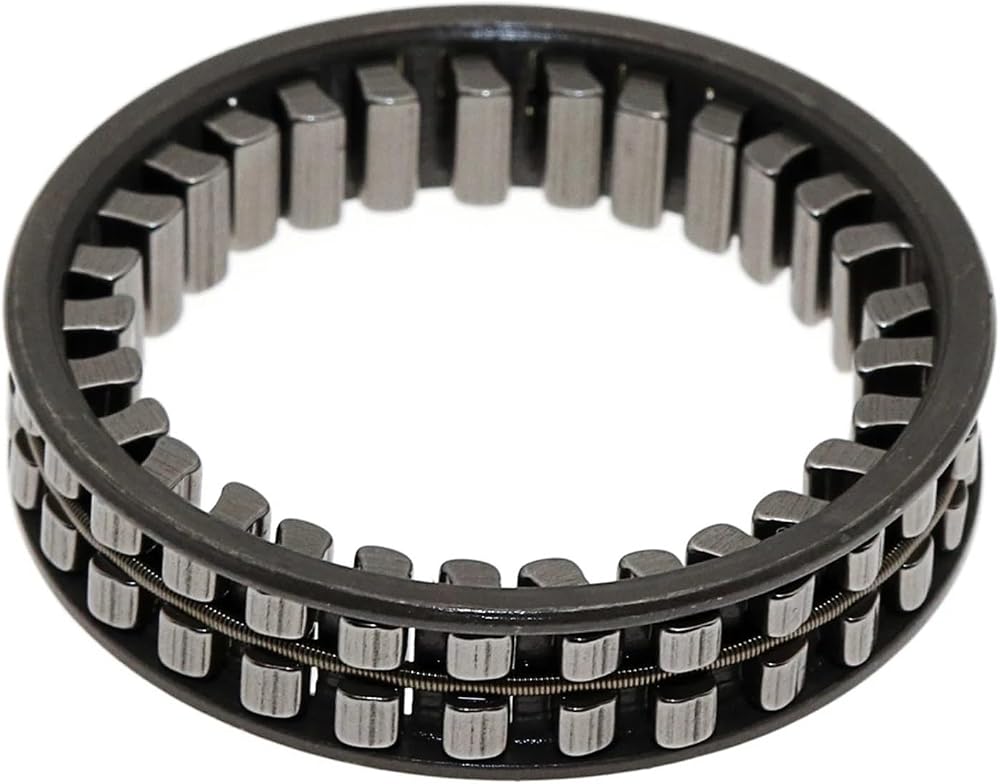

1PCS FE432Z2 24X32X6.3 Freewheel Clutch Insert Element FE Sprag Clutch One Direction Freewheel Bearing

SAR 355
Brand
ZLYMTXHW
Weight
50 g
– 1 +

Special Features

  • Air Bearings
  • 64x0.5|48 Rototiller|Material: Bearing Steel,Crafted from high-grade bearing steel, ensuring durability and longevity in demanding applications.
  • Operative grease filling on request:Flexible grease filling options to suit various lubrication needs, enhancing performance.
  • Design and style:Sleek design with corrosion protection, blending functionality with aesthetics.
  • Installation tolerances:Precision-engineered with installation tolerances for a secure fit in your machinery.

Description

Air Bearings
Freewheel clutch Insert Element FE 432Z2
Oil or grease lubrication
Delivered with corrosion protection.
Operative grease filling on request.
Installation tolerances
Shaft h5; hub H6
Inner ring/shaft
Steel , HRC 60+4 (HV 700+100); Eht 1,3 mm; Rz = 2,5 µm
Outer ring/housing
Steel, HRC 60+4 (HV 700+100); Eht 1,3 mm; Rz 2,5 µm
Constraints
The freewheel clutch insert element requires axial constraints on
both sides.
Mating parts
Hardening and grinding of the mating parts is necessary. Chamfered
shafts and hubs ease installation.
Bearing
Freewheel clutch insert elements are not self-centering. External
bearing support to define the gap between mating parts (Shaft and
housing) is necessary.
==========
Material : Bearing Steel
Model Number : FE432Z2
