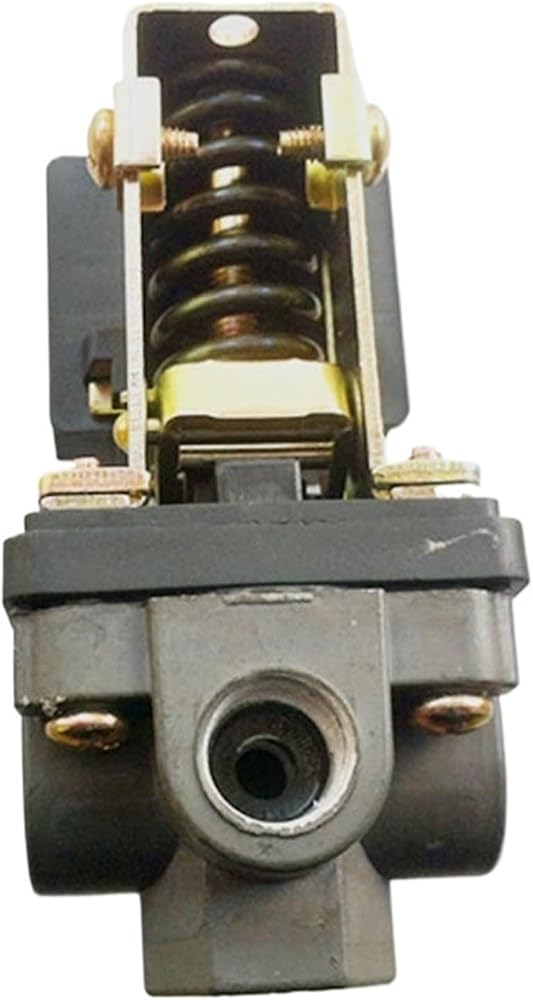

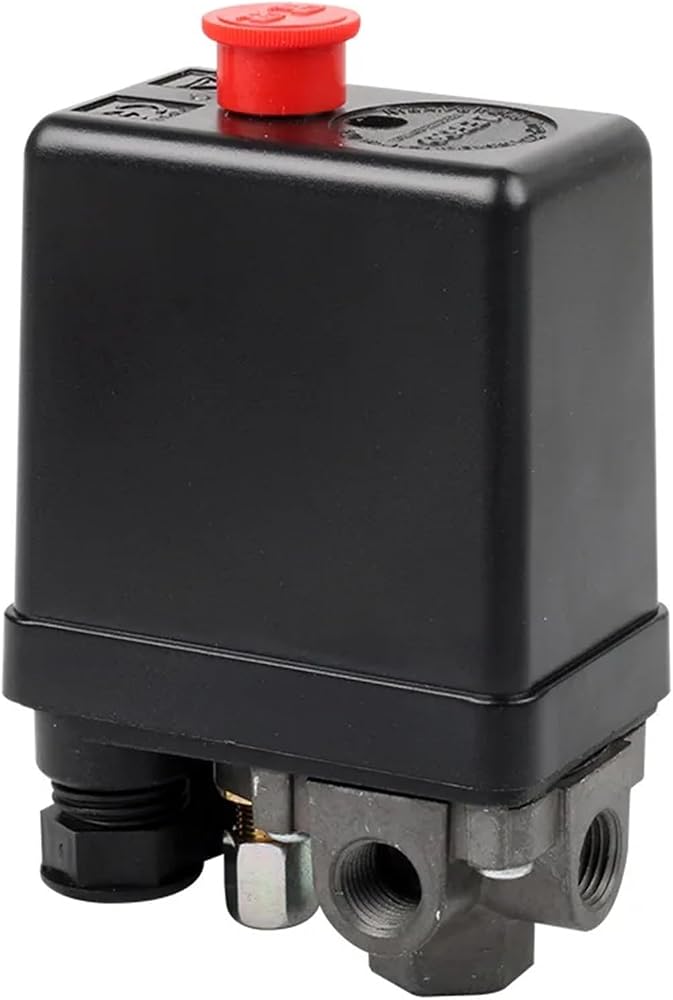

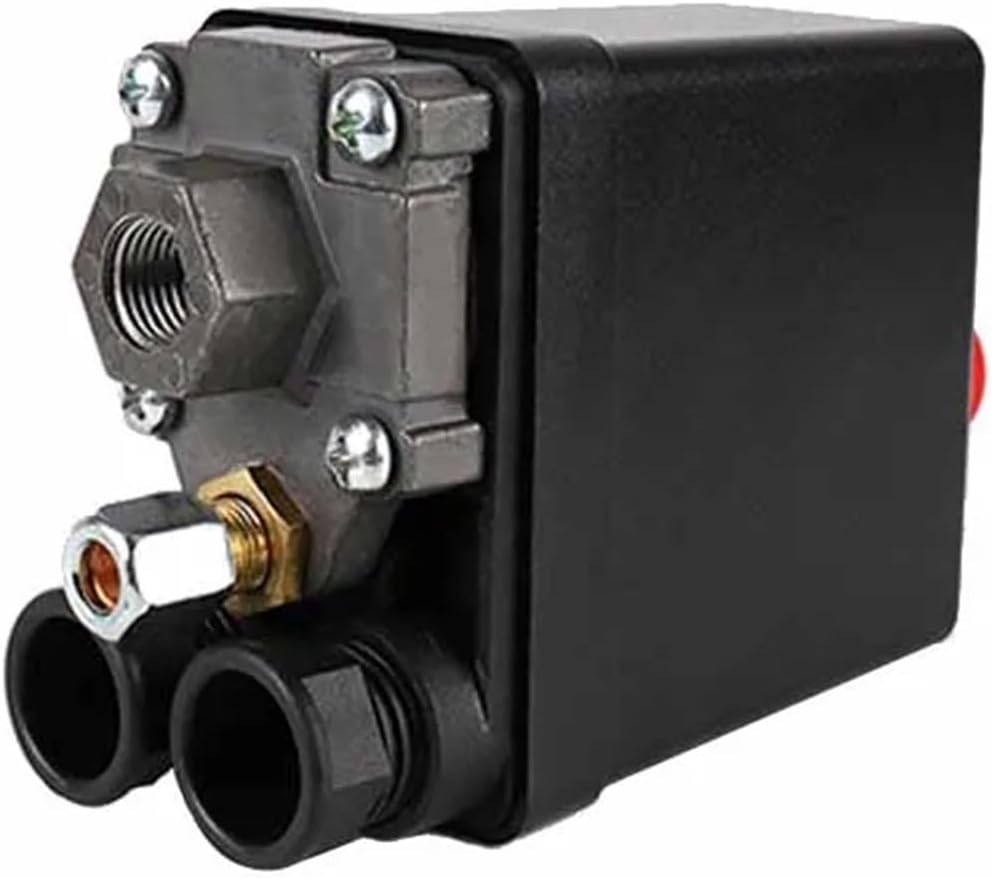

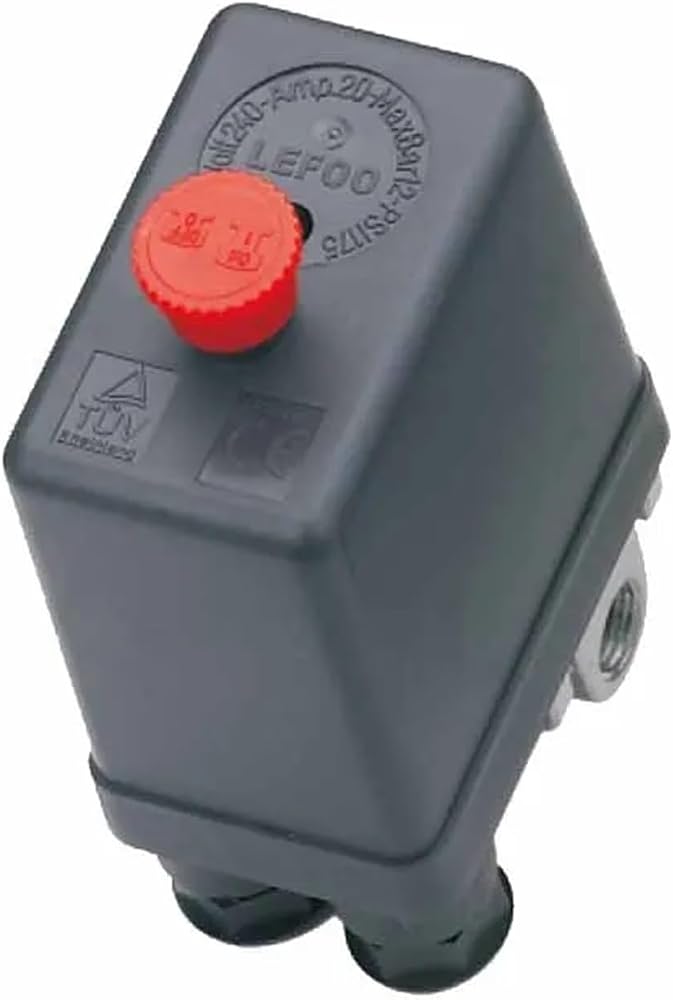

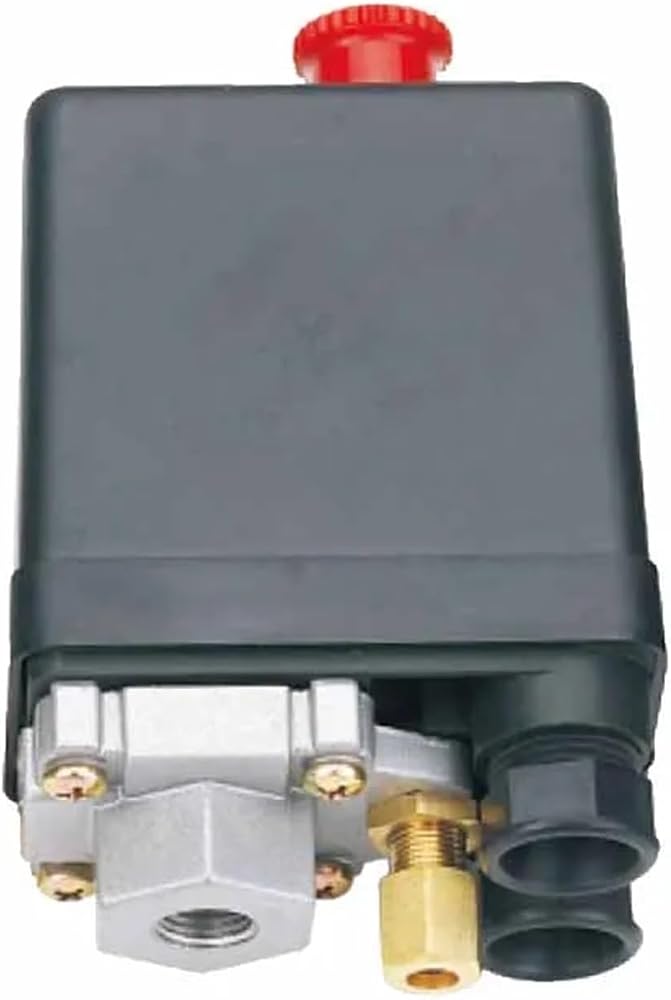

The LF10-L series of pressure switches with unloader relief valves are ideal for various types of machinery such as piston-driven, oil-free, and silent air compressors or pumps. This feature helps to avoid overload and enabling automatic start, making them highly sought after in the market.
Adding to their versatility is the LF10-L model pressure switch's ability to be automatically shut down through its handling feature. Furthermore, they can also be directly connected to the motor line to adjust or control the air pressure in the tank for automatic starting and stopping.
Compared to other switches, the LF10-L model stands out by its unique ability to handle high current loads and less prone to burning out, makes it a long-lasting option. Buyers can choose from two types of connector types: one with a single connector and another with four connectors.
In conclusion, the LF10-L series of pressure switches is well-known for its durability, making them optimal for contractors and their equipment. Additionally, they are compatible with other unique mechanical models, making them a top choice among a wide range of consumers.
Description:Item No.: LF10-L
Voltage: 110V/240V
Current: 15A
Connect type: NC

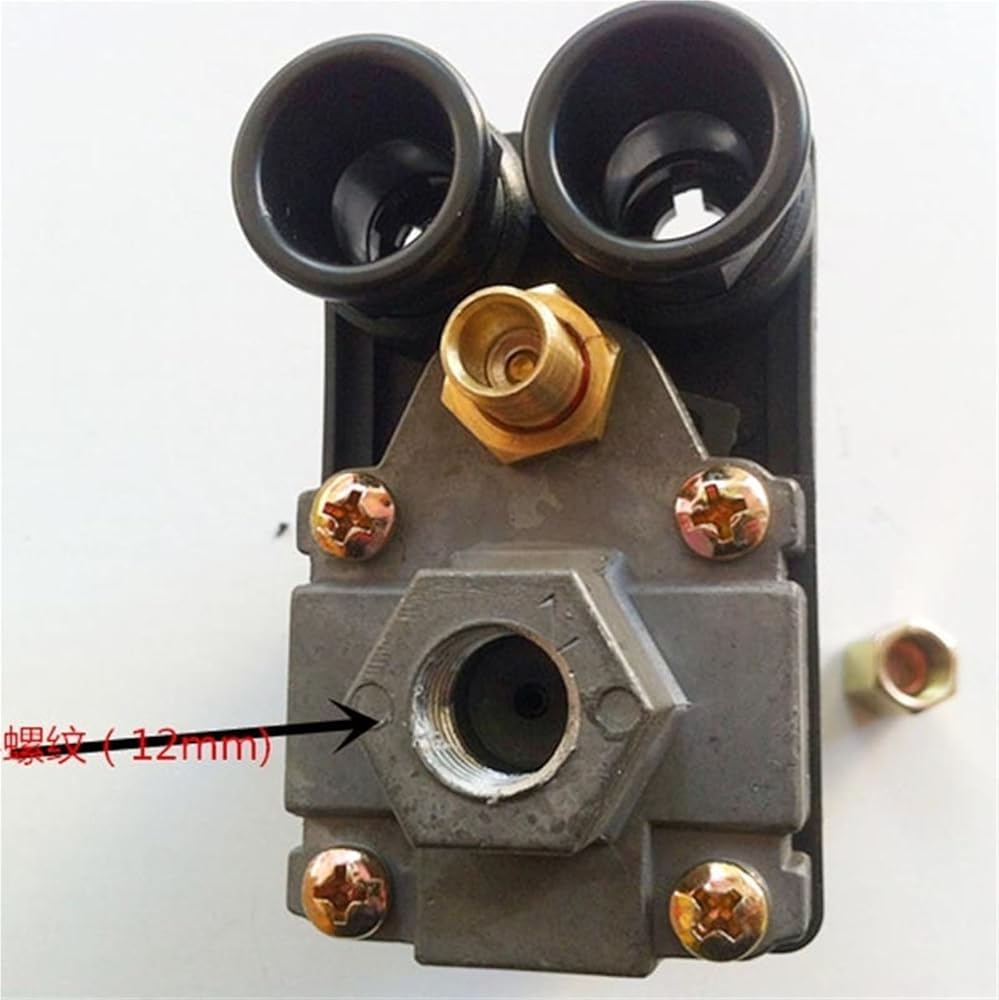

Connector: 1/4 Female Thread; 1 or 4 ports
Pressure Rang: 0.3-1.25 MPA
Overload Capacity: 240V,26A; Can be started directly
Controller: There has two models of this control.The first: it can be started and stopped automatically. Second,stop by red on off button manually.
Application: Air compressor, air pump, piston compressor, oil-free air pump
Transformation:
1KG/CM²=14.2Psi=0.1Mpa=1Bar
