DIMENSIONAL ATTRIBUTES
- Diameter (Nominal): M18
- Thread Pitch: 1.5
- Diameter (Dimension): 18mm
- Length (Nominal): 24mm
- Thread Length (Nominal): 12mm
- Thread Length (Minimum): 11.8mm
- Thread Length (Maximum): 12.2mm
- Across Flats (Basic): 17mm
- Head Height, Overall: 8mm
- Head Height, Overall (Minimum): 7.71mm
- Head Height, Overall (Maximum): 8.29mm
- Flange Diameter: 23mm
- Flange Thickness: 4mm

PRODUCT ATTRIBUTES
- Category: Pipe Plugs
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Threading: Straight Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 910

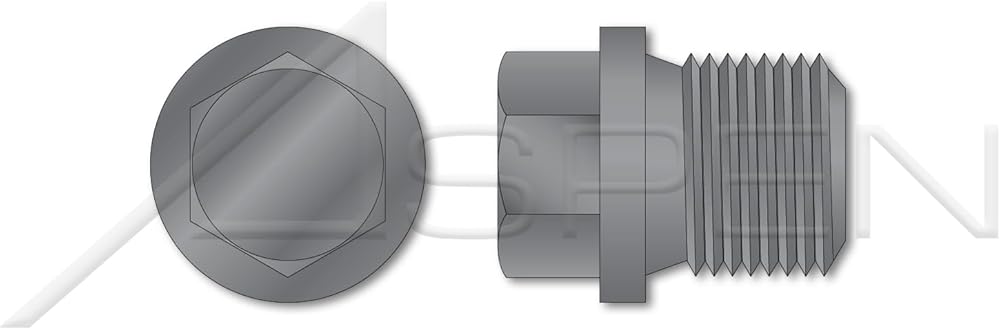

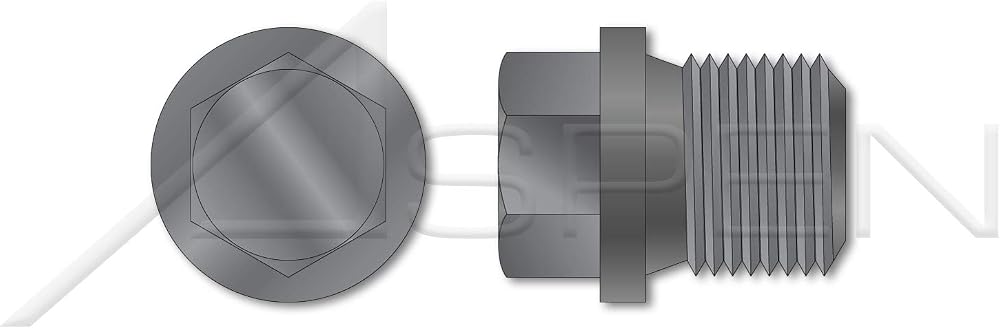

NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
