PCB Frame

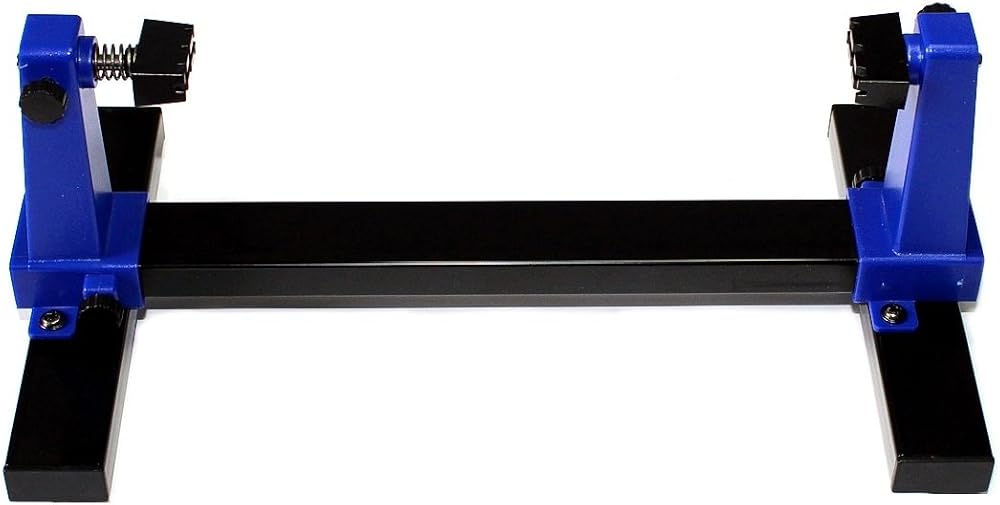

This frame will hold standard PCBs between 2 clamps for easy assembly and soldering. The rotisserie setup allows the board to be turned without removing it from the spring-loaded clamp, but it can also be locked using the set-knob.

Simply insert the PCB and rotate it to have the component side up, insert one or more components and then just rotate the board in the rotisserie, solder the components and rotate it again to place additional components. There is no need to remove the board between each round because the clamps allow for easy rotation (which can be locked down).

The unit will accomodate boards of varying width by moving one or both of the uprights along the bar, all the way up to 9 inch wide PCBs.
