40 HP HP HISE BEELLER BEVEL BILLE مع مهاويين مفتاحين CW/CW 1: 1 - السكن الحديد الزهر - سرعة الإدخال: 1800 كحد أقصى دورة في الدقيقة ؛ 19455-SR-KW-KW-GR in Saudi Arabia 40 HP HP HISE BEELLER BEVEL BILLE مع مهاويين مفتاحين CW/CW 1: 1 - السكن الحديد الزهر - سرعة الإدخال: 1800 كحد أقصى دورة في الدقيقة ؛ 19455-SR-KW-KW-GR in Saudi Arabia

40 HP HP HISE BEELLER BEVEL BILLE مع مهاويين مفتاحين CW/CW 1: 1 - السكن الحديد الزهر - سرعة الإدخال: 1800 كحد أقصى دورة في الدقيقة ؛ 19455-SR-KW-KW-GR

SAR 829
– 1 +

مميزات خاصة

  • Technical Information:
  • Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
  • Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
  • Input Shaft: 1" X 2-1/4" with 1/4" Keyway
  • Output Shaft: 1" X 2-1/4" with 1/4" Keyway
  • Input Power: 40 HP
  • Input Speed: 1,800 Max RPM
  • Shaft Rotation: CW to CW with 1:1 Ratio

وصف

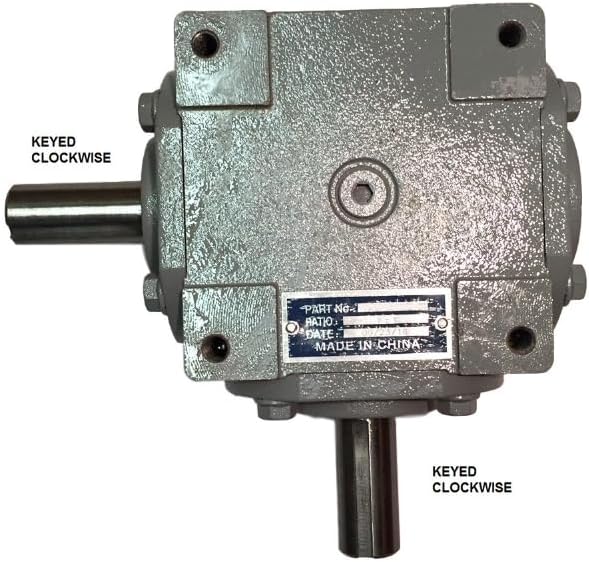

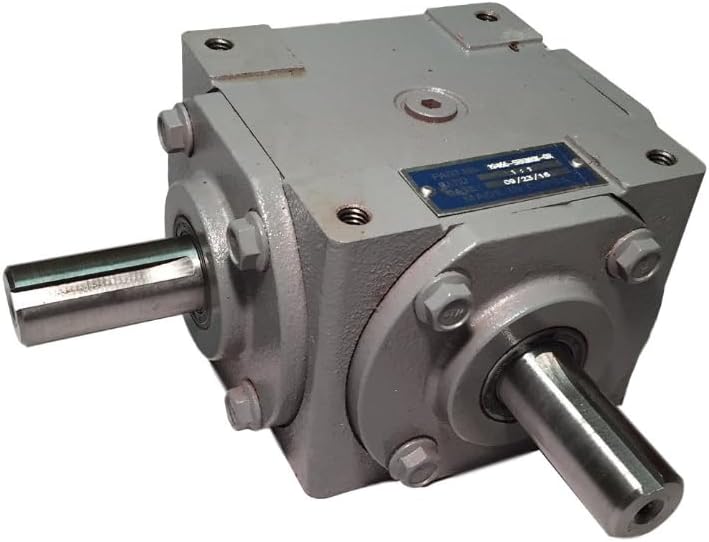

Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W). Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
