Gearboxes, Gearheads & Speed Reducers
Flange height:
NMRV040F = 30.5 mm
NMRV040FL = 60.5 mm
The NMRV040F image is as follows:

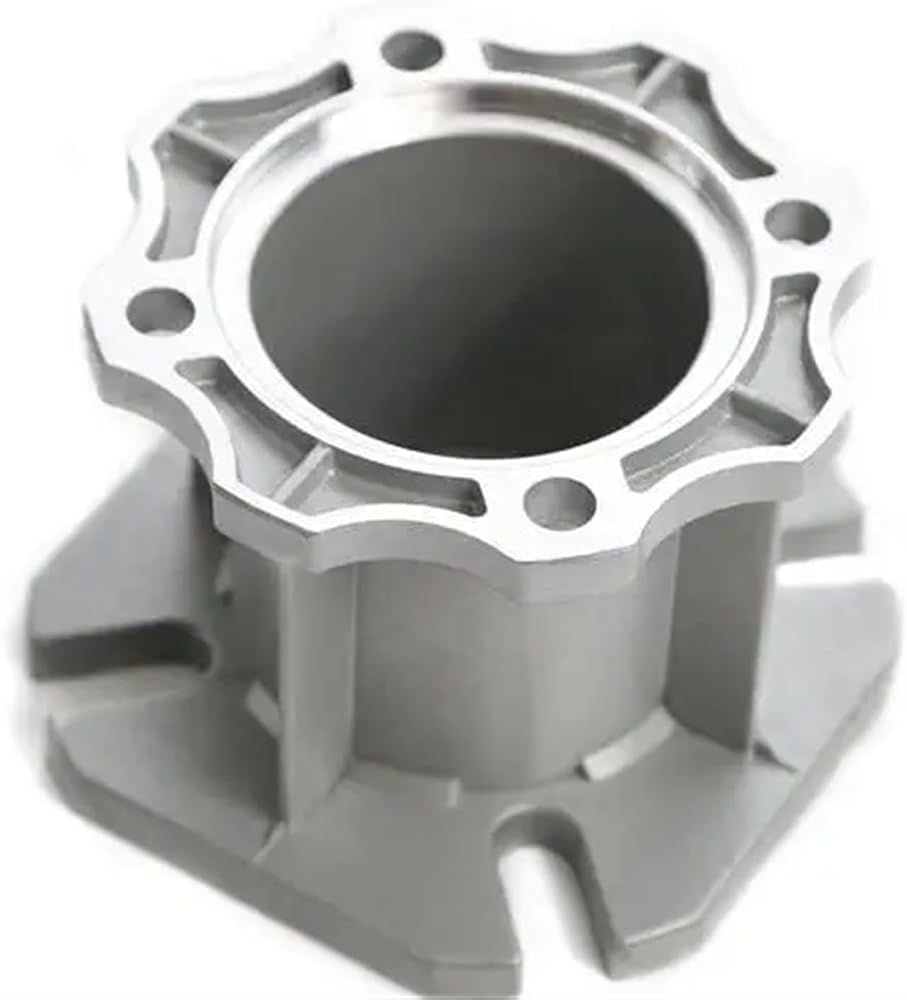

The NMRV040FL image is as follows:
Install the bearings
Flange size
Note: This is the drawing of the NMRV040F output flange.
The height of the NMRV040FL output flange is different from that of the NMRV040F, and the other dimensions are the same as the NMRV040F.
NMRV040 output flange * 1
Model Number : NMRV040
Size : Look at the product detail sheet
Standard : ISO
Standard or Nonstandard : Standard
Material : aluminum
Origin : Mainland China
Color : blue, gray
