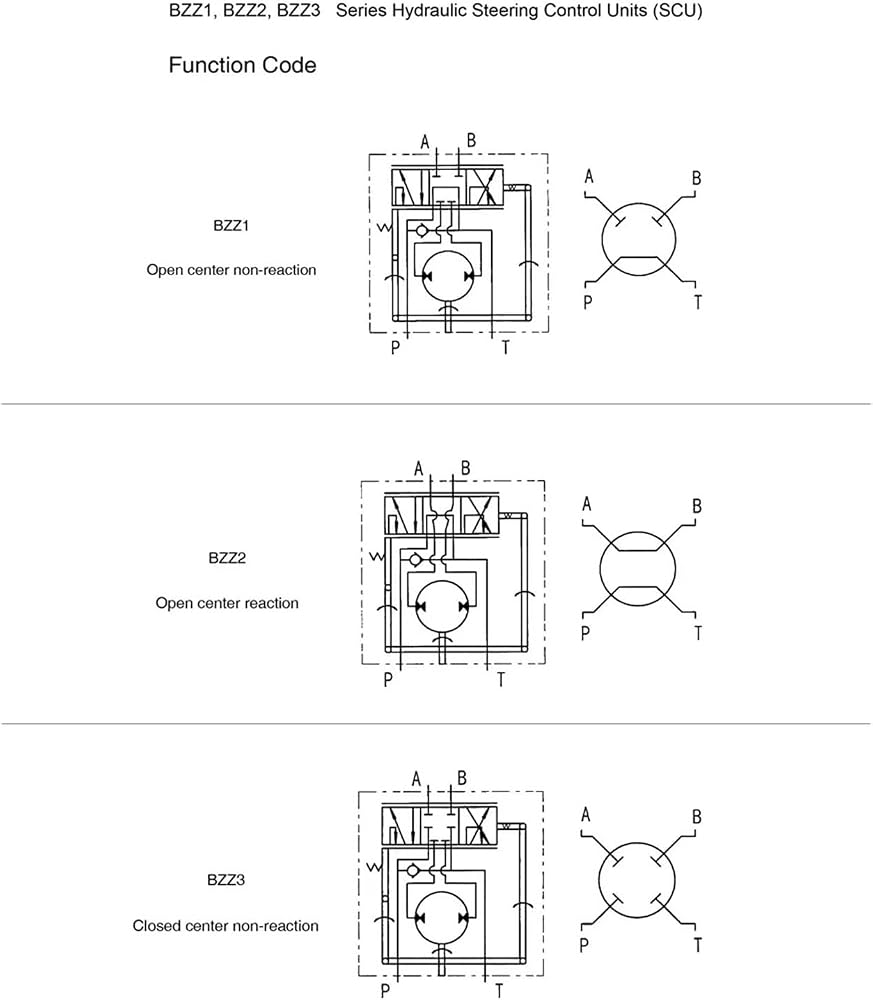

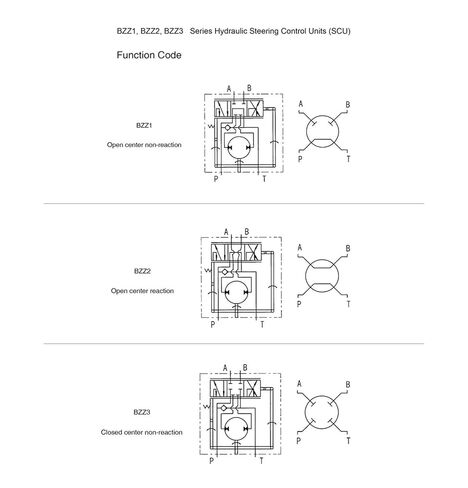

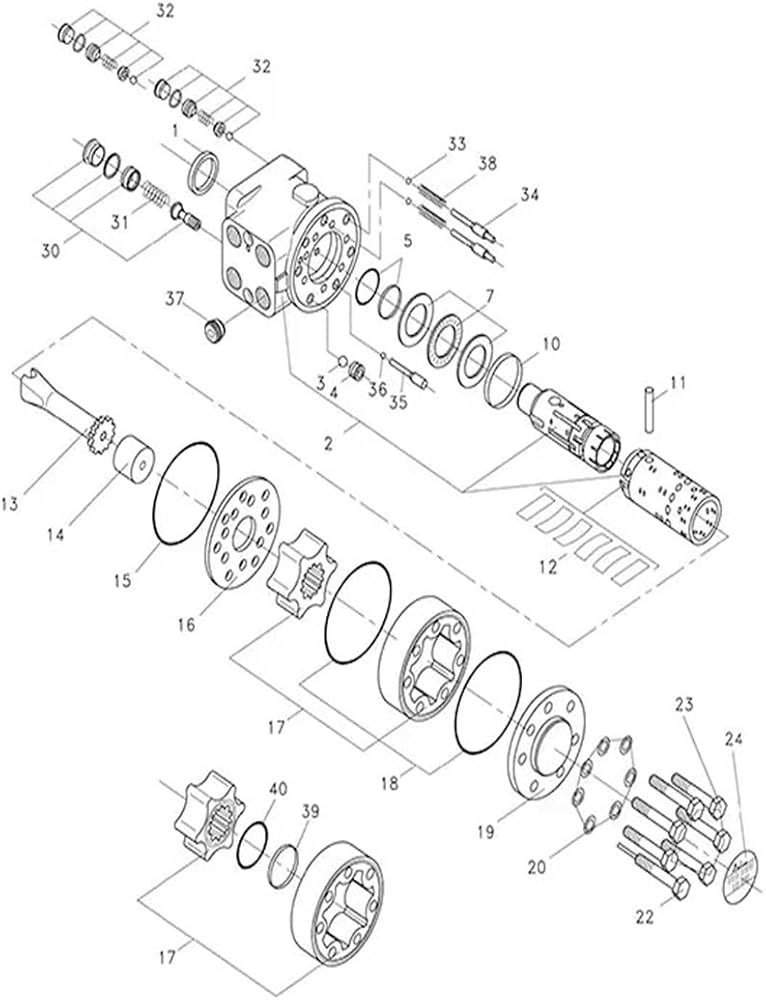

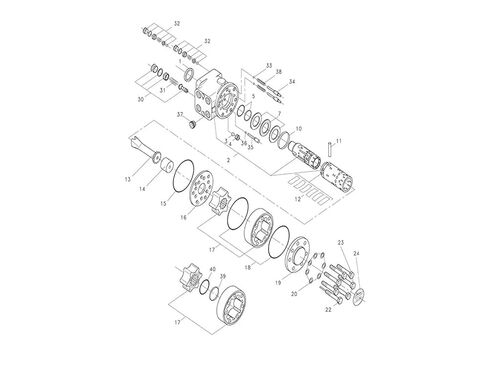

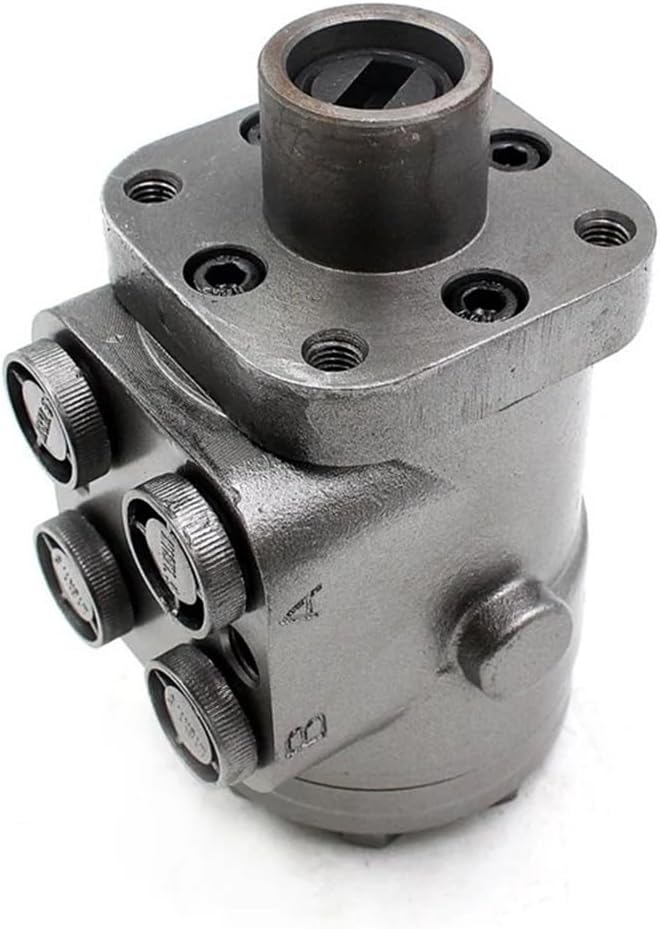

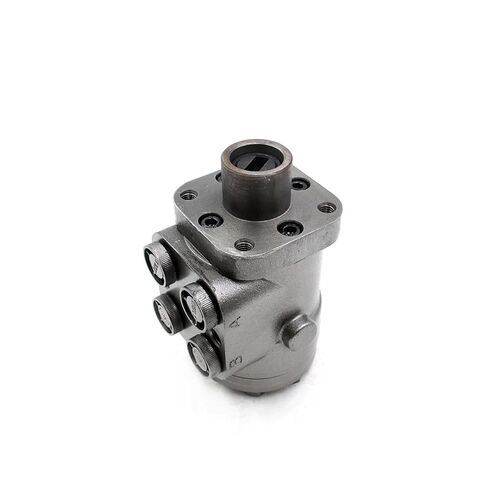

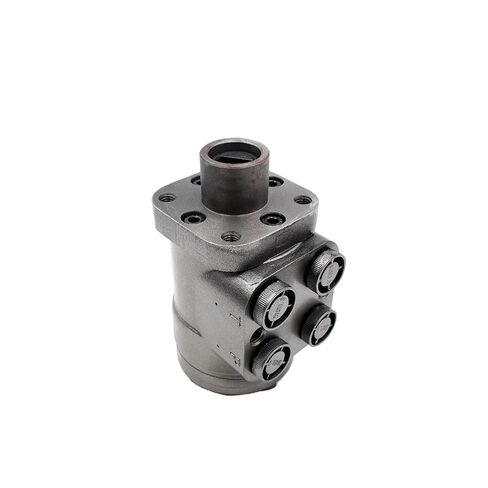

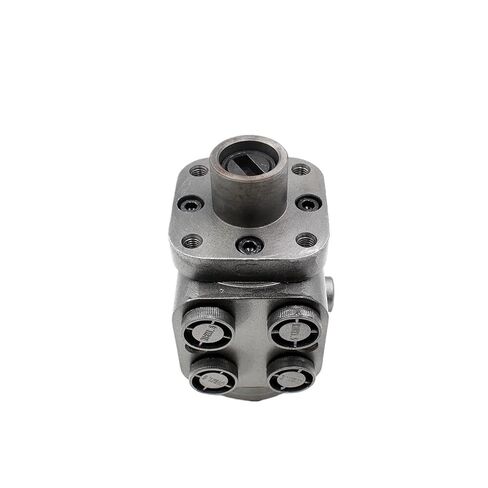

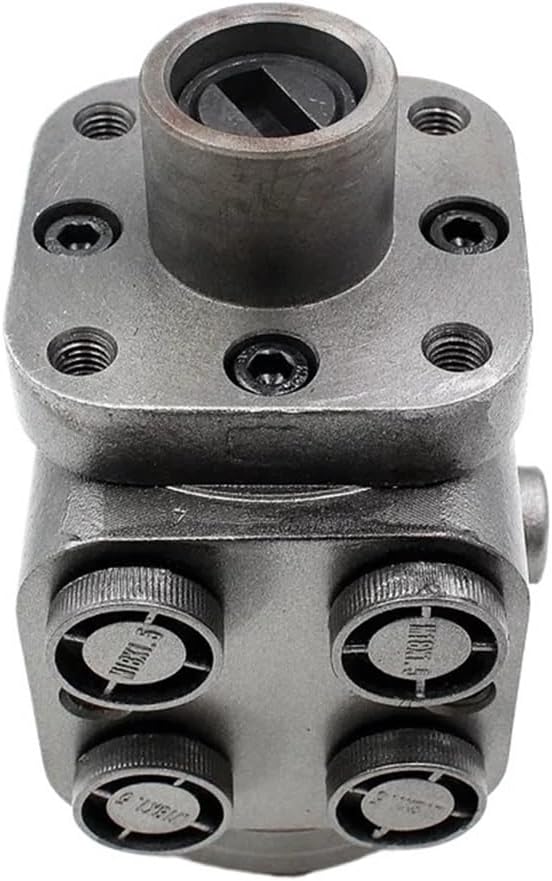

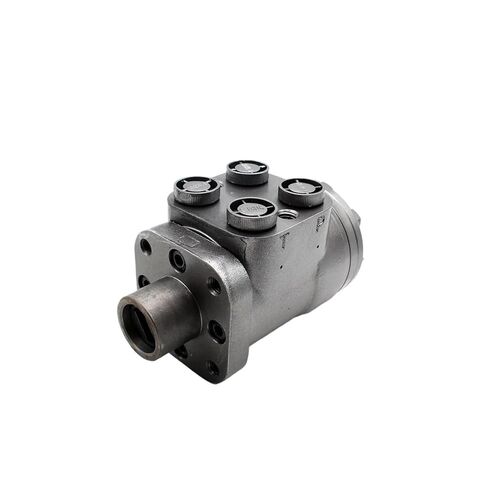

BZZ Series Hydraulic Steering Control Units (SCU)
BZZ1,BZZ2,BZZ3 series SCU offers the advantages as follows:
This kind of SCU series can help you reduce the machinery cost without mechanical linkage device, and can offer reliable and light
structure.

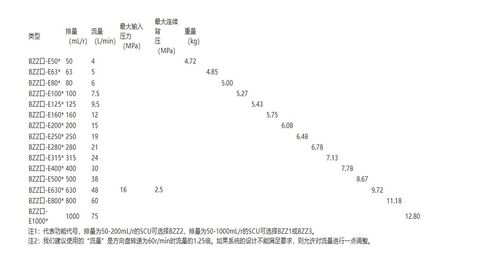

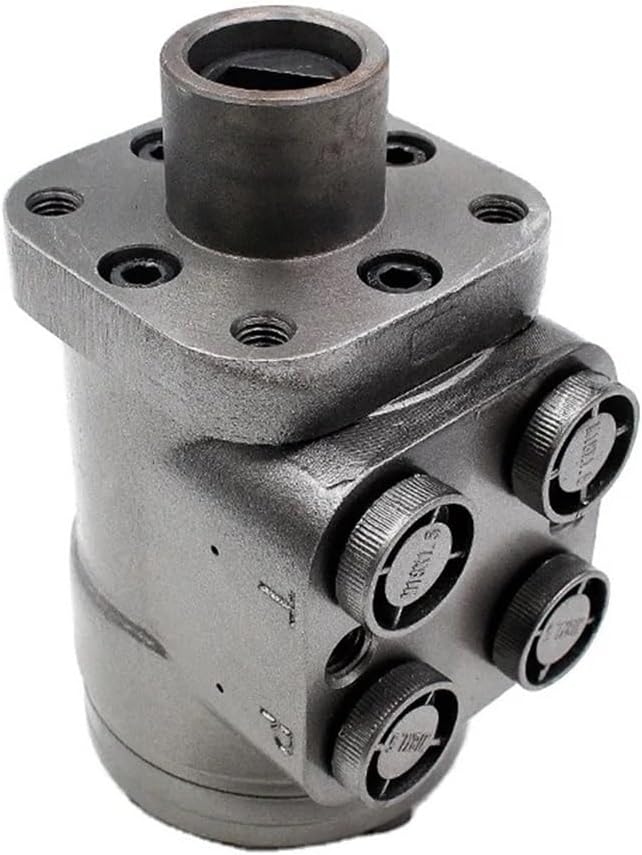

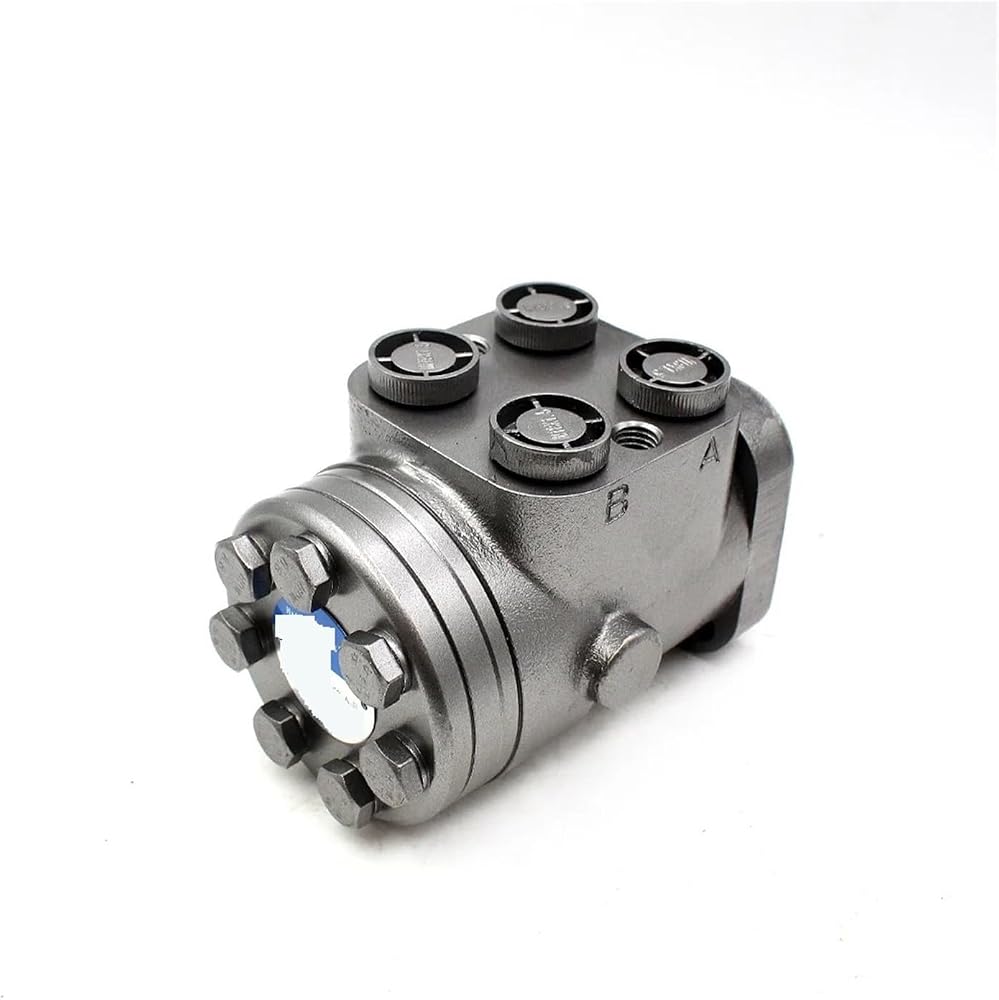

Specification
Hydraulic Steering Unit (BZZ1, BZZ2, BZZ3)
Hydraulic steering control units (BZZ)
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), design, better performance. Widely applied to low speed and heavy load
vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.
The advantages of the hydraulic steering control units:
* 1.Low cost, reliable.
* 2.No load reaction on the steering wheel comfortable.
* 3.Manual operation available when the pump doesnt work.
* 4.Low control torque, continuous operation.
* 5.According to the systems, different function and pressure level valves available.

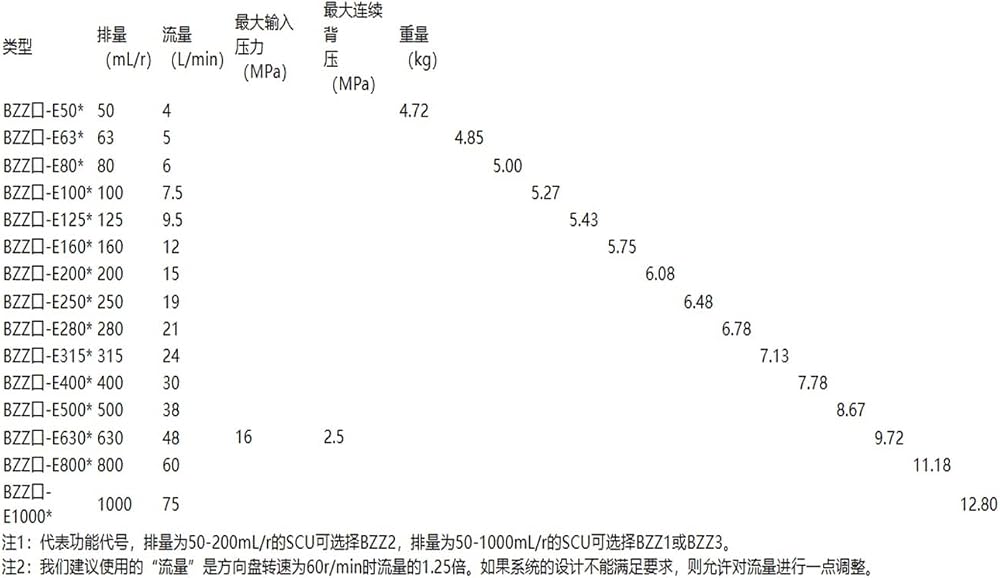

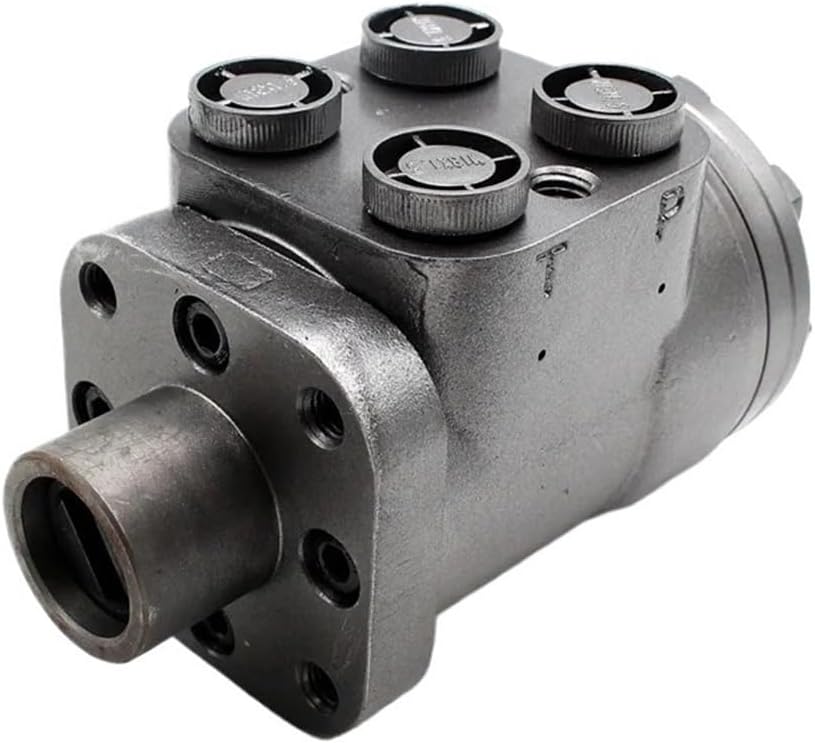

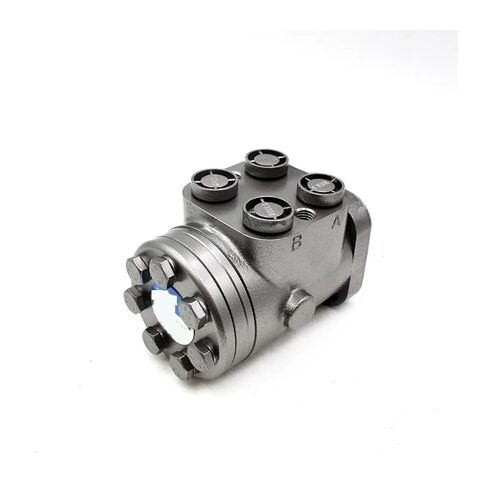

Type
Displacement
(mL/r)
Flow
(L/min)
Max.input
pressure(MPa)
Max.cont.back
pressure(MPa)
Weight
(kg)
BZZ-E50*
50
4 16
2.5
4.72
BZZ-E63*
63
5 4.85
BZZ-E80*
80
6 5.00
BZZ-E100*
100
7.5
5.27
BZZ-E125*
125
9.5
5.43
BZZ-E160*
160
12
5.75
BZZ-E200*
200
15
6.08
BZZ-E250*
250
19
6.48
BZZ-E280*
280
21
6.78
BZZ-E315*
315
24
7.13
BZZ-E400*
400
30
7.78
BZZ-E500*
500
38
8.67
BZZ-E630*
630
48
9.72
BZZ-E800*
800
60
11.18
BZZ-E1000*
1000
75
12.80
The installation and use of full hydraulic steering note
1 installation precautions:
* (1) When installation steering gear must ensure coaxiality with column, must have a gap of 1 mm in the axial direction.
* (2) The depth of screw connection to the steering column tightening steering column is 15mm.
* (3) After ste
