Introduction:
Hydraulic steering control units (BZZ),hydraulic motor
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.
Advantages:
The advantages of the hydraulic steering control units:
1. Low cost, reliable.
2. No load reaction on the steering wheel comfortable.
3. Manual operation available when the pump doesnt work.
4. Low control torque, continuous operation.
5. According to the systems, different function and pressure level valves available.
Specification:
Type
Displacement
(mL/r)
Flow
(L/min)
Max.input
pressure (MPa)
Max. cont. back
pressure (MPa)
Length (mm)
BZZ (1.2.3)E50 *
50
4
16
2.5
140
BZZ(1.2.3) E63 *
60
5
141
BZZ(1.2.3) E80 *
80
6
142.5
BZZ(1.2.3) E100 *
10
7.5
145
BZZ(1.2.3) E125 *
125
9.5
148
BZZ (1.2.3)E160 *
160
12
153
BZZ(1.2.3) E200 *
200
15
158
BZZ (1.3)E250 *
250
19
164
BZZ (1.3)E280 *
280
21
169
BZZ (1.3)E315 *
315
24
174
BZZ(1.3) E400 *
400
30
184
BZZ (1.3)E500 *
500
38
197
BZZ(1.3) E630 *
630
48
216
BZZ (1.3)E800 *
800
60
236
BZZ (1.3)E1000 *
10000
75
262
==========
Origin : Mainland China
Type : Hydraulic Power Units, Hydraulic Power Units
Weight : 6

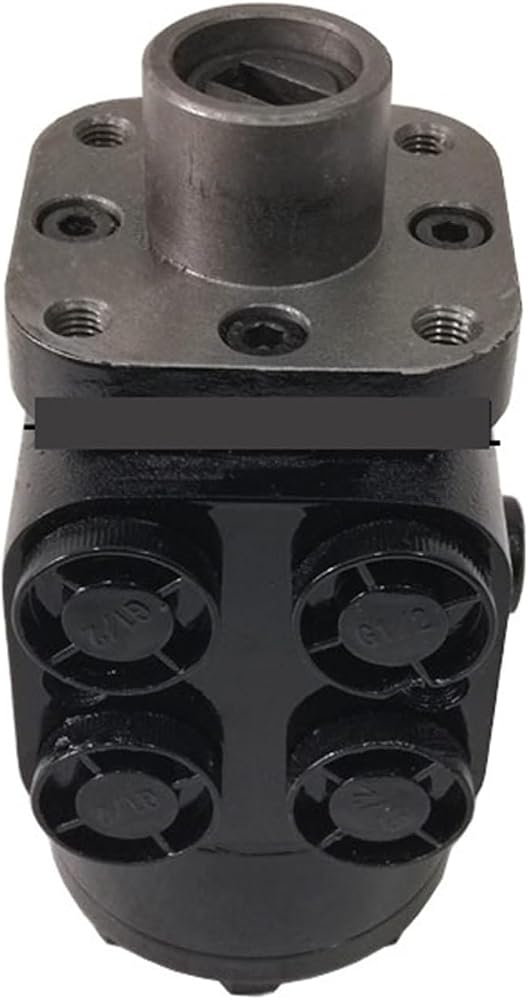

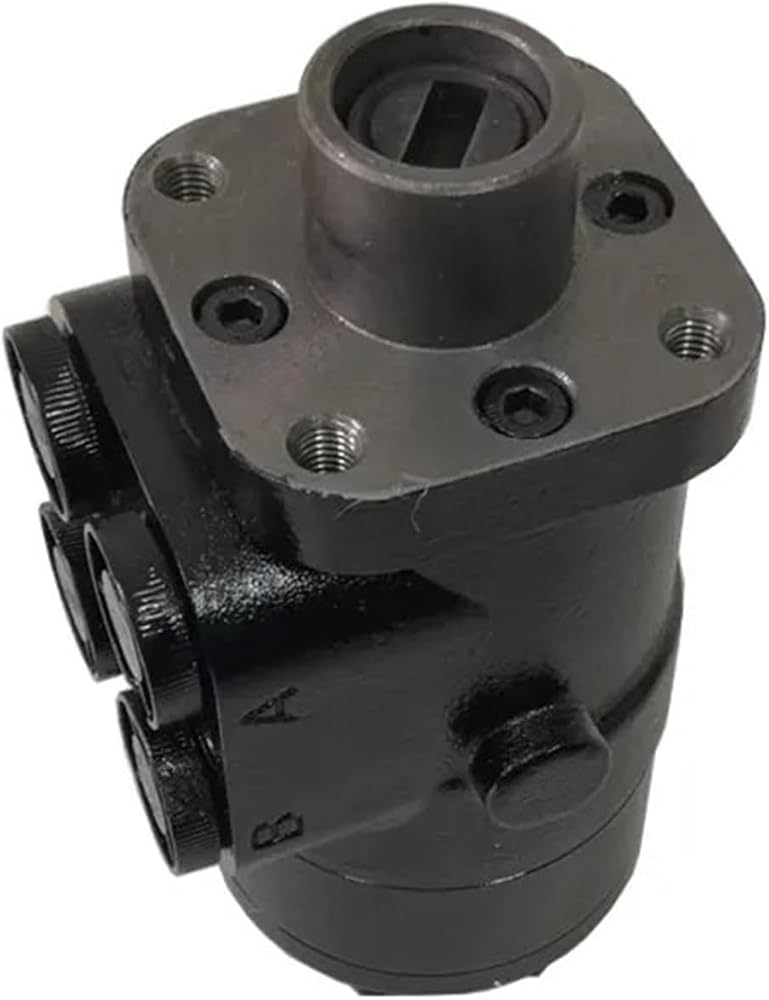

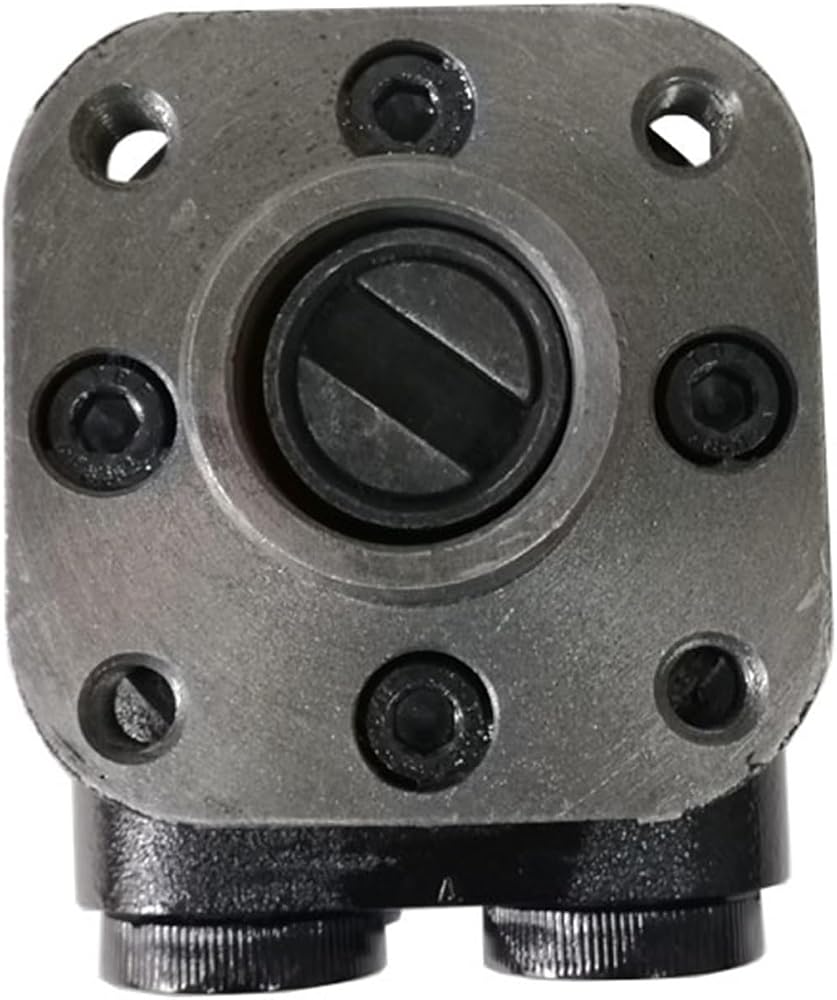

Product : tractor steering orbitrol
Function code : ON
Displacement : 250ml/rev
Rate flow : 19L/min
Max.Input Pressure : 16.0Mpa
Back pressure : 2.5
Oil port : G1/2
Oil tempreture : -35~80
