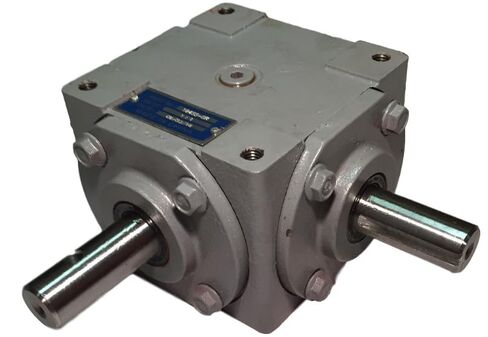

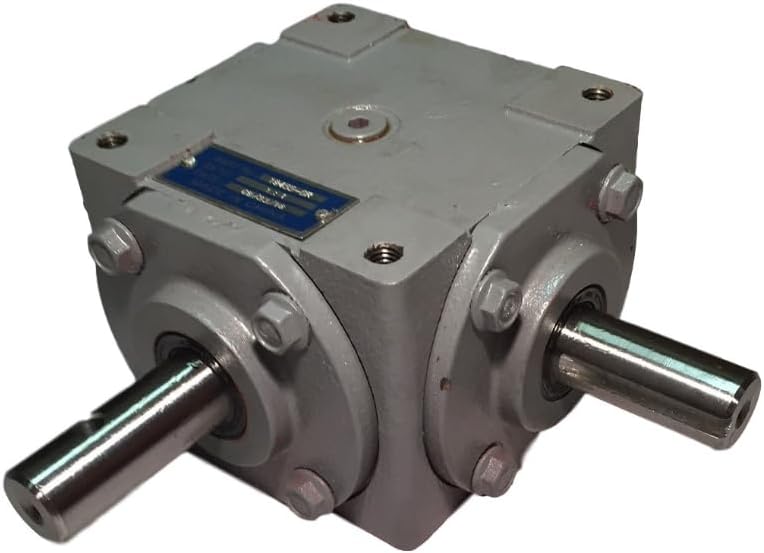

40 HP Right Angle Bevel Gearbox with 2 Keyed Shafts CW/CCW 1:1 - Cast Iron housing - Input Speed: 1,800 Max RPM; 19455-KW-KW-GR in Saudi Arabia 40 HP Right Angle Bevel Gearbox with 2 Keyed Shafts CW/CCW 1:1 - Cast Iron housing - Input Speed: 1,800 Max RPM; 19455-KW-KW-GR in Saudi Arabia

40 HP Right Angle Bevel Gearbox with 2 Keyed Shafts CW/CCW 1:1 - Cast Iron housing - Input Speed: 1,800 Max RPM; 19455-KW-KW-GR

SAR 829
– 1 +

Special Features

  • Technical Information:
  • Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
  • Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
  • Input Shaft: 1" X 2-1/4" with 1/4" Keyway
  • Output Shaft: 1" X 2-1/4" with 1/4" Keyway
  • Input Power: 40 HP
  • Input Speed: 1,800 Max RPM
  • Shaft Rotation: CW to CCW with 1:1 Ratio

Description

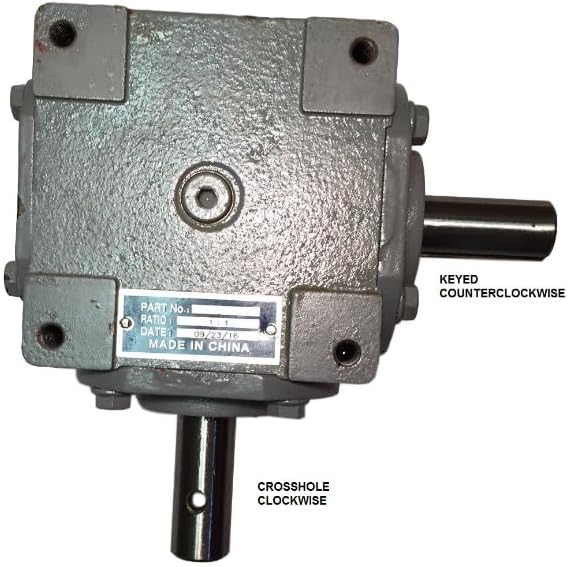

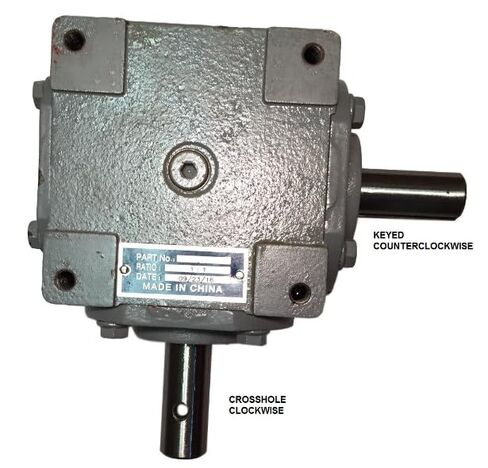

Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W) Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN OPPOSITE DIRECTIONS (CW/CCW).
