Application

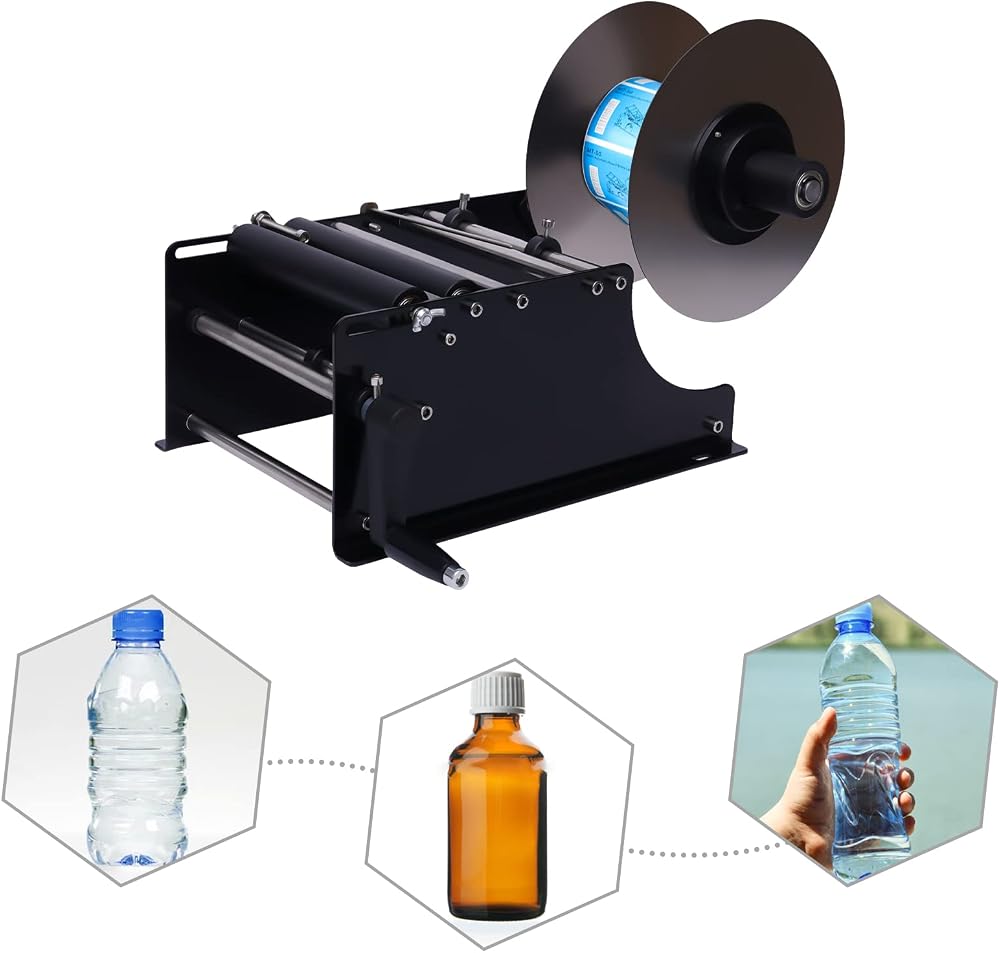

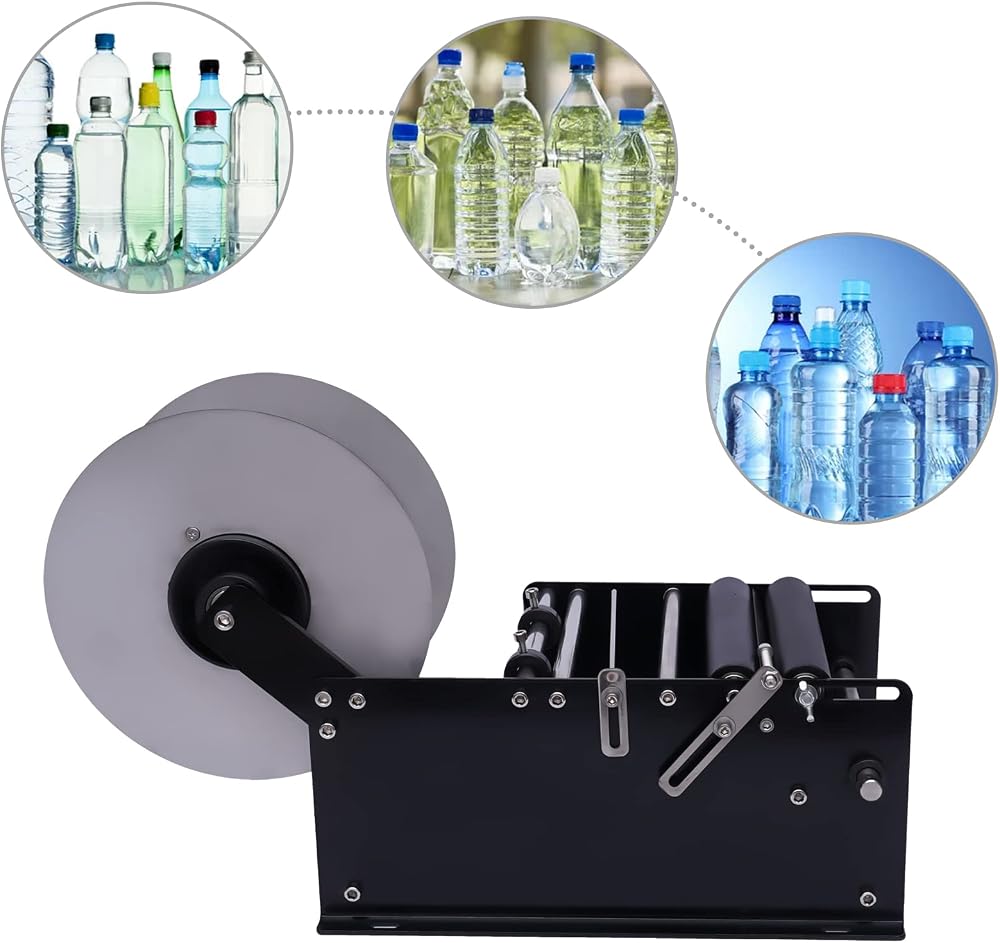

It can be used to apply pressure-sensitive adhesive labels on round s, round cans, or cylinders. It is suitable for round s of 0.79in-4.72in diameter, such as PET s, plastic s, glass s, metal s, etc. It is widely used in cosmetic, beverage, food, food, medical, and other industries to rapidly increase production efficiency as well as improve label quality.SpecificationModel: MT-30Color: BlackMaterial: IronStyle: ModernProcess: High-temperature Baking Paint ProcessMounting Type: Desktop Mount, standingAccuracy: ±0.5mm/0.01inchSuitable Diameter: 2-12cm(0.79in-4.72in)Label Speed: 10-30pcs/minLabel Roll Inner Diameter: ≥75mm/2.9inchLaber Roll Out Diameter: ≤250mm/9.8inchLabel Width: 10-110mm/0.3-4.3inchLabel Length: 10-300mm/0.3-11inchNet Weight: 5kg/11.02lbsGross Weight: 5.5kg/12.13lbsPackage Size: 42*25*28cm/16*9.8*11.0inchInstallation1.Attach the label cartridge to the side of the machine with screws and nuts.2.Attach the nut and the label cartridge with a silicone ring.3.Fix the paper supply tray and the middle part with screws.4.Insert the paper supply tray into the label cartridge.5.Attach the hand joystick to the side of the machine with screws.6.Attach the remaining part of the hand joystick.7.The installation is complete.How to Use1.Use an allen key to unscrew the paper supply tray.2.Insert the label into the label roller and reattach the paper supply tray.3.Pull out a piece of label paper and insert it into the machine in sequence.4.Place the on top of the machine.5.Rotate the hand joystick to complete the labeling.
Package Included1* 2* Paper Supply Trays1* Label Cartridge1 Set* Hand Joystick3* Allen 1* Silicone Ring11* Screws2* Label Tray ClampsOther Accessories for Assembly
