Nova Star MX30 controller integrates video processing and video control into one box, providing rich video input interfaces (HDMI 2.0, HDMI 1.4, DP 1.1, and 3G-SDI), 10 Ethernet output ports, and 2 10G optical ports. It can also collaborate with the new software VMP (Visual Management Platform) to provide a better operating and control experience.
Nova Star MX30 controller Inputs:
Multiple types of inputs
− 1x HDMI 2.0 (with loop through)
− 1x HDMI 1.4 (with loop through)
− 1x DP 1.1
− 2x 3G-SDI (with loop through)
10-bit and 8-bit video inputs

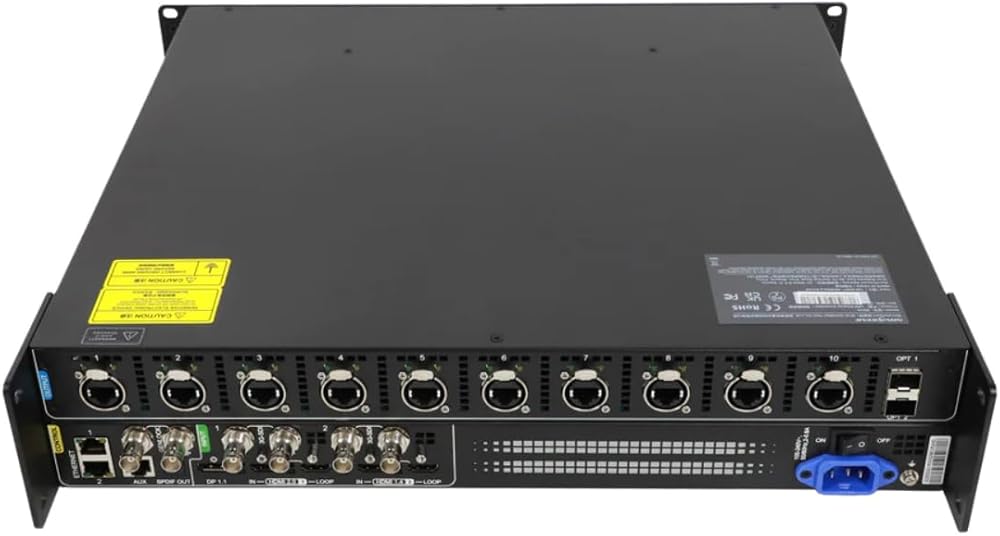

Nova Star MX30 controller Outputs:
3 types of outputs
− 10x Gigabit Ethernet ports, load capacity up to 6.5 million pixels
− 2x 10G optical ports
− 1x SPDIF digital audio port
3 types of controls
− 1x Genlock signal input (with loop through)
− 2x Ethernet control ports
− 1x Auxiliary port
Features:
Power input: 100-240V~, 50/60Hz, 2-0.8A
Max power: 55 W
Operating Temperature: –20ºC to +50ºC
Humidity: 0% RH to 80% RH, non-condensing
Storage Temperature: –30ºC to +80ºC
Size: 482.6 mm × 94.2 mm × 466.7 mm
Weight: 7.2KG
NOVASTAR
