مميزات خاصة

Logarithmic Detection: The AD606 Module provides high-performance logarithmic detection with an 80dB dynamic range, accurately capturing from -75 dBm to +5 dBm.
Output Amplitude: Featuring output amplitude, this log amplifier allows for customization to suit various application needs, enhancing flexibility and control.
Low Power Consumption: Designed for efficiency, the AD606 Module operates at a typical power consumption of just 325 mW, offering CMOS compatibility for reduced energy usage.
Robust Demodulation Capabilities: With integrated demodulation features, this amplifier supports limiter output and includes a low-pass output filter, ensuring and stable processing.
Compact & Easy Installation: The compact design of this logarithmic detector module makes installation and removal simple, making it an ideal choice for various space-constrained applications.

وصف

Specification

Condition: Brand New

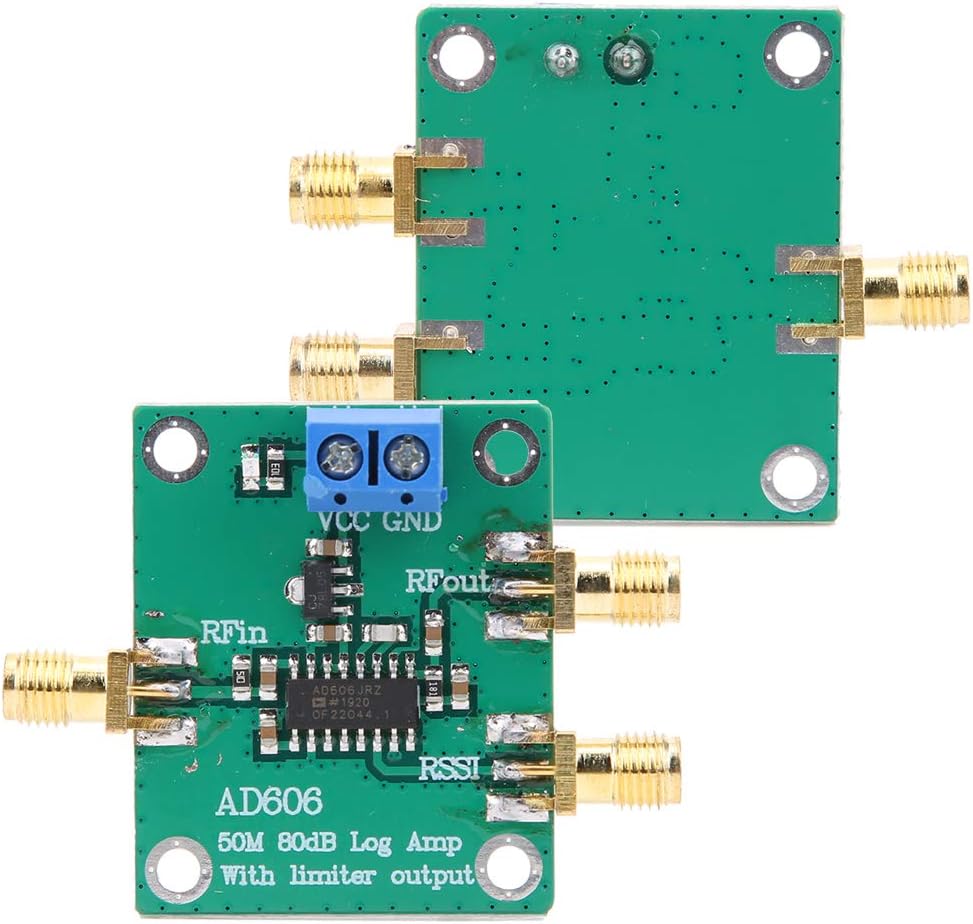

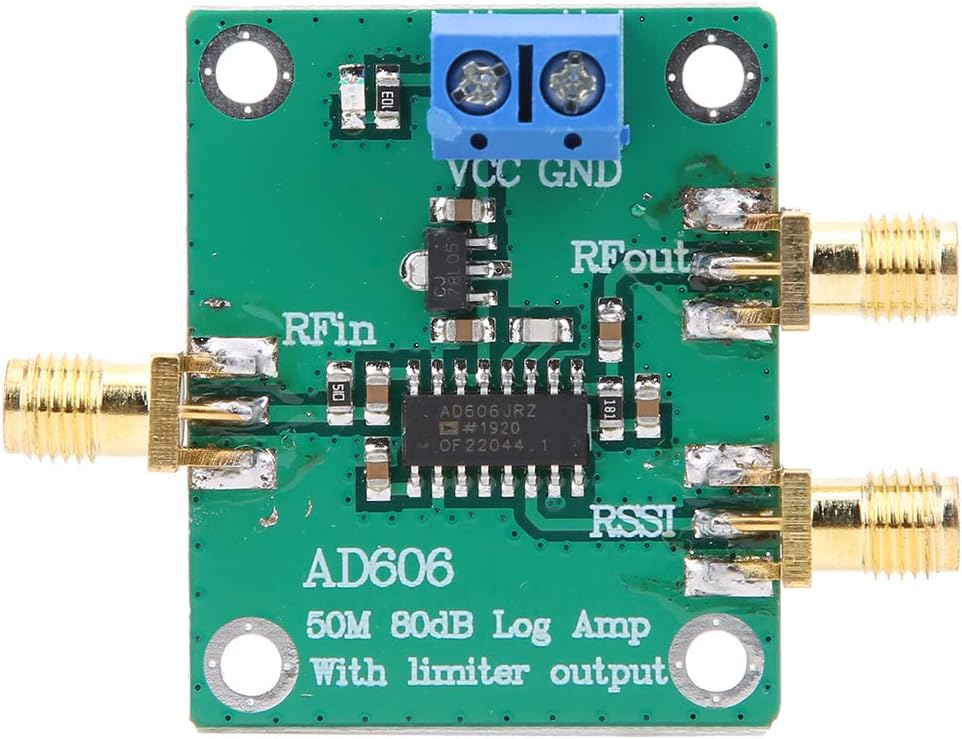

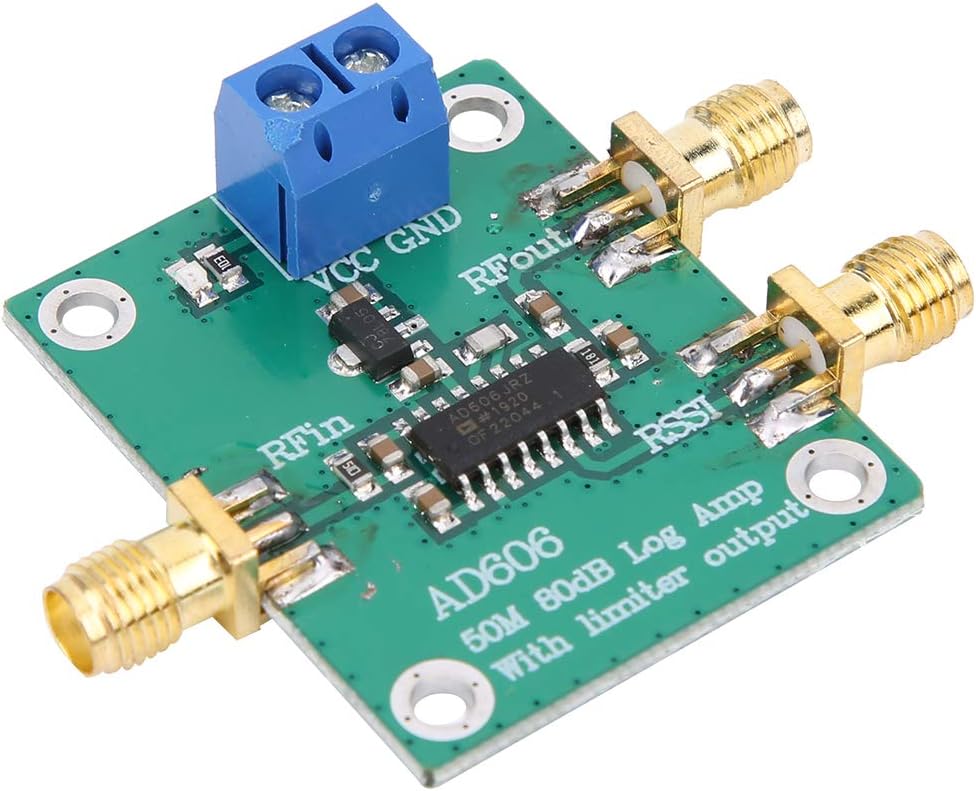

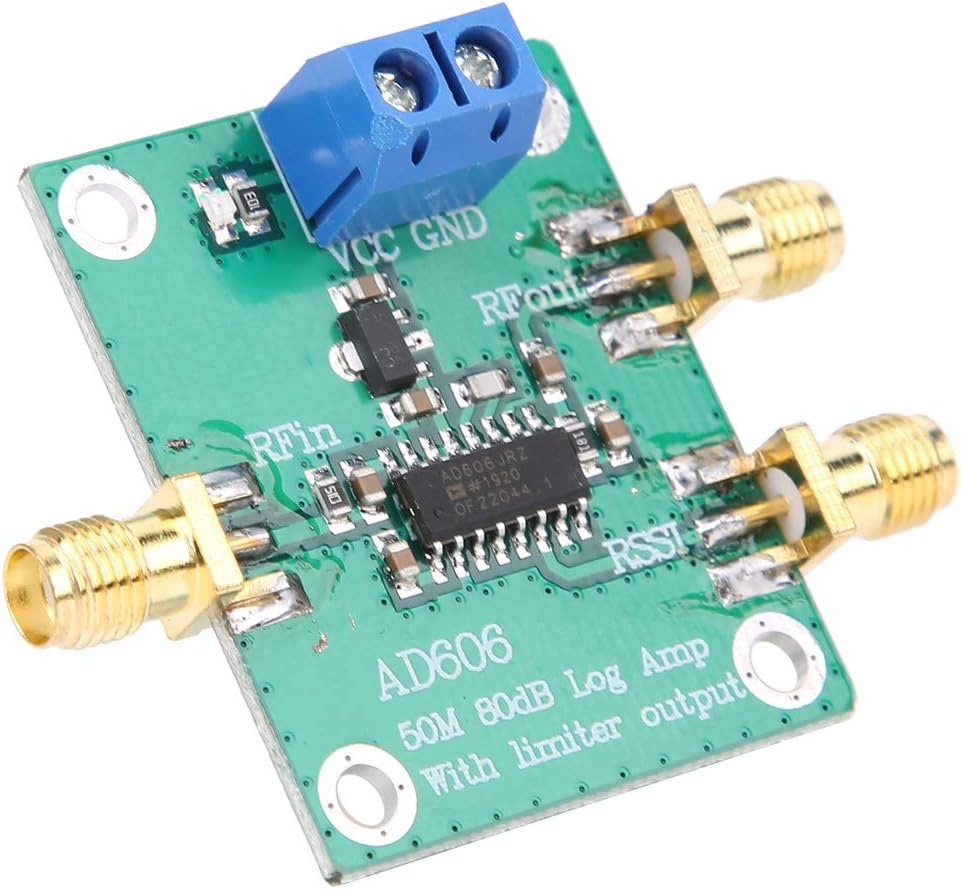

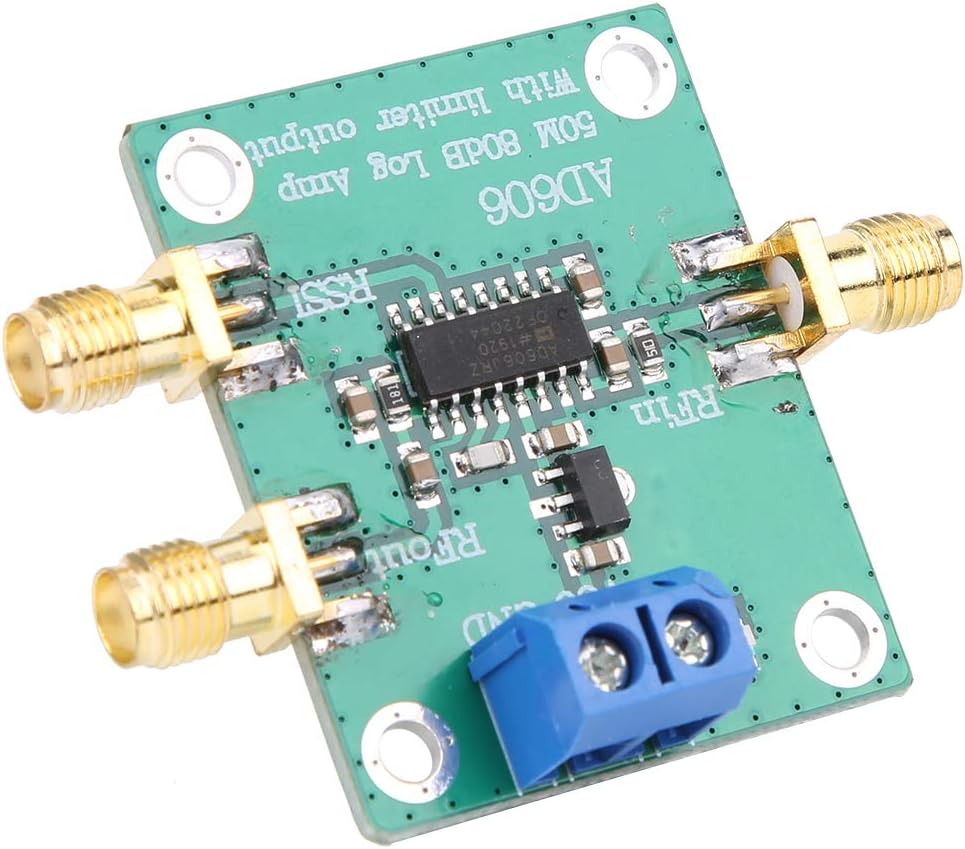

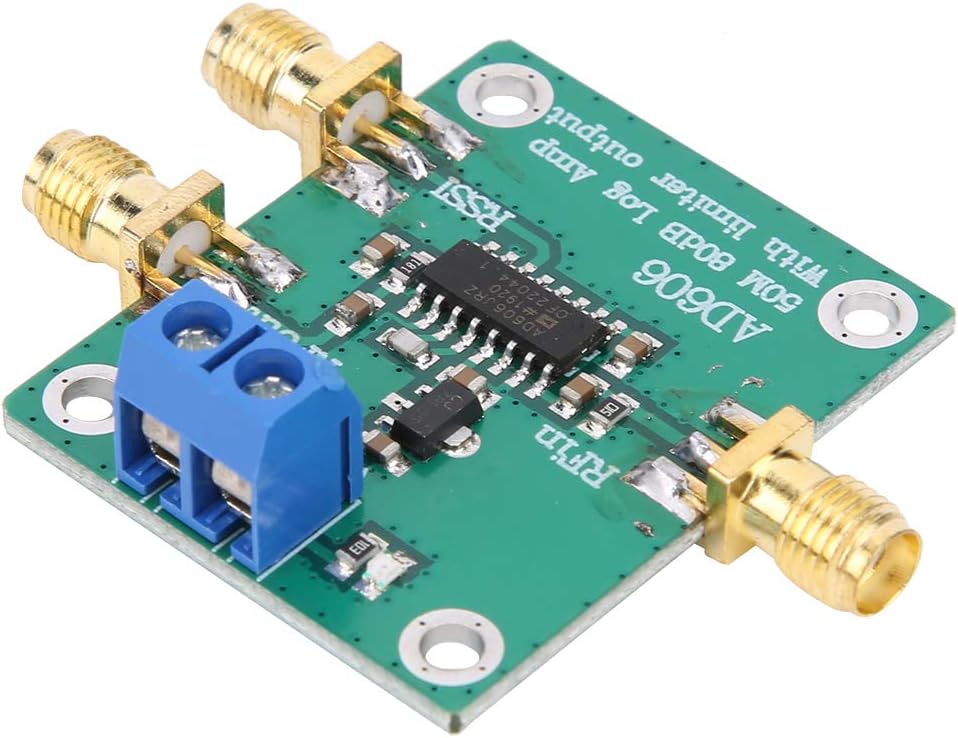

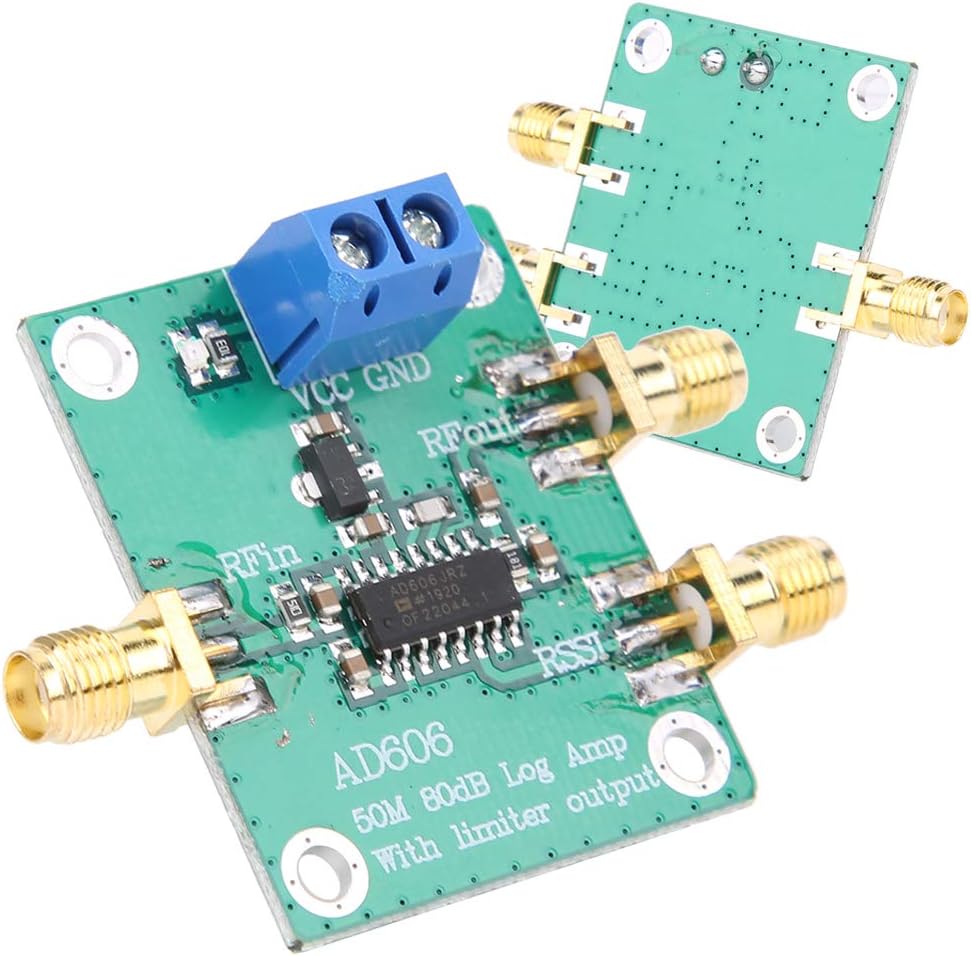

Item Type: AD606 Module
Material: Plastic
AD606 80dB demodulation logarithmic amplifier, frequency exceeds 50MHz

Auxiliary limiter output
Output flatness: ±1 dB (within 80dB)
Phase stability: ±3 degree (10.7 MHz, 80dB)
output amplitude
Low power consumption
With offset control circuit to input offset voltage
Power supply voltage range: 5V
Chip features:
Log amplifier performance
-75 dBm to +5 dBm dynamic range
≤1.5nV/√Hz input noise
Available for> 50 MHz
37.5 mV/dB voltage output
On-chip low-pass output filter
Limiter performance
61 dB output flatness in the 80 dB range
638 phase stability at 10.7 MHz in the 80 dB range
output amplitude
Low power
+5 V single power supply
Typical power consumption 65 mW
CMOS compatible power consumption reduced to 325 mW (typical value)
