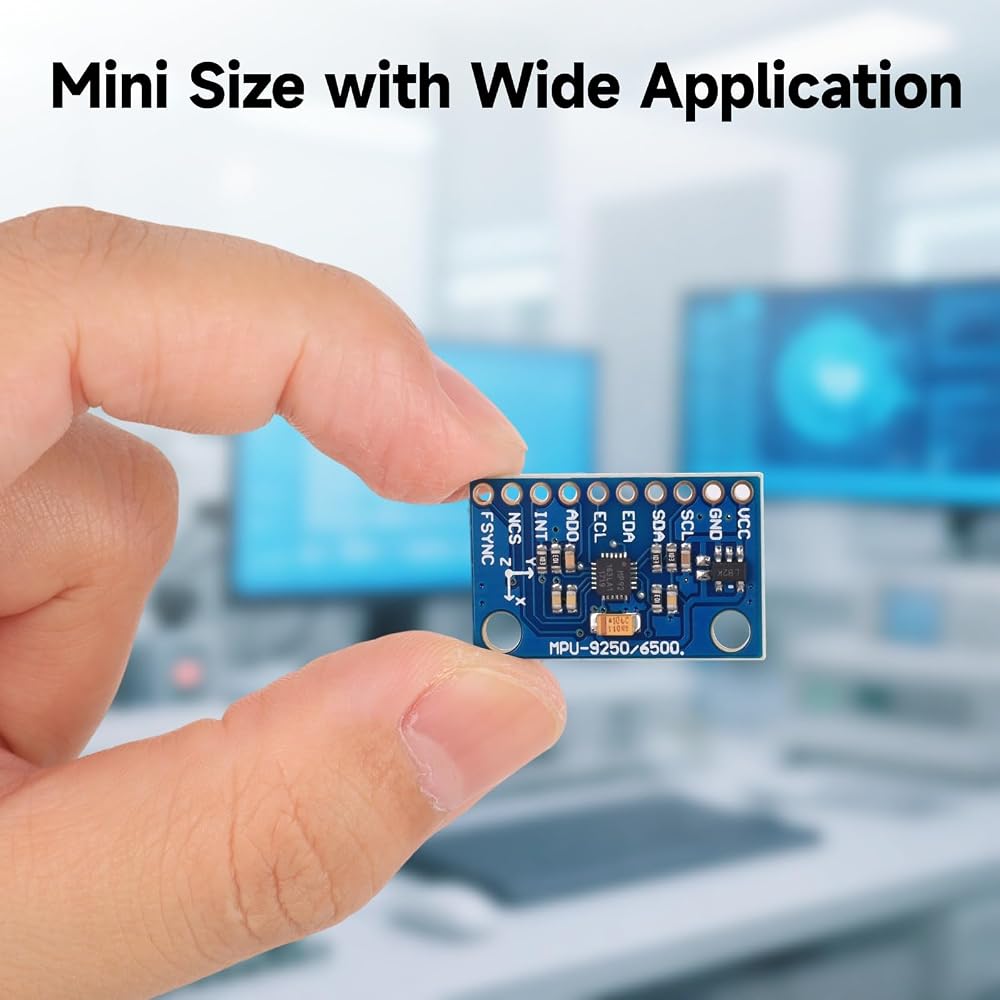

The gyroscope features a monolithic design and compact form factor, enabling the integration of an accelerometer, gyroscope, and 3-axis magnetometer within a miniature 3mm×3mm QFN package. And the Sensor uses immersion gold PCB and machine welding technology to ensure quality
The sensor module enables precision tracking across dynamic motion profiles by supporting user-programmable full-scale ranges: ±250/500/1000/2000°/sec (dps) for the gyroscope, ±2/4/8/16g for the accelerometer, and ±4800µT for the magnetometer

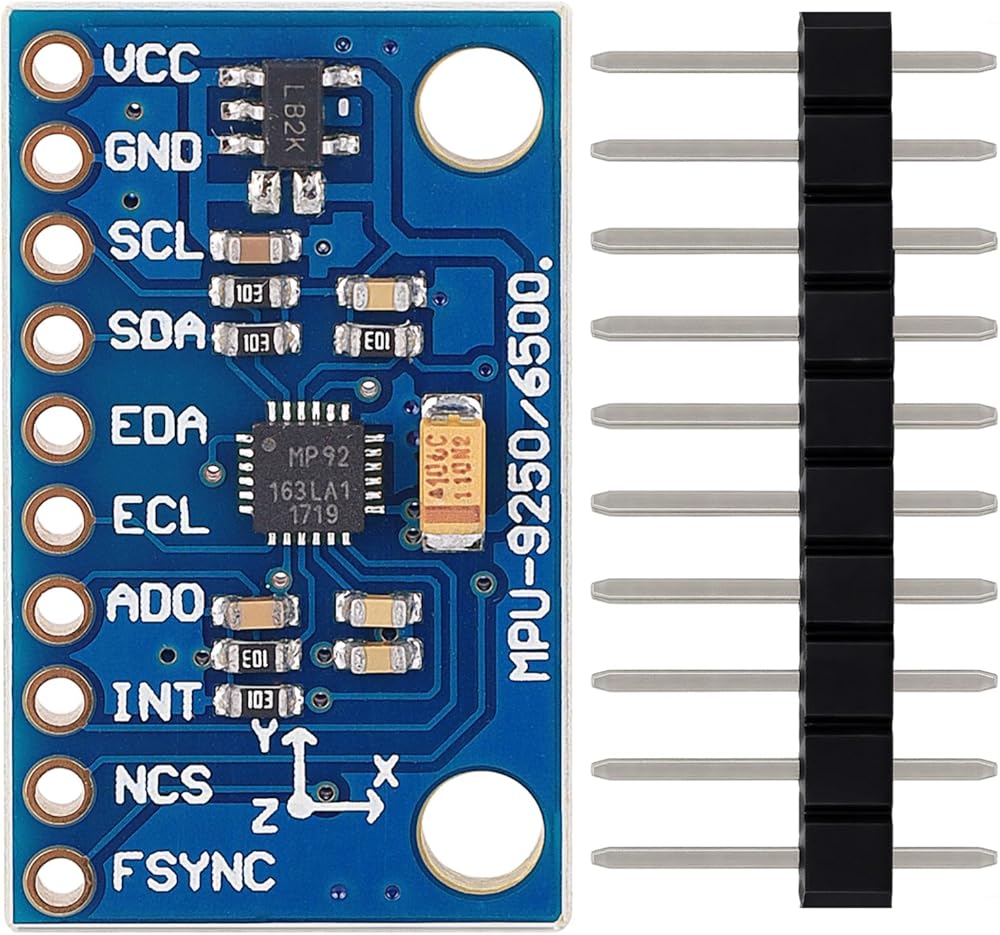

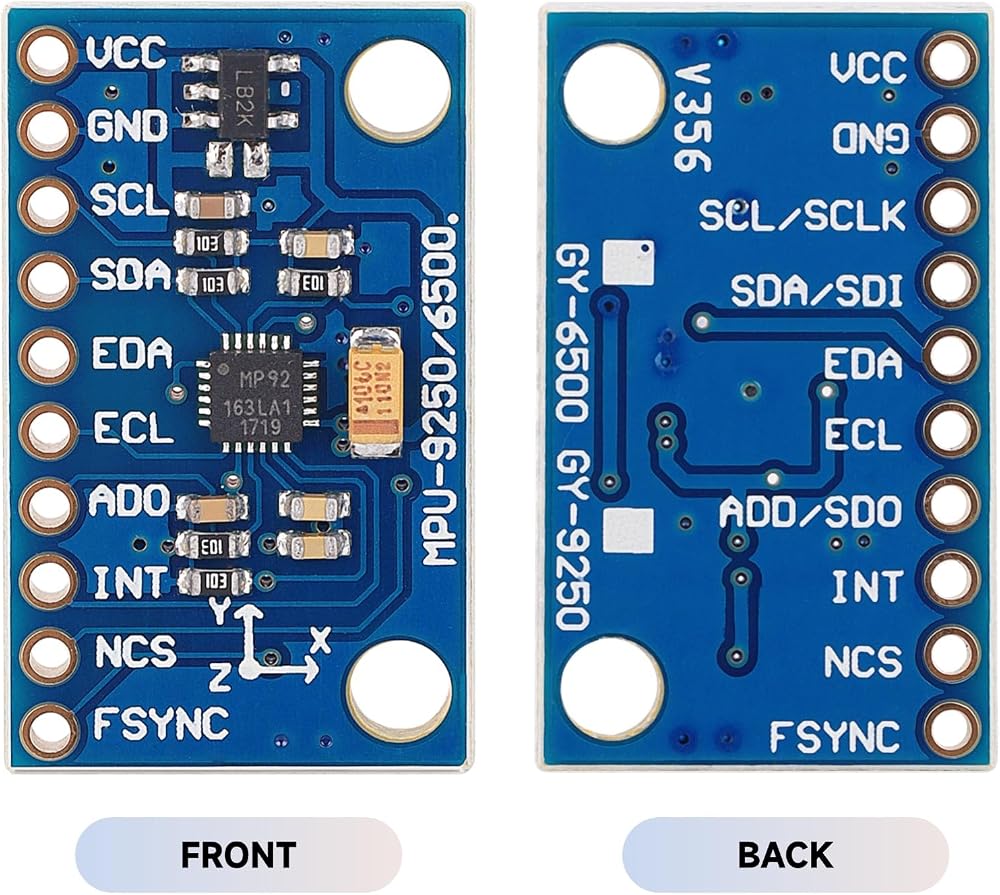

Other industry-leading features include programmable digital filters, a precision clock with 1% drift from -40°C to 85°C, an embedded temperature sensor, and programmable interrupts. Compatiable for Arduino, ESP8285, Raspberry Pi( Note: Rasperry Pi requires special wiring, please connect the EDA pin to the SDA pin and the ECL pin to the SCL pin if you have some problem on it)
The device supports full register access via standard I2C (400 kHz) or SPI (up to 1 MHz) interfaces. For bandwidth-critical applications, time-sensitive sensor data and interrupt status registers can be directly retrieved through high-speed SPI burst mode operations at 20 MHz

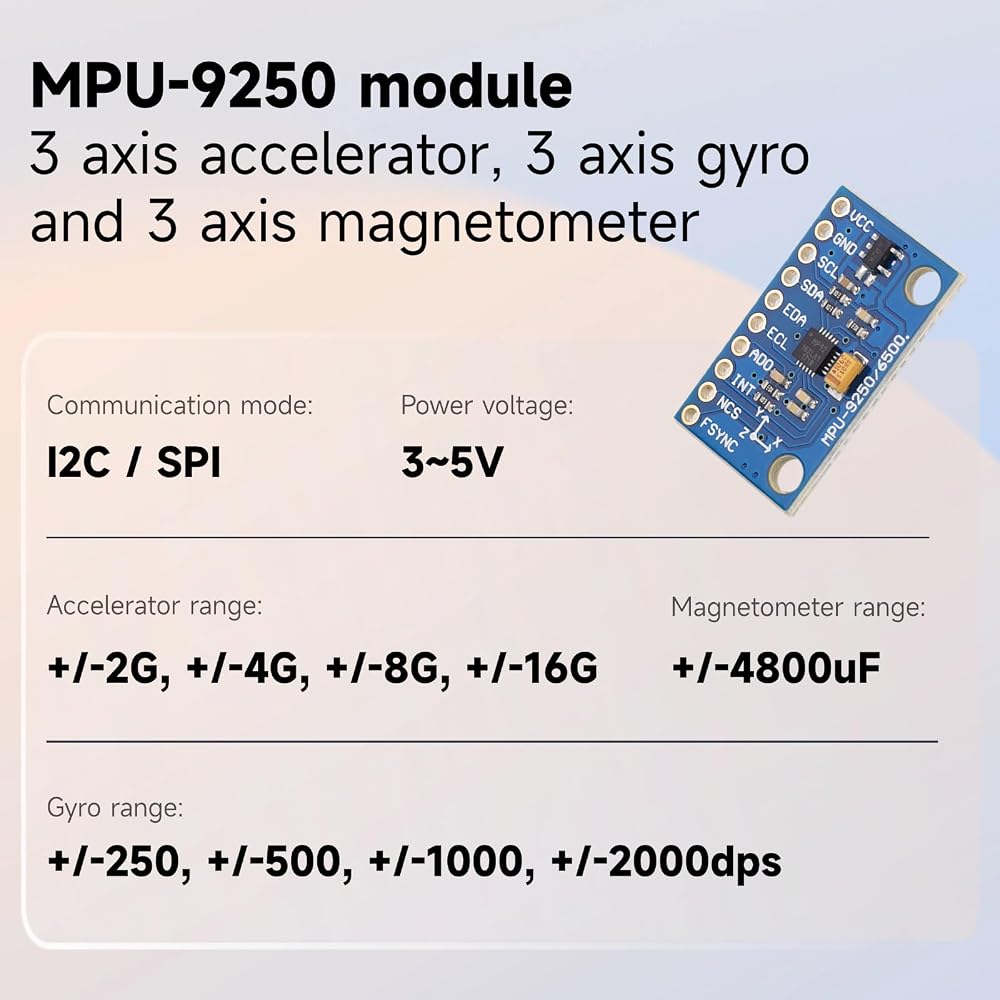

Chip used: MPU-6500; Power supply: 3-5v (internal low voltage dropout regulator); Communication method: standard IIC/SPI communication protocol; Chip built-in 16bit AD converter, 16-bit data output; Gyroscope range: ±250 500 1000 2000 °/s; Acceleration range: ±2±4±8±16g
