Part Number: 079458070194

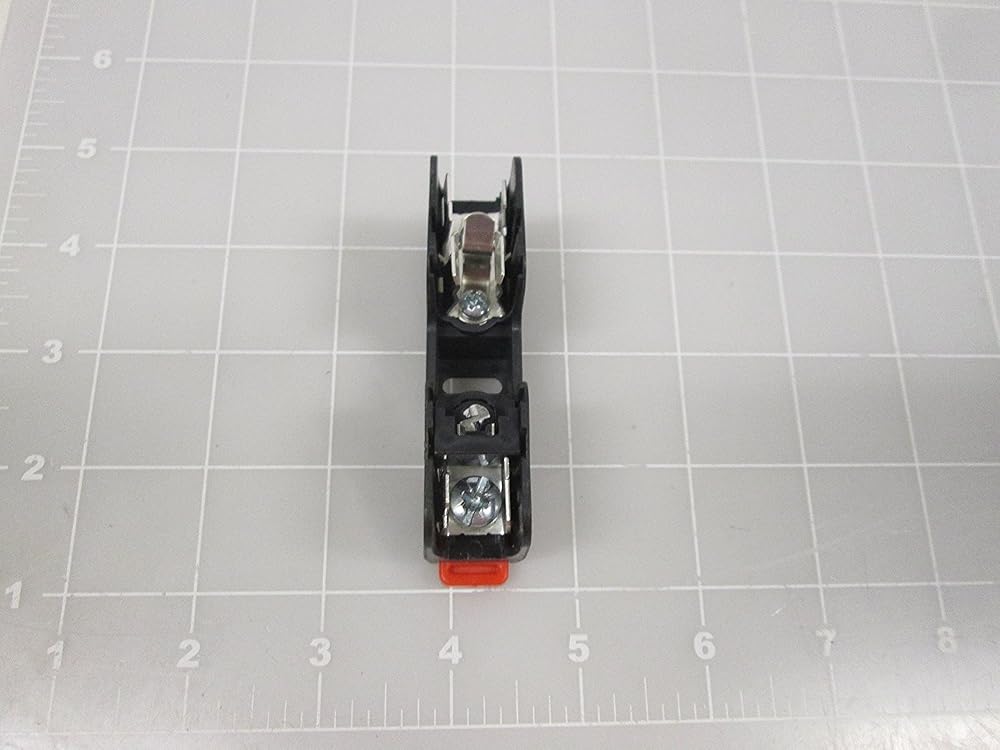

Part: Littelfuse L60030C-1SQ Fuse Block, 30A, 1P, 600V, Class CC, Screw, QC Terminal
Fuse Blocks, Blocks, Brand or Series: Class CC, Number of Poles: 1 Pole, Amp Rating: 30, Voltage Rating: 600 VAC, Terminal Type: Screw, Quick Connect Terminal, Material: Thermoplastic, Dimensions: 3 Length x .783 Width x 1.25 Depth Inch, Features: One-Piece Fuse Clip, Fuses: Class CC/KLDR, KLKR, CCMR, Max. Current: 200000 Amp RMS Symmetrical, Max. Wire Size: #10 Copper.
Mounting:Panel
Amps:30
Volts AC:600
Poles:1
Type:Fuse Block
Also known as: 079458070194, class cc, 1 pole, fuse block, LFUL60030C1SQ, Littelfuse, L60030C-1SQ, Fuse Blocks - Class CC, Fuse Blocks, Holders & Accessories, Fuses & Accessories, Power Distribution
Equivalent to:
Brush
MR631-33
Brush
MR631-66
BUSS/USD
BC6031S
BUSS/USD
BC6031SQ
Bussmann
2078
Bussmann
BC6031S
Bussmann
BC6031SQ
Edison
MR631-55
Ferraz
30311R
Ferraz
R 212397
Ferraz
R212397
Fusetek
6CC30S1
Fuzetec
6CC30S1
Gould
30311R
Marathon
6CC30A1S
Marathon
6CC30A1SQ
Marathon
F6CC30A1SQ
