مميزات خاصة

【 Aviation-grade Aluminum Structure 】 This product is made of aviation-grade aluminum materials and is not prone to corrosion and wear. It is an ideal gift for friends engaged in mechanical production, making their measurements more convenient.
【 Manual Control 】 The running direction of the slider can be manually controlled to achieve precise positioning and adjustment. The ergonomic handle provides a comfortable grip and locking mechanism, making it less likely for the slides to loosen. The operation is intuitive and requires no training or experience.
【 Easy to Use 】 It does not require a complex control system or power supply, is easy to operate and has low maintenance costs. The surface is smooth. After use, just wipe off the dust with a towel. Compared with electric systems, this is a cost-effective solution.
【 Professional-level Versatility 】 It is used for precise measurement in C-N-C equipment transformation, production machinery, testing equipment, and optical laboratories, as well as for fine adjustment of displacement, positioning, and motion of mechanical equipment.

وصف

Model Number

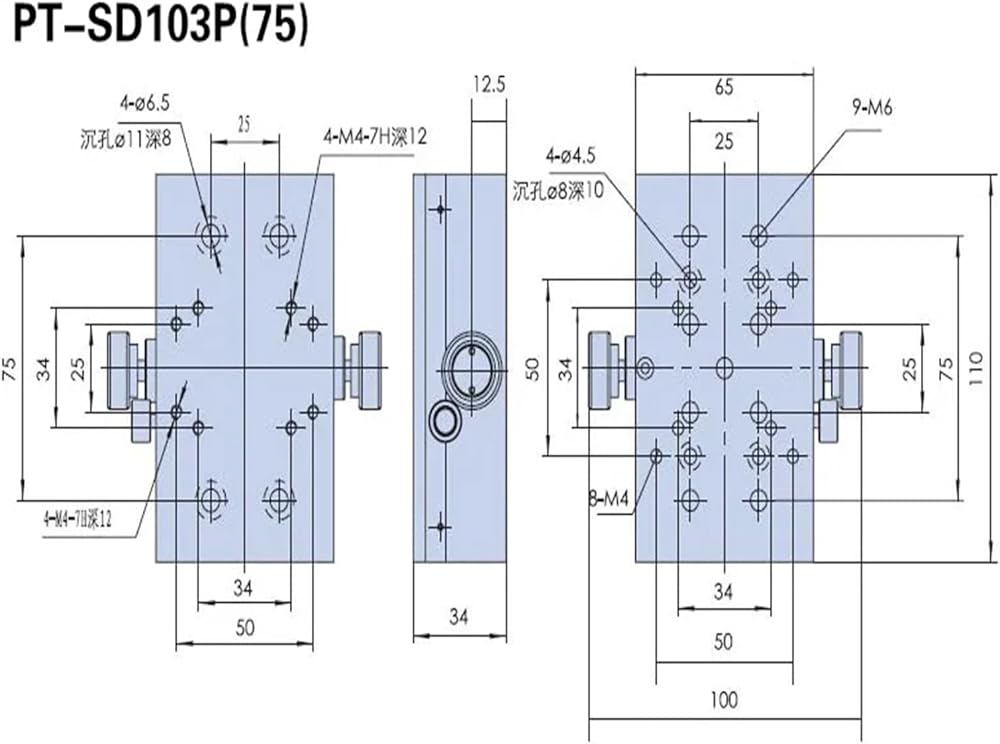

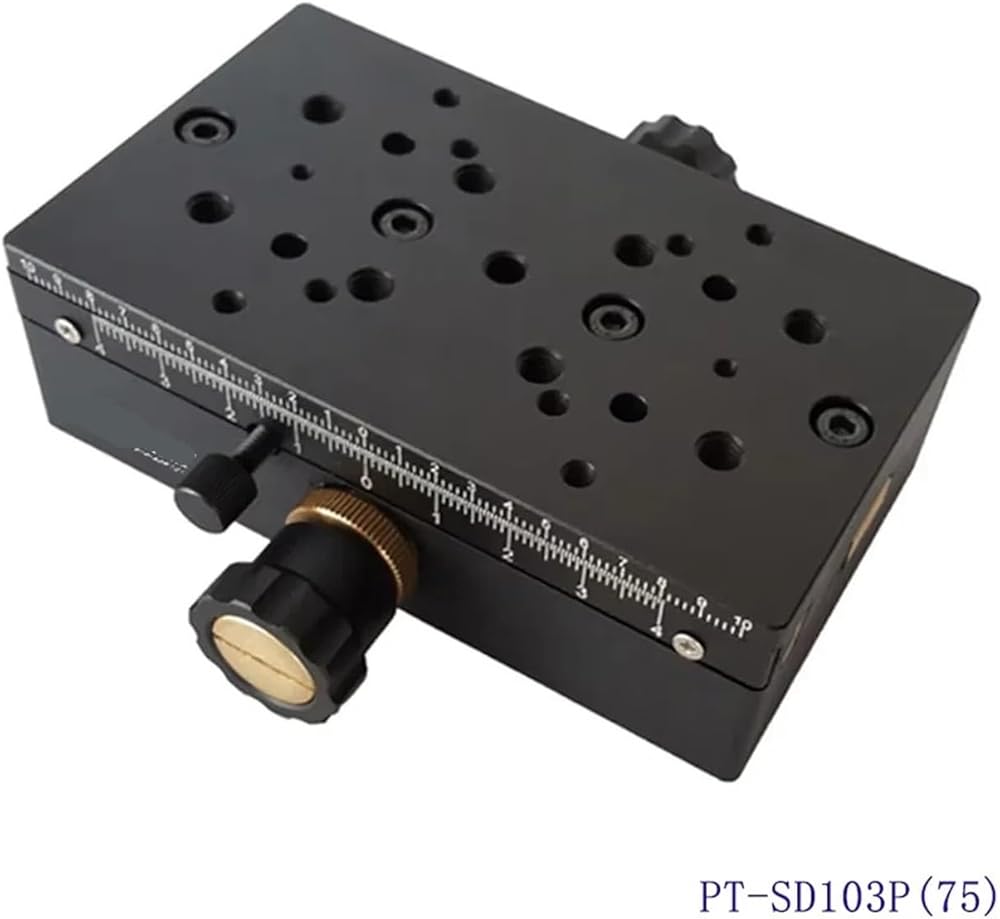

PTSD103P(75)

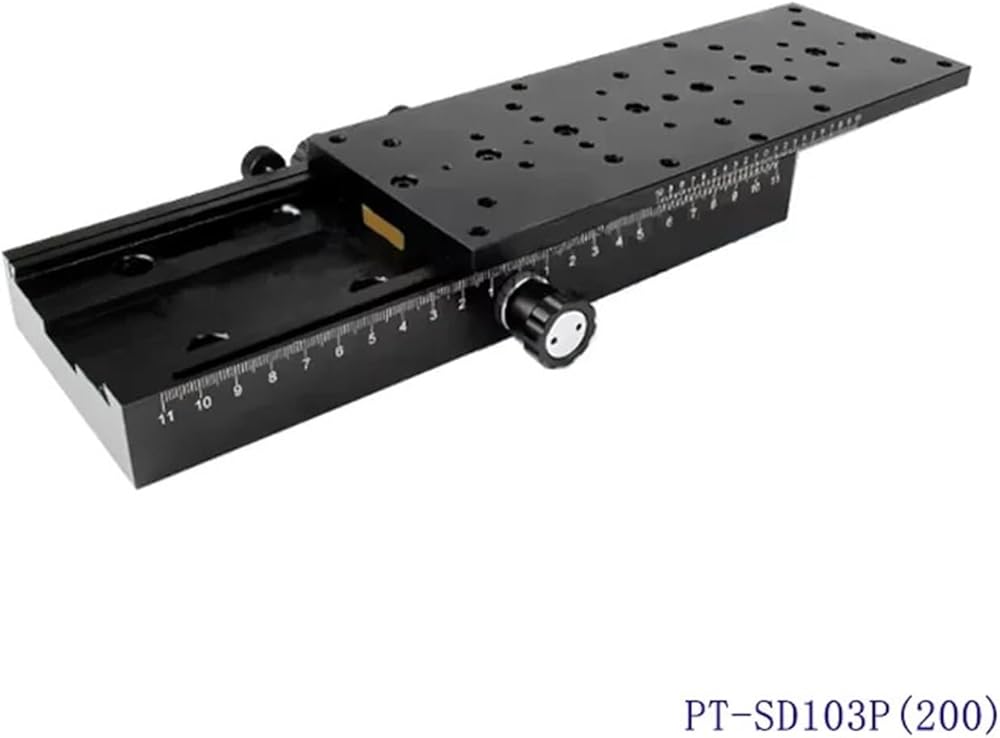

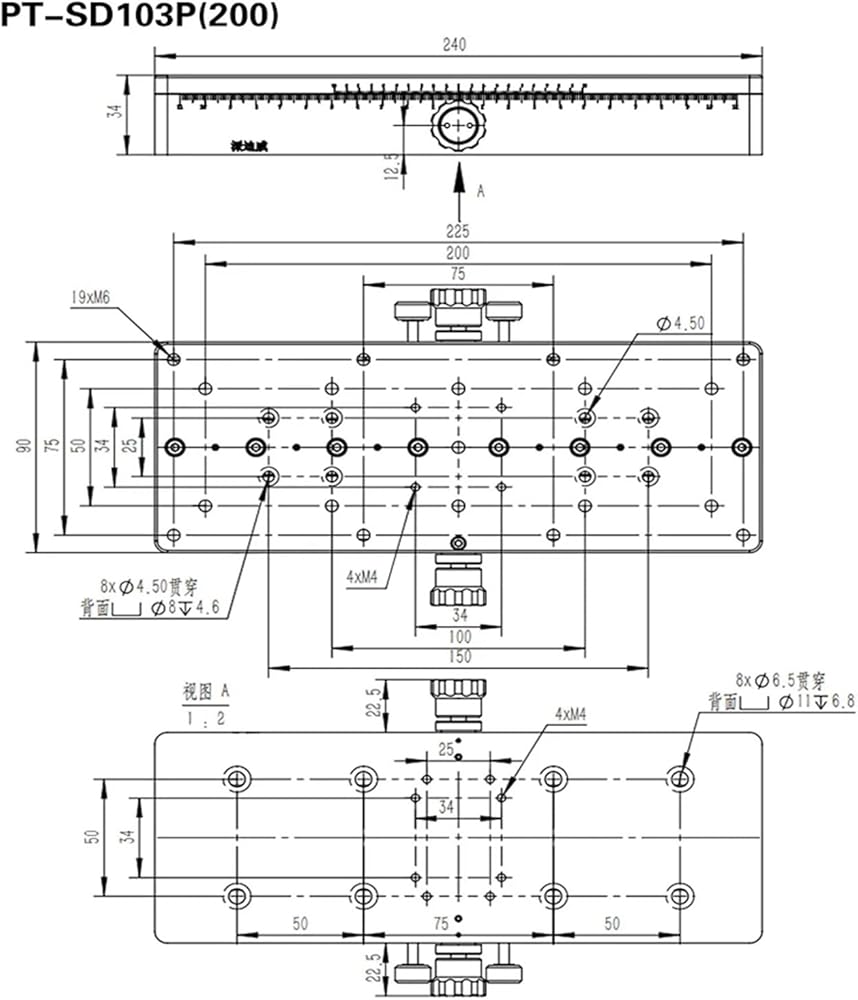

PT-SD103P(200)
Platform Size
65mm×110mm
90mm×240mm
Travel Range
75mm
200mm
Actuator Type
Bevel Wheel & Rack
Drive Position
Center
Minimum Scale
002
Minimum Adjust Distances
10m
Travel Guide
Dovetail
Load capacity
20kg
Accuracy
001mm
Straightness
30
Parallelism
50
Driving Parallelism
40
Weight
085kg
23kg
