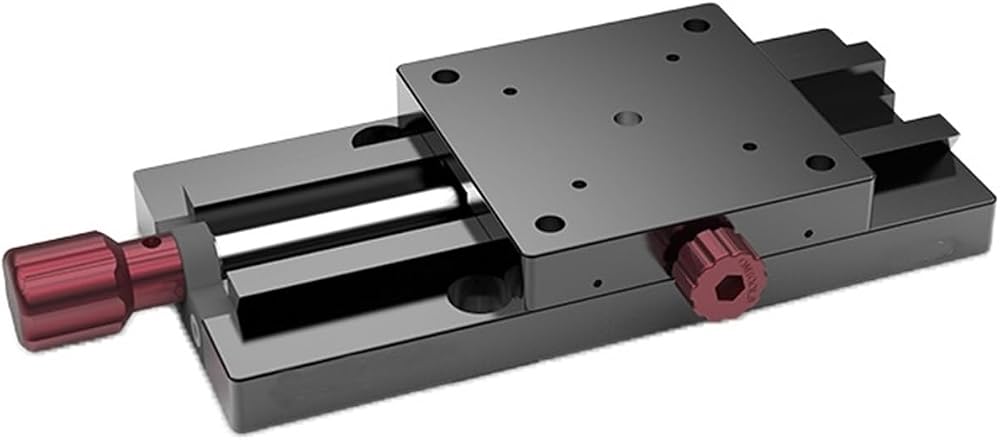

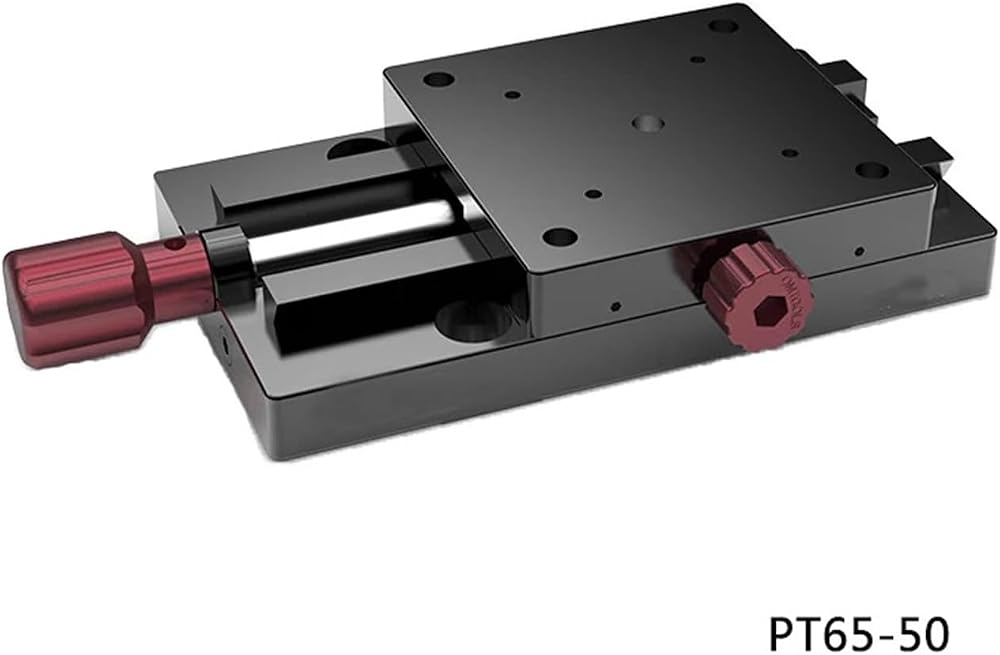

Name: سلسلة خطية خطية خطية خطية تتوافق مع مرحلة خطية محرك أقراص مباشرة ، مواقع يدوي يدوي الأبعاد اليدوية ذات الأبعاد الدقيقة (PT65-50)
Brand: BAISULI
Availability: InStock

مميزات خاصة

【 Aviation-grade Aluminum Structure 】 This product is made of aviation-grade aluminum materials and is not prone to corrosion and wear. It is an ideal gift for friends engaged in mechanical production, making their measurements more convenient.
【 Manual Control 】 The running direction of the slider can be manually controlled to achieve precise positioning and adjustment. The ergonomic handle provides a comfortable grip and locking mechanism, making it less likely for the slides to loosen. The operation is intuitive and requires no training or experience.
【 Easy to Use 】 It does not require a complex control system or power supply, is easy to operate and has low maintenance costs. The surface is smooth. After use, just wipe off the dust with a towel. Compared with electric systems, this is a cost-effective solution.
【 Professional-level Versatility 】 It is used for precise measurement in C-N-C equipment transformation, production machinery, testing equipment, and optical laboratories, as well as for fine adjustment of displacement, positioning, and motion of mechanical equipment.

وصف

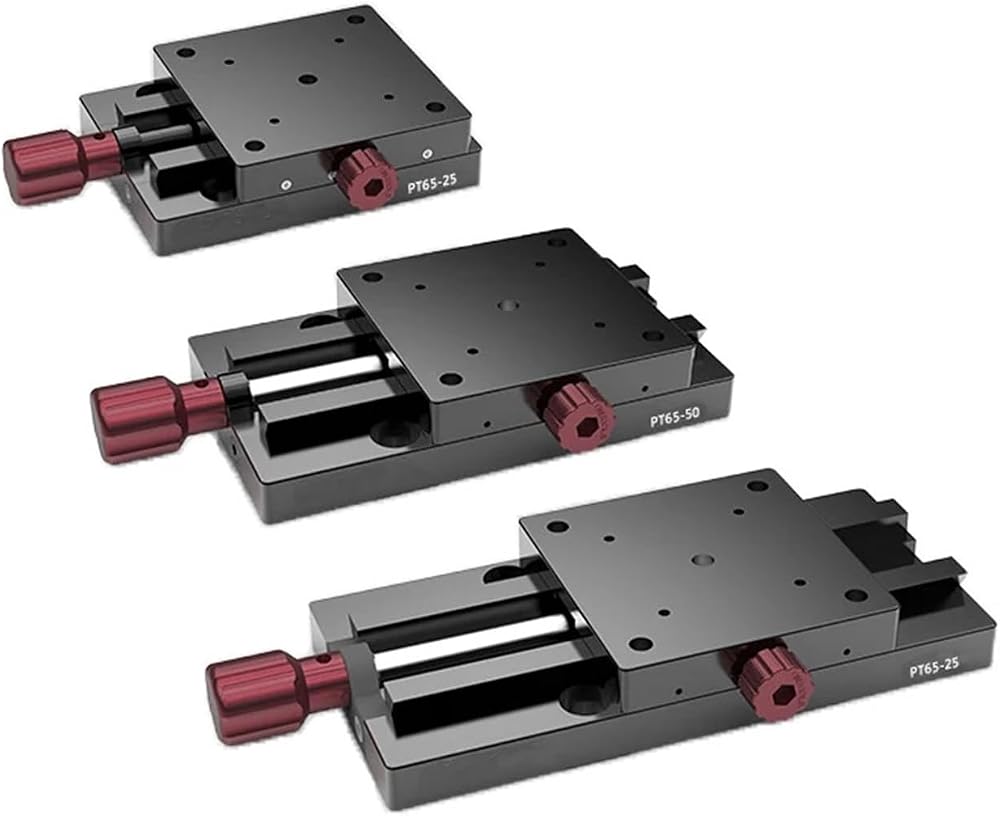

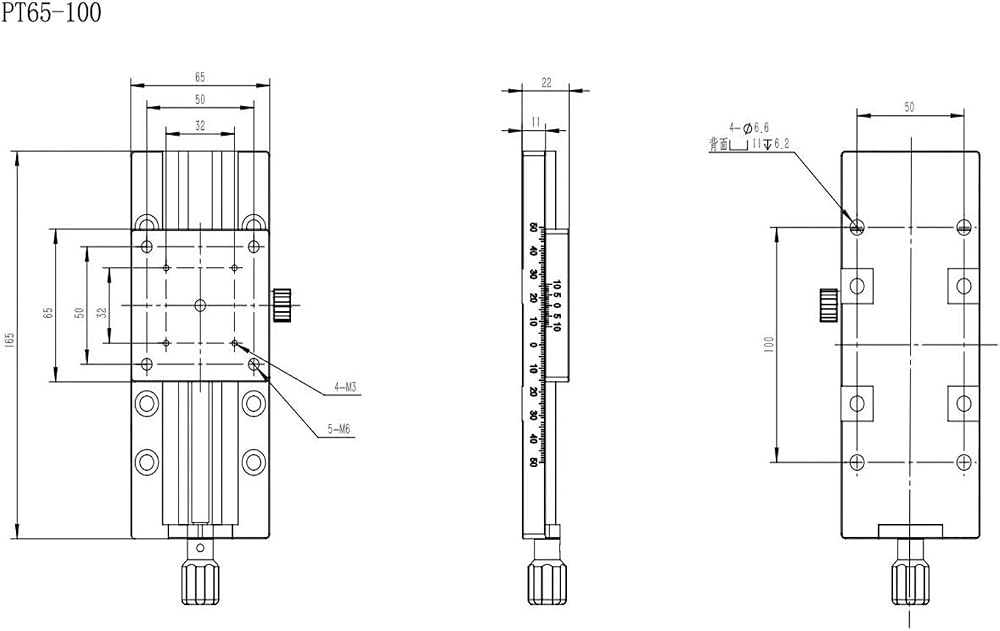

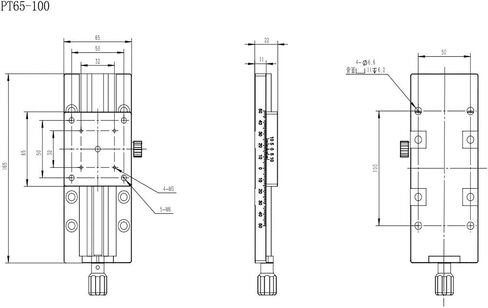

Model

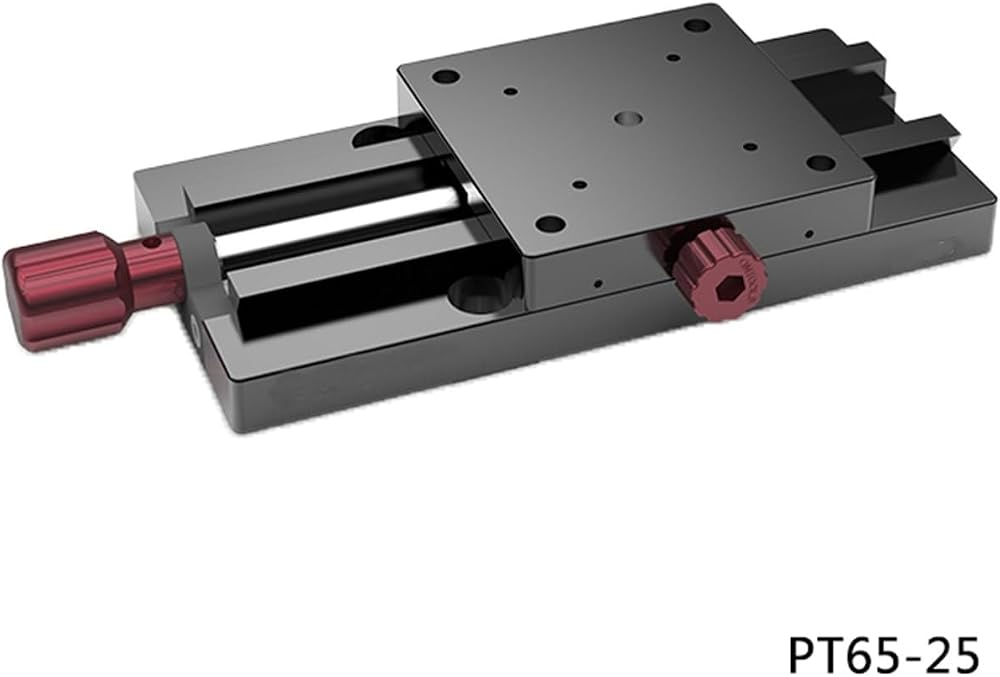

PT65-25

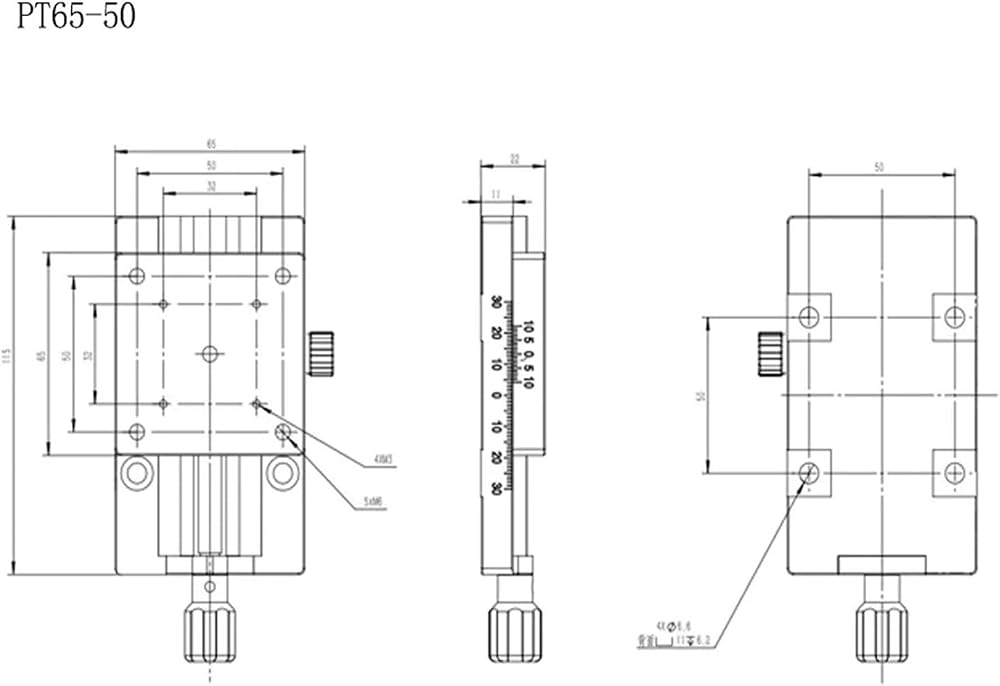

PT65-50

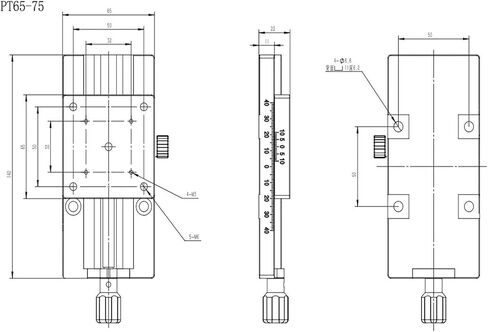

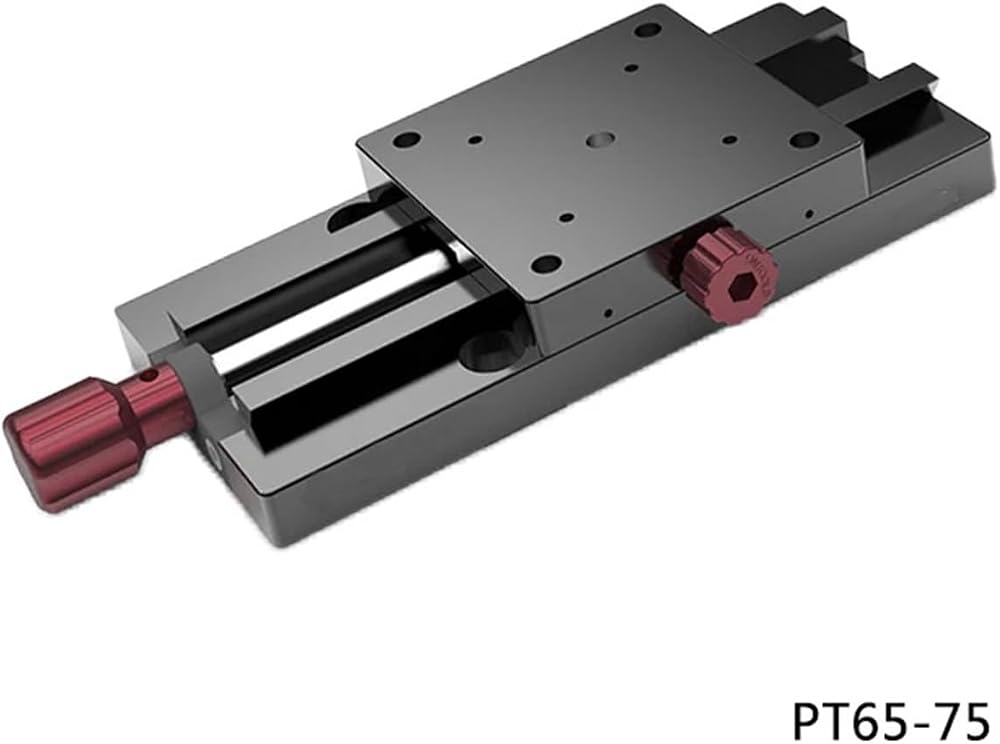

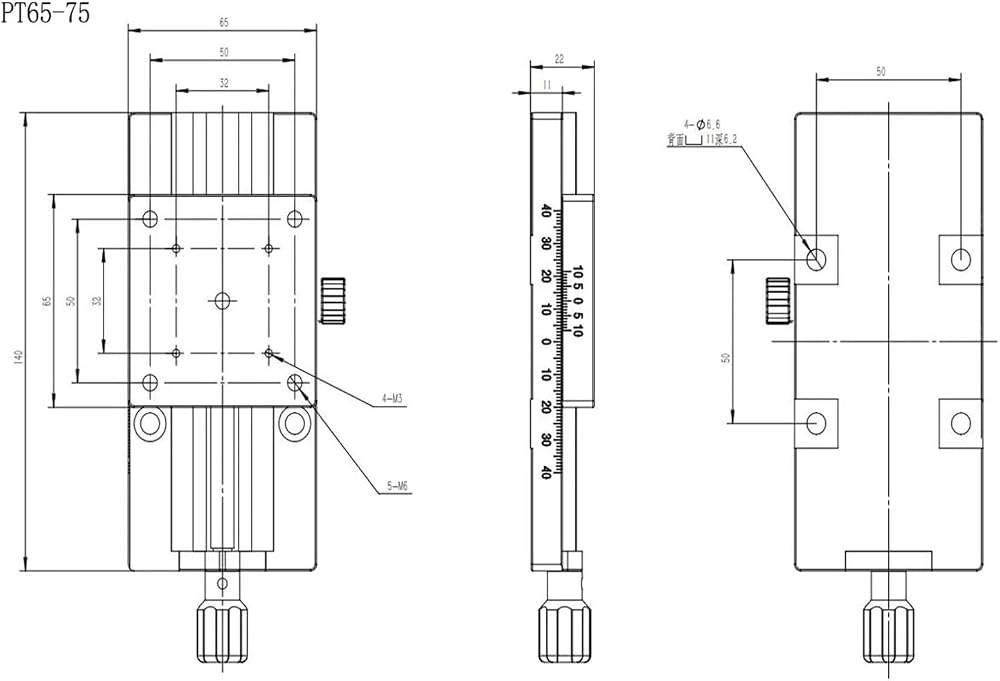

PT65-75

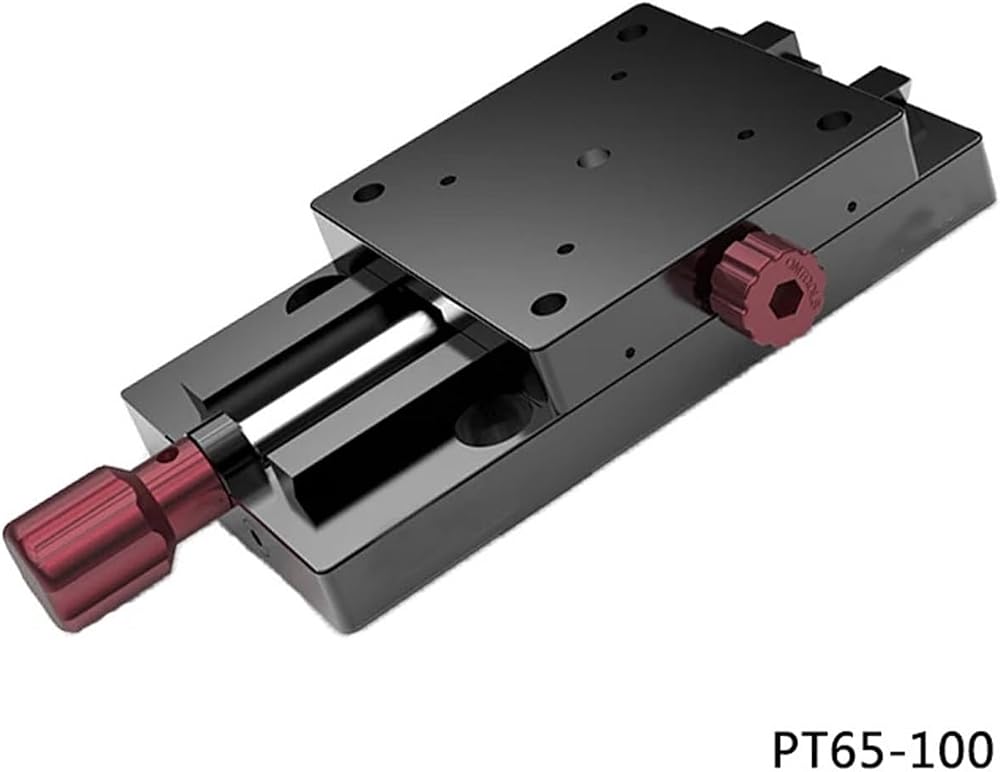

PT65-100
Trip(mm)
25
50
75
100
Platform size(mm)
65×65
Body length(mm)
90
115
140
165
Thickness(mm)
20
Guide rail
Dovetail auxiliary guide rail
Driving mode
Grinding lead screw,Ø8×1
Drive position
Center drive
Main material and surface treatment
Aluminum alloy, black anodized
Weight(kg)
0.3
0.35
0.4
0.5
Minimum reading(mm)
0.1
Horizontal load(kg)
10
Vertical load(kg)
5
