Drive Gear

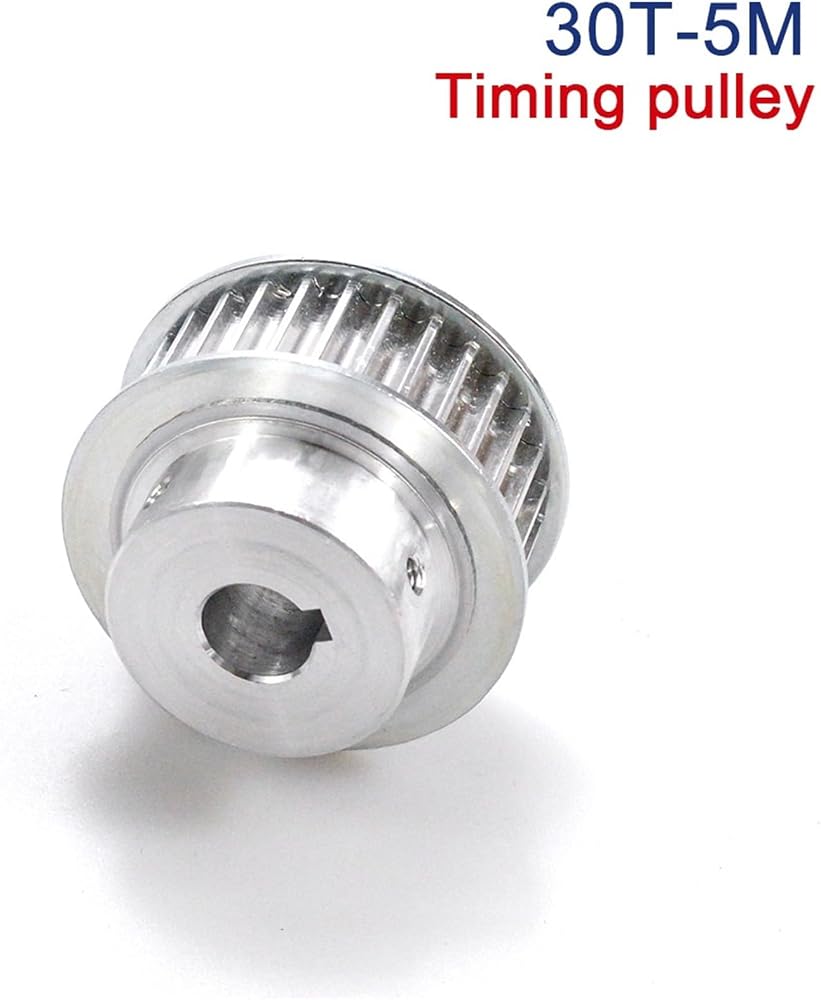

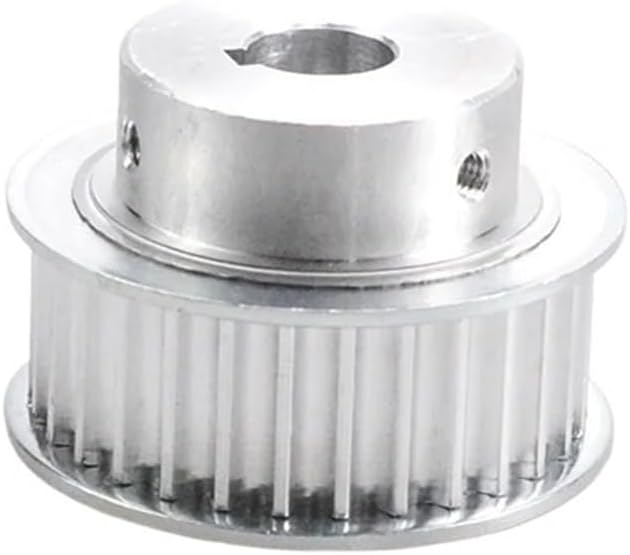

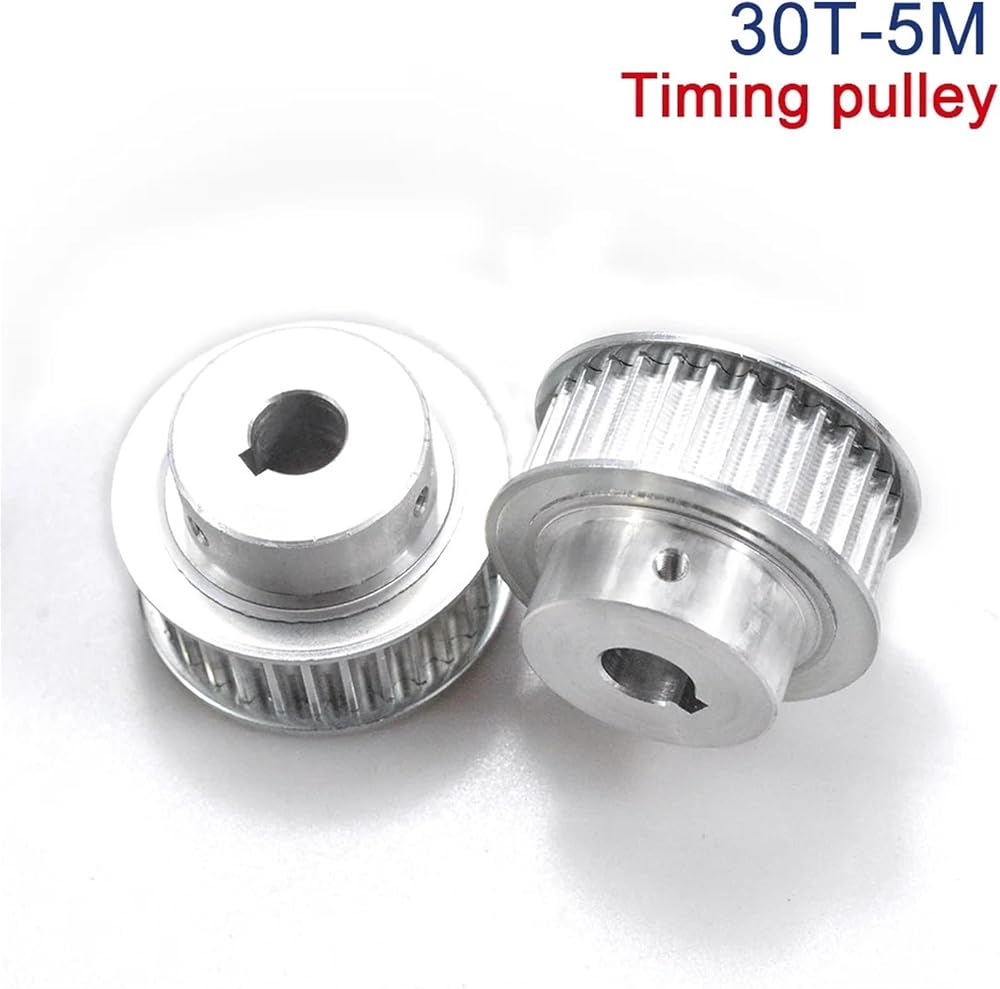

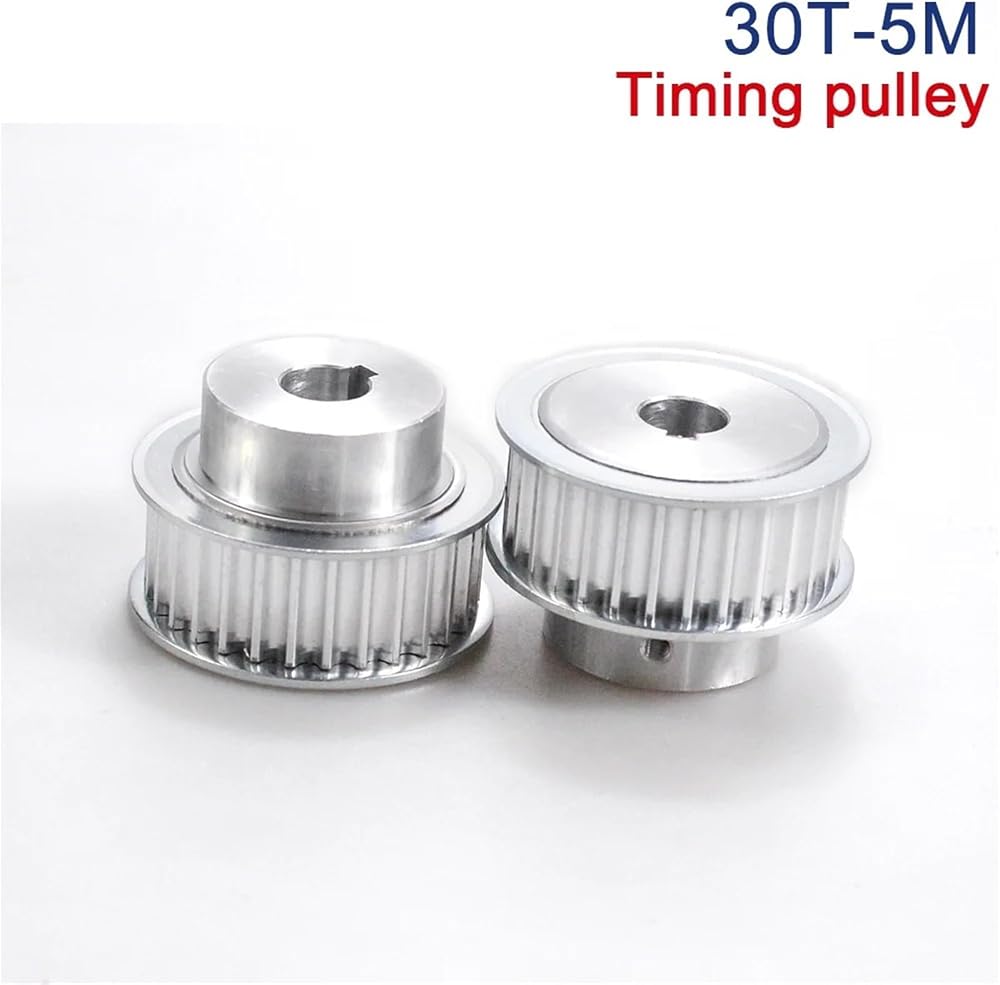

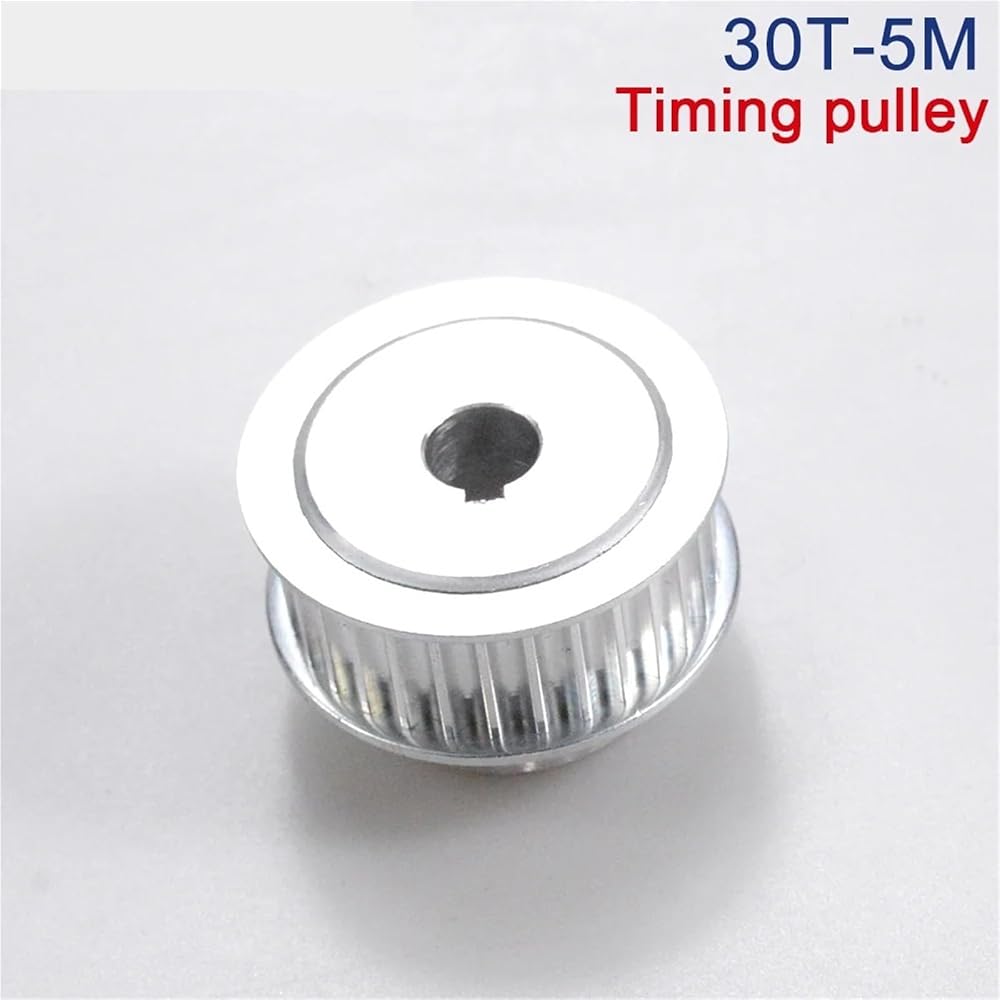

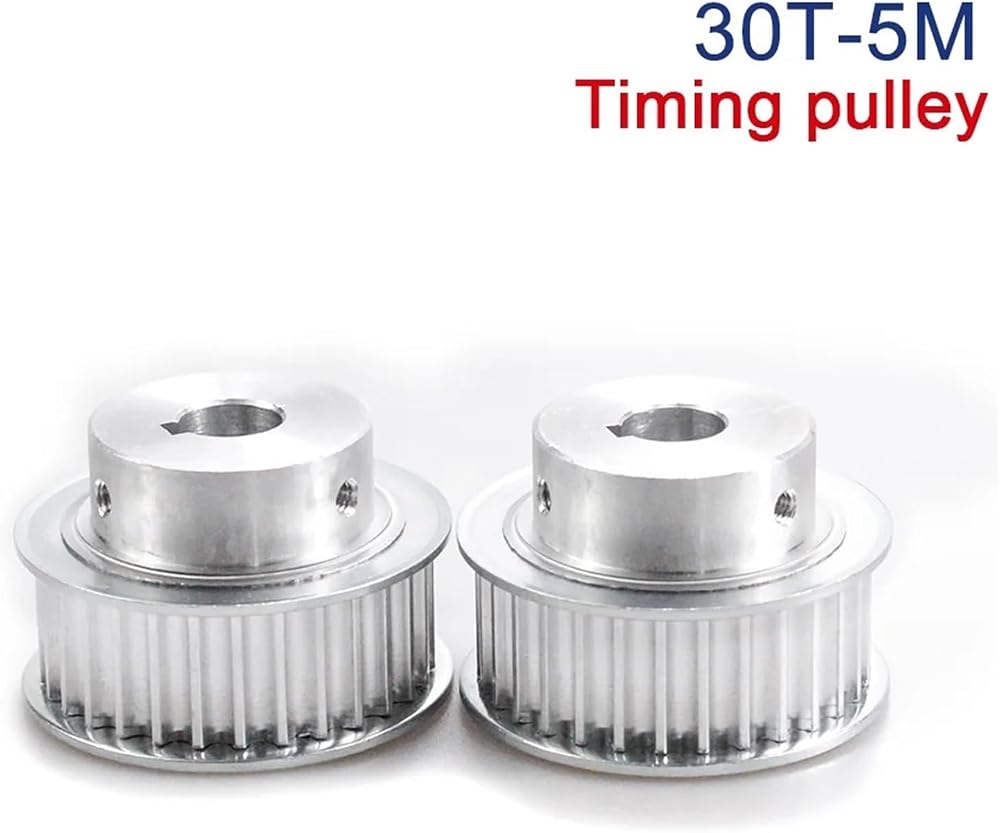

Arc Tooth Aluminum Alloy30 Teeth5MSynchronous Timimg pulley Pitch 5.00mm KeywayBore 6/8/10/12/14/15/16/17/19/20mm30-5M-15 BF and 30-5M-20 BFforWidth 15mm/20mmHTD 5MSynchronous Belt 30Teeth 30T HTD5M pulley Belt Engraving CNC Machine
Type: 30-5M-15 BF and 30-5M-20 BF
Pitch: 5mm
Teeth Number:30 Teeth
Outside Diameter (OD): 46.60mm
Keyway Bore: 6/8/10/12/14/15/16/17/19/20mm
Flange:double
Material:Aluminium Alloy
Fixed mode: M5*2
Fit forBelt Width:15mm/20mm
==========
is_customized : No
Number of Teeth : 30
Model Number : 5M-30T
Material : Alloy
Type :
Teeth Number : 30 Teeth
Teeth Pitch : 5mm
Belt Width : 15/20mm
Total Height : 28/33mm
Material : Aluminum Alloy
Inner Bore : 6/8/10/12/14/15/16/17/19/20mm
Screw Hole : 2*M5
Pulley shape : BF shape
