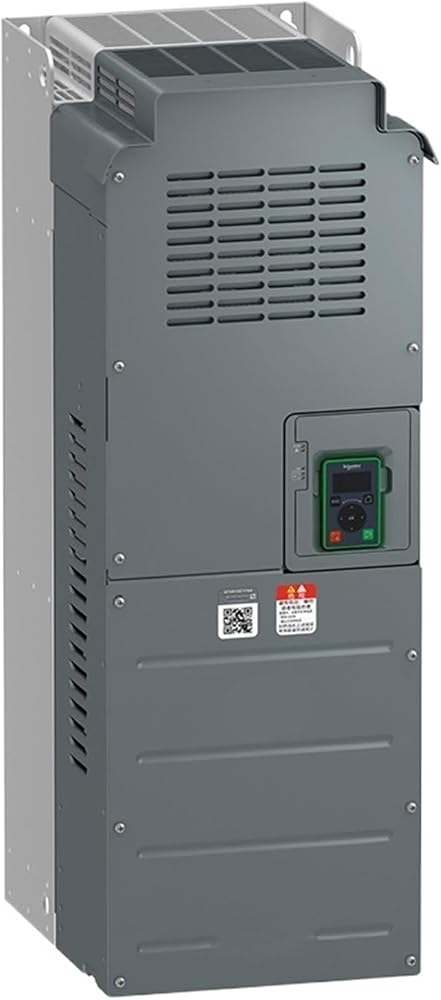

Inverter
Product Description:
Product Series: Easy Altivar 610
Product type: Frequency converter
Application areas: Fans, pumps, compressors, conveyor belts
Product Short Name: ATV610
Variables: Standard Version
Product application scenario: Asynchronous motor
Installation type: cabinet mounted
EMC filter: integrated with IEC 61800-3 safety level C3 and longest motor cable up to 50 meters
IP protection level: IP20
Cooling method: forced ventilation
Power supply frequency: 50... 60 Hz+/-5%
Number of network phases: 3 phases
Rated power supply voltage [Us]: 380... 460 V -15... 10%
Motor power (kW):
160 kW applicable standard load
132 kW suitable for heavy loads
Motor power:
250 applicable standard load
200 suitable for heavy loads
Line current:
284 A on... 380 V (standard load)
249.5 A on... 460 V (standard load)
237 A on... 380 V (heavy load)
205.9 A on... 460 V (heavy load)
Expected line Isc: 50 kA
Apparent power:
198.8 kVA on... 460 V (standard load)
164.0 kVA on... 460 V (heavy load)
Continuous output current:
302 A applicable standard load at 2.5 kHz on
250 A is suitable for heavy loads at 2.5 kHz on
Maximum transient current:
332 A at 60 s (standard load)
375 A at 60 s (overload)
Asynchronous motor control configuration file:
Standard constant
Optimize mode
Standard variable
Output frequency: 0.0001... 0.5 kHz
Rated switching frequency: 2.5 kHz
Switching frequency: 1... 8 kHz adjustable
Number of preset speeds: 16 preset speeds
Communication port protocol: Modbus serial
Tabs:
Card slot A: Communication card, Profibus DP V1
Card slot A: Logical or analog I/O expansion card
Card slot A: Relay output card
