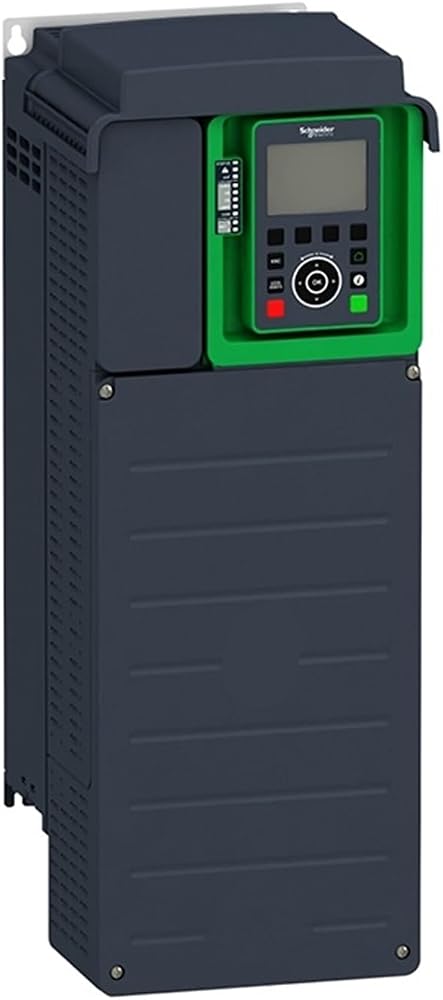

Inverter
Product Description:
Product series: ATV ATV900
Product application: Industrial use
Product type: Frequency converter
Product application scenarios:
machine
Asynchronous motor
Application area: Process for industrial
Variable:
Standard version
Brake unit
Number of network phases: 3 phases
Installation type: Wall mounted installation
Communication port protocol:
Modbus serial
Ethernet/IP
Ethernet Modbus
Rated power supply voltage [Us]: 380... 480 V -15... 10%
Motor power (kW):
22.0 kW Applicable Standard Load
18.5 kW suitable for heavy loads
Continuous output current:
46.3 A on... 4 kHz applicable standard load
39.2 A is suitable for overload at 4 kHz on
EMC filter:
Integrated
With EMC mounting plate option
IP protection level: IP21
Protection level: UL type 1
Discrete input logic: 16 preset speeds
Asynchronous motor control configuration file:
Standard variable
Optimize mode
Standard constant
motor control configuration mode:
Permanent magnet motor
reluctance motor
Maximum output frequency: 599 Hz
Switching frequency:
2... 16 kHz adjustable
4... 16 kHz available
Rated switching frequency: 4 kHz
Line current:
39.6 A on... 380 V (standard load)
34.1 A on... 380 V (heavy load)
34.4 A on... 480 V (standard load)
29.9 A on... 480 V (heavy load)
Apparent power:
28.6 kVA on... 480 V (standard load)
24.9 kVA on... 480 V (heavy load)
Maximum transient current:
55.6 A at 60 s (standard load)
58.8 A at 60 s (overload)
Grid frequency: 50... 60 Hz
Expected line Isc: 50 kA
