[PRECISE LOGARITHMIC OUTPUT] The logarithmic amplifier module delivers an output that is directly proportional to the logarithm of the input signal, ensuring accurate and reliable signal processing for complex applications such as cellular base stations and systems.
[STABLE RSSI LINEARITY] With ±0.4 dB RSSI linearity, this amplifier module maintains a consistent RSSI scale unaffected by temperature fluctuations or variations in feed voltage, providing dependable performance in diverse operational environments.

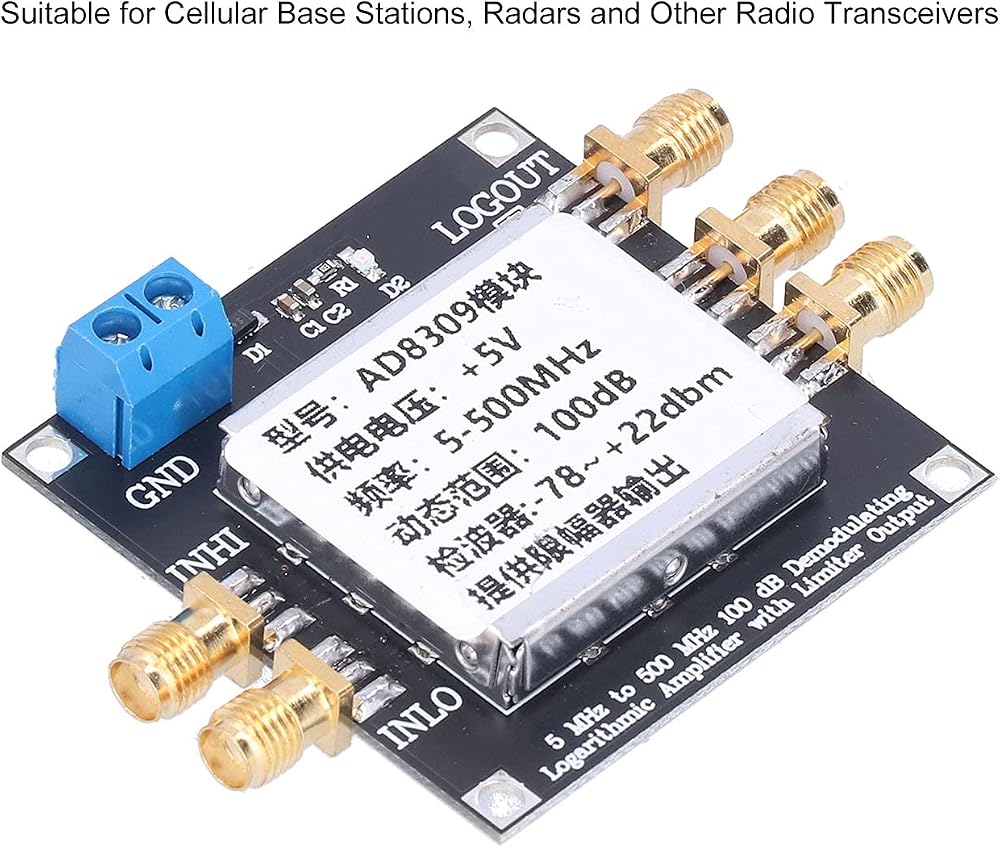

[VERSATILE APPLICATION] Designed for received signal strength indicator (RSSI) and phase detection, this module is ideal for use in cellular base stations, systems, and other radio transceiver applications, offering unparalleled versatility and functionality.
[FSK PSK DEMODULATION] The AD8309 amplifier module features limiting output capabilities, making it an excellent choice for FSK (Frequency Shift Keying) and PSK (Phase Shift Keying) demodulation, ensuring precise signal decoding in communication systems.
[HIGH PERFORMANCE SPECS] Boasting a 16mA current, 20 mV/dB slope, and a –95 dBm intercede, this SMA female amplifier module operates within a 5MHZ to 500MHZ frequency range with a 100 dB gain, delivering exceptional performance for demanding applications.

Spec:

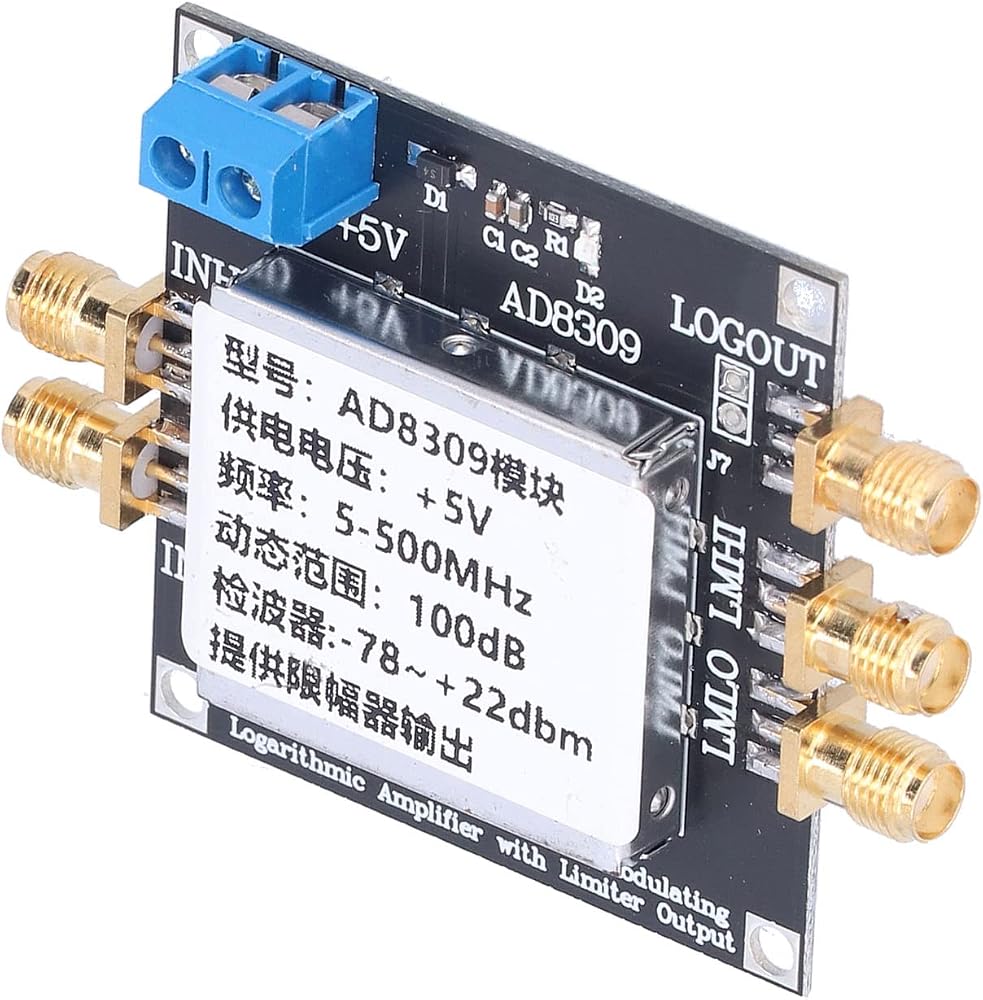

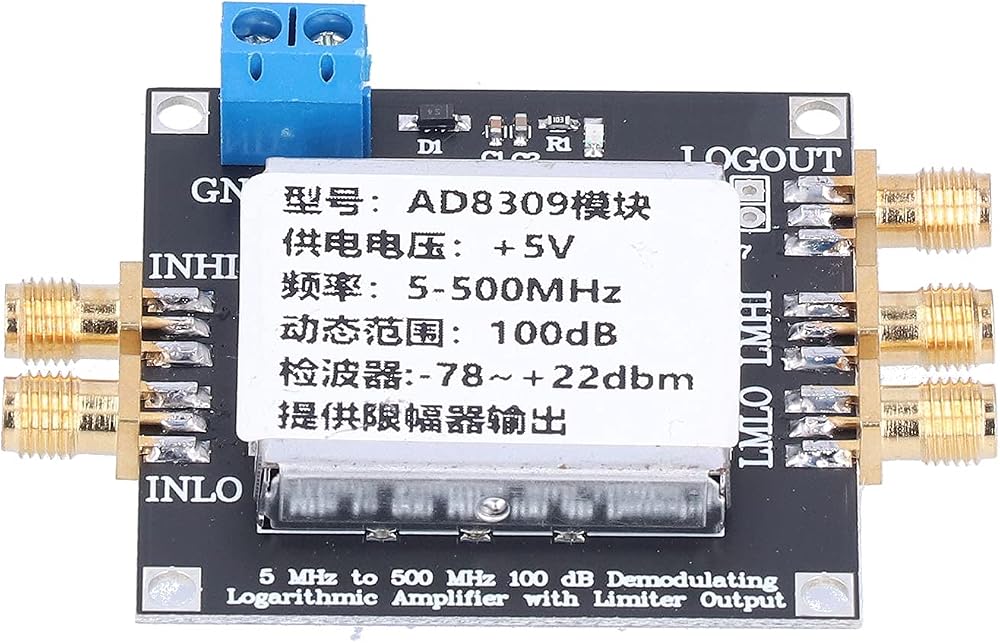

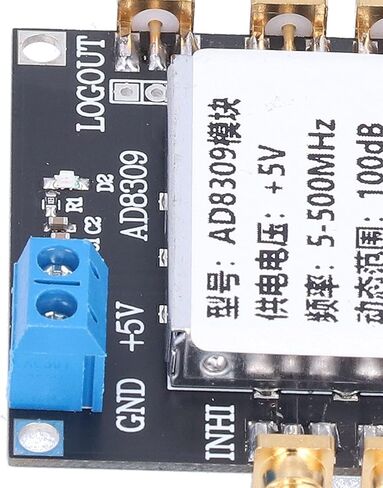

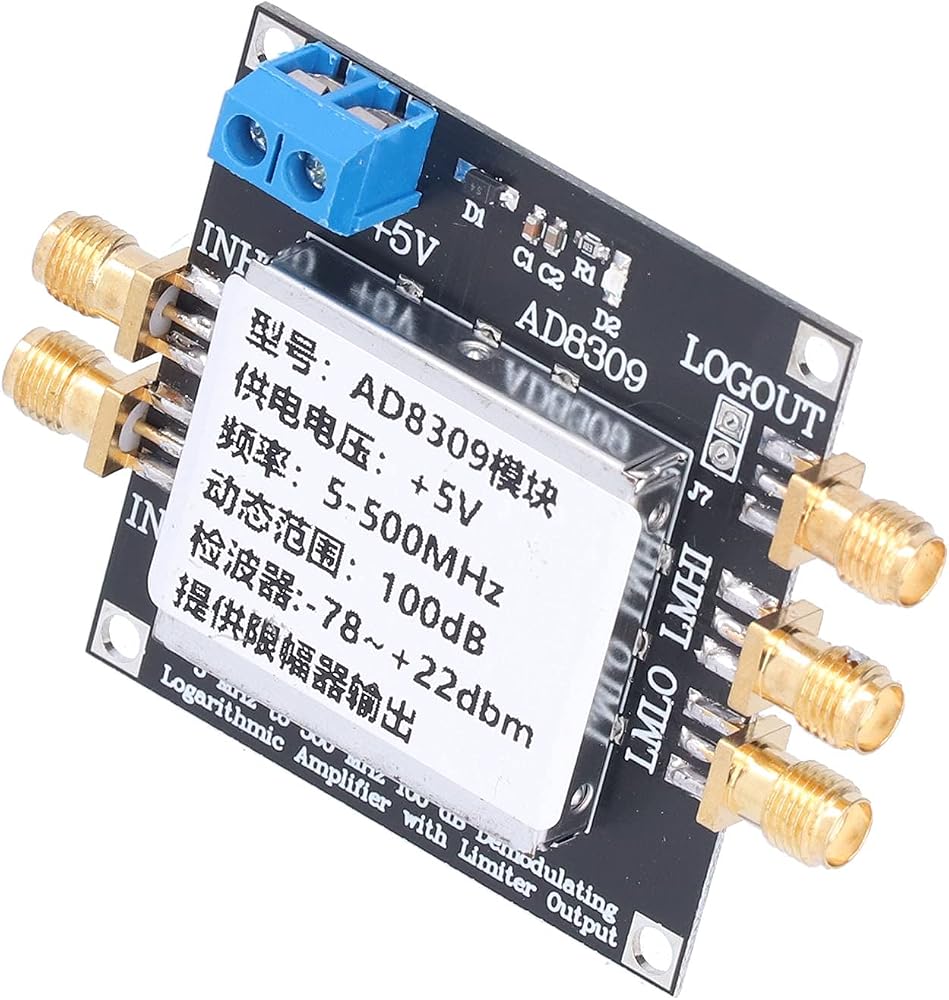

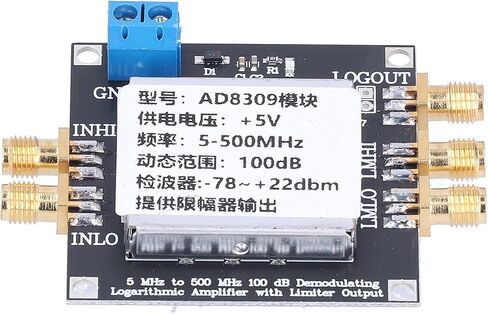

Item Type: Logarithmic Amplifier Module
Material: PCB
Model: AD8309
Current: 16mA
Slope: 20 mV/dB
Intercede: –95 dBm
Input and Output Interface: SMA Female
Dynamic Range: 100DB
Frequency Range: 5MHZ-500MHZ;
RSSI Linearity: ±0.4 dB (to 200 MHz)
Dynamic Range: 100 dB -78 dBm to +22 dBm (Re 50 O)
Total Gain: 100 dB
Bandwidth: 500 MHz
Sleep Current:

Package List：
1 x Logarithmic Amplifier Module
Note：
1. Don't overload use
2. Do not use overvoltage
3. Do not use over current
