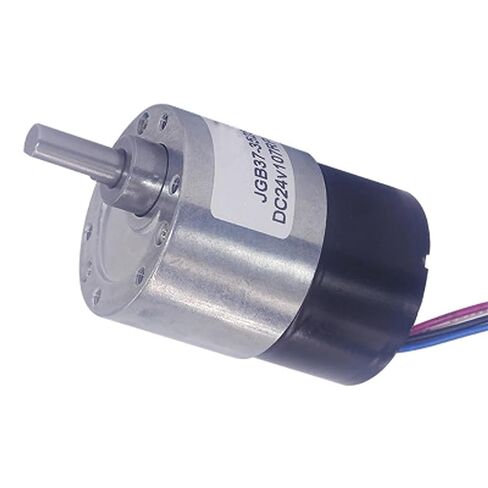

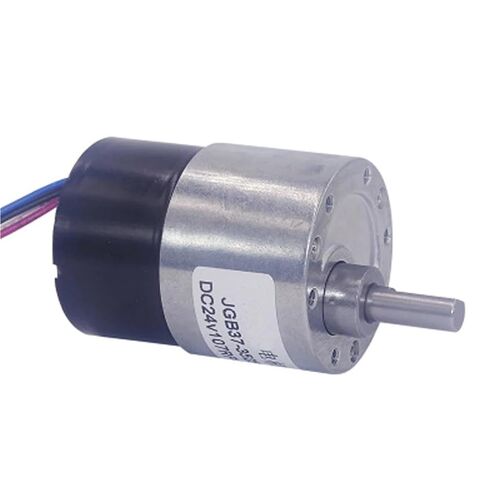

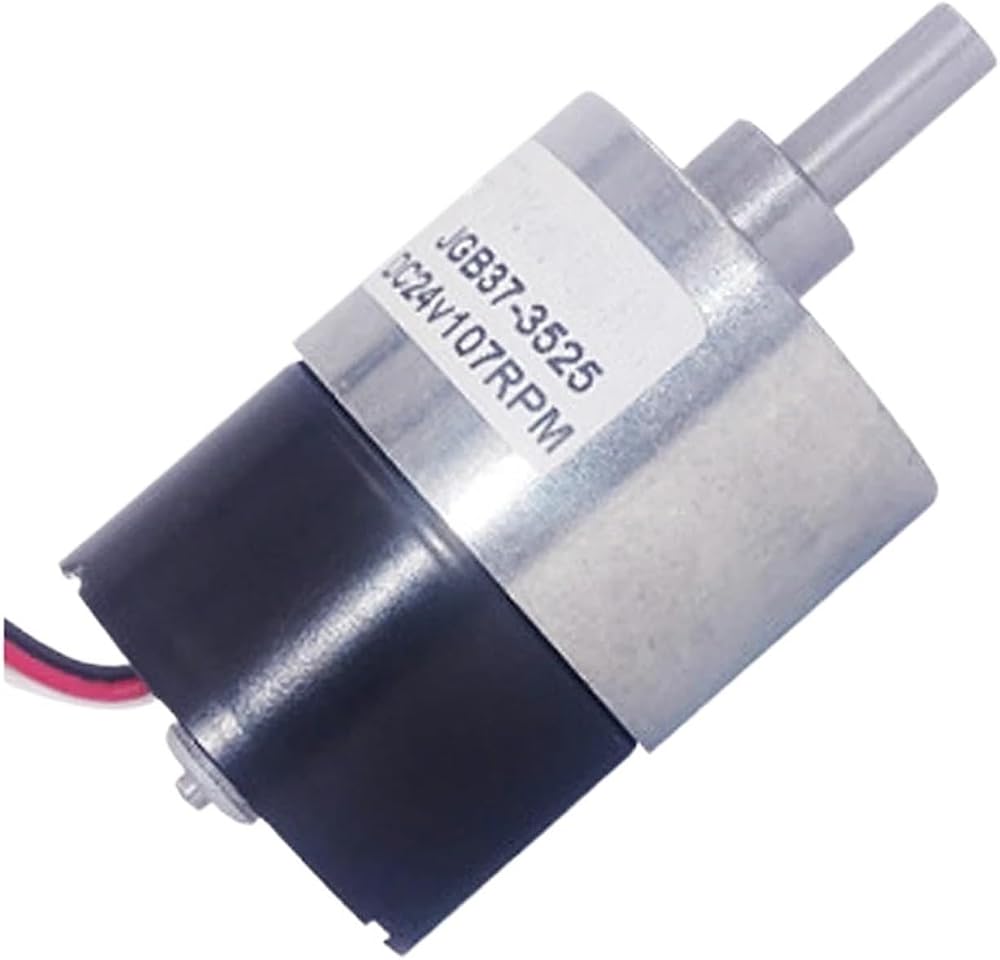

Specifications:
Voltage:DC12V
No-loadSpeed:480rpm,300rpm,160rpm,100rpm,53rpm,33rpm,22rpm,17rpm,11rpm,6rpm,4rpm
Voltage:DC24V

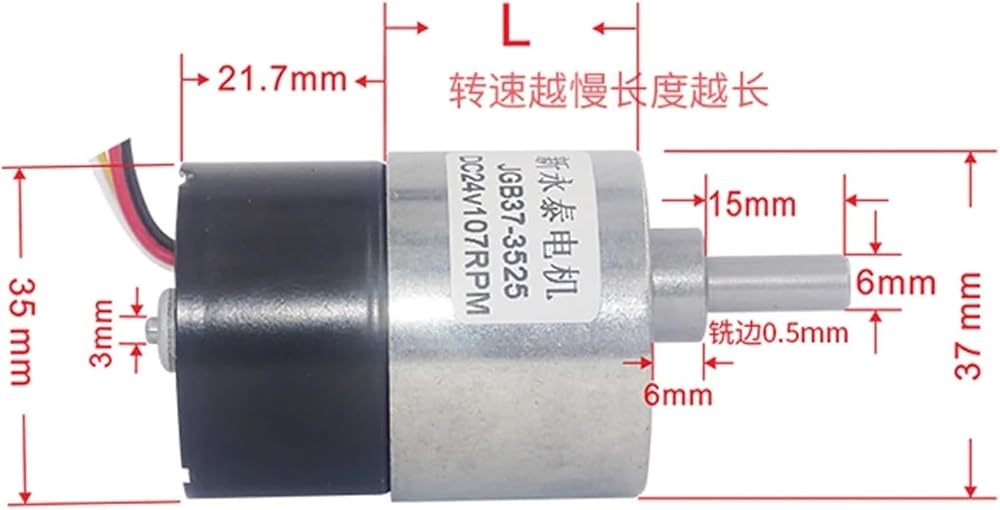

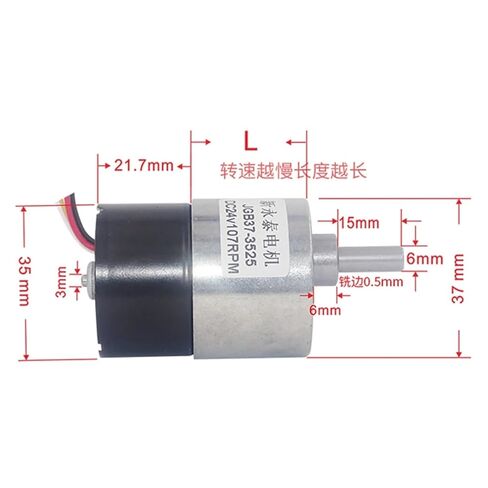

Motor Diameter: about 37mm
Motor Body Length: 25mm
Output Shaft Diameter: 6mm(D-Type)
Output Shaft Length: 12mm
Gearbox Length: see the table

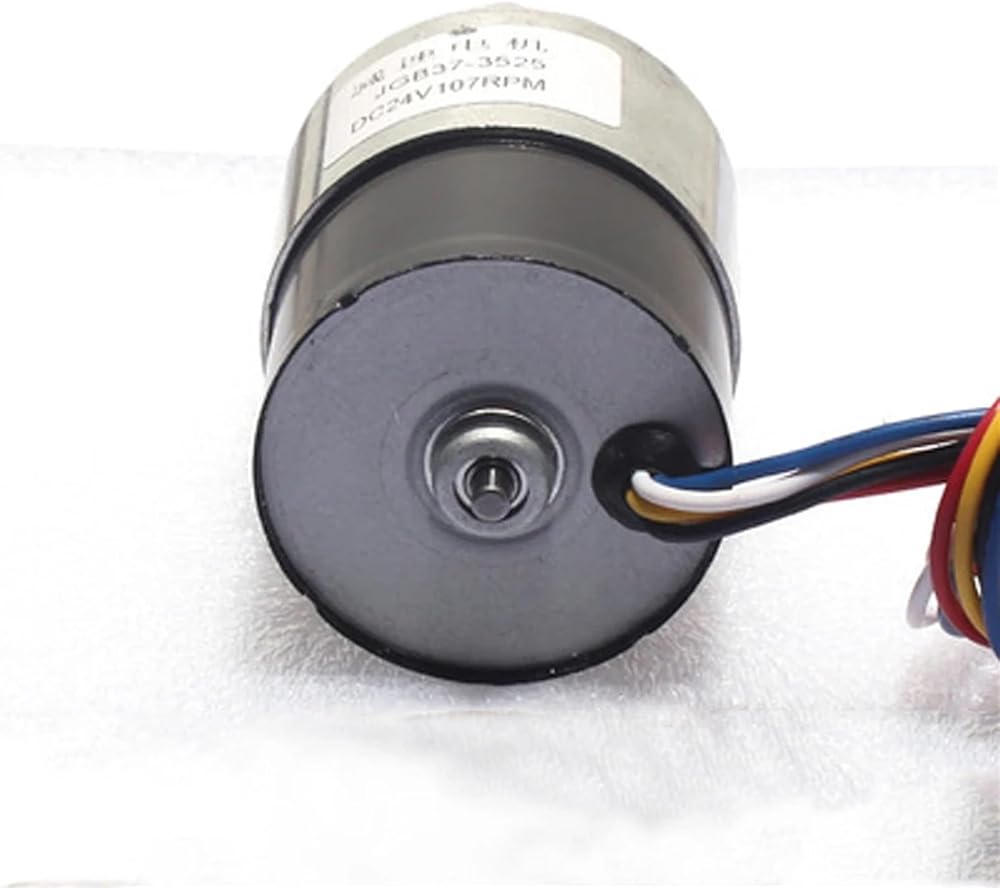

Wire Connection Method:
Red line: power +
Black line: Power -
White line: CW / CCW control line,White line and black line together, you can change the motor direction
Blue line: PWM speed control line, then 0 ~ 5V pulse width governor
Yellow line: FG signal line
