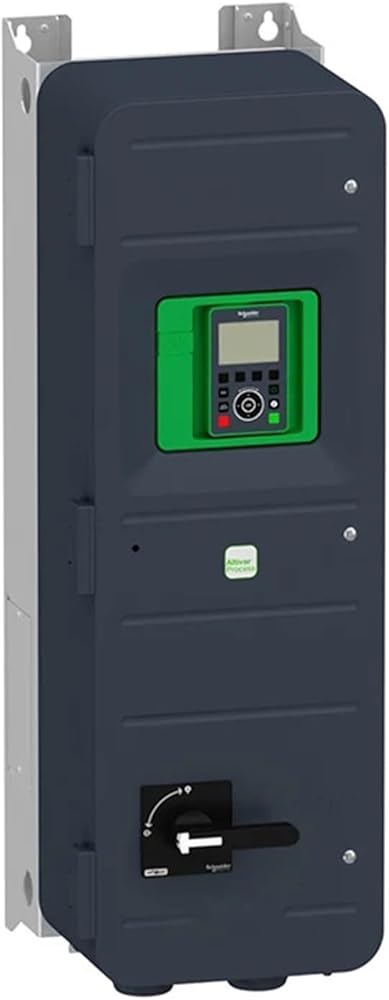

Inverter
Product Description:
Product series: ATV ATV600
Product type: Frequency converter
Application field: Process application
Product Short Name: ATV650
Variable: With isolation switch
Product application scenarios:
Asynchronous motor
machine
EMC filter:
Integrated and 50 meter longest motor cable complies with EN/IEC 61800-3 Class C2
Integrated and 150 meter longest motor cable complies with EN/IEC 61800-3 Class C3
IP protection level:
IP55 compliant with threaded
IP55 complies with IEC 61800-5-1
Rated power supply voltage [Us]: 380... 480 V
Cooling method: forced ventilation
Power supply frequency: 50... 60 Hz -5... 5%
Rated power supply voltage [Us]: 380... 480 V -15... 10%
Motor power (kW):
22 kW (heavy load)
30 kW (standard load)
Motor power:
30 overload
40 standard load
Line current:
45.9 A on... 480 V (standard load)
40.5 A on... 380 V (heavy load)
35.8 A on... 480 V (heavy load)
53.3 A on... 380 V (standard load)
Expected line Isc: 50 kA
Apparent power:
29.8 kVA on... 480 V (heavy load)
38.2 kVA on... 480 V (standard load)
Continuous output current:
59 A on... 4 kHz applicable standard load
46.3 A is suitable for overload at 4 kHz on
Asynchronous motor control configuration file:
Optimize mode
Standard constant
Standard variable
motor control configuration mode:
reluctance motor
Permanent magnet motor
Output frequency of frequency converter: 0.1... 500 Hz
Rated switching frequency: 4 kHz
Switching frequency:
4... 12 kHz available
2... 12 kHz adjustable
Safety function: STO (safety interruption) SIL 3
Discrete input logic: 16 preset speeds
Communication port protocol:
Ethernet
Modbus serial
Modbus serial
