Before purchasing, please make sure the product size is suitable for your motorcycle vehicle

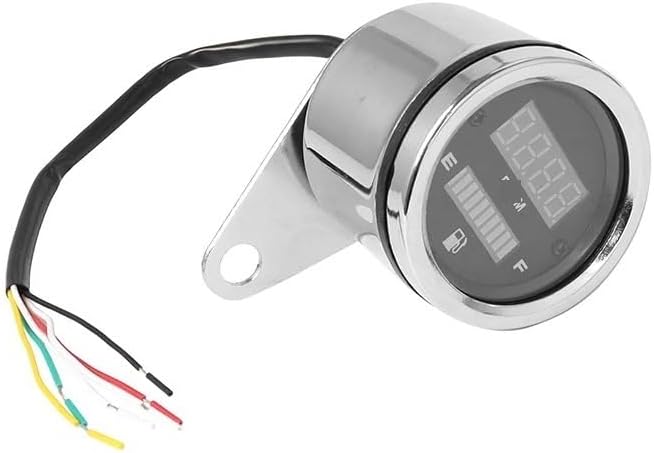

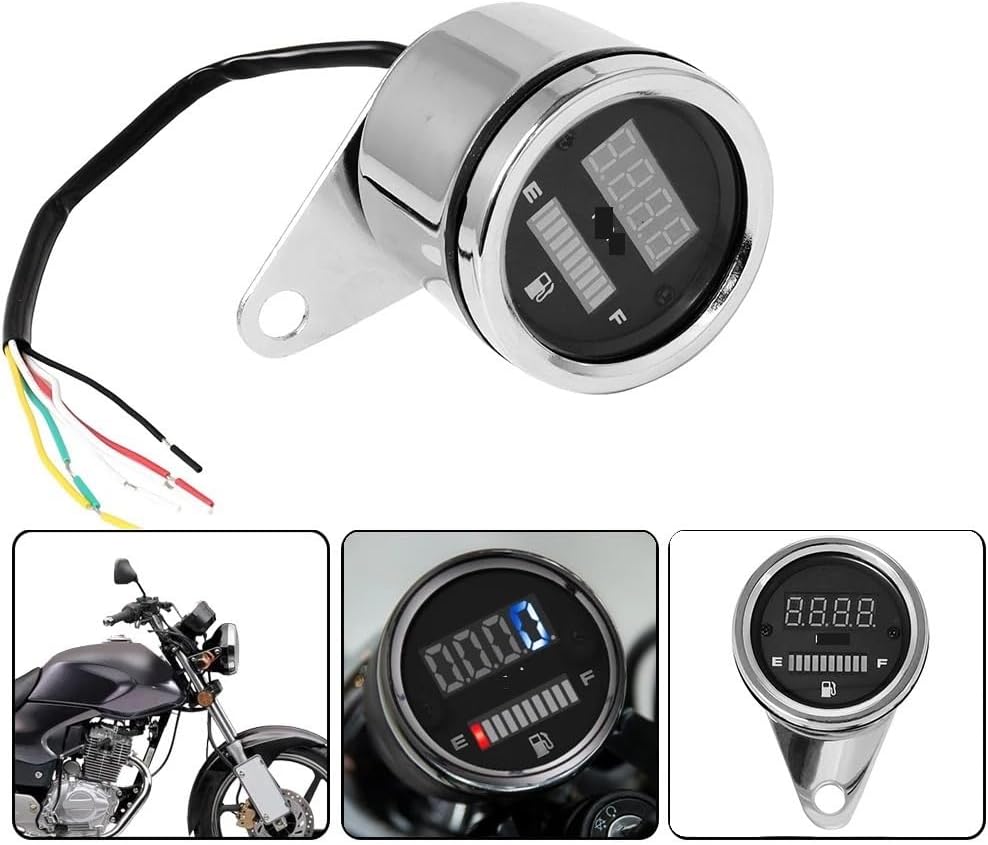

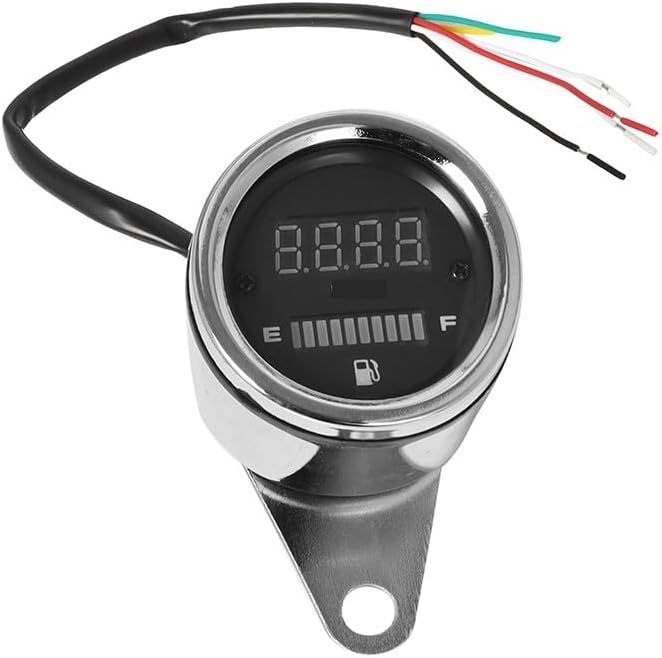

Universal Motorcycle Voltmeter 2 in 1 Digital Tachometer Odometer Tachometer Multi-functional Instrument Gas Fuel Gauge
Specification:
Tachometer unit: RPM
Working Voltage: DC 12V

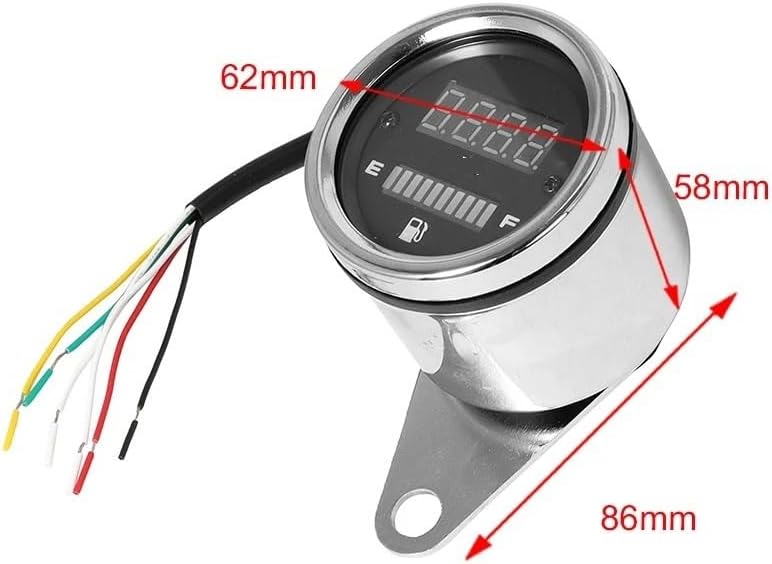

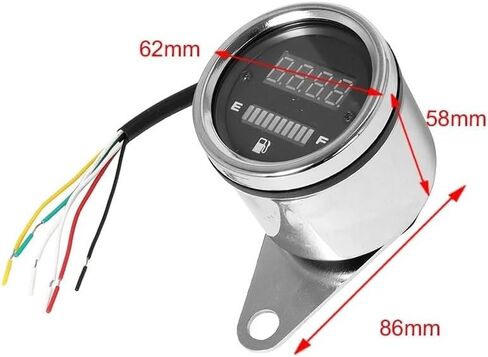

Size: approx 62mm*58mm
50mm(2")mirror diameter
62mm(2-7 16") outer diameter

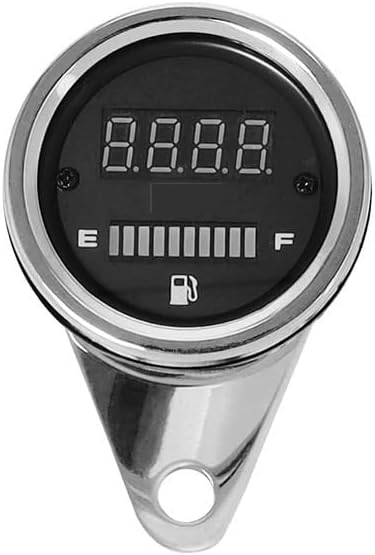

Indicator Display: Blue(speed)Red(fuel level)

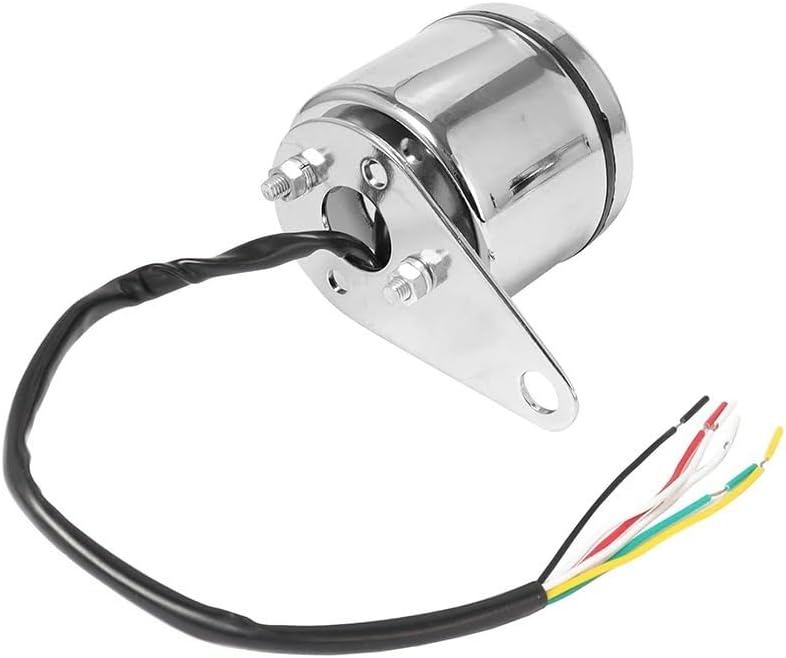

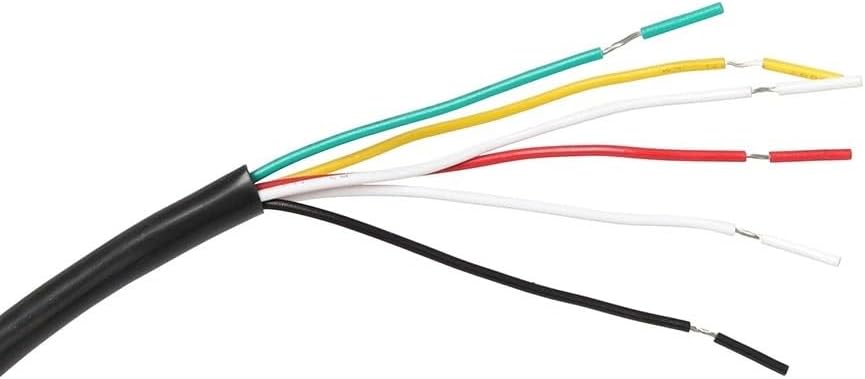

Wire Connection: Red-positiveBlack-negativeYellow-oil sensor signalGreen- picks up speed signal
Features:
Lightweight & portable circle design digital display
High performancetachometer and fuel gauge combined in 1
Bright & accurate readingcan see realtime data clearly at all angles in dark
Tachometer installation and debugging method
1Connect the positive and negative pole to power supply correctly.
2.Turn on the electric door switchtachometer will display to 0and then let the signal line touch the positive pole of power supply.
If the digital display changesit can work normally.
3.Connect the signal cablestart the carand then it can display speed.
Fuel gauge installation and debugging methods:
1.Connect the positive and negative pole to power supply correctly.
2.Turn on the electric door switchfuel gauge displays a grid of redand then connected signal line to the negative pole.
Wait for a while light will all light up slowlyindicating normal .
3.Connect the signal line fill upslowly adjust the potentiometer to make all the lights on.
When oil runs outslightly adjust potentiometer so as to make only red light on.(Please note: The original fuel gauge can not be used together)
Package Included:
1x 2-in-1 motorcycle Tachometer fuel gauge
