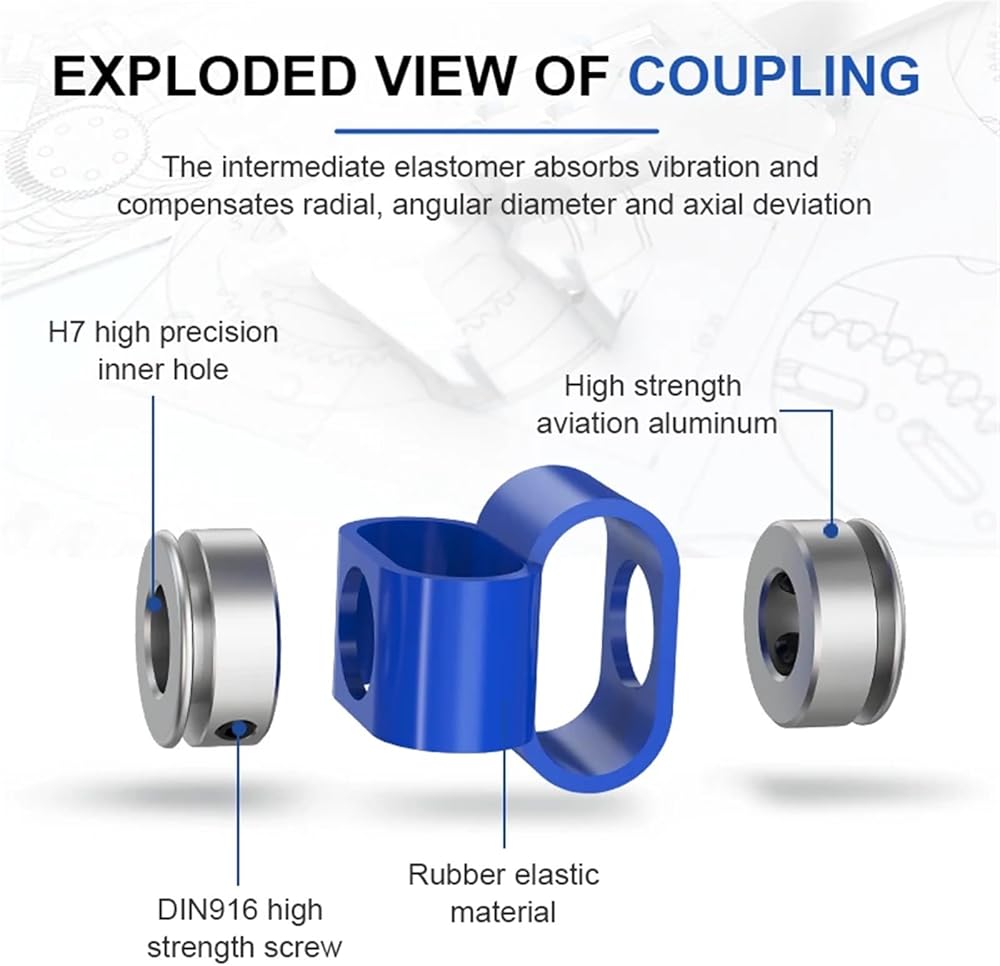

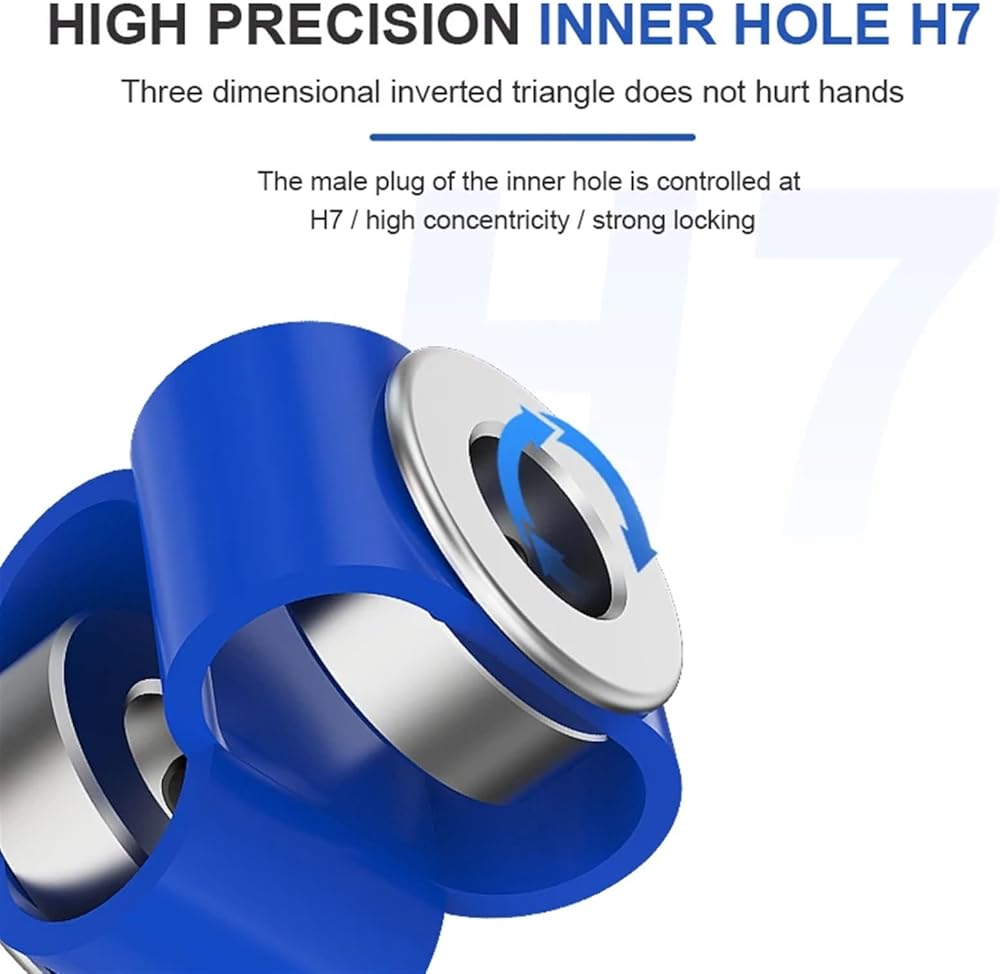

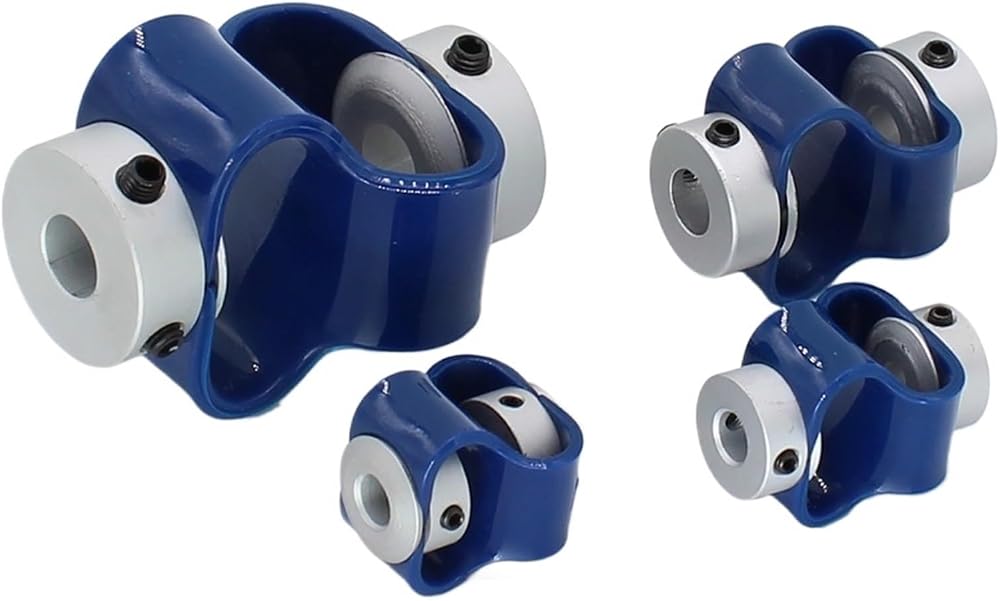

Couplings
After you choose the body length and outside diamesion, pls must leave us message the inner hole size,it is very important!!!

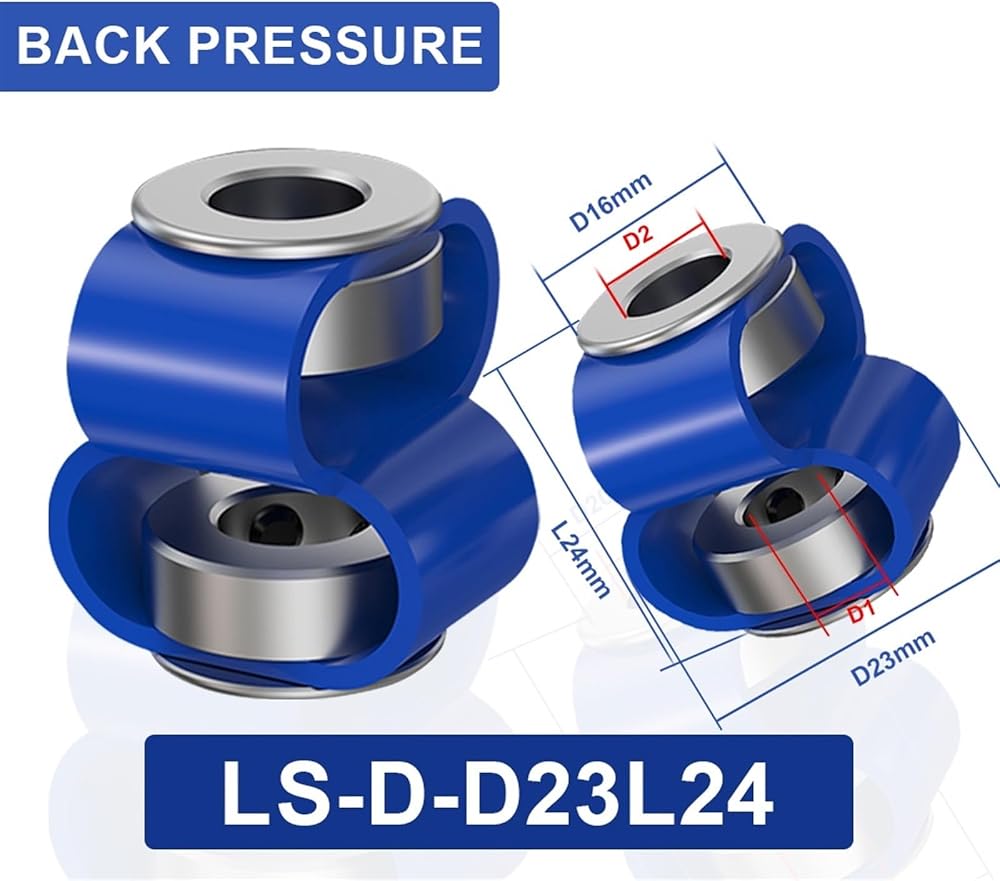

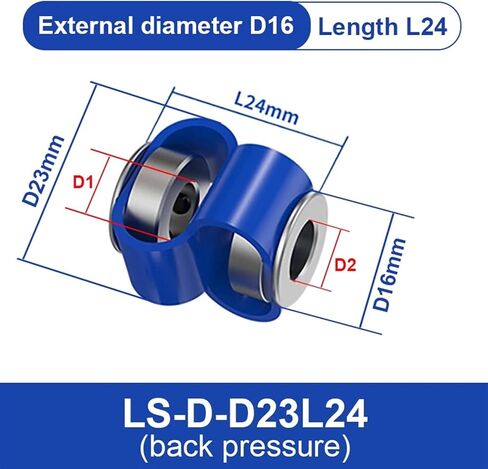

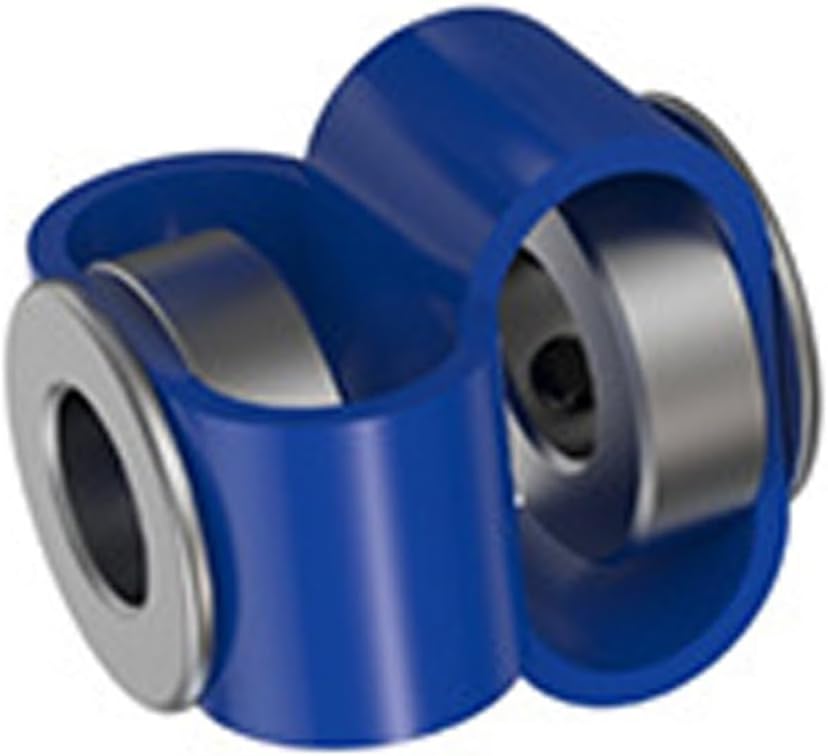

LS-D-D23L24
(back pressure)
Thimble type
ONE SIDE HOLE SIZE CAN MESSAGE(D1):
3/4/5/6/7/8MM
THE OTHER SIDE HOLE SIZE CAN MESSAGE(D2):
3/4/5/6/7/8MM
For example: LS-D-D23L24(2JAW)D1:3 D2:8
Model
D(mm)
L(mm)
D1-D2
(mm)
M
L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
Screw fasten
(n.m)
LS-D-D23L24
(back
pressure)
16
24
3-8
M3
8.3
5
23
27
2.1
LS-D-D23L32
16
32
3-8
M3
8.3
3
23
27
2.1

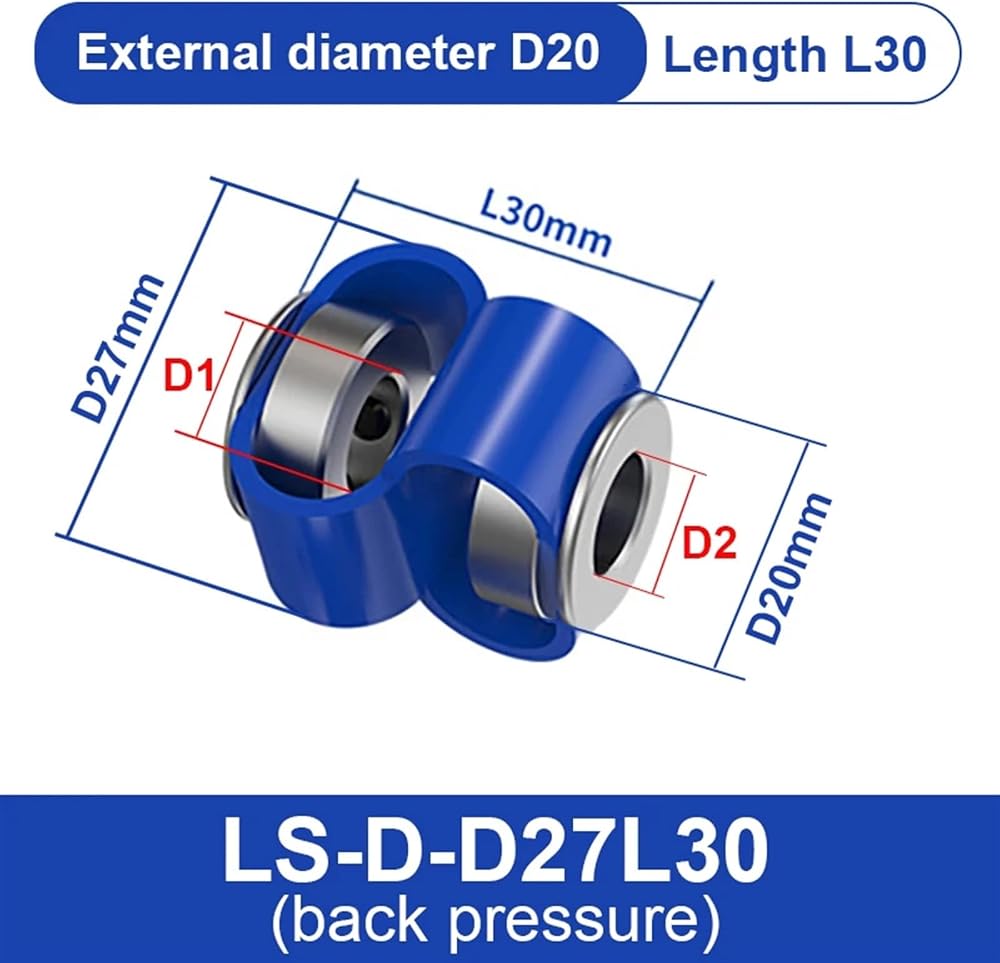

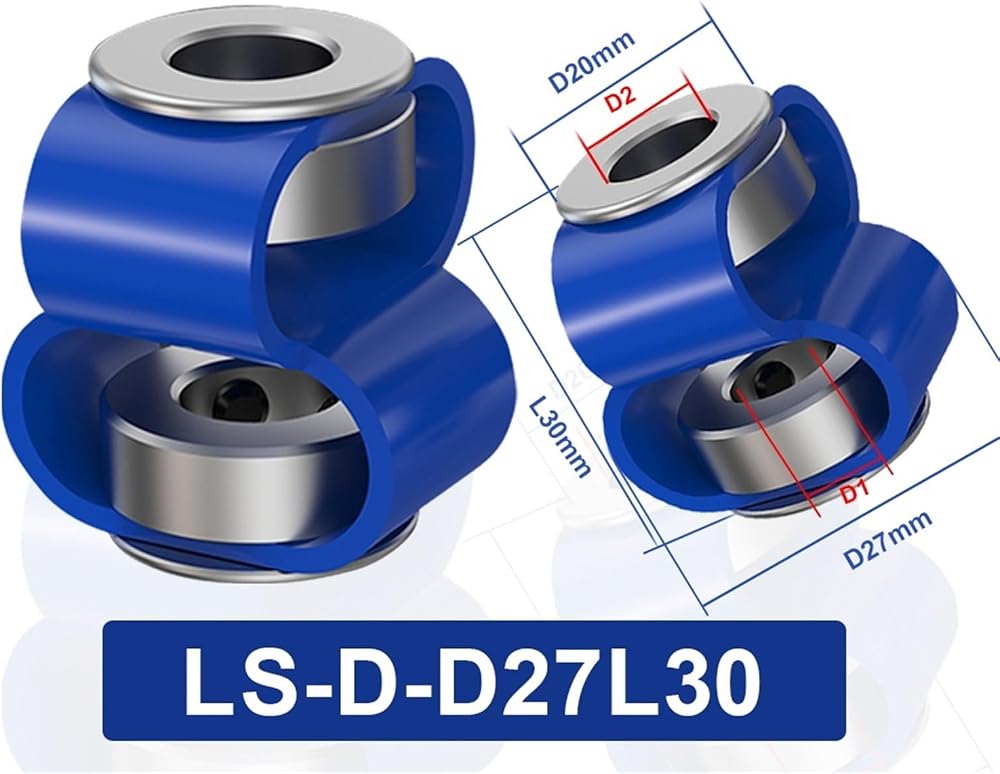

LS-D-D27L30
(back
pressure)
20
30
4-11
M4
9.3
6
28
32
4.9
LS-D-D27L40
20
40
4-11
M4
9.3
4
28
32
4.9
LS-D-D40L50
(back
pressure)
26
50
5-14
M5
13.5
9
45
50
10
LS-D-D40L60
26
60
5-14
M5
13.5
5
45
50
10
Model
Rated
(n.m)
Maximum
(n.m)
Maximum speed
(rpm)
Moment of inertia
(kg.m2)
Permissible
parallel
misallgnment
(mm)
Permissible
angular
misallgnment
(degree)
Weight
(g)
LS-D-D23L24
(back pressure)
0.15
0.3
3000
2.5*10-7
1
5
23
LS-D-D23L32
0.15
0.3
3000
5.8*10-7
2
6
27
LS-D-D27L30
(back pressure)
0.3
0.6
3000
1.8*10-6
1.5
6
35
LS-D-D27L40
0.3
0.6
3000
4.7*10-6
2.5
10
44
LS-D-D40L50
(back pressure)
1.3
2.6
3000
1.1*10-5
3
8
82
LS-D-D40L60
1.3
2.6
3000
2.3*10-5
3
12
96
