Air Cylinders claw

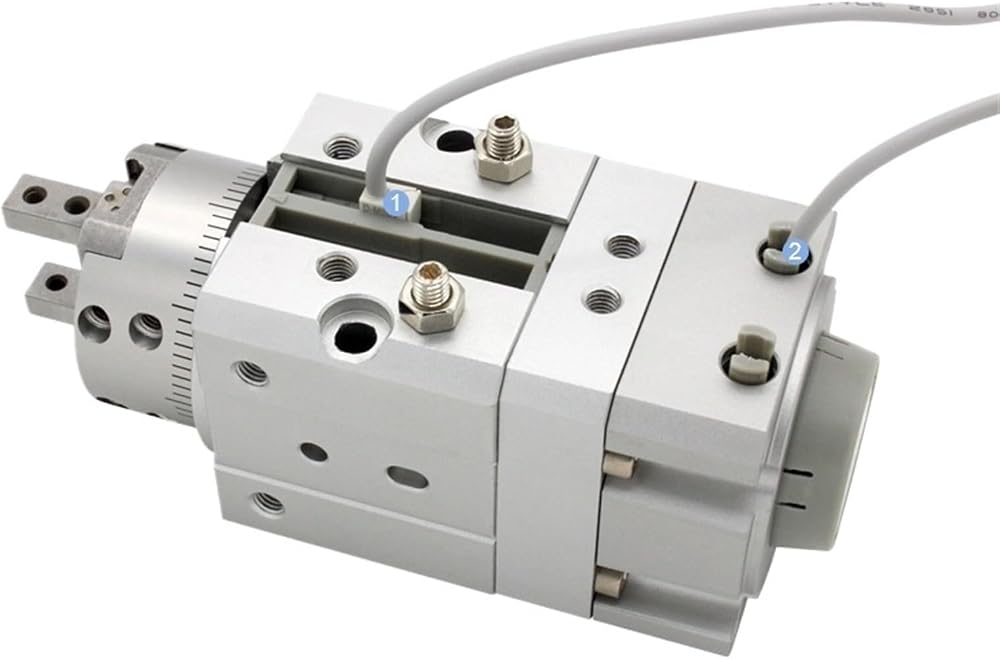

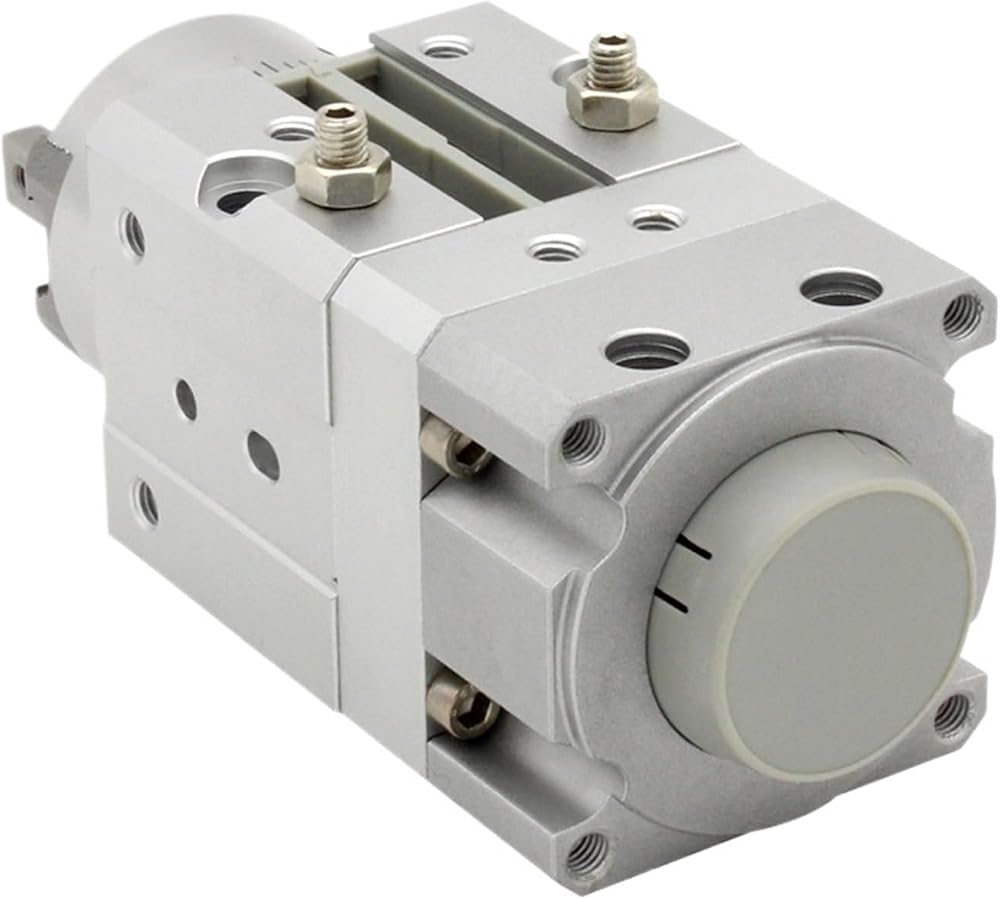

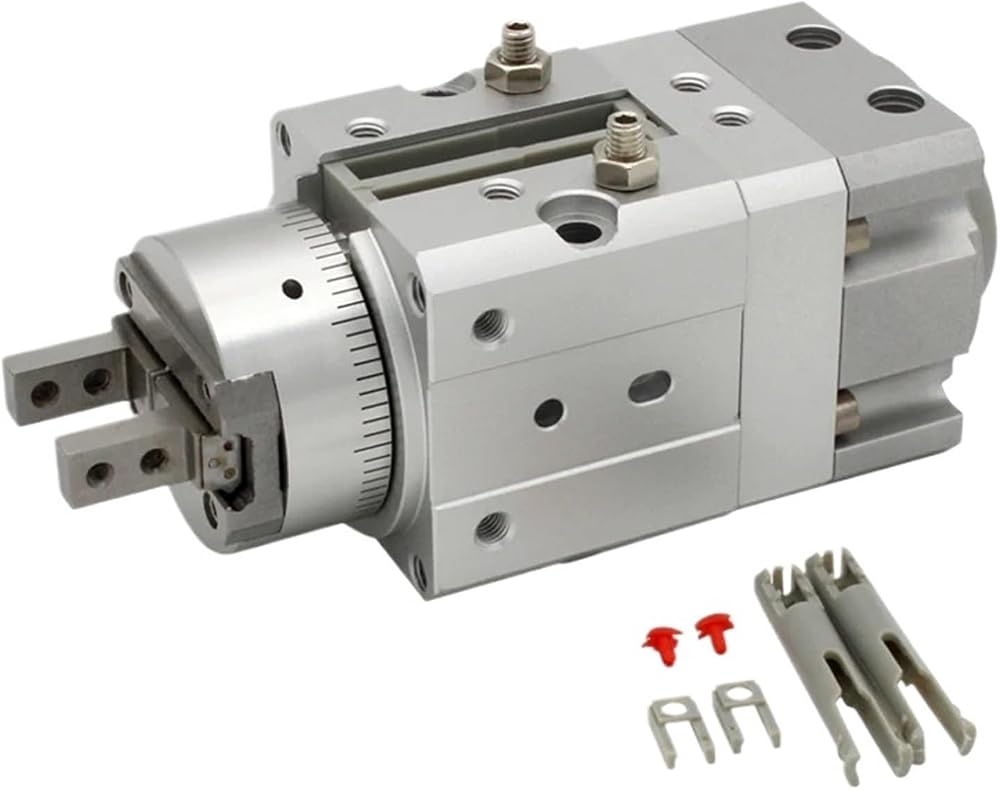

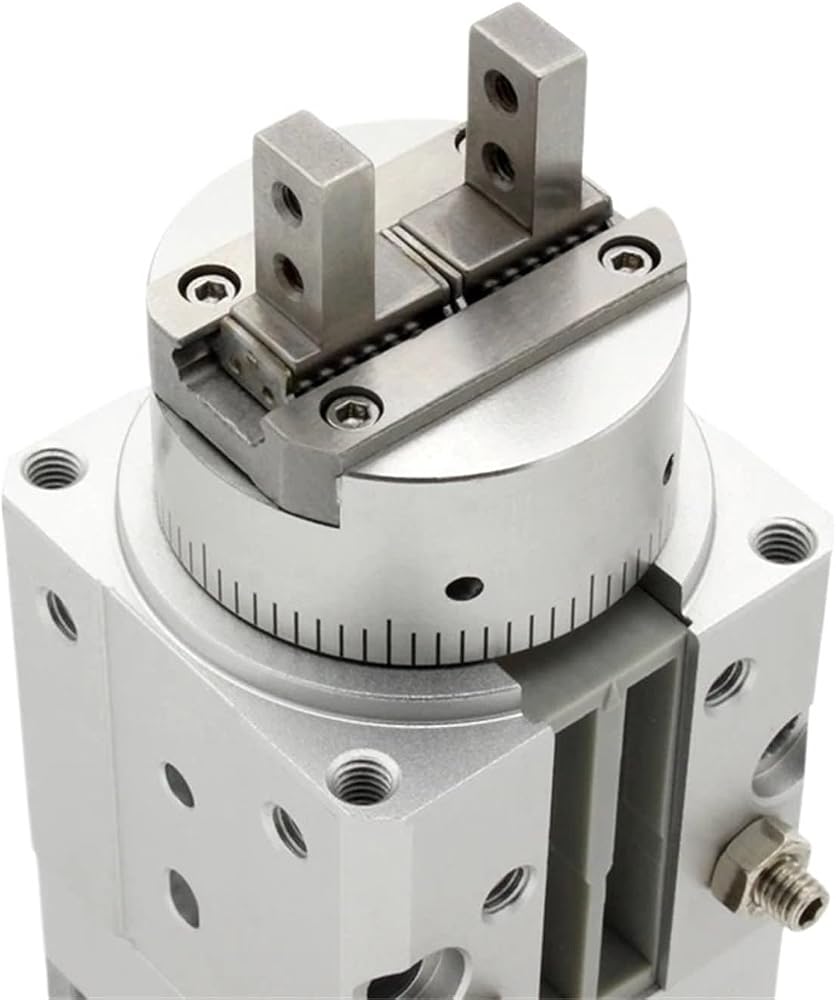

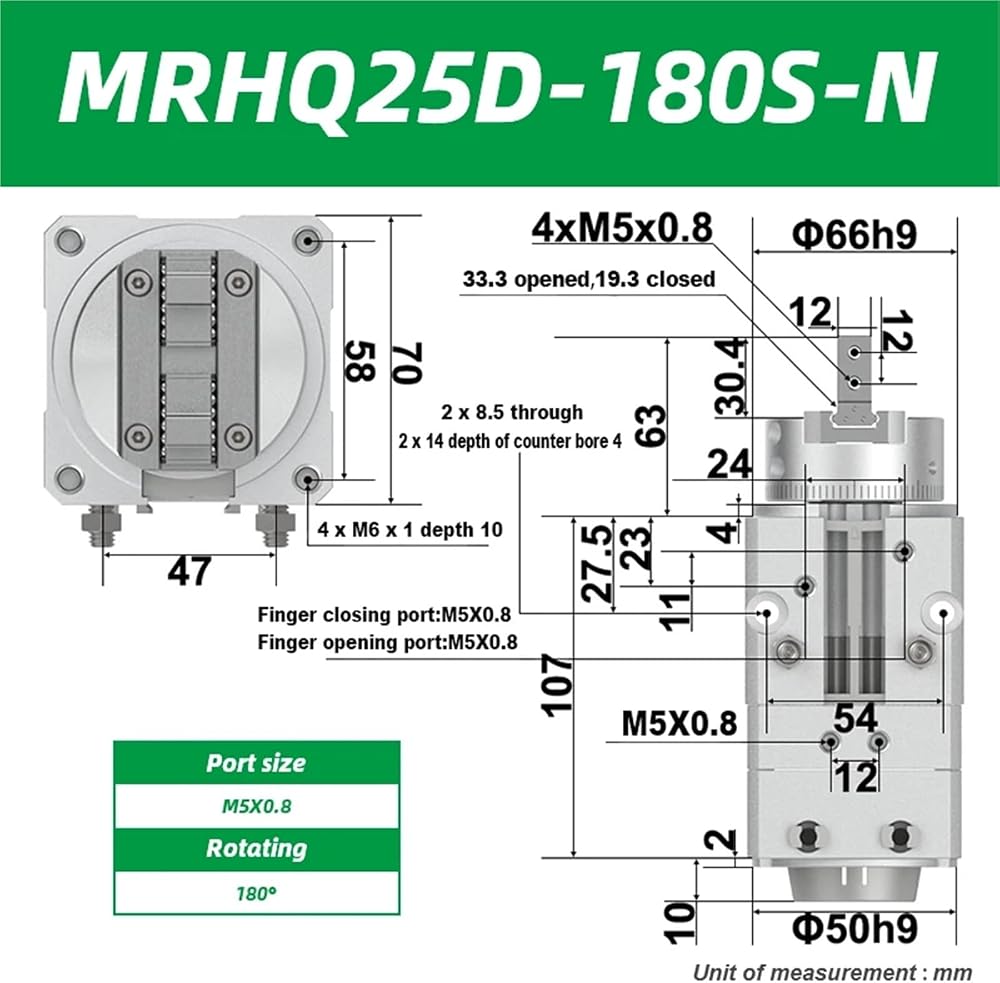

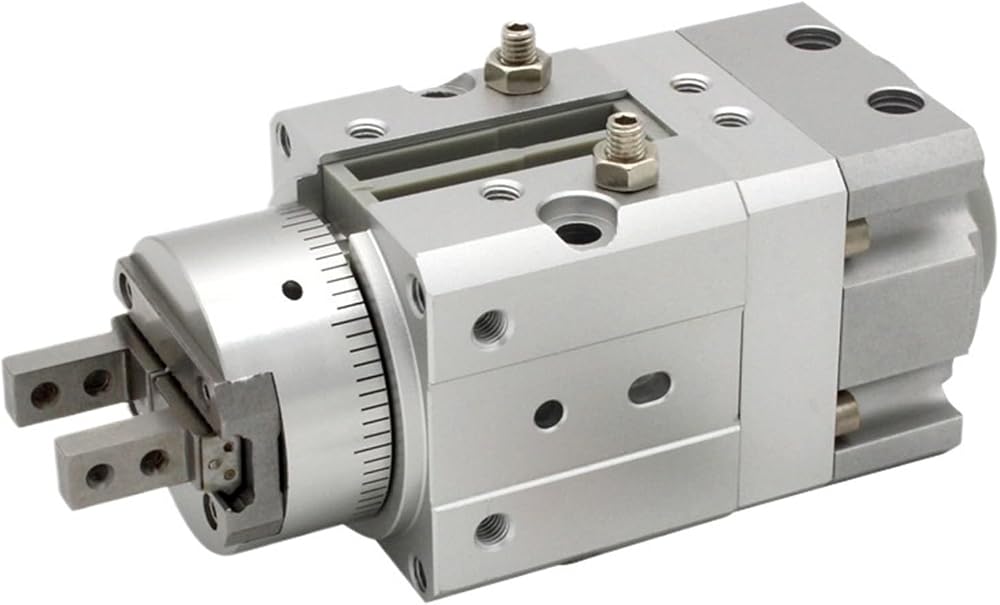

MRHQ rotary gripper 2 fingers Rotary clamping Cylinde MRHQ10D MRHQ16D-180S-N MRHQ20D-90S-N MRHQ25D -90S -180S-N
Gripper action: : Double acting
Gripper unit operating pressure: : 0.1~ 0.7MPa
Rotary unit operating pressure: : 0.25~ 1.0MPa
Ambient and fluid temperature: : 5 to 60 Celsius
Adjustable rotation time range: : 0.07 to 0.3 s/90° (at 0.5 MPa)
Finger opening/closing repeatability: : ±0.01 mm
Gripper maximum operating frequency: : 180 c.p.m
