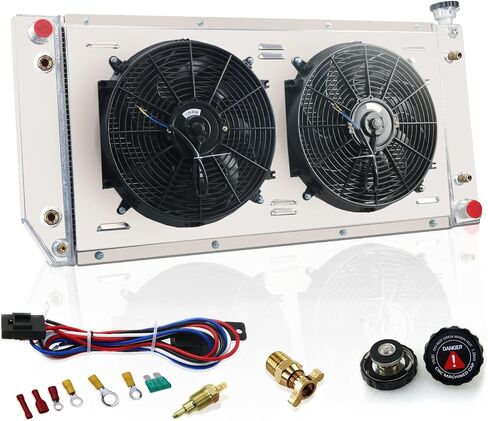

This kuuhlersat Aluminum Radiators Compatible with:
Replacement Radiator For 1988-1999 Chevy C/K Truck 5.7L - 7.4L V8 Engines
Replacement Radiator For 2000 Chevy C/K Truck 5.7L V8 Engines
Replacement Radiator For 1992-1994 Chevy Suburban/Blazer 5.7L-7.4L V8 Engines
Replacement Radiator For 1995-2000 ChevyTahoe/1992-2000 GMC Yukon 5.7L V8 Engines
Replacement Radiator For 1999-2000 Cadillac Escalade/Escalade EXT 5.7L V8 Engines
Part Number: DPI1520,DPI1522,DPI1693,1520,1522,1693,1520,RADS1520

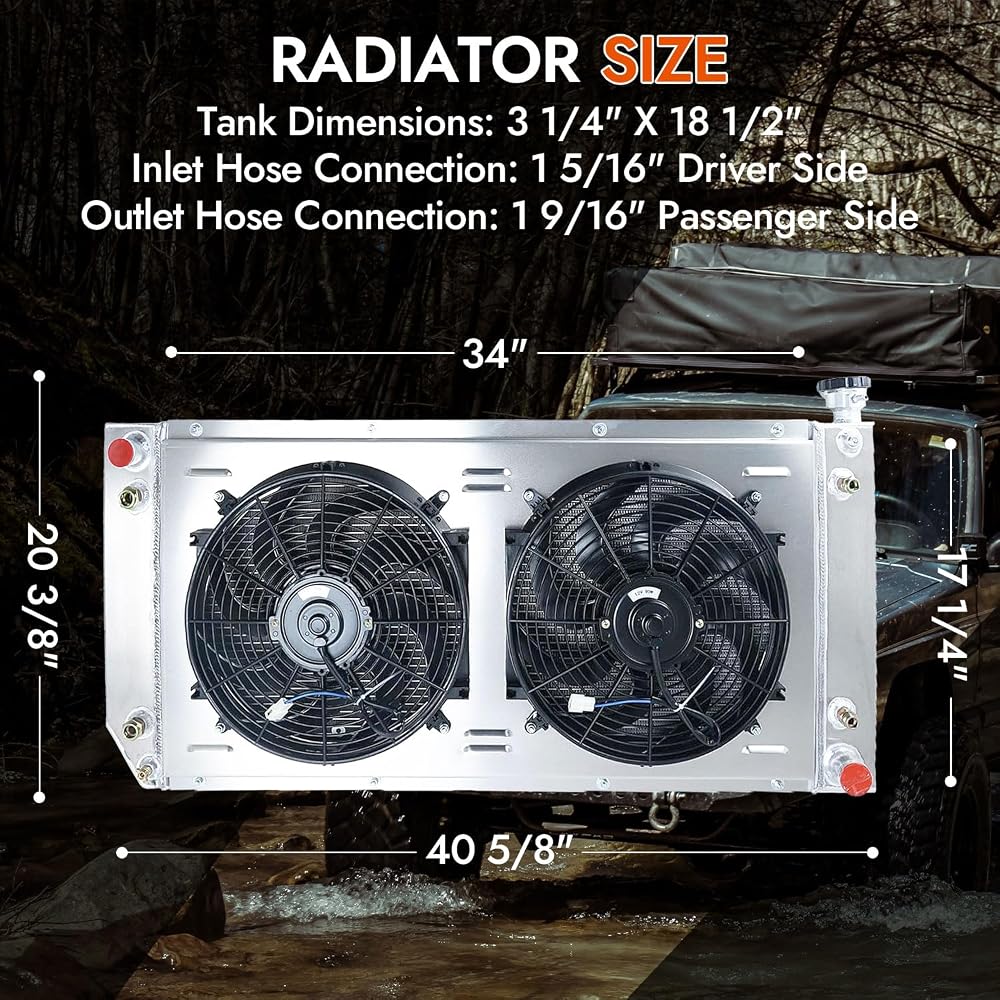

ONLY FIT 34 INCH WIDE CORE,17 INCH HIGH CORE

Radiator Size:
Type: Aluminum Radiator

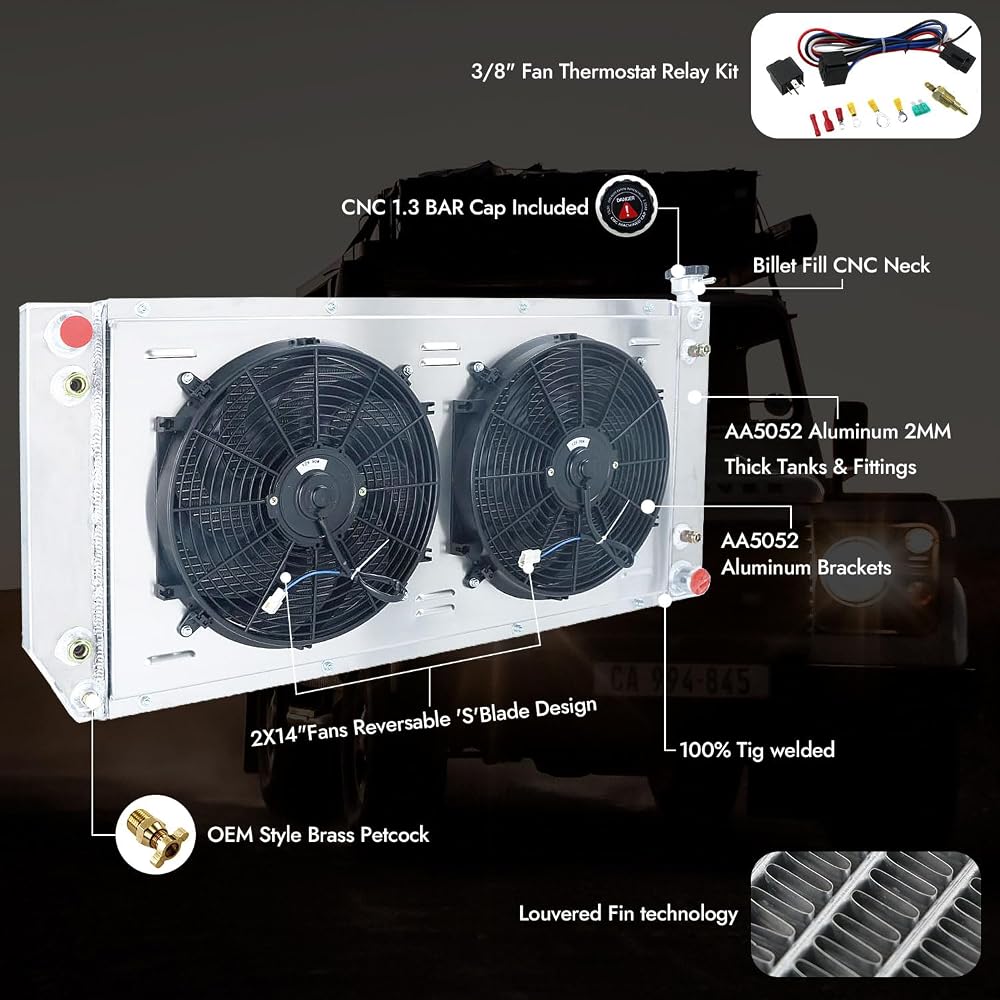

High Performance Racing Spec.

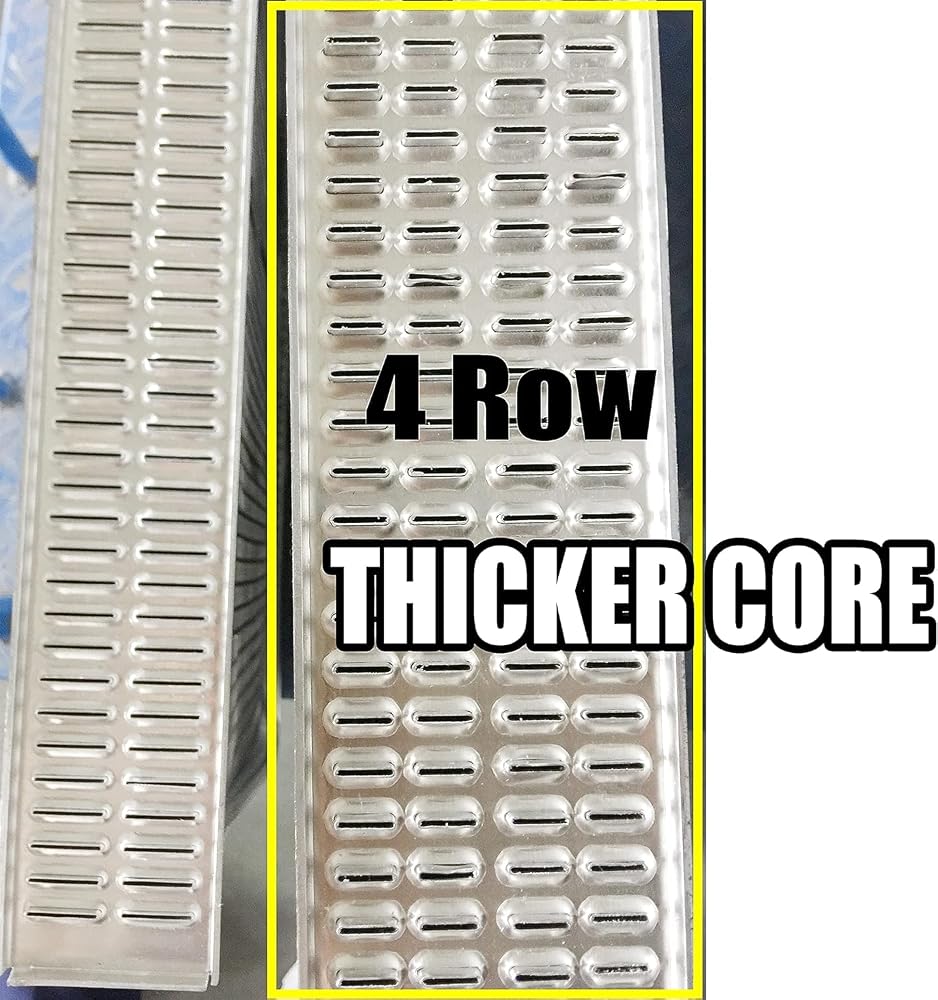

4-Row of tubes Core Racing Design
Core & Tank Material: AA5052 Aluminum
Surface Finish: Raw Aluminum Unpainted
Fitment Type: Direct Replacement

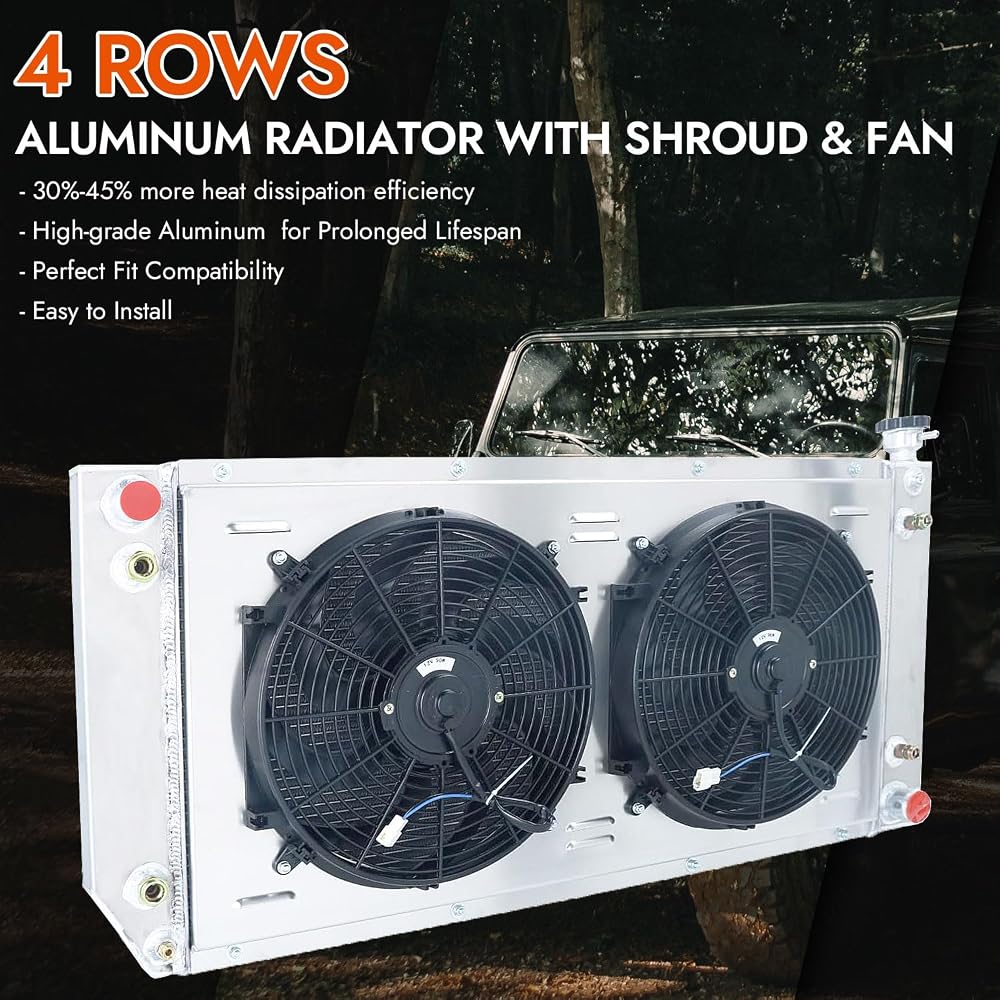

Performance: Up to 30%-45% Cooling

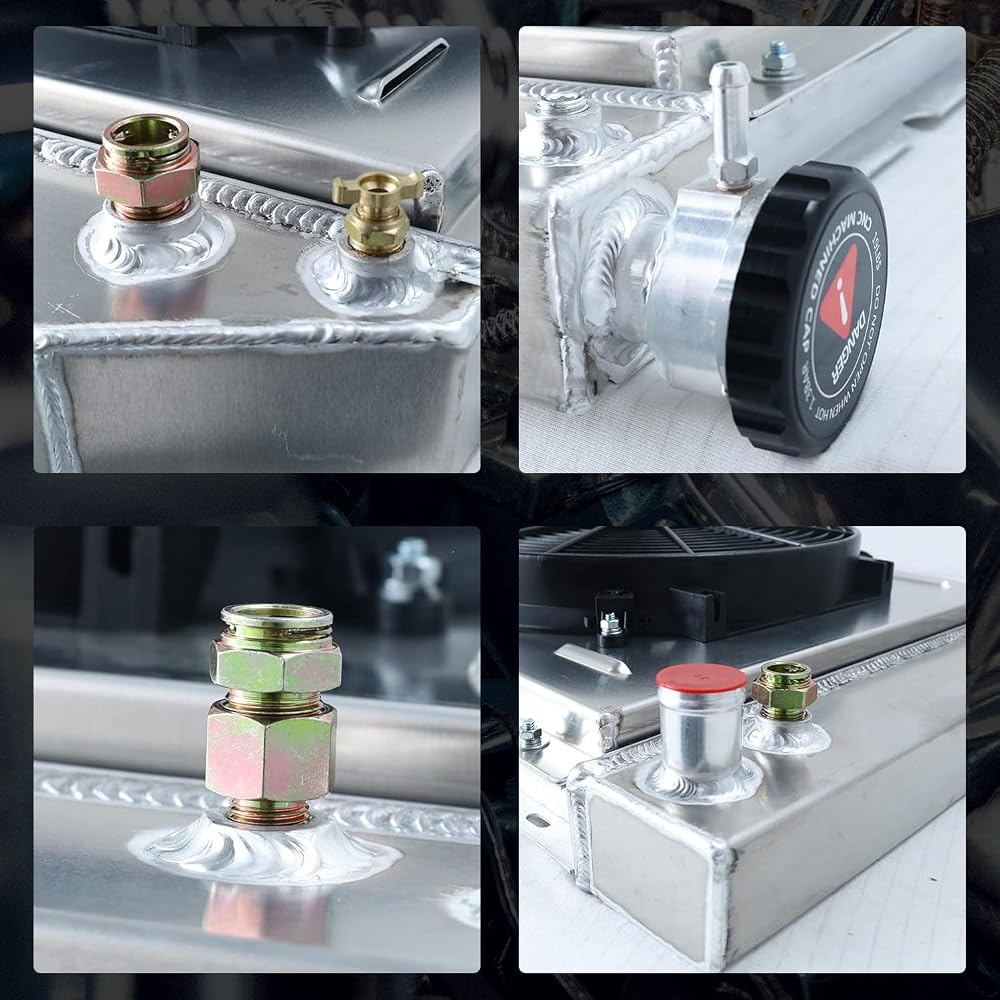

Crafts: 100% Tig Welded,No Epoxy

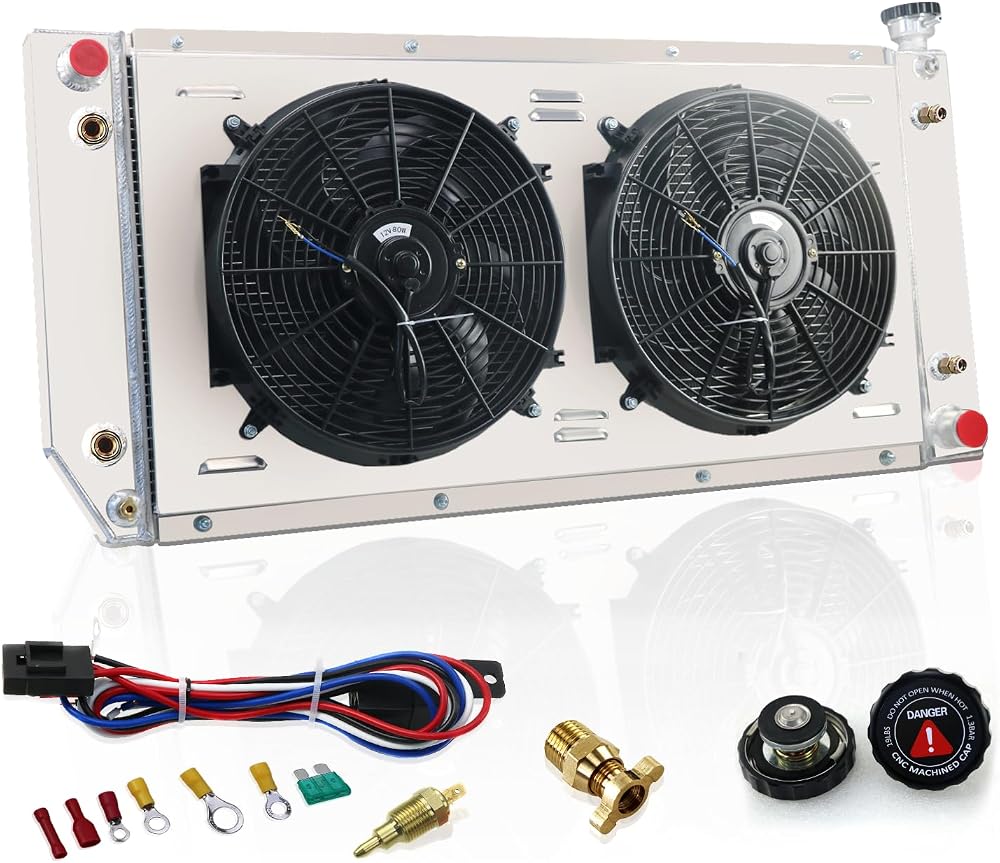

Includes CNC machined filler neck and cap Radiator Drain Plug: OEM Style Brass Petcock Drain
Features: 100% Leak Tested, 4 Rows, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation

Stronger and Higher Capacity for Coolant than Stock Units
Professional Installation is Highly Recommended
No Instruction Included

Fan Specification
Volt: 12v
Motor: 90W
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

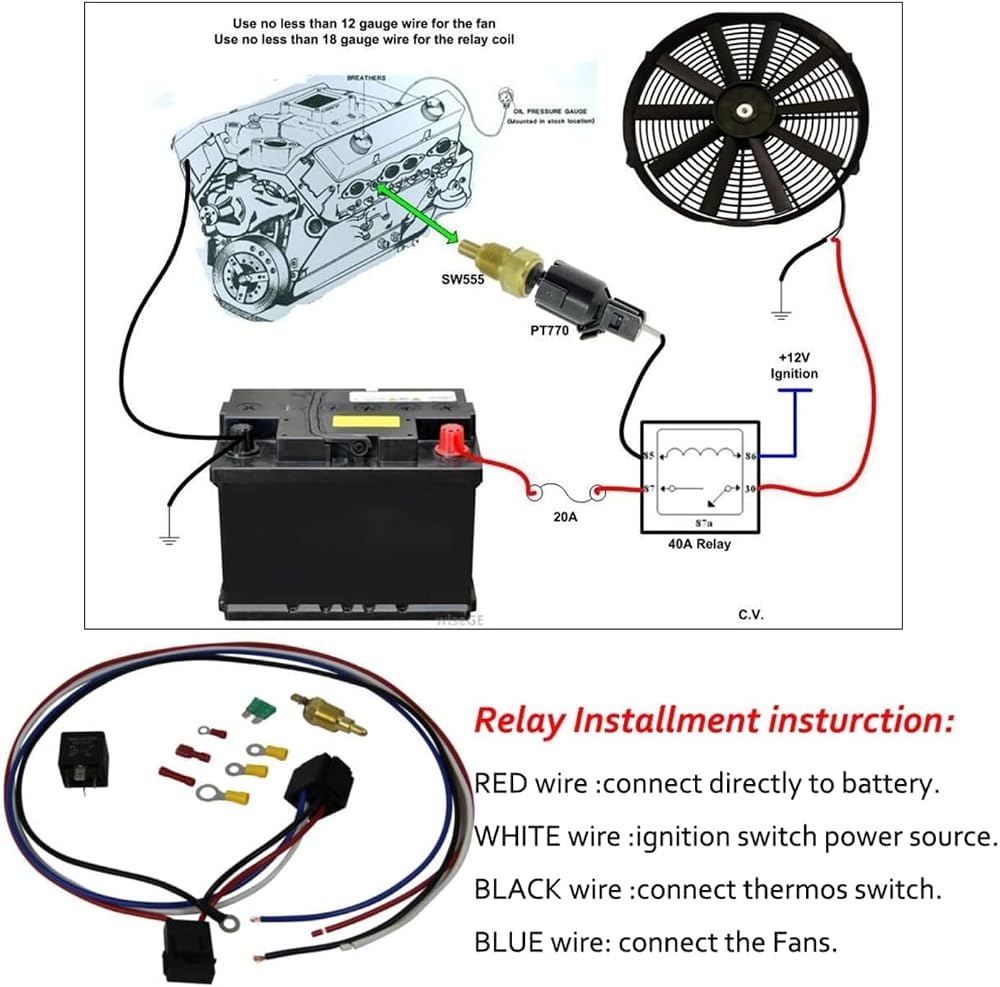

Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at the preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
The probe typically threads into the radiator, water outlet, or manifold.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.

KUUHLERSAT Radiador de aluminio:
1. Made from Aircraft T-5052 grade aluminum for prolonged lifespanand with raw aluminum finish

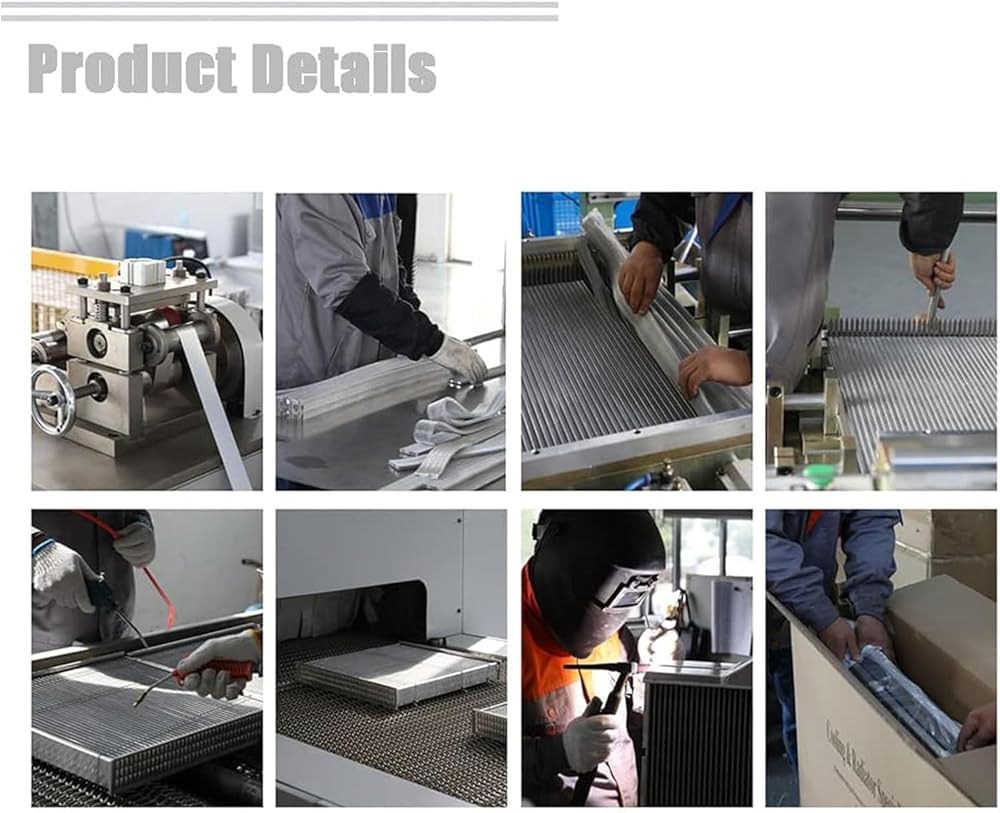

2.Brazed core technology to guarantee optimum performance and dependability
3.AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators
5.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat
6. Carefully crafted to exceptional OE standards for precise fit

Description:
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure
Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently
This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones
Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications
