Item Specifics

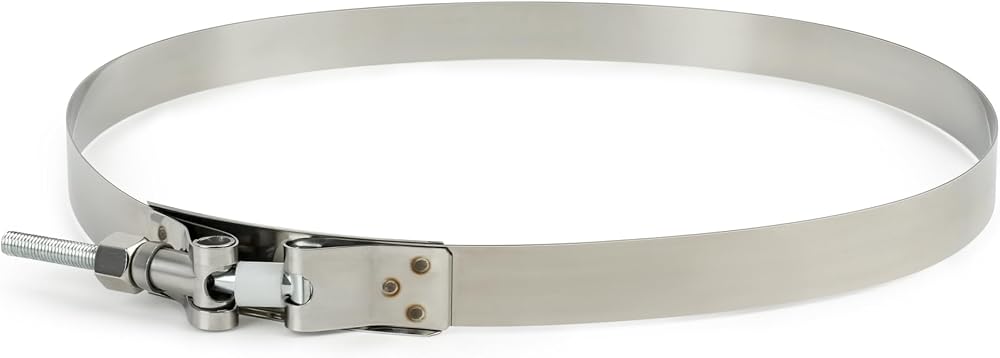

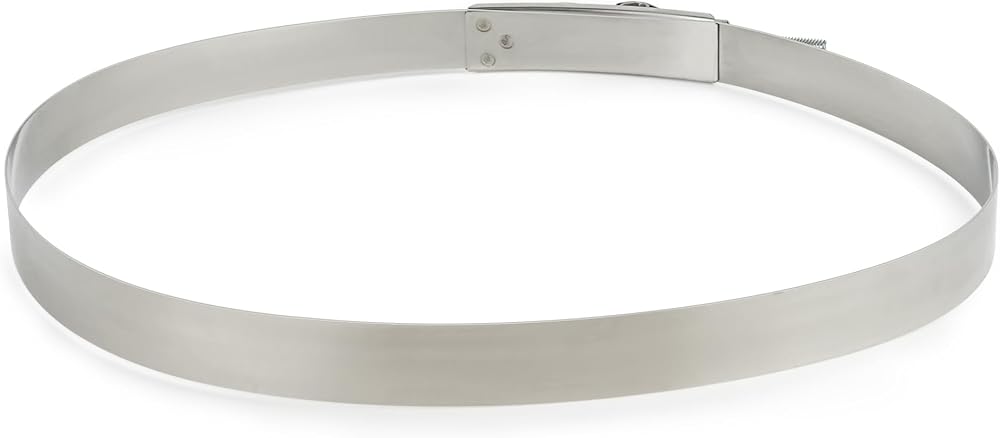

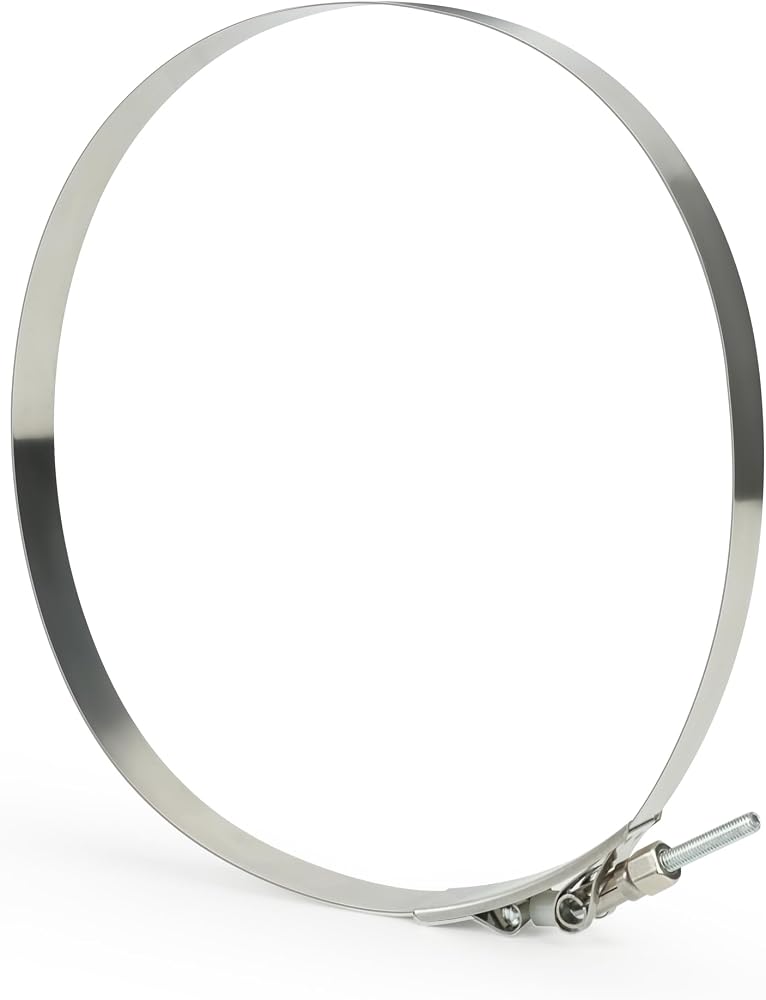

Part Type: Transmission Pump Alignment Tool

Fitment Type: Custom Fit

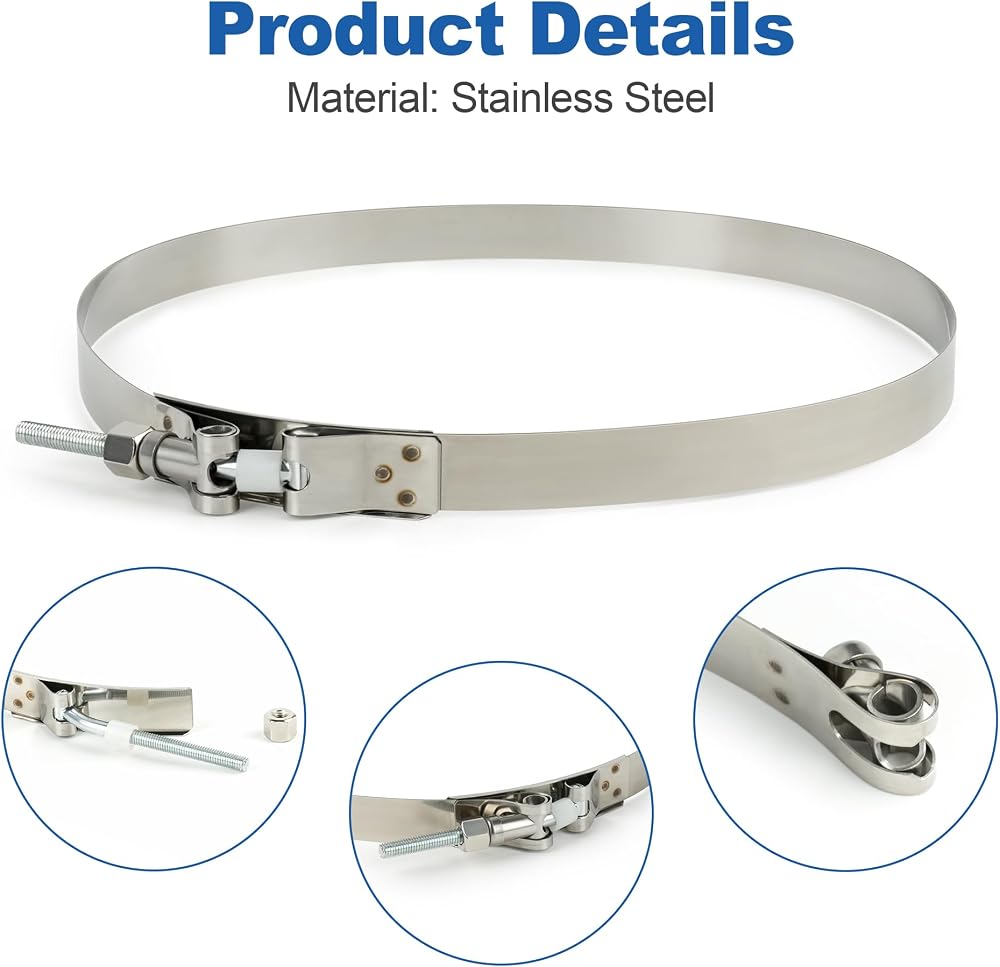

Material: Stainless Steel

Cross References: T-2862, 307-D004, D89L-77000-A

Applications: For Ford E4OD, 4R100, 5R110W, TorqShift(4/5-Speed Automatic Transmissions)

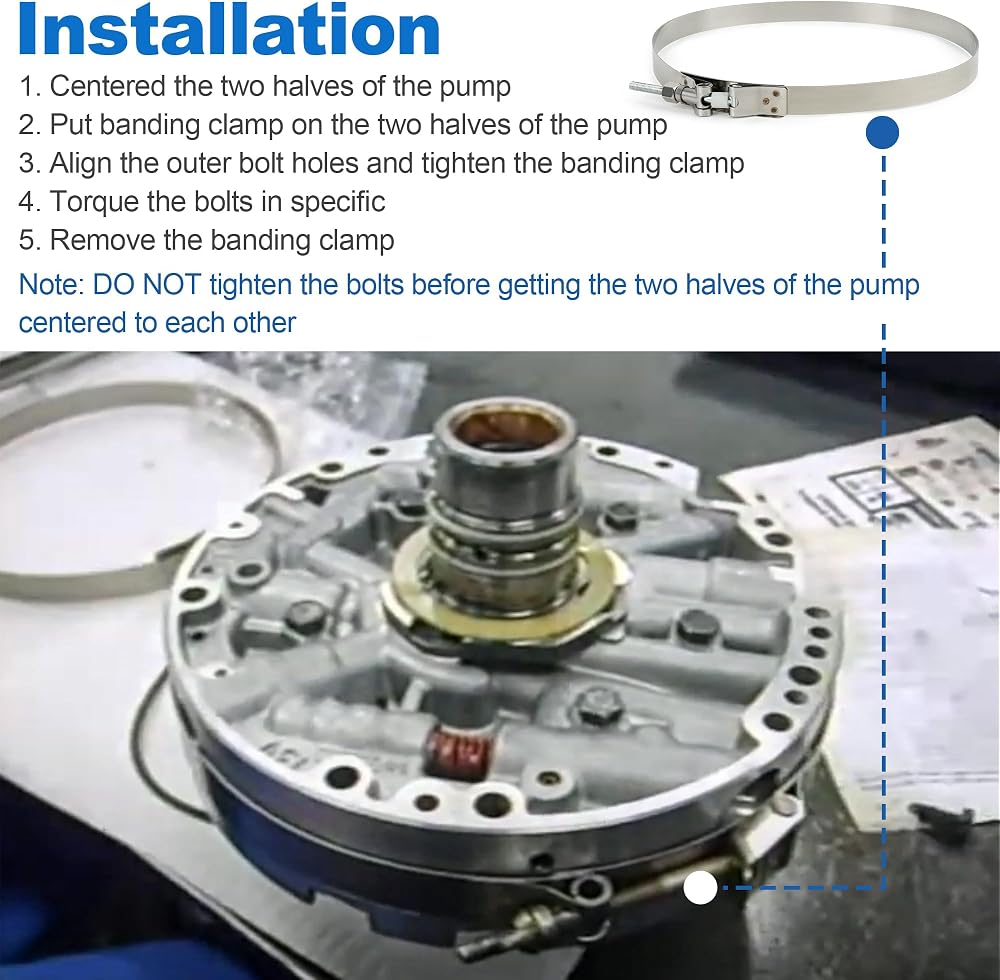

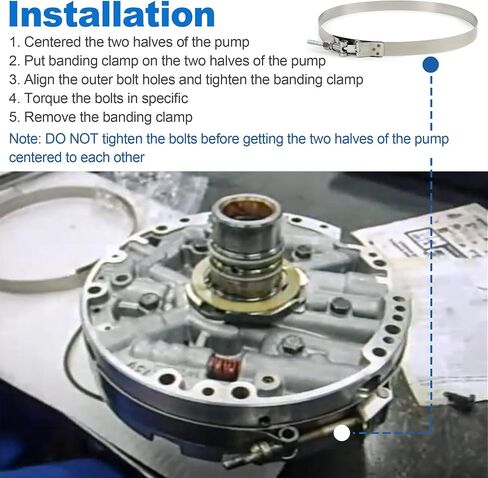

Installation:

1. Centered the two halves of the pump

2. Put banding clamp on the two halves of the pump

3. Align the outer bolt holes and tighten the banding clamp

4. Torque the bolts in specific

5. Remove the banding clamp

 Note: DO NOT tighten the bolts before getting the two halves of the pump centered to each other

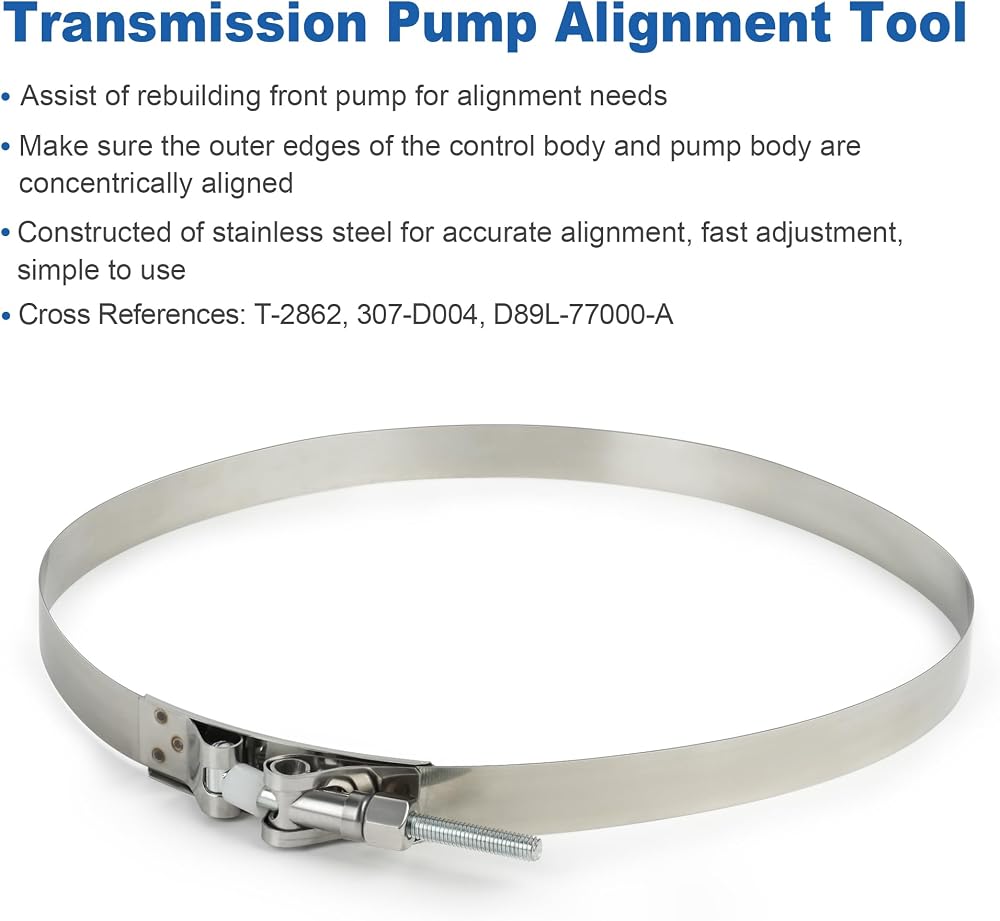

Description:

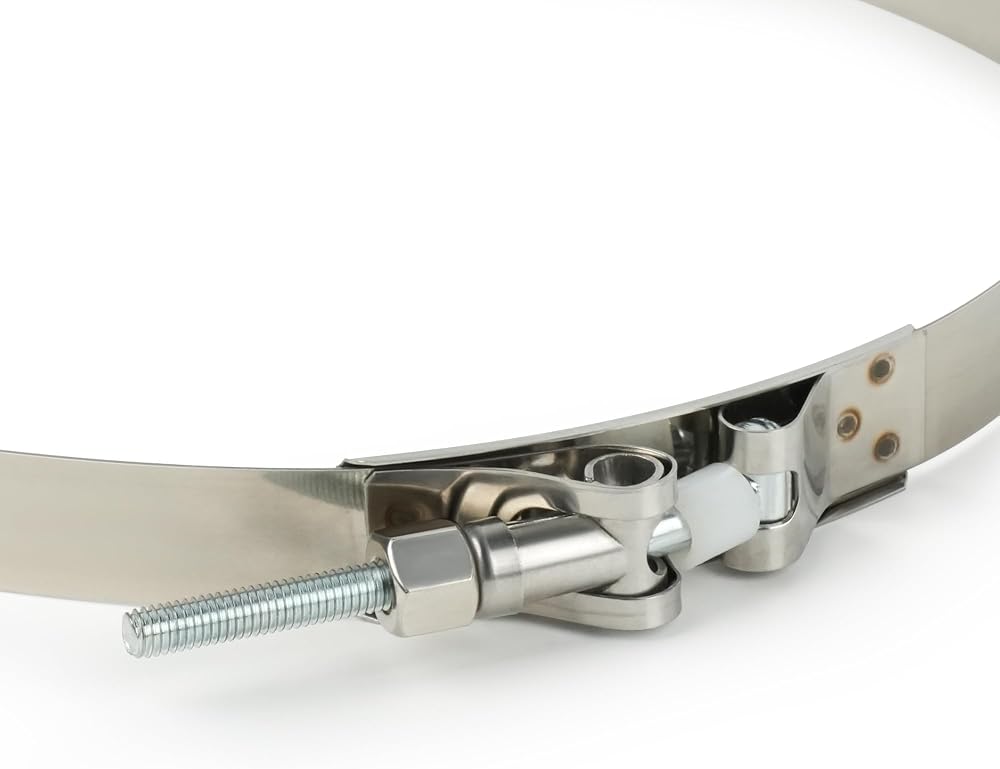

· Transmission front pump banding clamp alignment tool

· Assist of rebuilding front pump for alignment needs

· Make sure the outer edges of the control body and pump body are concentrically aligned

· Constructed of stainless steel for accurate alignment, fast adjustment, simple to use

· Typical procedure for types of E4OD, 4R100, 5R110W automatic transmissions

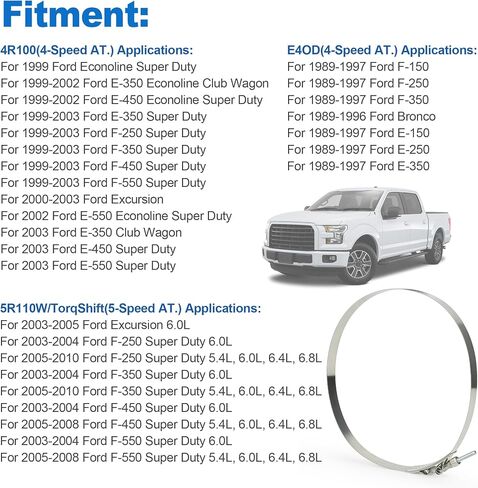

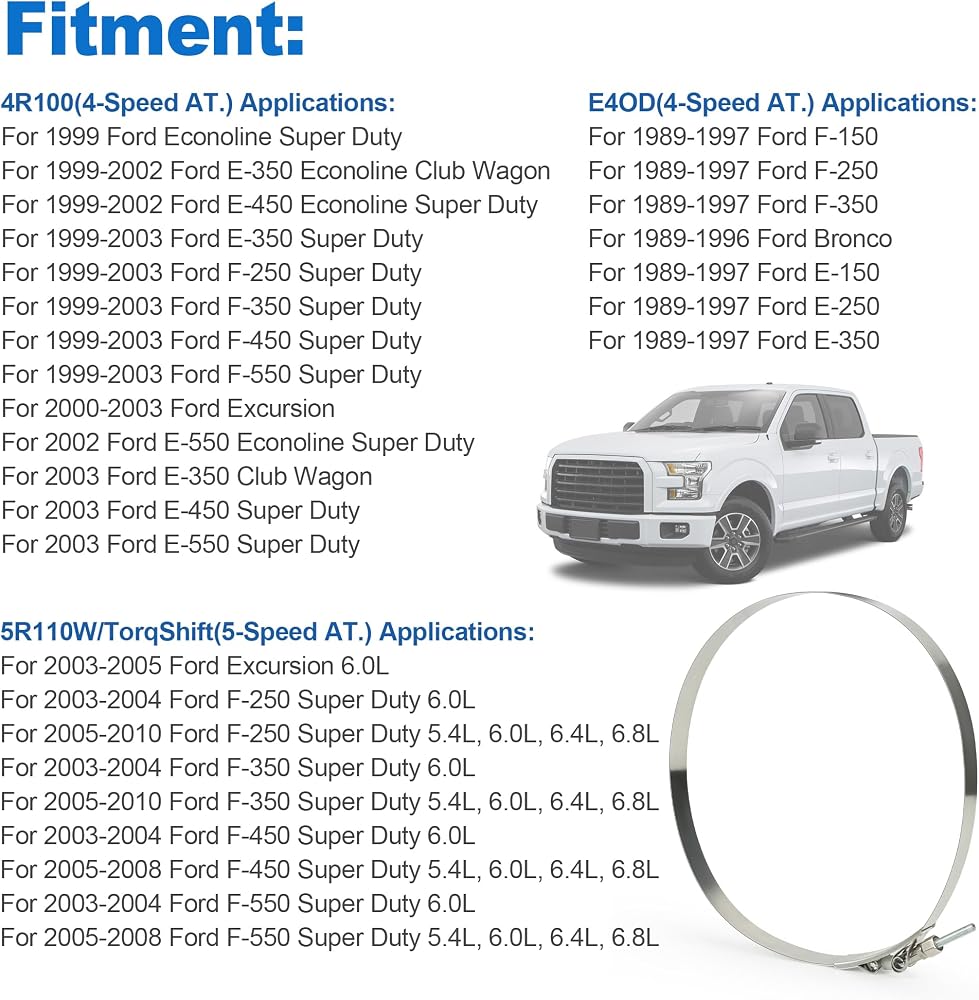

Fitment:

E4OD(4-Speed AT.) Applications:

For 1989-1997 Ford F-150

For 1989-1997 Ford F-250

For 1989-1997 Ford F-350

For 1989-1996 Ford Bronco

For 1989-1997 Ford E-150

For 1989-1997 Ford E-250

For 1989-1997 Ford E-350

4R100(4-Speed AT.) Applications:

For 1999 Ford Econoline Super Duty

For 1999-2002 Ford E-350 Econoline Club Wagon

For 1999-2002 Ford E-450 Econoline Super Duty

For 1999-2003 Ford E-350 Super Duty

For 1999-2003 Ford F-250 Super Duty

For 1999-2003 Ford F-350 Super Duty

For 1999-2003 Ford F-450 Super Duty

For 1999-2003 Ford F-550 Super Duty

For 2000-2003 Ford Excursion

For 2002 Ford E-550 Econoline Super Duty

For 2003 Ford E-350 Club Wagon

For 2003 Ford E-450 Super Duty

For 2003 Ford E-550 Super Duty

5R110W/TorqShift(5-Speed AT.) Applications:

For 2003-2005 Ford Excursion 6.0L

For 2003-2004 Ford F-250 Super Duty 6.0L

For 2005-2010 Ford F-250 Super Duty 5.4L, 6.0L, 6.4L, 6.8L

For 2003-2004 Ford F-350 Super Duty 6.0L

For 2005-2010 Ford F-350 Super Duty 5.4L, 6.0L, 6.4L, 6.8L

For 2003-2004 Ford F-450 Super Duty 6.0L

For 2005-2008 Ford F-450 Super Duty 5.4L, 6.0L, 6.4L, 6.8L

For 2003-2004 Ford F-550 Super Duty 6.0L

For 2005-2008 Ford F-550 Super Duty 5.4L, 6.0L, 6.4L, 6.8L
