This Shroud Fan Compatible with:
Replacement for Dodge Ram 2500 5.9L Turbo Diesel 1994-2002
Replacement for Dodge Ram 3500 5.9L Turbo Diesel 1994-2002
Replacement for Dodge Ram 2500 Quad Cab 5.9L Turbo Diesel 1998
Replacement for Dodge Ram 3500 Quad Cab 5.9L Turbo Diesel 1998
Replacement for Dodge Ram 2500 Club Cab 5.9L Turbo Diesel 1998
Replacement for Dodge Ram 3500 Quad Cab 5.9L Turbo Diesel 2001

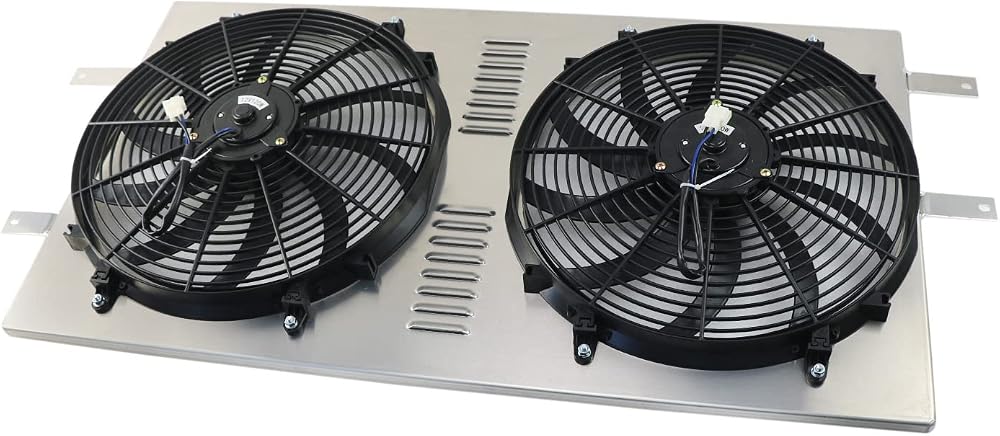

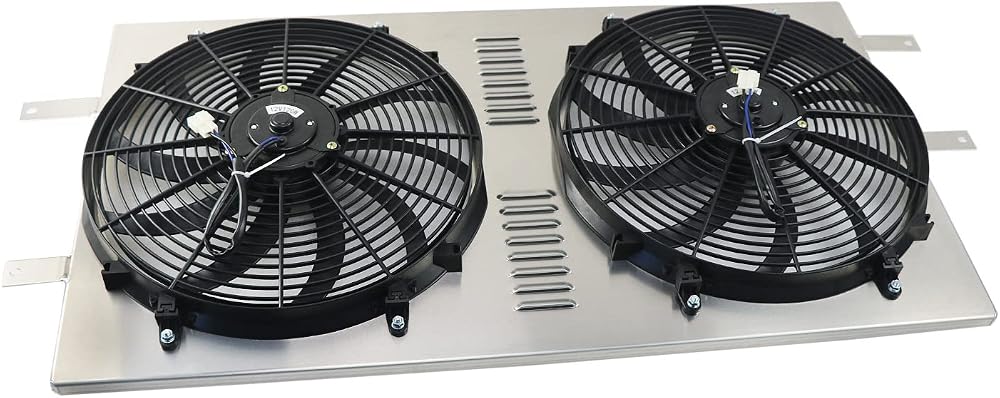

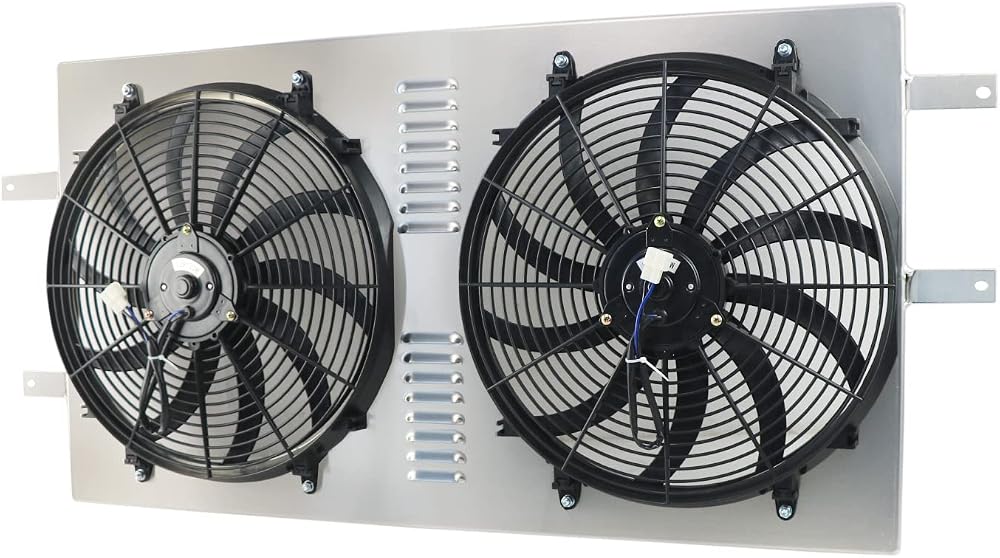

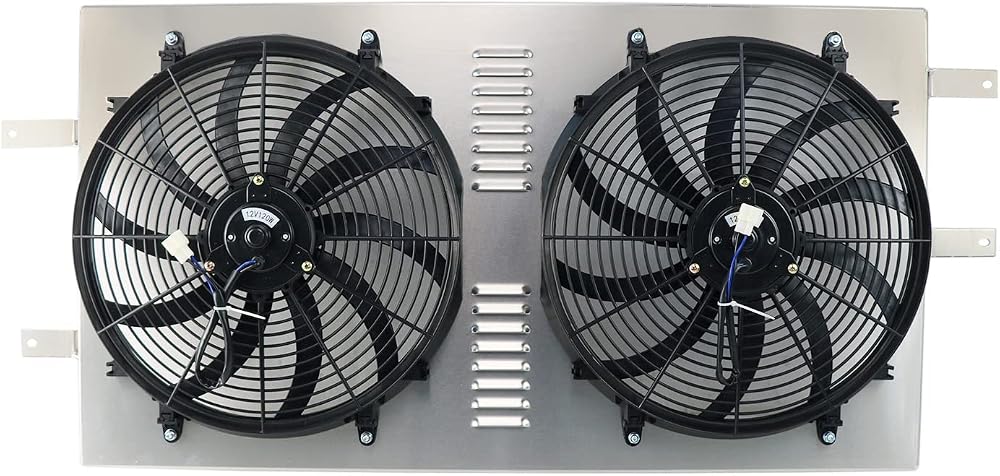

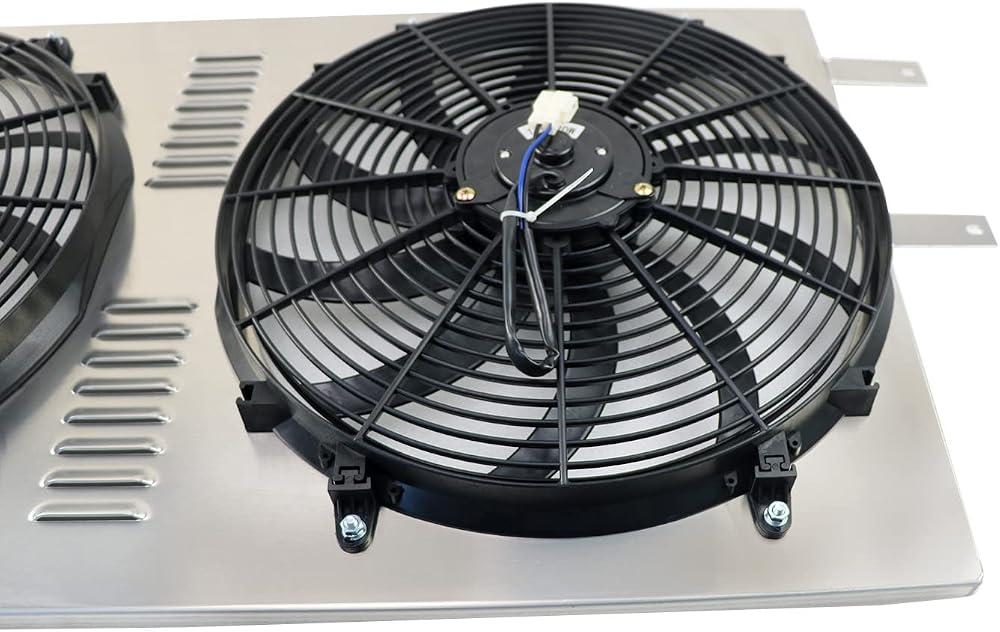

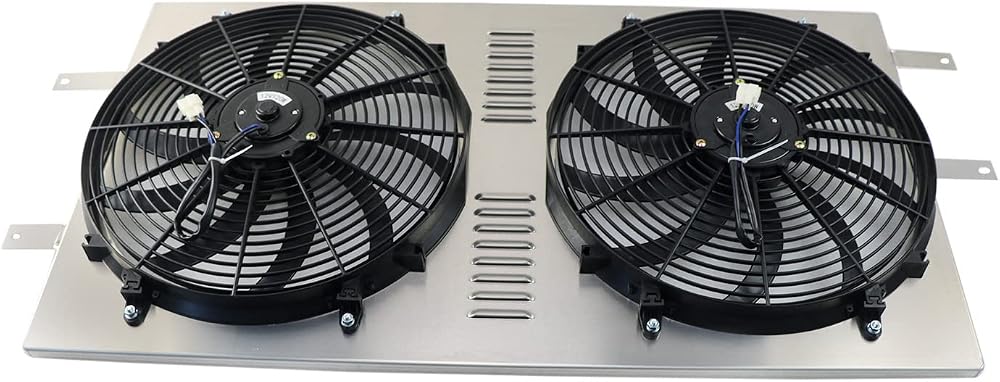

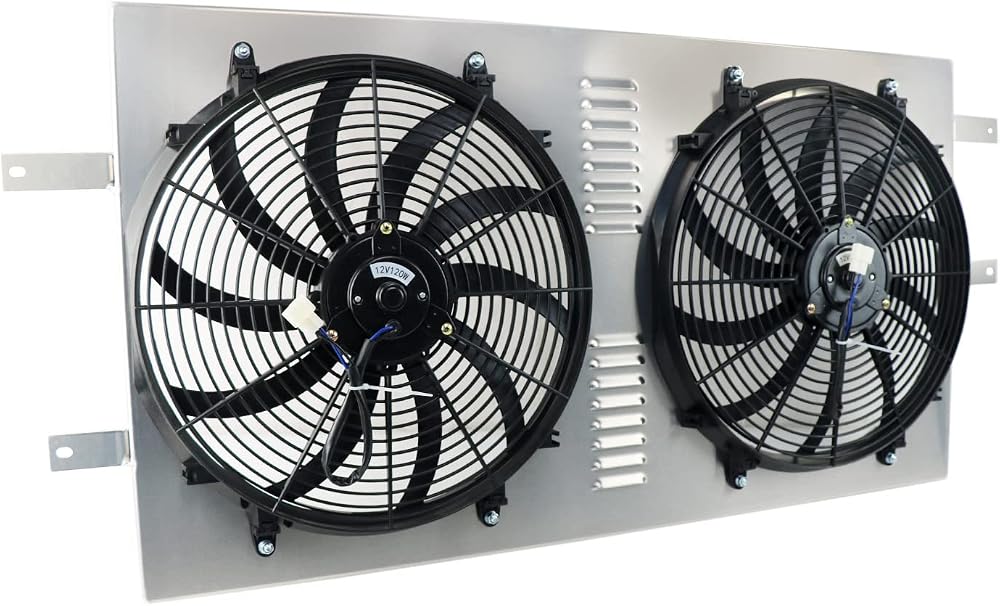

Fan Details:
16inch Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Fans Detail Performance Part: Yes
Material: Aluminum, Plastic

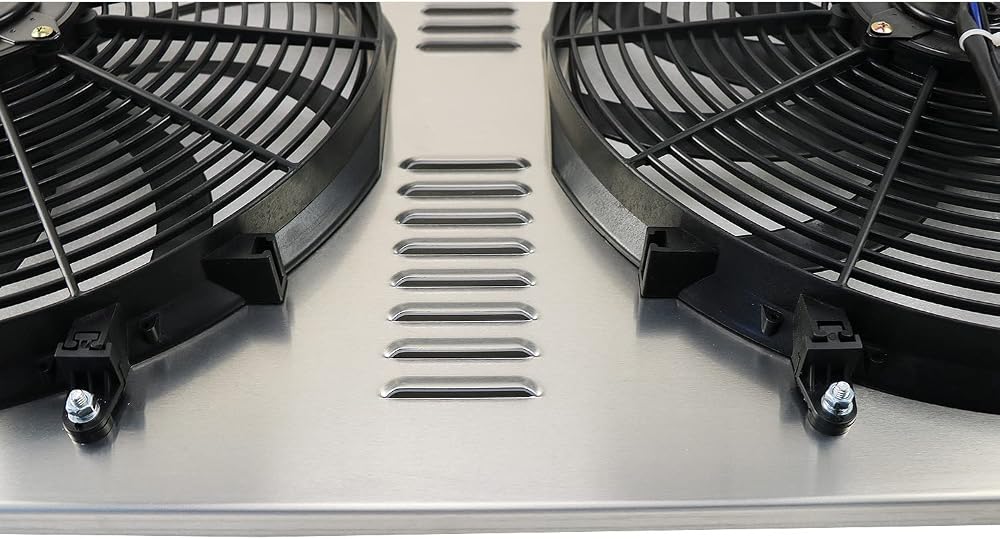

Type: Aluminum Fan Shroud

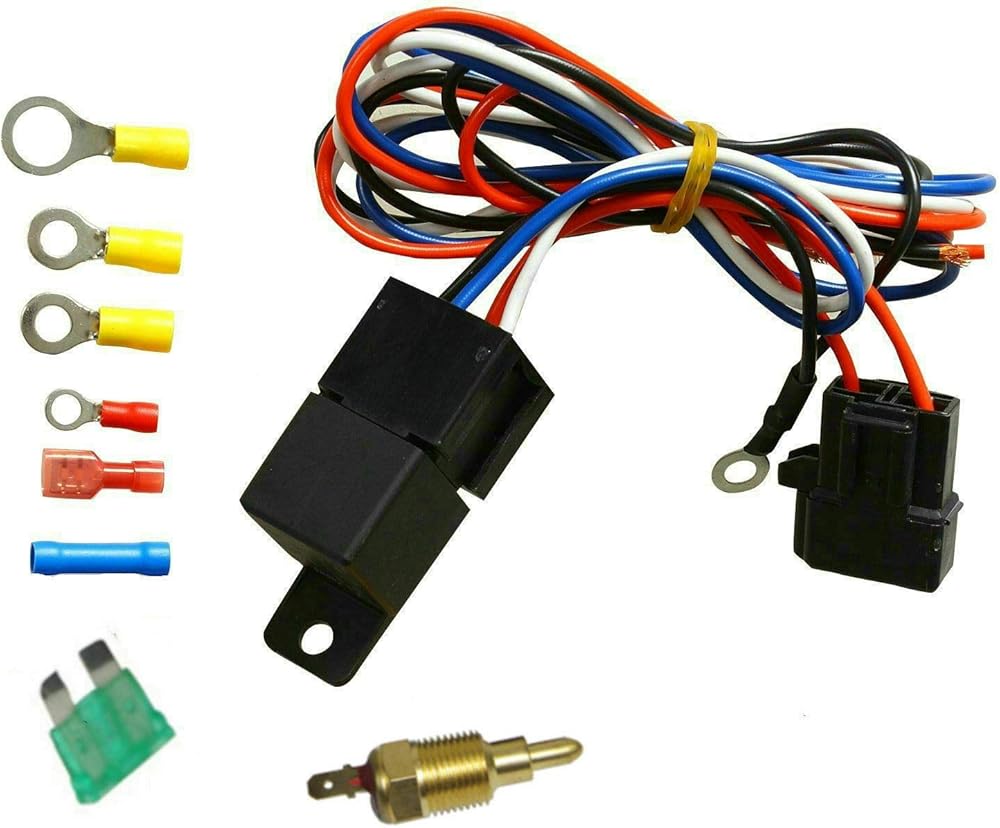

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan
Activates by grounding electric fans at preset temperature
180'F turn-on temperature, 165'F turn-off temperature
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included
Probe typically threads into radiator, water outlet or manifold

Thermostat Relay Kit Instructions:
RED + connect directly to battery
WHITE wire to ignition switch power source
BLACK goes to thermos switch
BLUE wire goes to the Fans
This set up will run Fans & pull air in through radiator
