Description:

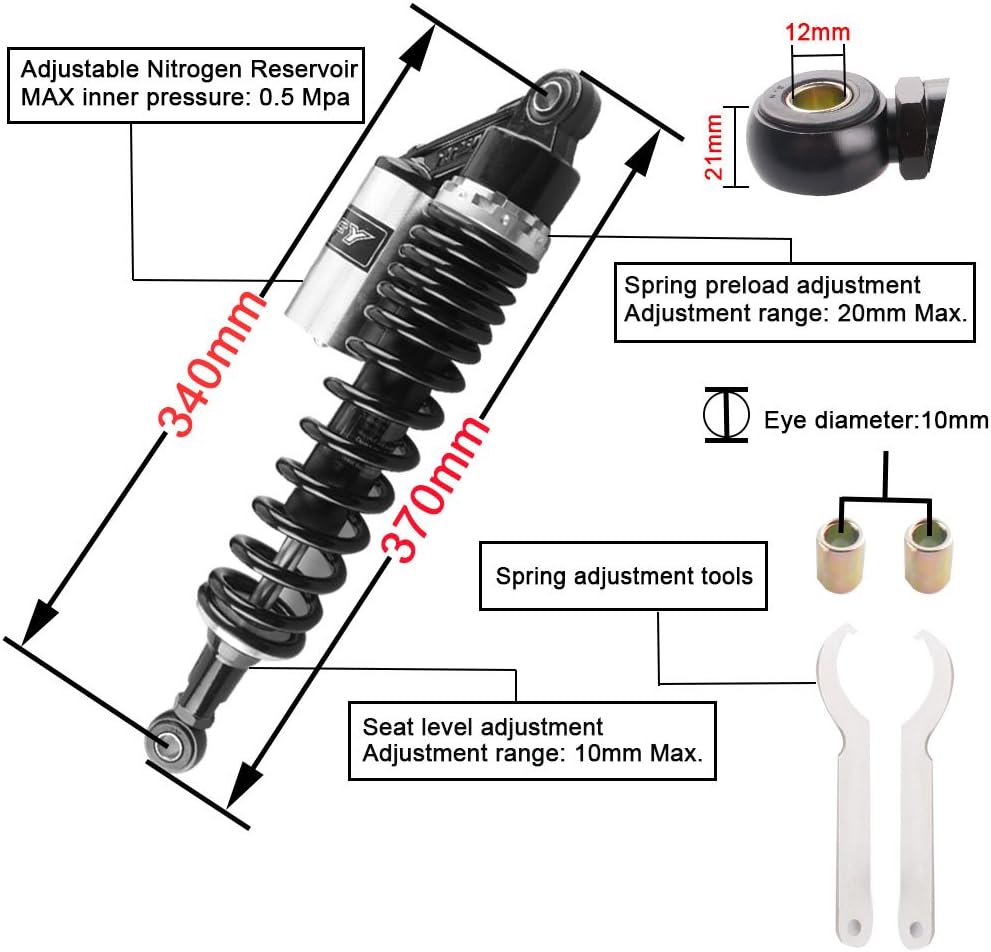

Dimension:
Total Length:370mm (14 3/4")
Length of Eye to Eye Core:340mm(13 3/8")
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Thickness: 8mm
Spring Width: 60mm
Working Stroke: 68mm
Spring Stiffness: 110 kg
Maximum load: 300 kg ( 660 lbs)

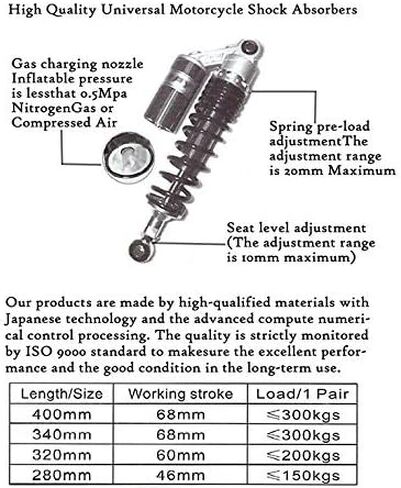

Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa

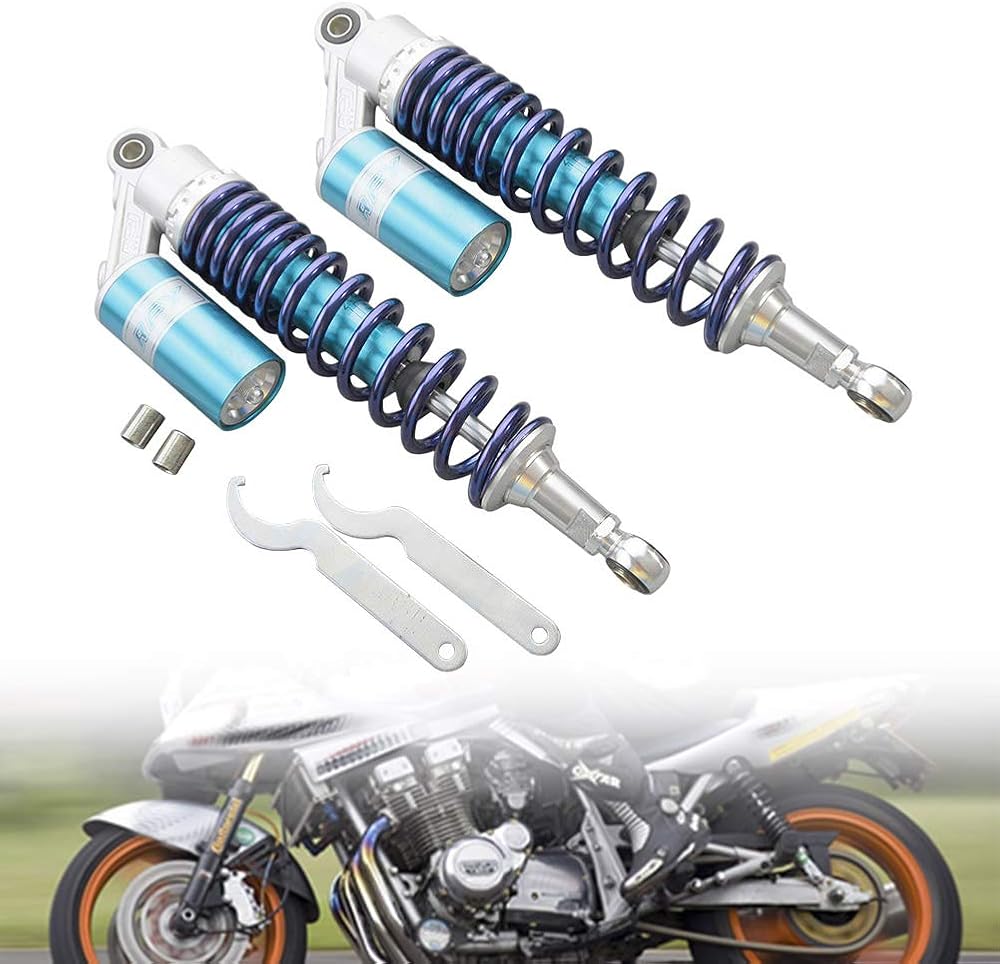

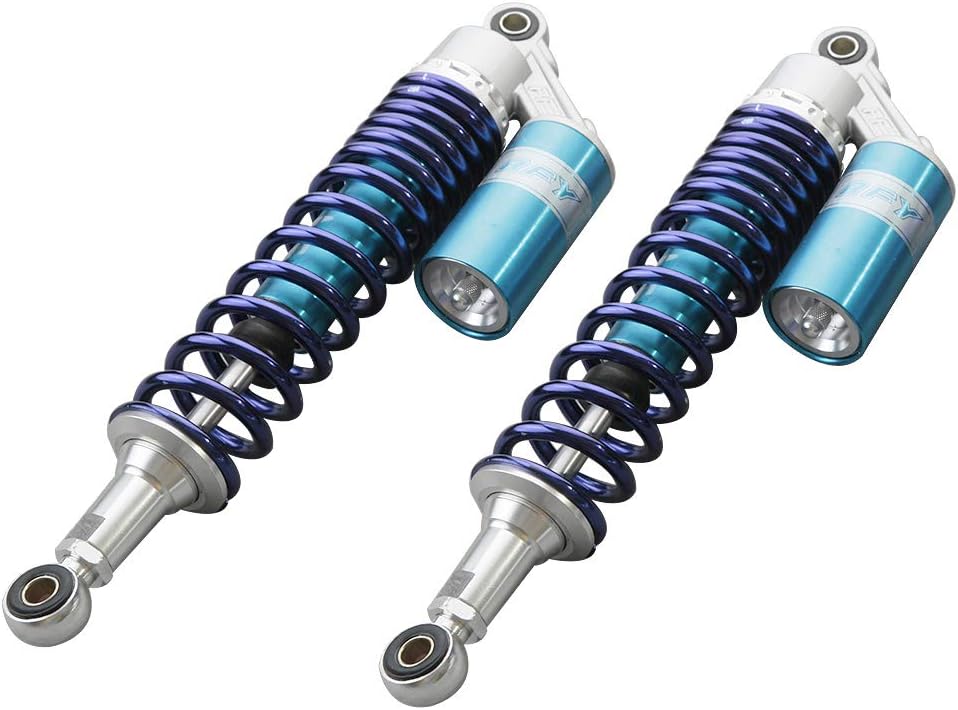

A complete pair RFY air gas shocks absorbers
Easy to install,no Installation Instructions
Pressure can be adjusted by springs or air (nitrogen)
The damper and spring designed for long durability
Length of the shock absorber can be compatible for within 10mm more than its own length, such as 340mm For motorcycle between 340mm and 350mm.
Fitment:
most bikes which for 340mm Motorcycle Shock Absorber

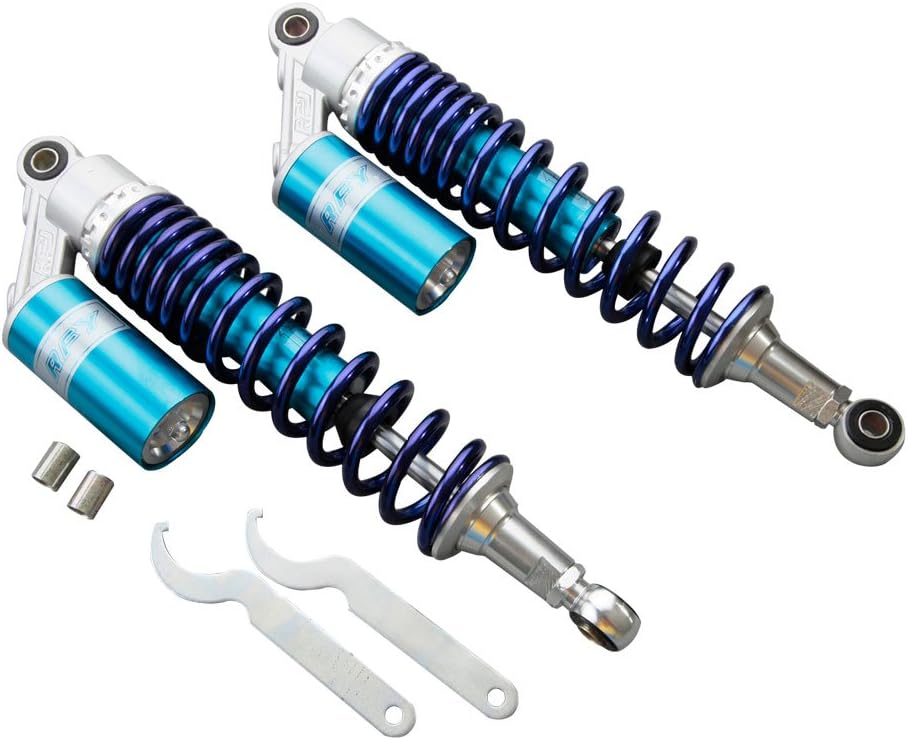

Package include:
2 X Motorcycle Shock Absorber

NOTE:

Fitment: .
Work and will be compatible on most 50cc, 75cc, 90cc, 125cc, 150cc, 250cc, 300cc Street bikes, Dirt bikes, Gokart, ATV, Motorcycles and Quad
Great choice for replacement, style upgrading and all kinds of bike modification. **Please check below dimension .

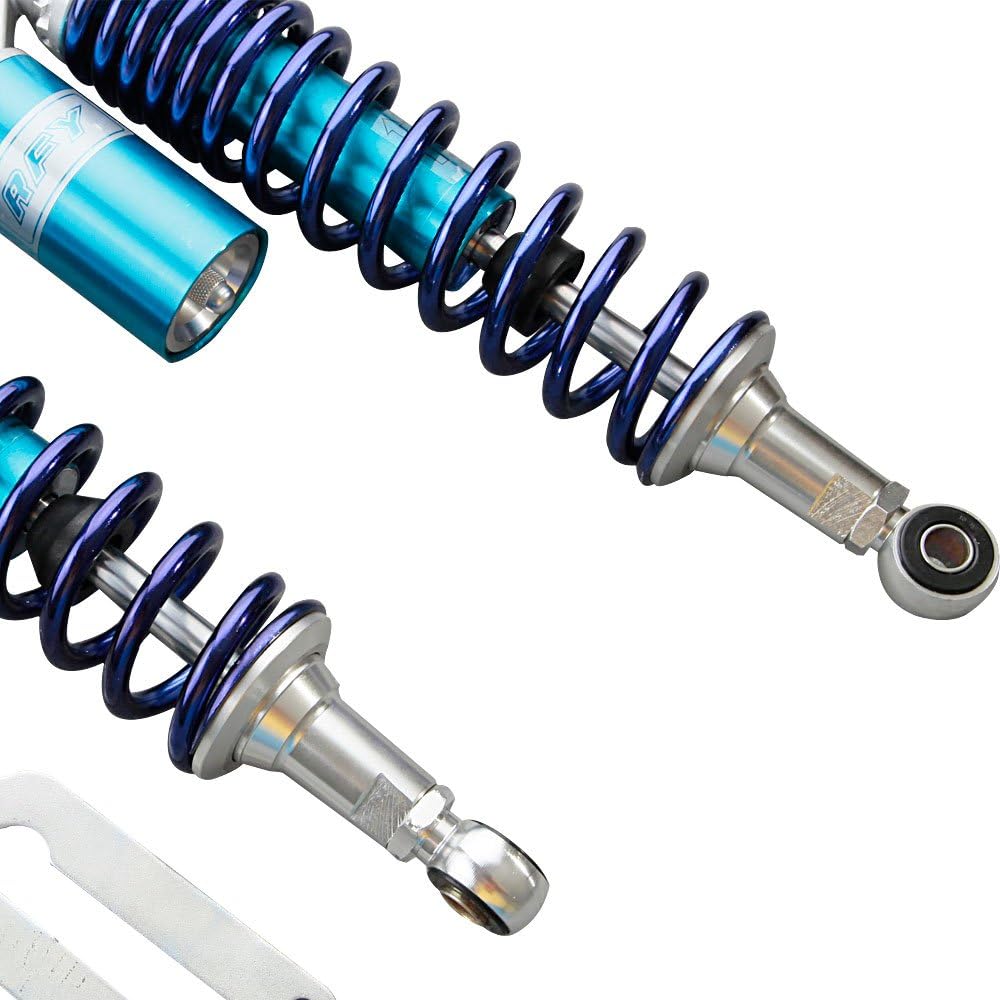

The diameter of the top hole and the bottom hole of the shock absorber: 12mm, due to mostly 12mm is fit most motorcycle.

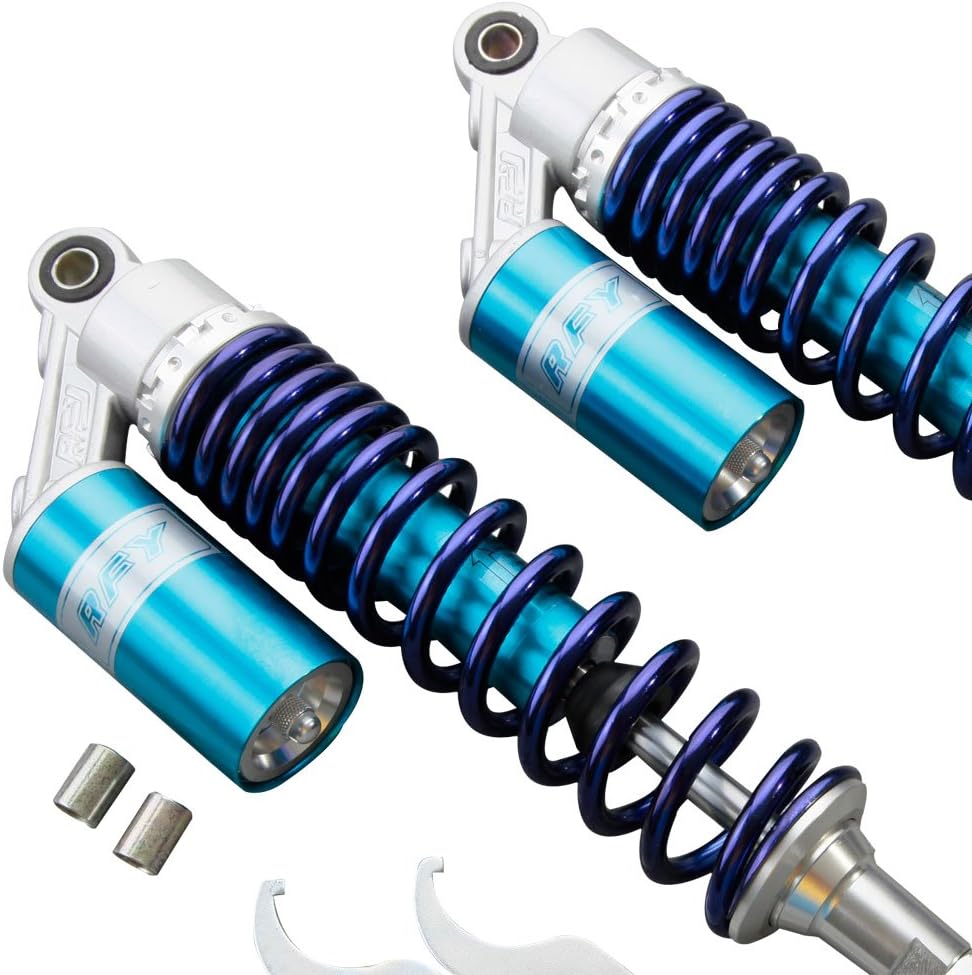

Every pair shocks will come with 2 more individual bushings(Size 10mm), please use them according to your bike.
Please check your motorcycle/bike . If you need change Clevis End,Please contact us .
