Engine gasket set for the Honda XL250 from 1972-1976. If you're doing an engine rebuild this is a great set to have on hand.
ISO 9001 100% Non-asbestos gaskets

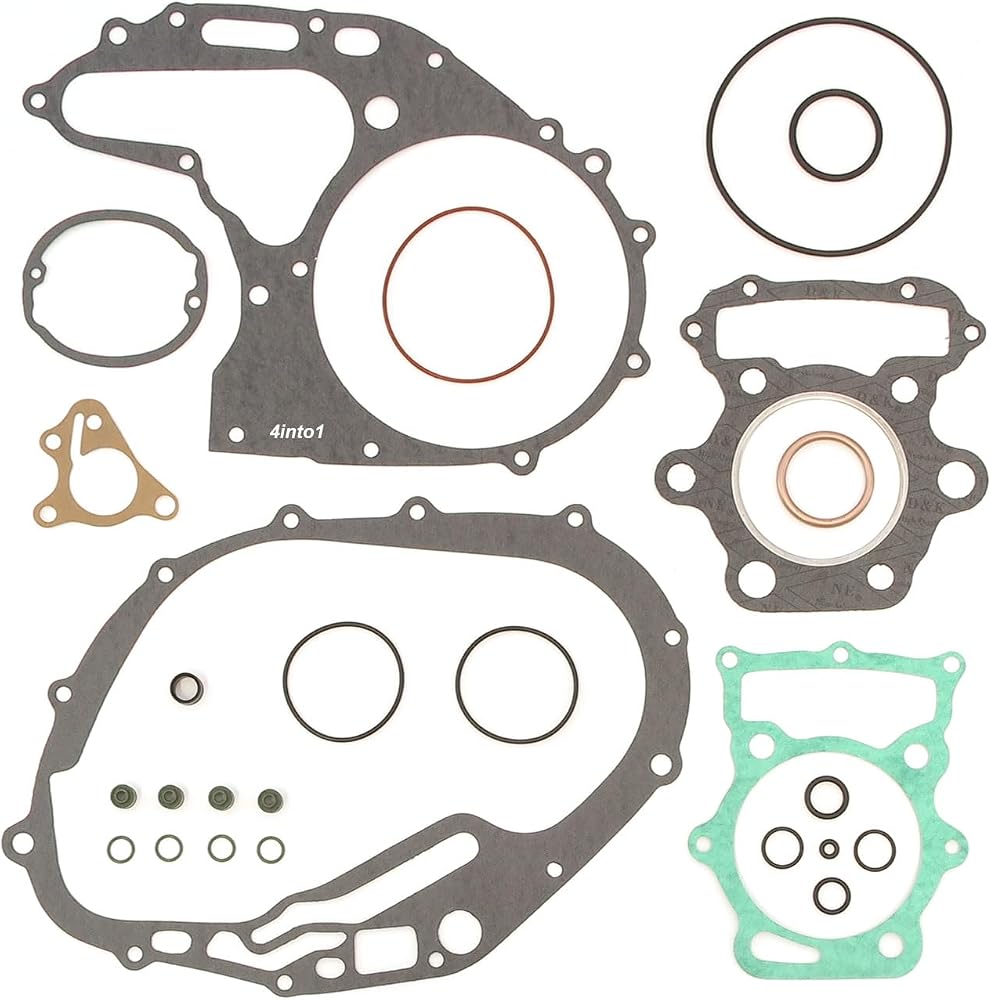

Note: Honda used 3 different head gaskets. 12191-329-010 used up to Engine SN 1062714 and 12909-283-000 used up to Engine SN 2009778. The gasket in this kit is the later style, not the type used in some of the early K0 models from 1972. See photo.
Includes:
30372-329-000 - Points Cover Gasket - x1
12251-329-770 - Cylinder Head Gasket - x1
12191-329-010 - Cylinder Base Gasket - x1
12909-333-000 - Cylinder Stud Gasket - x1
18291-286-000 - Exhaust Gasket - x1
12209-333-005 - Valve Stem Seal - x4
11394-329-000 - Right Crankcase Gasket - x1
11395-329-000 - Left Crankcase Gasket - x1
15129-329-010 - Oil Pump Gasket - x1
91306-329-000 - O-Ring 16x1.9 - x2
91301-200-000 - O-Ring 10x1.6 - x4
91311-329-000 - O-Ring 38x2.4 - x1
91326-590-010 - O-Ring 15x3 - x1
91302-329-010 - O-Ring 80x2 - x1
91301-283-000 - O-Ring 5x2.4 - x1
91319-300-000 - O-Ring 13x2.5 - x1
91301-329-000 - O-Ring 109x3 - x1
Fits Honda:
XL250 - 1972-1976
