Temp Control Sensor
Input:Thermocouple/RTD
Output:Relay/SSR
Alarm:One
Power: 220VAC
Features: Product

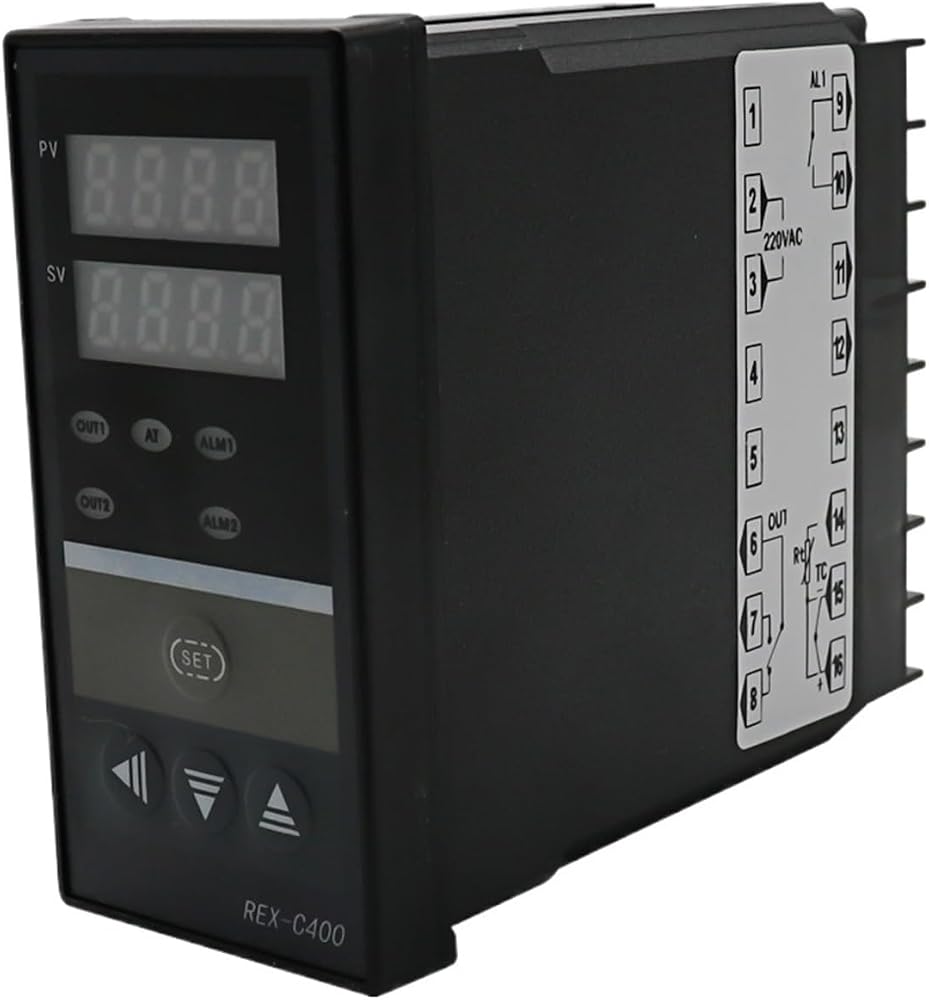

Display for both set Dual temperature and process temperature
Size, 1/8 DIN 48*96mm
Main Specifications: Product
Type Input
TC: K, E, S, R, J, T, B, WRe3-WRe25.
Pt100 Cu50, RTD:
DC voltage: 0~5V, 1~5V, 0~10V.
DC current: 4~20mA
Range Input
K (-200~+1300 degrees C), s (-50~+1600 degrees C), WRe3-WRe25 (0~2300 degrees C), R (-50~+1600 degrees C), t (-200~400 degrees C), e (-200~900 degrees C), J (-200~1200 degrees C), B (350~1800 degrees C), PT100 (-99.9~600.0 (c) or (-200~+600 degrees C), cu50 (-50~150 (c)
Display
Lines Four, digits. C. degree Two
Resolution Display
1 degrees C, 1 degrees F, or 0.1 degrees C, 0.1 degrees with, Pt100 F
Accuracy
+ 0.5% or + 1 of full input range unit
Mode Control
PID, On-Off
Mode Output
Relay contact: 3A at 240 VAC.
12VDC SSR,
4~20 mA Current:
0~10V Voltage:
Alarm
Bias alarm Upper-limit
Consumption Power
Watt
Supply voltage rating Power
85~265VAC/50~60Hz
Dimensions

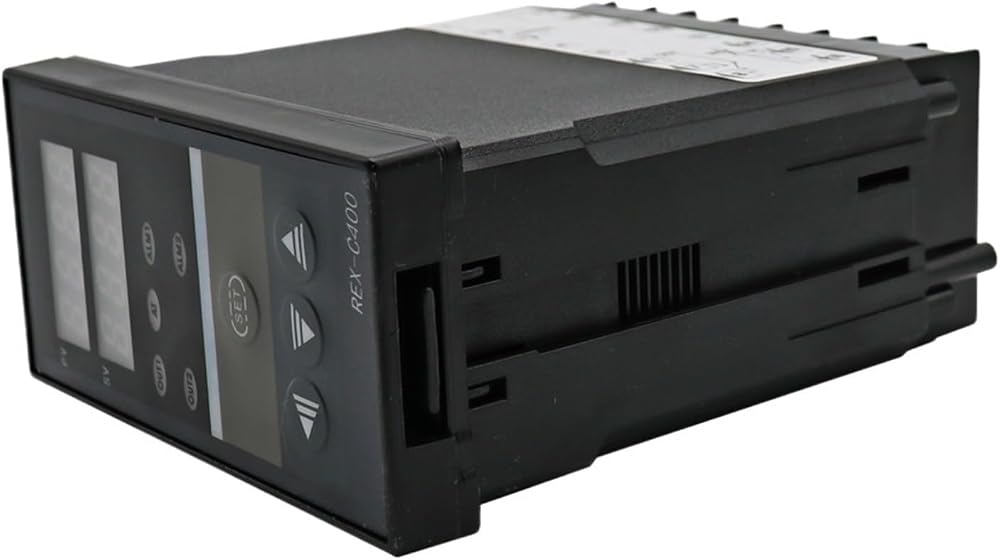

Rex-C400 48*96*110mm
Packages
1 Digital Temperature Controller PID Include thermocouple NOT)
1 English x User Manual
