Temp Control Sensor
Product Features:

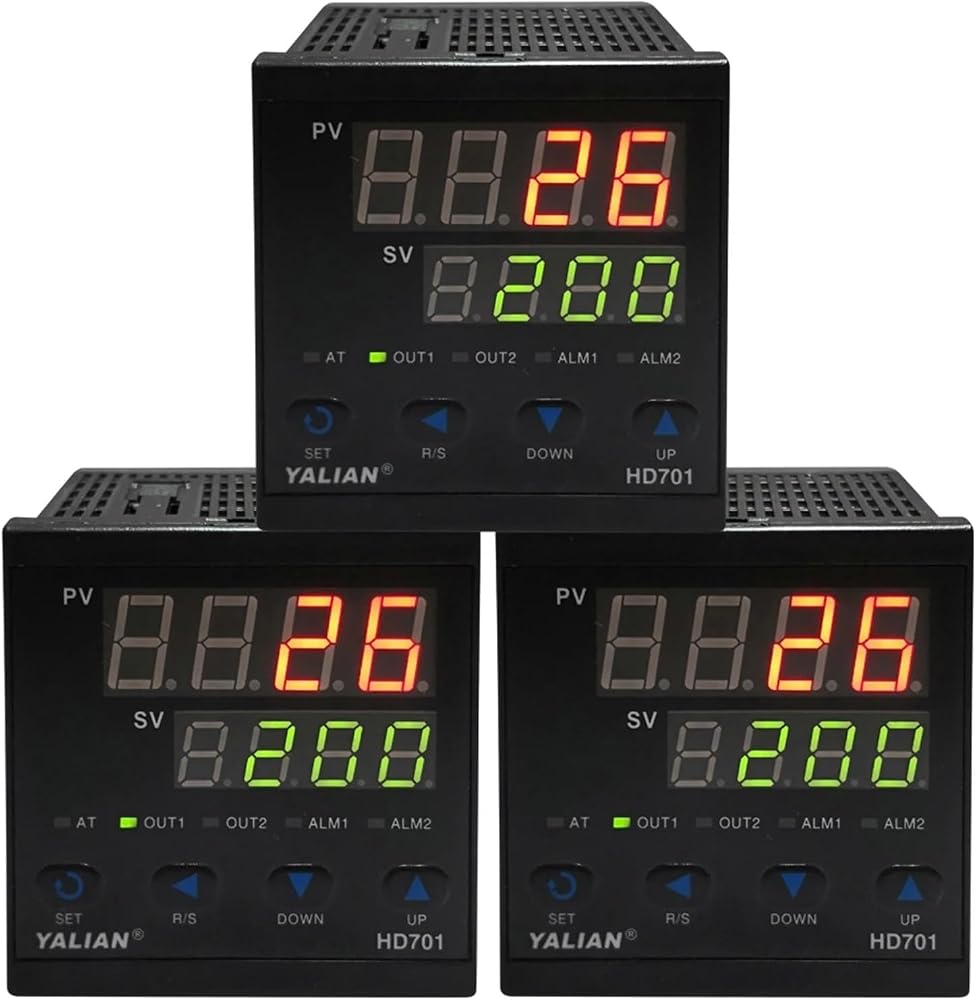

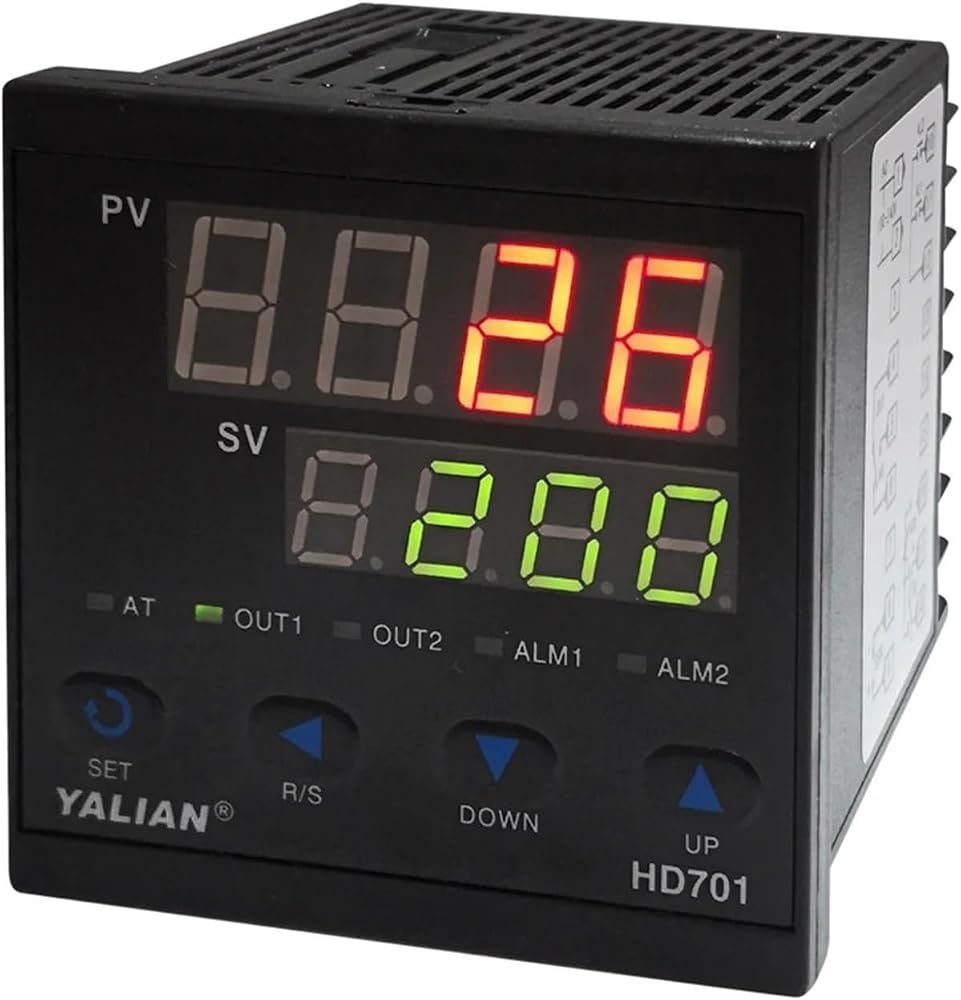

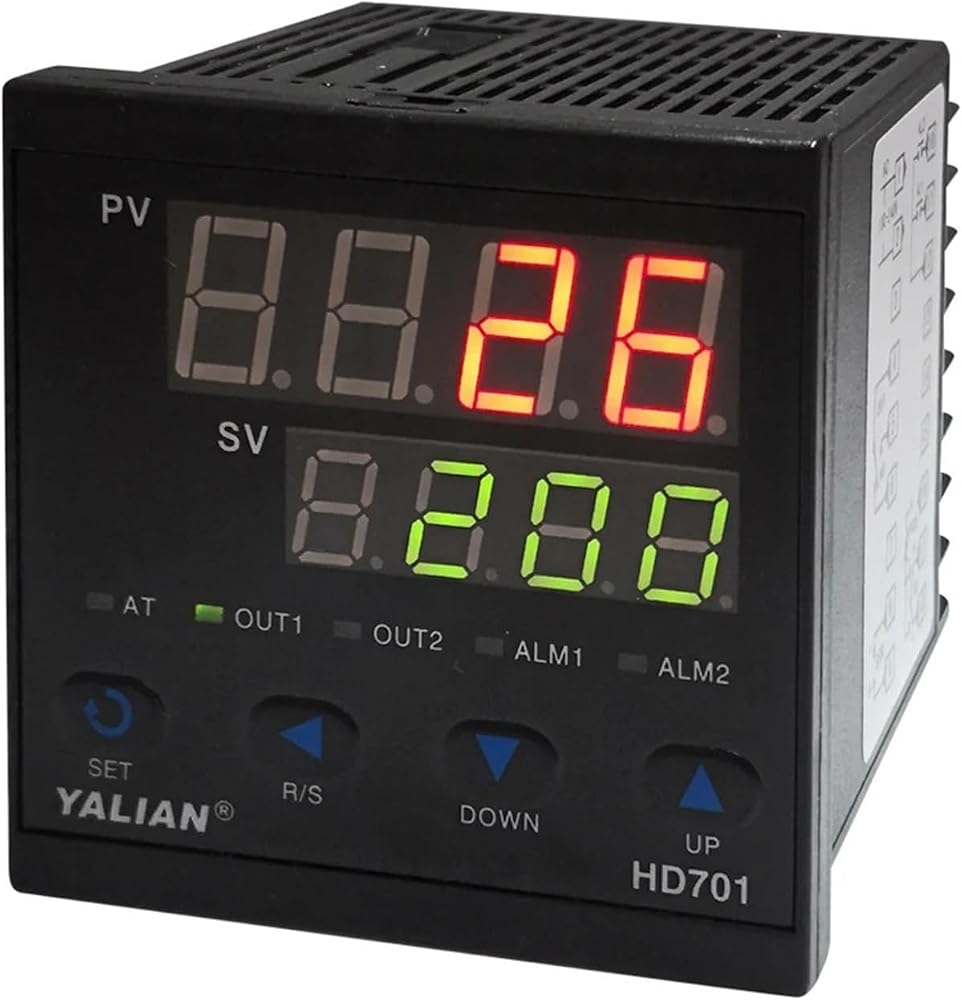

Dual display for both set temperature and process temperature
Size, 48*48mm, 72*72mm, 48*96mm, 96*96mm
Universal input, support 10 different types ofthermocouples and RTD inputs by customers selected at panels.
Uses it in Heating Control as well as for Cooling control
Auto-tune function can find the best PID parameter automatically
Displays temperature inCelsius(°C)
Uses it for Kiln,Furnace,Oven,Incubator temperature controL
It is used in various industries to control and monitor process temperat
Product Main Specifications:
Input Type
Thermocouple: K, E, S, R, J, T, B
RTD: Pt100, Cu50
( The Usercan set the input signal type according the requirement. )
Input Range
0 ~+1372ºC K
(this is the default setting. Usercan set thetemperaturerangewhich you wanted.)
Display
Two lines, Four digitsin Celsius °C.
Display Resolution
1°C, or 0.1°CifPt100 input
Accuracy
+/-0.5% or +/-1 unit of full input range
Control mode
PID,ON/OFF
Control Output
Relay contact: 3A at 240 VAC.
Alarm
Alarm 1 ( Upper-limit bias alarm , User can change to beother Alarm Mode.)
Power Consumption
Power Supply
100~240V AC, 50/60Hz.
Item outline Dimensions
HD101 48*48*70mm
HD40248*96*70mm

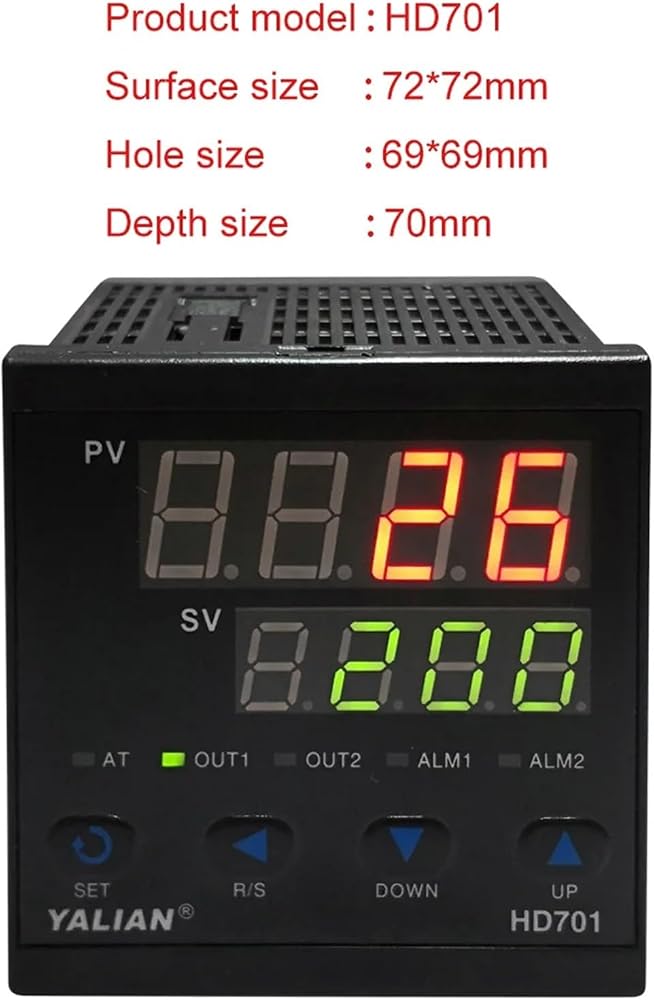

HD70172*72*70mm
HD90196*96*70mm
Mounting Hole Size
HD10146*46mm
HD40246*93mm
HD70169*69mm
HD901 93*93mm
Model Number : HD101 HD401 HD701
Display Size : 2.0 - 3.9 Inches
Origin : Mainland China
Max Measuring Temperature : 120°C & Above
Style : Embedded
Usage : Industrial
alarm : 1 group alarm
display : 2 lines display
model : HD101 HD401 HD701 HD901
