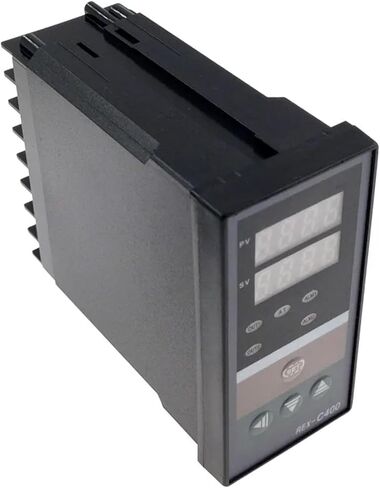

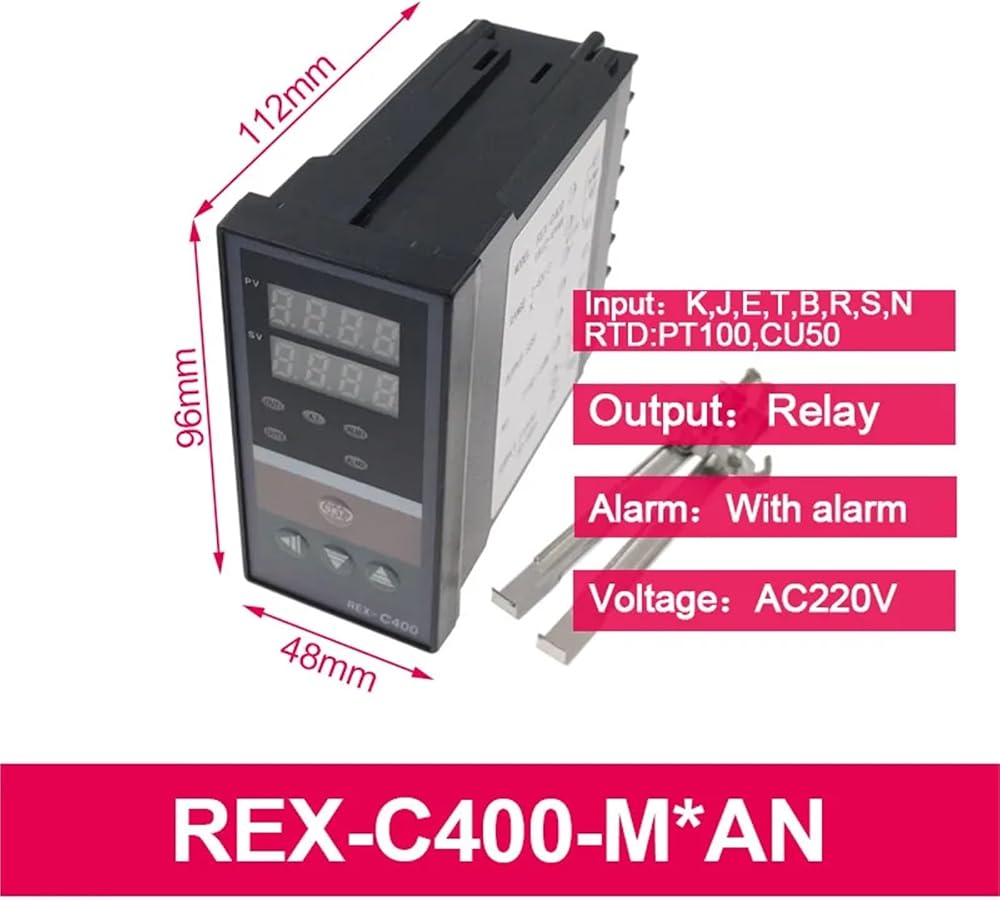

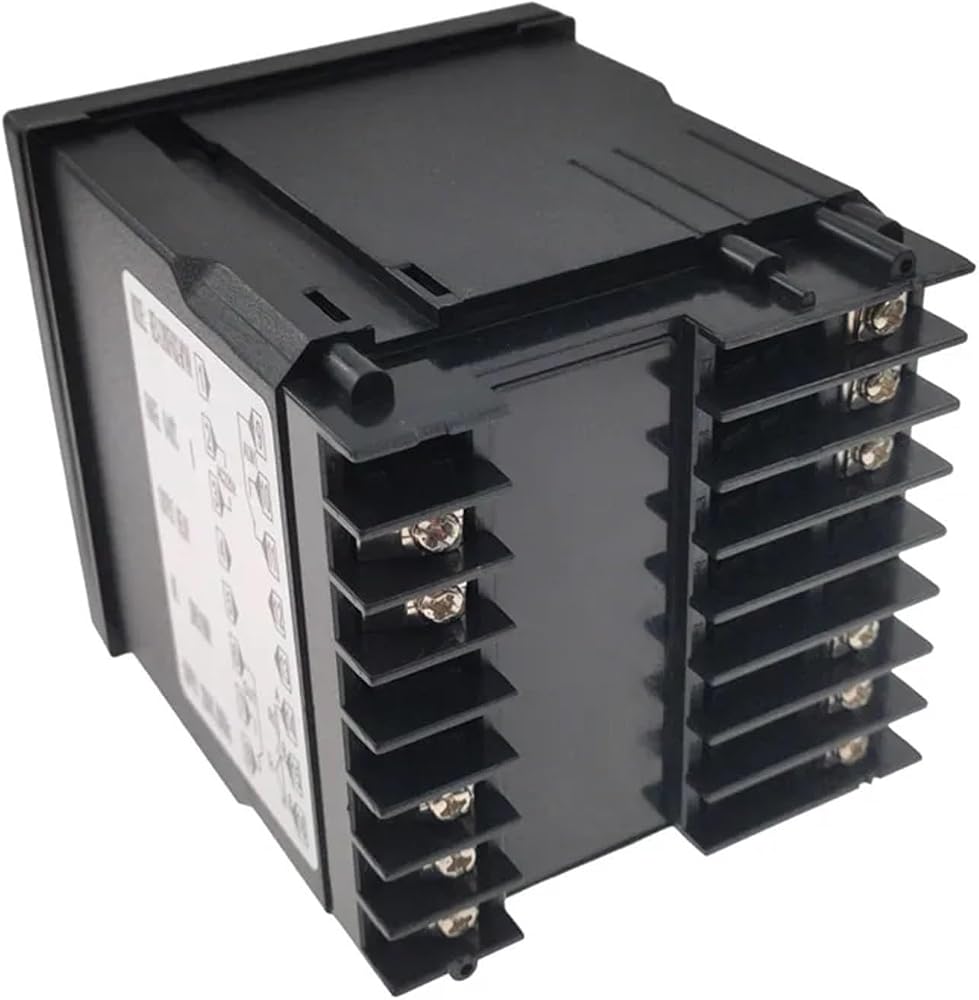

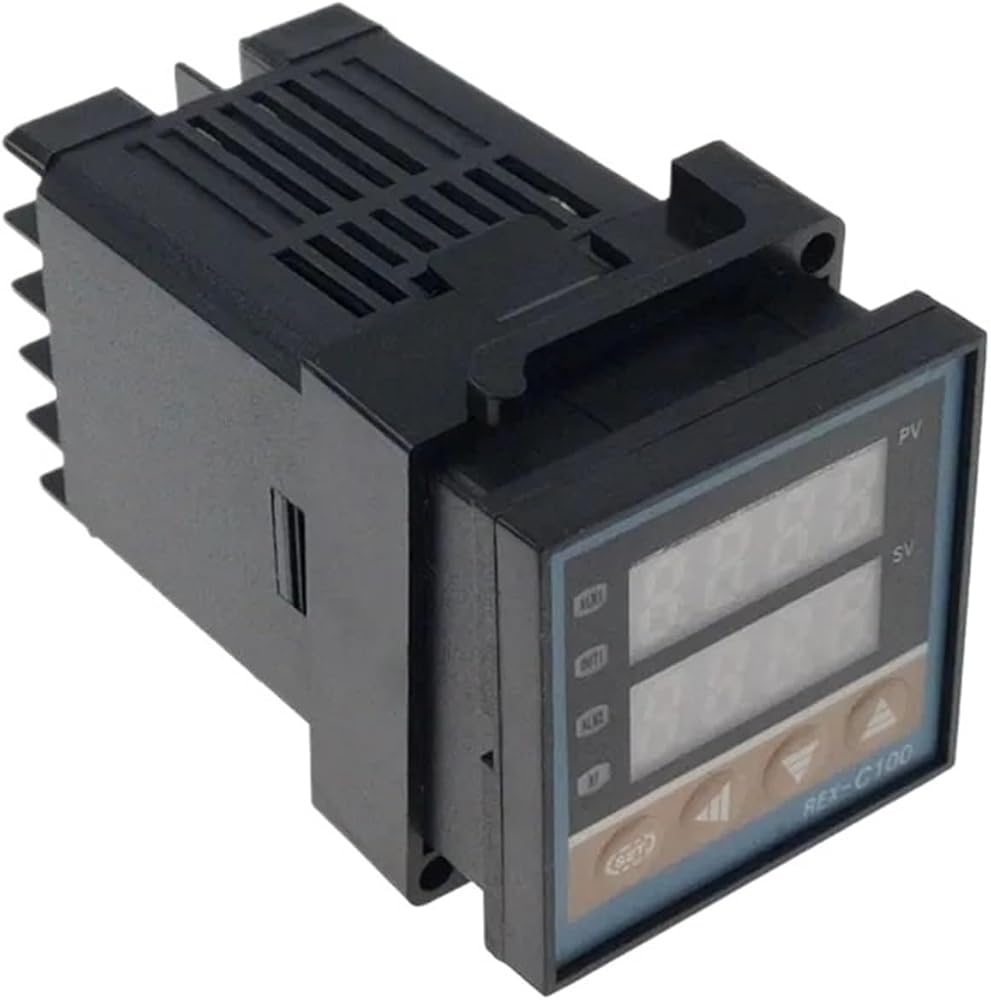

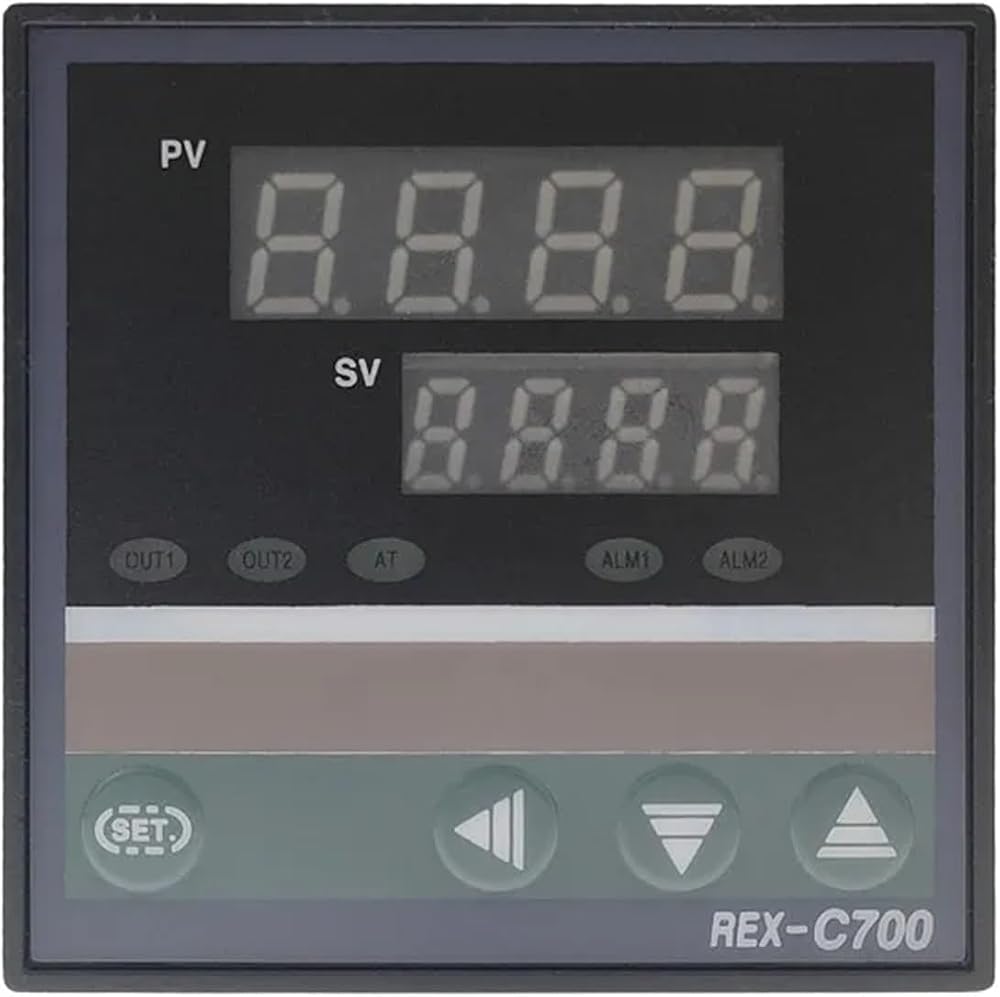

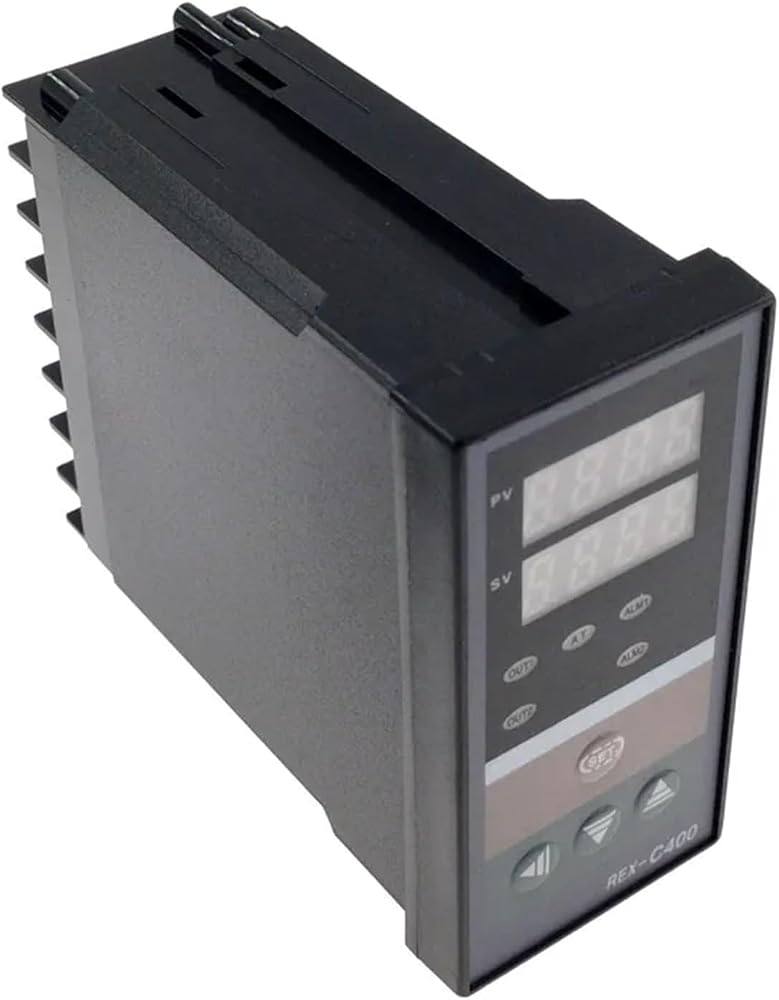

Temp Control Sensor
The main technical indicators
1.Measurement precision: ±0.5%FS
2.Cold junction Compensation error: ±2(0~50 within the software correction)
3.Resolution: 14bit
4.Sampling period: 0.5 Sectetary
5.Power supply: AC 85-265V 50Hz
6.Control mode: industrial-grade expert self-funing PID technology, compared with the traditional PID control with rapid temperature control, fast response, small overshoot, high precision control
7.Insulation resistance: >500m(500VDC)
8.Dielectric strength: 1500VCA/min
10.Occasions environment: 0-50,30-85% RH non-corrosive gases
Model defined selection
Model identilication
C/CH--*

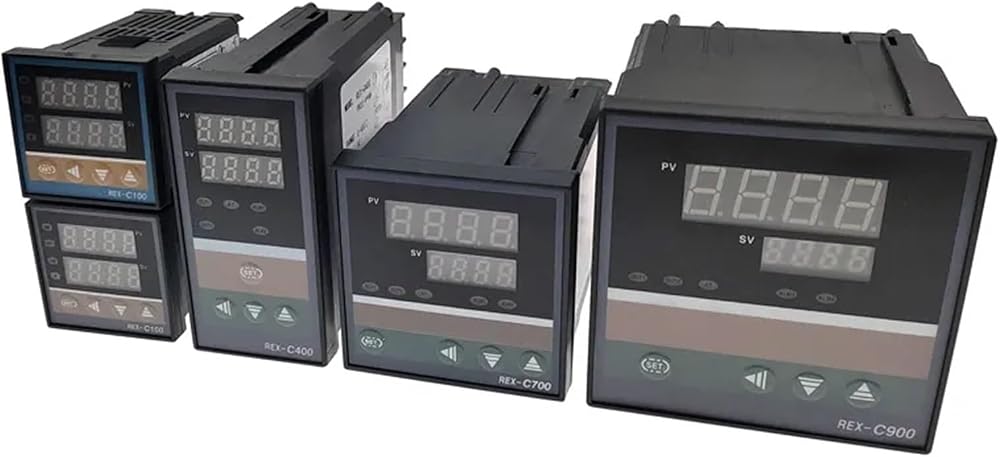

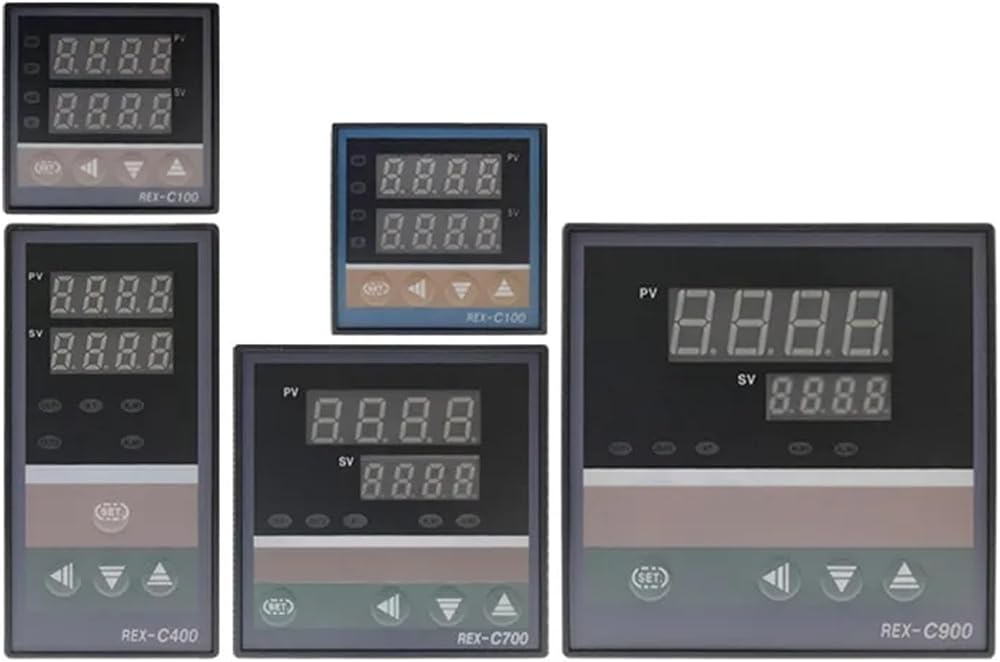

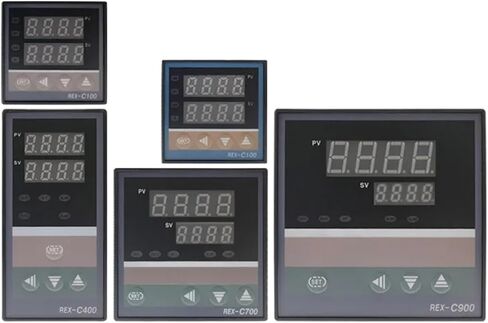

Meter size (see table 1)
Control mode
F:PID control and automatic speech inverse action
D:PID control automatically play a positive action
Input type and range (see table 2)
Main output
N:No output
M:Relay contact output
V:The voltage pulse output(SSR)
8:Current output
T:SCR zero output
G:SCR shift like pulse output
The first channel alarm type (ALM1)
N:not set alarm
A:upper limit deviation alarm
B:lower limit deviation alarm
C:up and down significant deviation alarm
D:range alarm
E:with standby limit deviation alarm
F:lower limit deviation alarm with standby
G:lower limit deviation alarm with standby
H:upper limit input value alarm
J:lower limit input value alarm
K:upper limit input alarm with standby
L:lower limit input alarm with standby
Second channel alarm type ALM2 (same as ALM1)
#1 Can not guarantee the accuracy scope of 0-399.
#2 To ensure accuracy in the scope of -199-100.
#3 A resistor of 250 is needed between the input terminals extemal.
