Temp Control Sensor
1.) parameter
Input type
TC: K, E, S, R, J, T, B, WRe3-WRe25.
RTD: Pt100, Cu50
Input range
K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC)
Display
Two lines, Four digits. °C.
Display Resolution
1°C, 1°F, or 0.1°C, 0. 1°F, with Pt100
Accuracy
±0.5% or ±1 unit of full input range
Control mode
PID, On-Off
Output mode
Relay contact: 3A at 240 VAC.
SSR: 12VDC
Alarm
Upper-limit bias alarm
Power consumption
Power supply voltage rating
85~265VAC/50~60Hz
Dimensions
Rex-C700 72*72*110mm

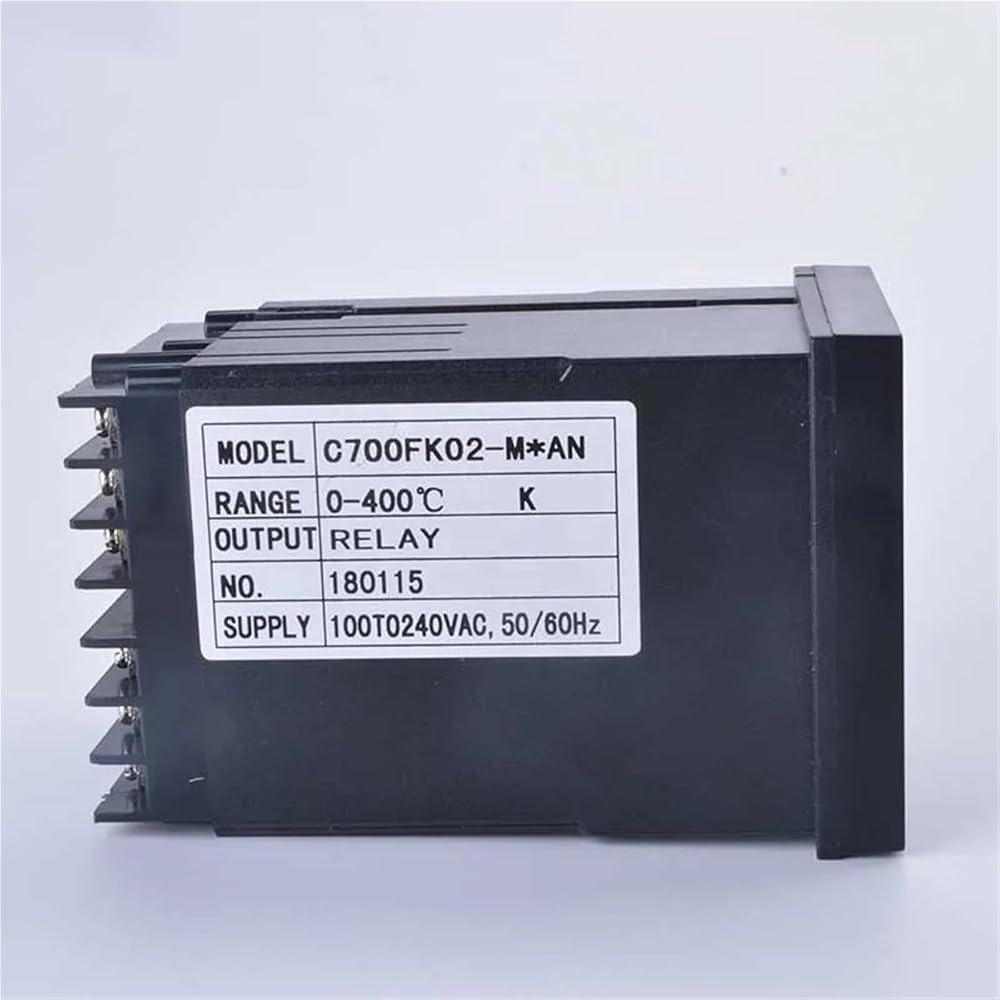

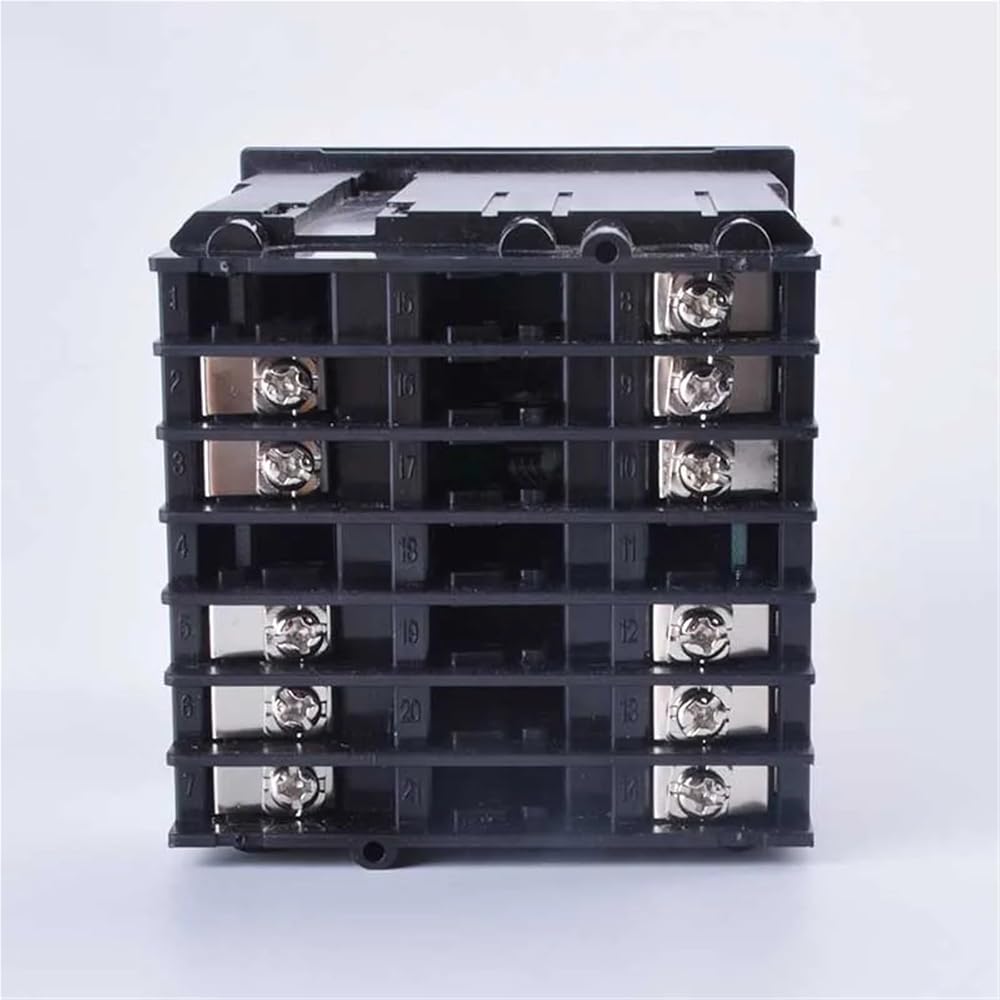

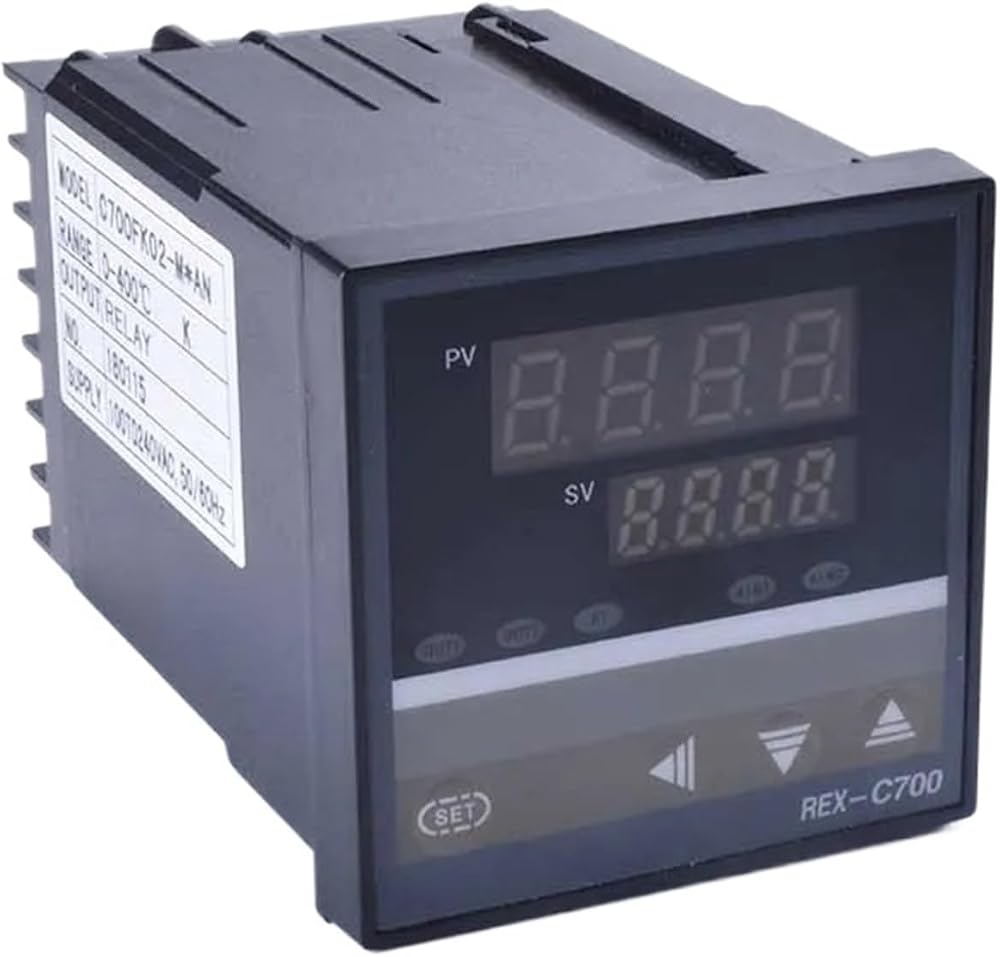

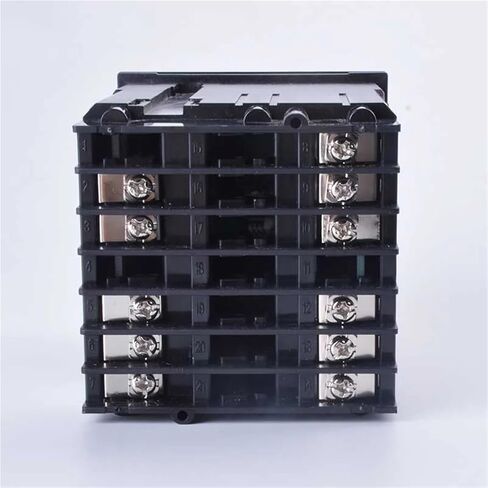

2.)product display
RM18203445796693808
Model Number : rex-c700
Display Size : 1.9 Inches & Under
Origin : Mainland China
Max Measuring Temperature : 120°C & Above
Style : Standing Station
Usage : Industrial
