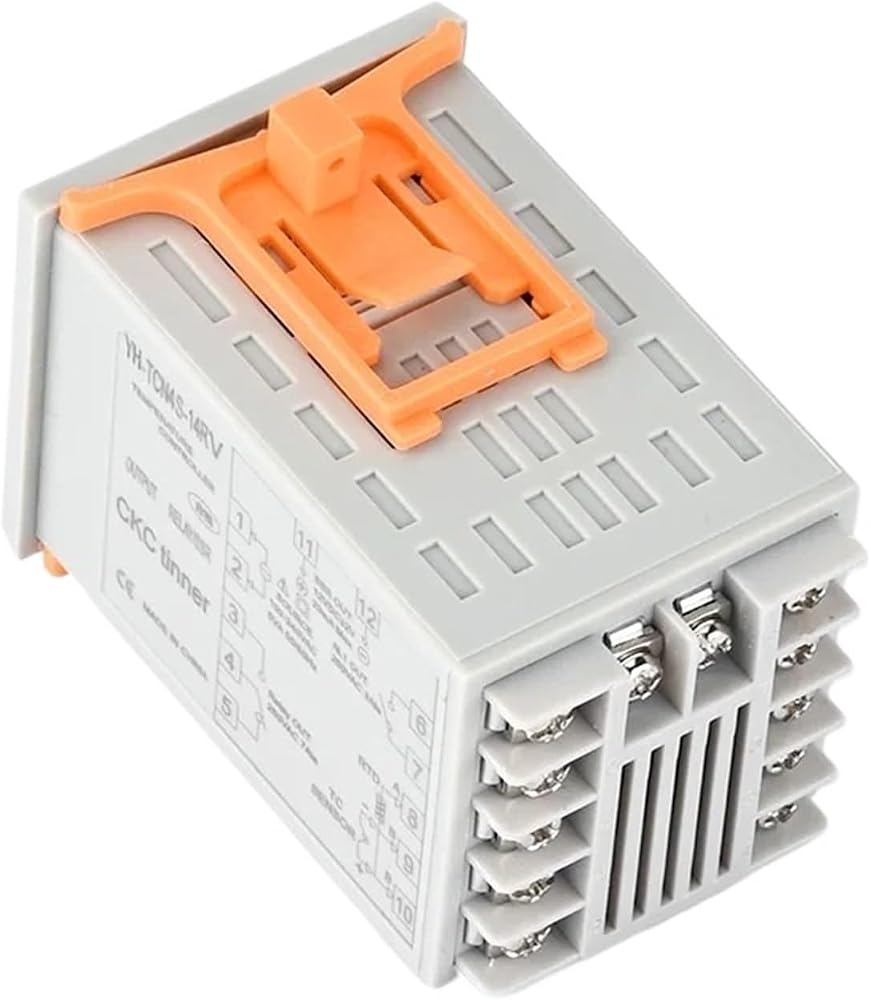

Temp Control Sensor
Specifications
SERIES
TCN4S
TCN4M

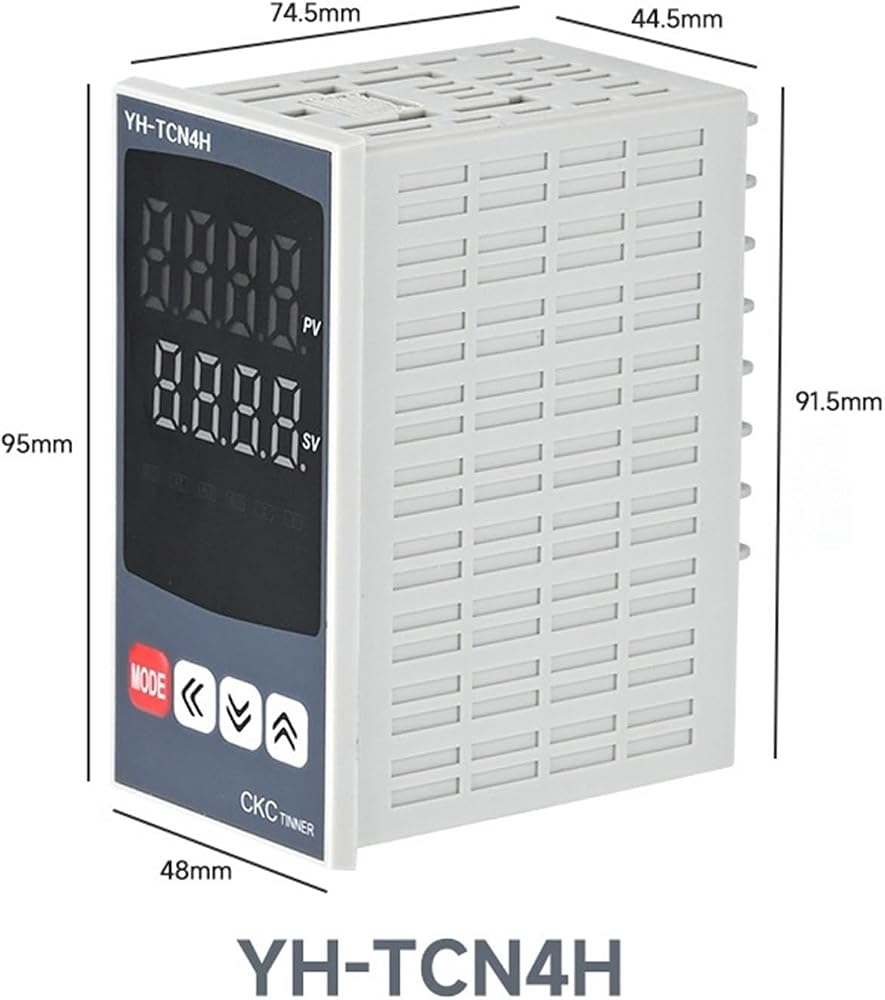

TCN4H
TCN4L
Power Suply
Voltage
AC Power supply type
100-240VAC50/60Hz
AC/DC Power supply type
24VAC 50/60Hz,24-48VDC
Allowable voltage range
90%~ 110% of rated voltage
Power consumption
Below 5VA(100-240VAC 50/60Hz,24VAC 50/60Hz)
Below 3W(24-48VDC)

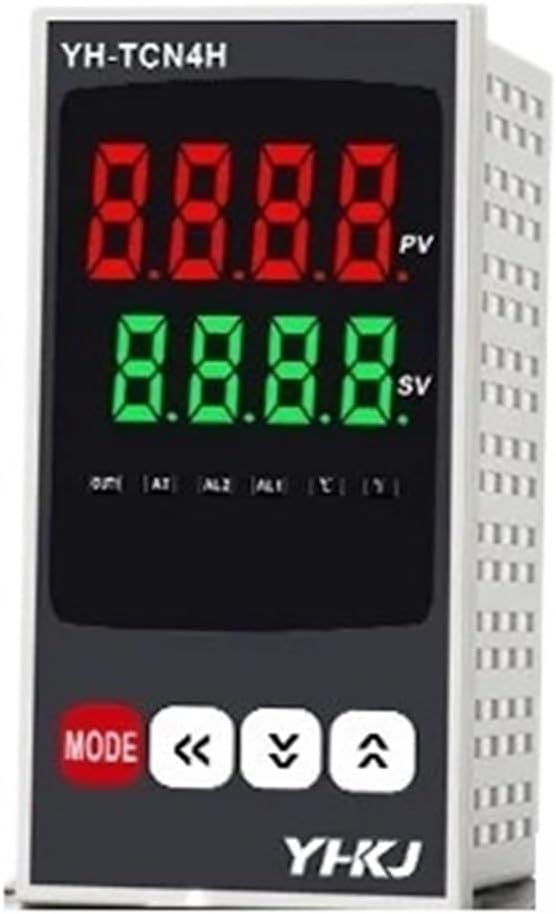

Display mode
7segment LED(PV:Red, SV:Green)
Character Size
PV(W×H)
7.0x15.0mm
9.5x20.0mm
7.0x14.6mm
11.0x22.0mm
SV(W×H)
5.0x9.5mm
7.5x15.0mm
6.0x12.0mm
7.0x14.0mm
Input type
Therma resistance
DPt100 ,Cu50(Allowable single wire impedance Below 5 )
Thermocouple
K(CA),J(IC),L(IC),T(CC),R(PR),S(PR)
Display accuracy
Therma resistance
At room temperature (23±5): (PV±0.5% or±1)± 1 bitOutside normal temperature: (PV + 0.5% or2)± 1 bit
Thermocouple
Control output
Relay
250VAC 3A 1A
SSR
Below 12VDC±2V 20mA
Alarm output
AL1,AL2 Relay: 250VAC 3A 1A
Contro Mode
ON/OFF,P,PI,PD,PID CONTROL
Control Accuracy
1~100/0.1-50.0
Normal atmospheric temperature (23±5)
.Thermocouple R, s below 200(PV ±0.5% or ±3) 1±bit Above 200(PV±0.5% or ±2)±1 bit
.Thermocouple L(IC), thermal resistance cu50(PV±0.5% or ±2)±1 bit
Outside normal temperature
.Thermocouple R, s below 200(PV1.0% or ±6)±1bit Above 200(PV±0.5% or ±5)±1 bit
.Thermal resistance cu50(PV ±0.5% or ±3)±1 bit
