Temp Control Sensor

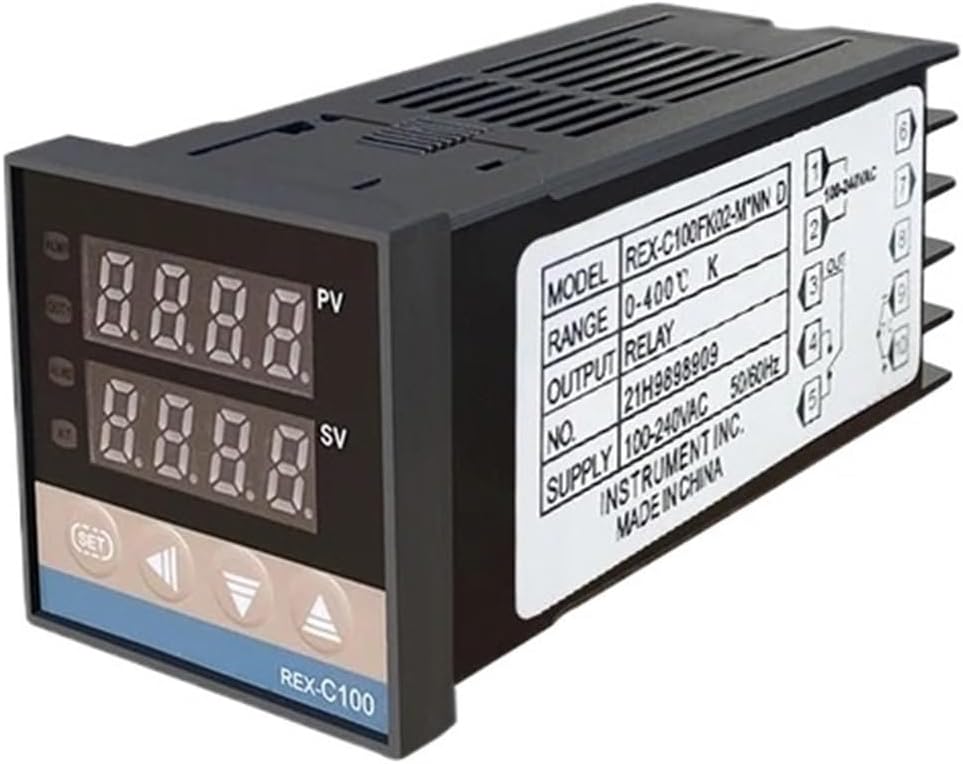

REX-C100 digital temperature controller thermostat relay output 48 x 48MM
Specifications:
1.Thermostat
Note: This thermostat can only be connected to K-type thermocouples
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2 ( can be modified by software in 0~50 )
Resolution: 14 bit
Sampling cycle: 0.5 Sec

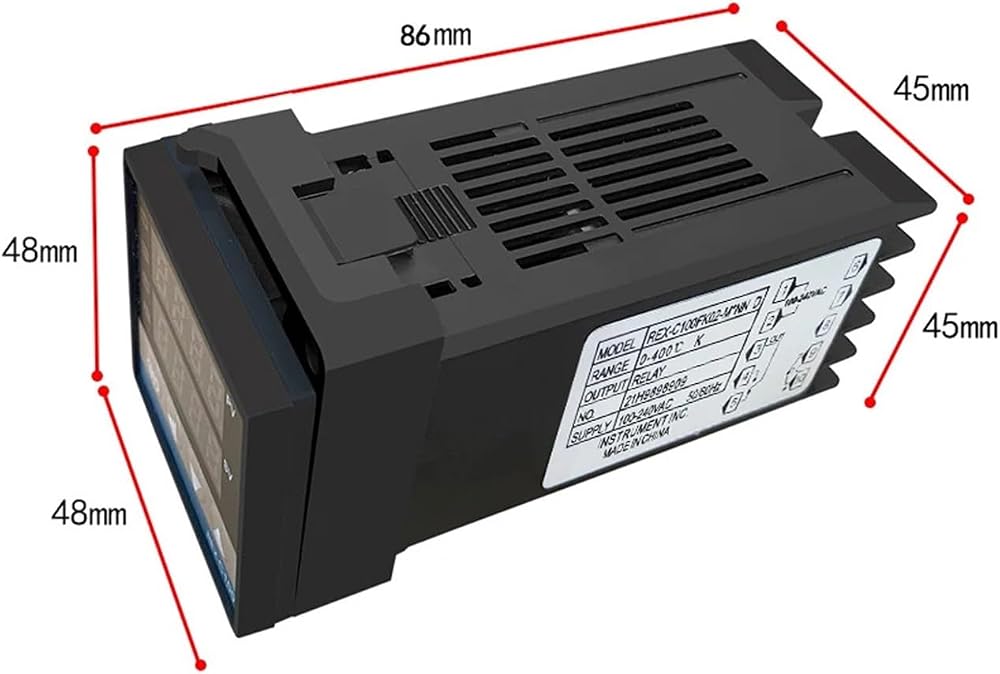

Dimensions:48 x 48 x 88 (mm) ±0.2mm

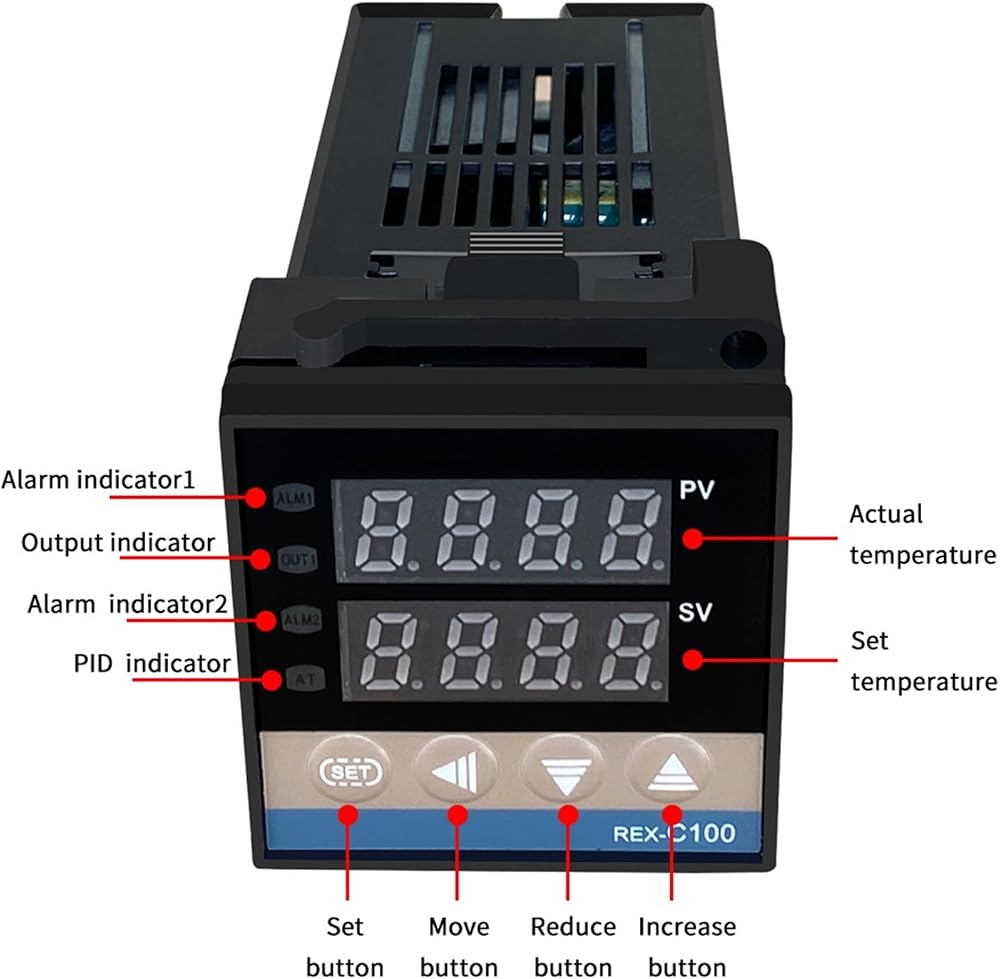

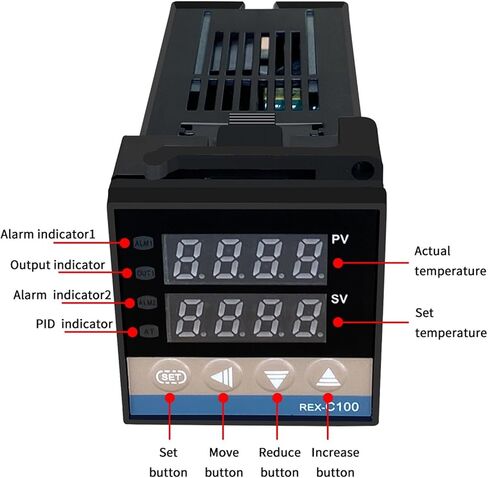

Process value (PV), Setting value (SV)
Output, No alarm function
Self-tuning control
output: relay output contact capacity 250V AC 3A (resistive load
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Heat-reset proportional cycle: 1~100 sec
temperature range: 0 to 400
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50,
environment with no corrosive gas 30~85% RH
K Type Probe Sensor : Additional purchase required
Cable Length : 1M
Usage : Industrial
Display Size : 2.0 - 3.9 Inches
Input : only k
output method : RELAY
temperature range : 0-400
