ATV Quad Body Plastic fender 110 125cc RedCat VX 150cc Roketa Yamoto 250cc BLACK
NOTE: All body kits are non-returnable. Please be sure this is what you need before ordering.

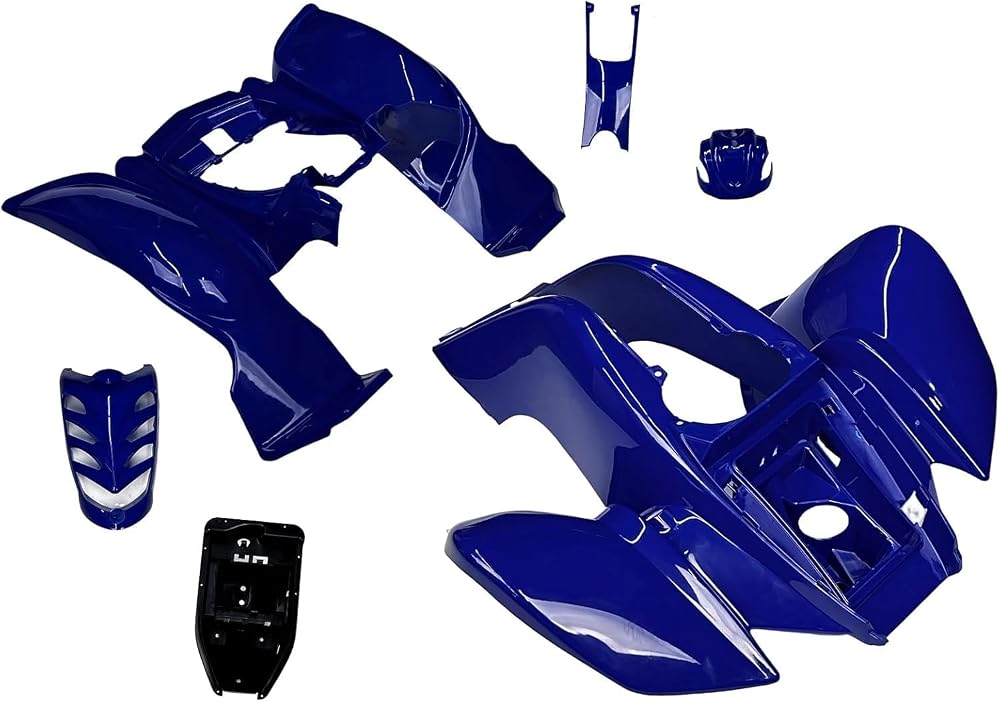

This is a complete fender set for the VX style/model of ATVs. 6 piece set. Please check the pictures and measurements close to insure a correct fit on your machine.

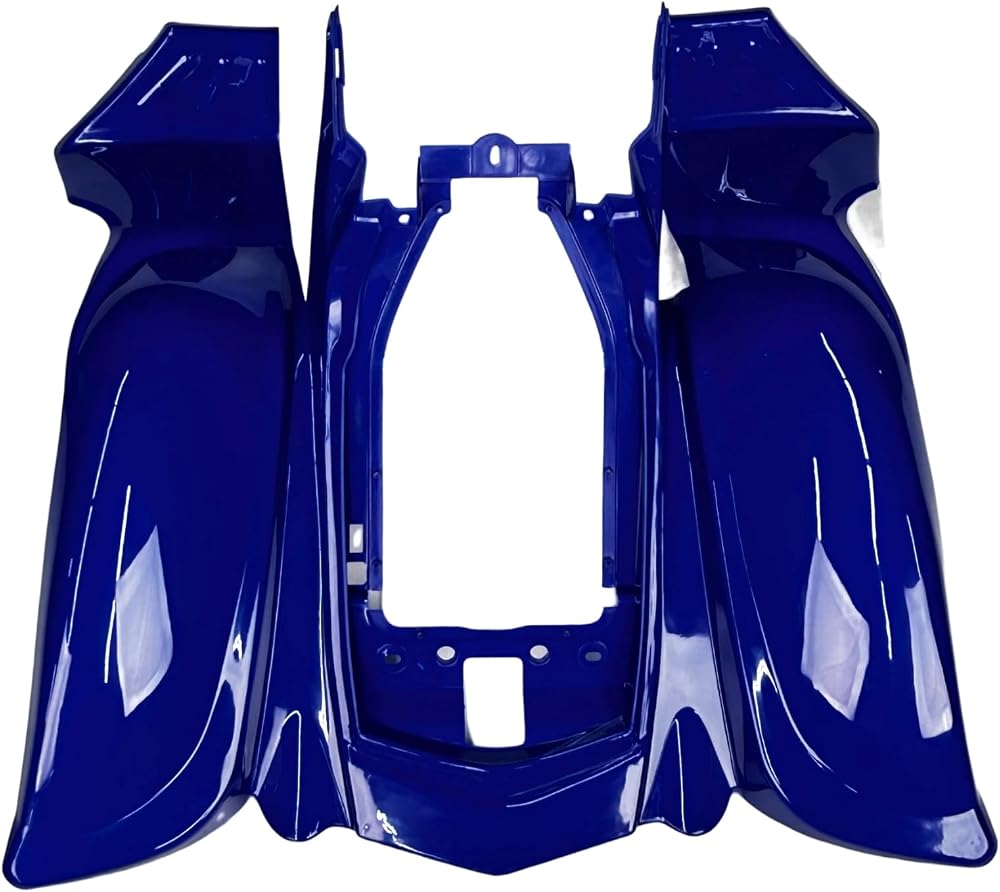

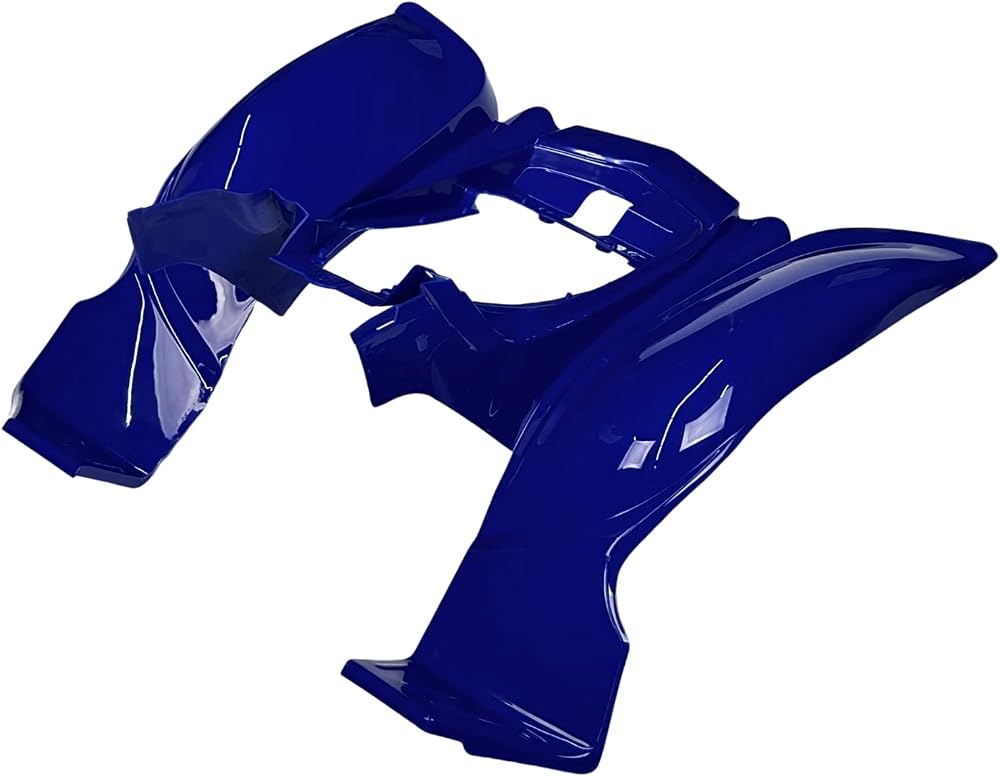

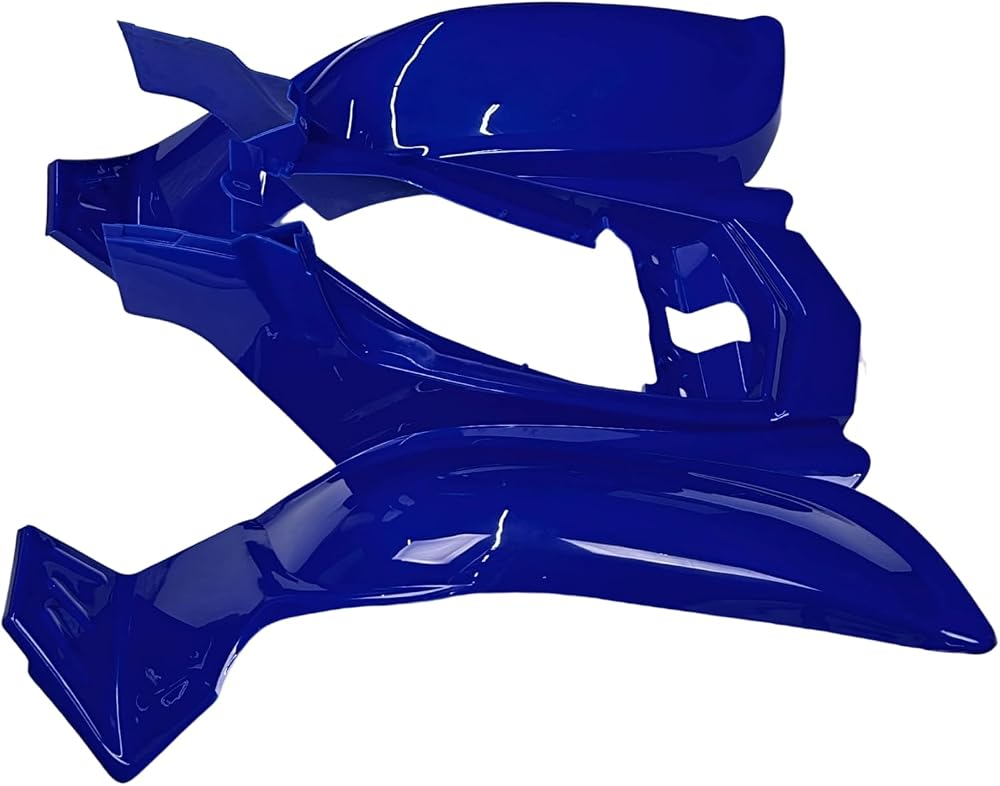

Rear fender details:
Overall width: 82.55cm [32.5"] side to side at widest point
Overall length: 78.75cm [28.5"] front to back at longest point
Cutout area for battery box [see measurements for box below]
Front mounting hole distance: 15cm [5.75"] - see picture
Rear mounting hole distance: 17cm [6.75"] - see picture [furthest holes]
Rear mounting hole distance: 8cm [3"] - see picture [closest holes]

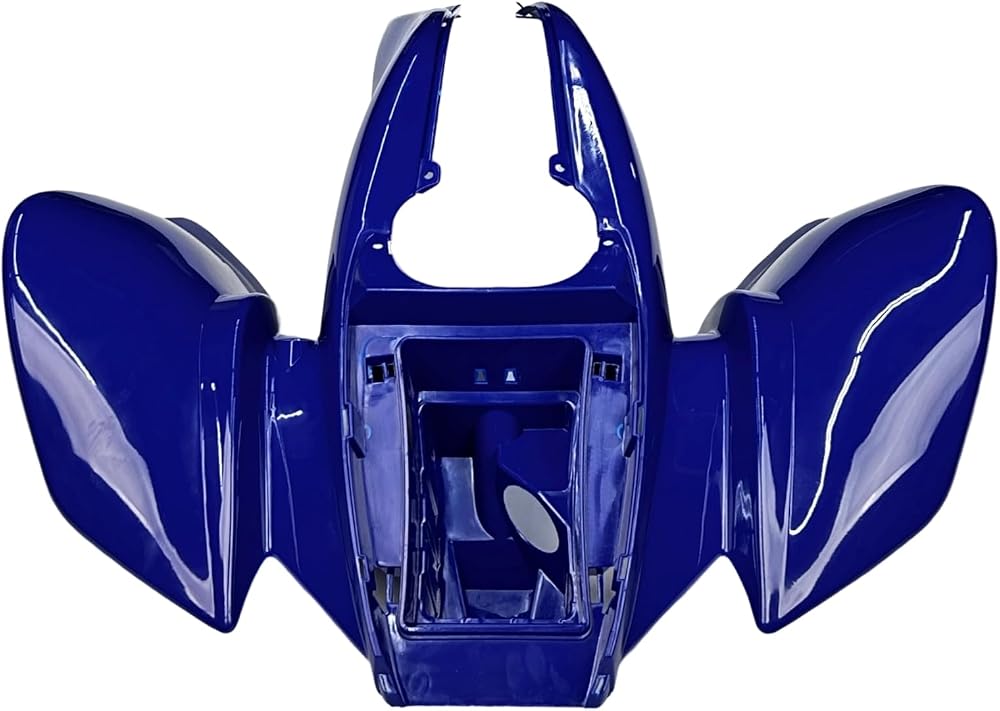

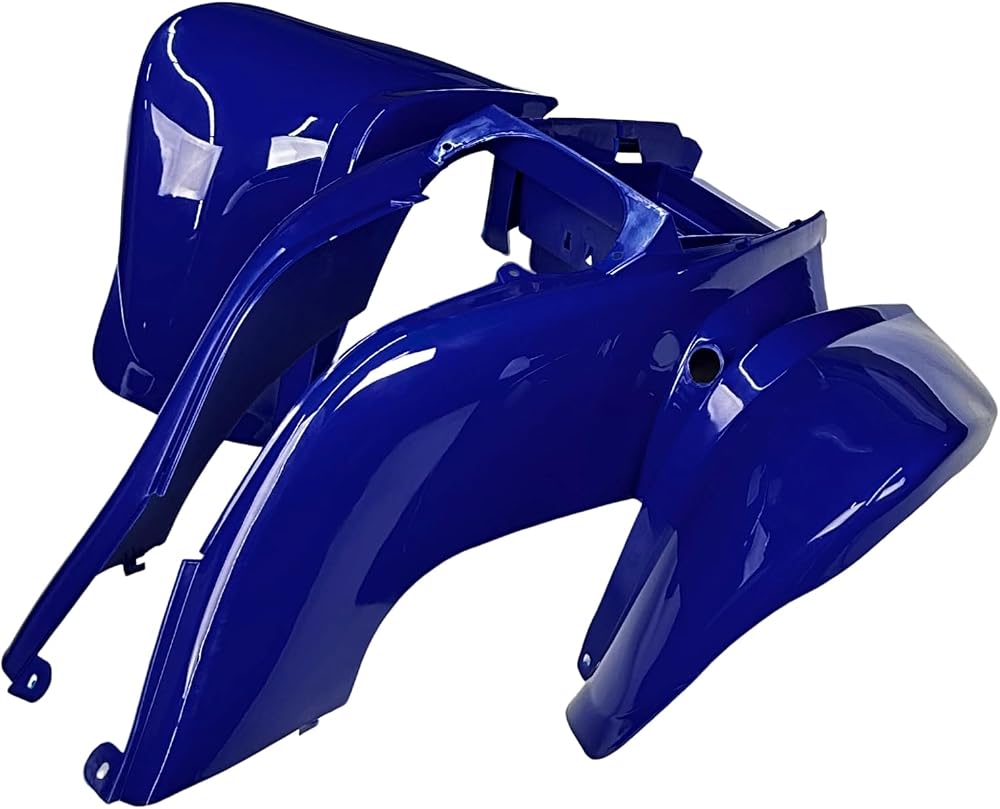

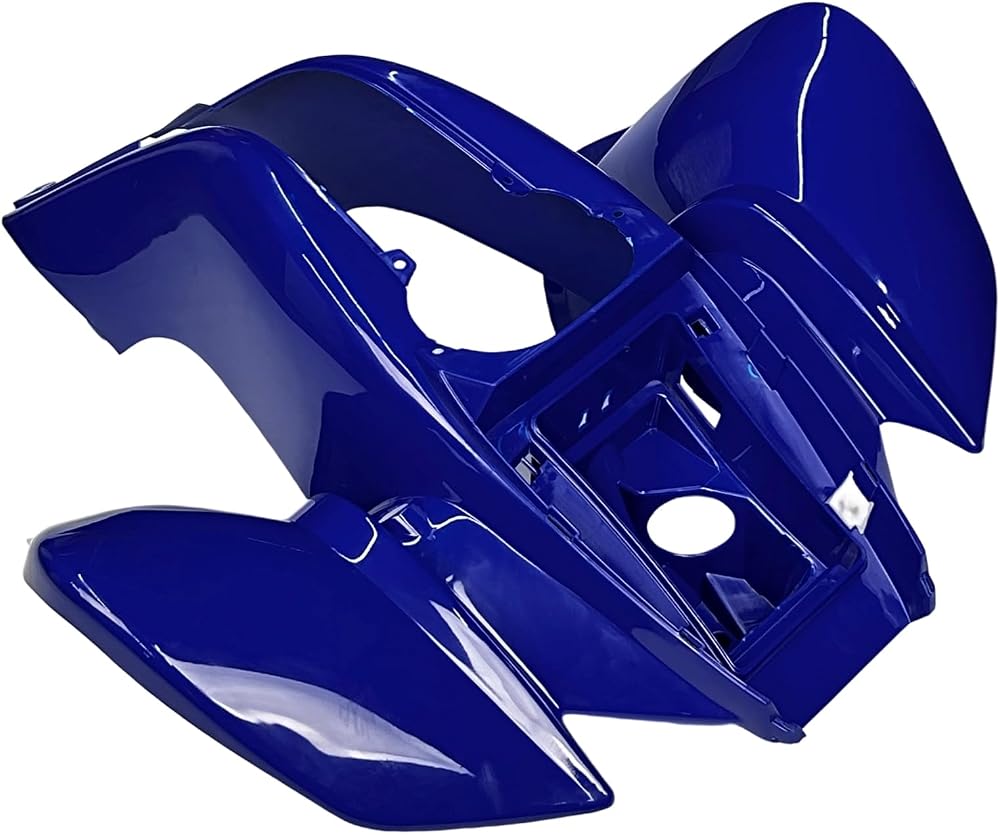

Front fender details:
Overall width: 82cm [32"] side to side at widest point
Overall length: 72.4cm [31"] front to back at longest point
Front mounting hole distance: 10cm [3.8"] - see picture
Rear mounting hole distance: 22cm [8.5"] - see picture [furthest holes]

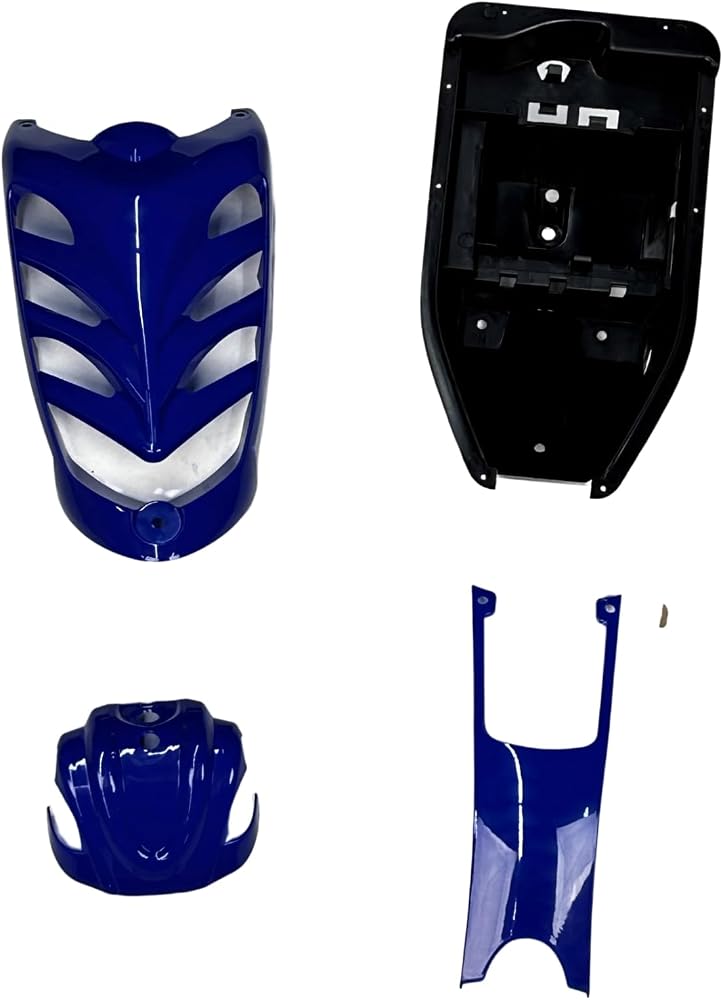

Box details:
Fits rear fender
Battery box overall measurements: 38cm x 21cm x 20cm [L x W x H]
Battery box overall measurements [standard]: 15" x 8.27" x 7.87"
Mounting holes on back of box: 12.5cm [4.92"] center to center
Mounting holes on side of box: 8cm [3.15"] center to center
Mounting holes on front of box: 9.3 [3.66"] center to center
Battery compartment measurements: 14cm [5.51"] x 9cm [3.54"] x 11.5cm [4.33"]
Nose details:
Overall length: 43cm [17"]
Overall width: 22.5cm [8.8"]
Mounting hole distance: 17.7cm [7"]
Center mounting hole on tip of nose
Tank cover details:
Overall length: 32cm [12.5"]
Overall width: 12.5cm [4.75"] at wid
