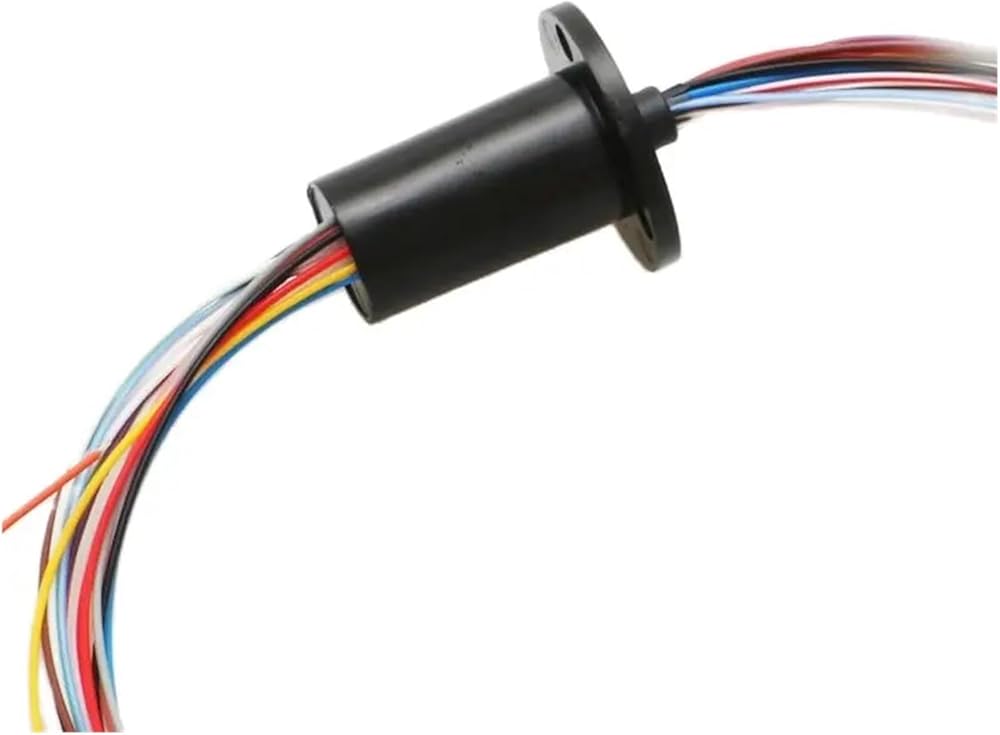

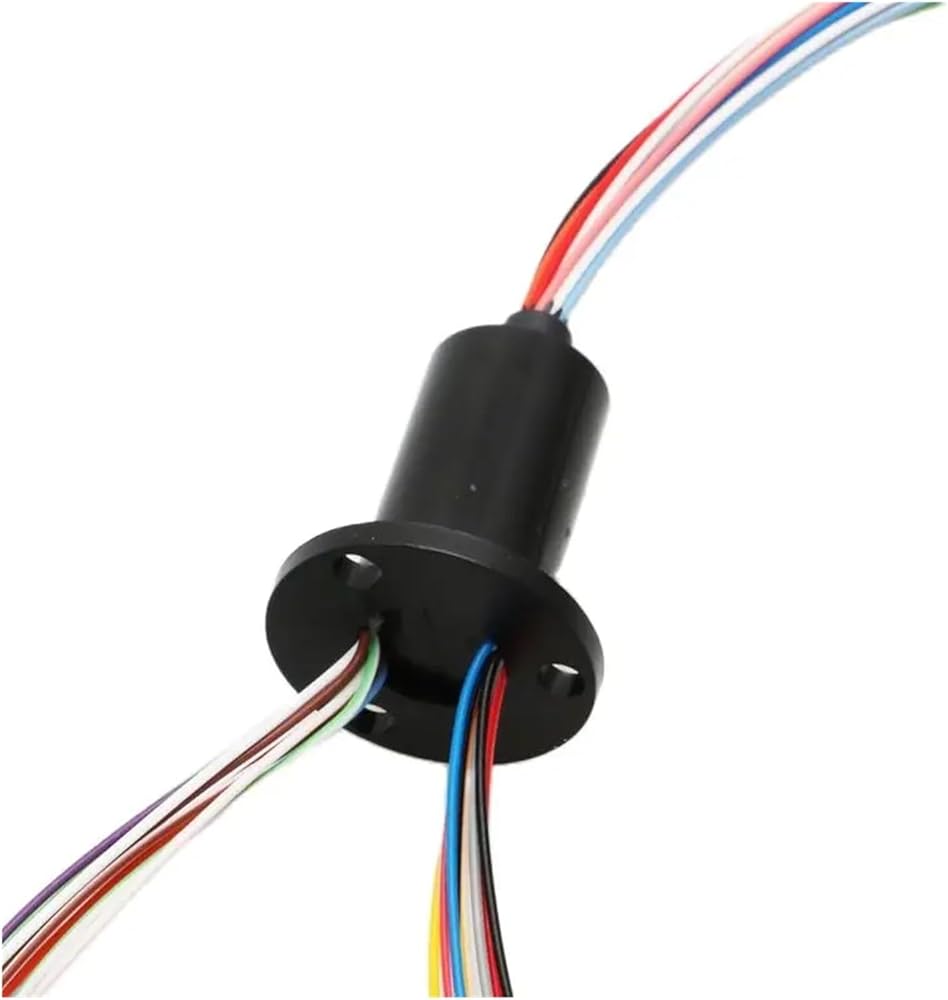

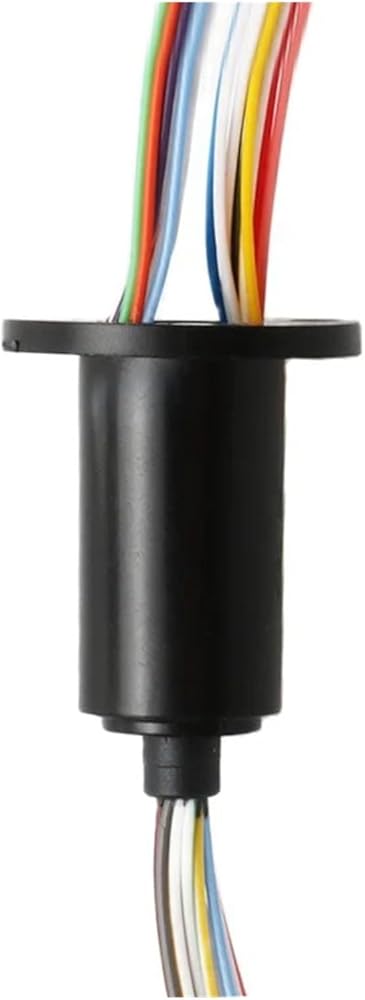

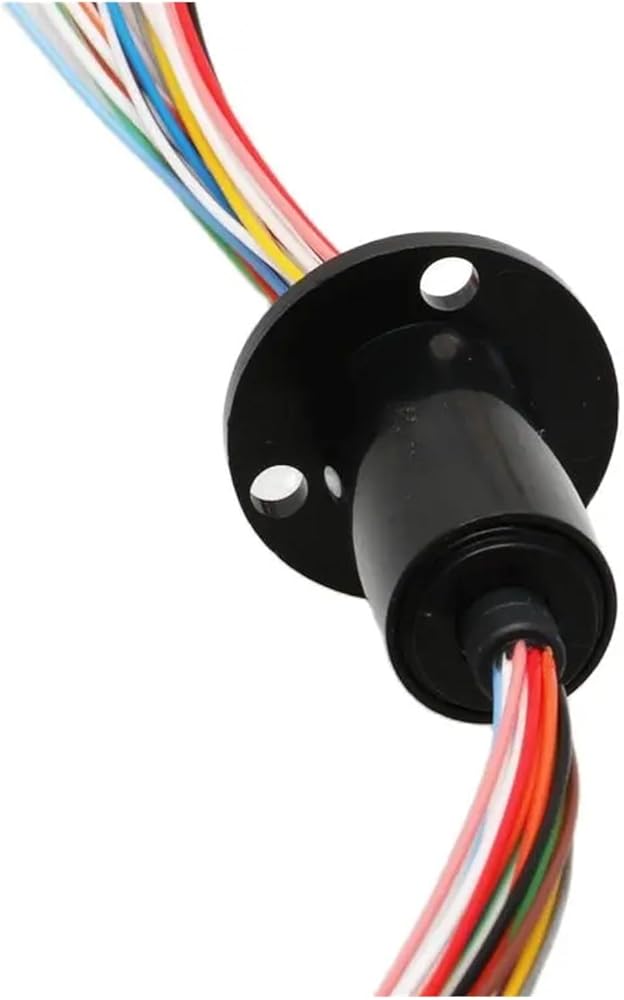

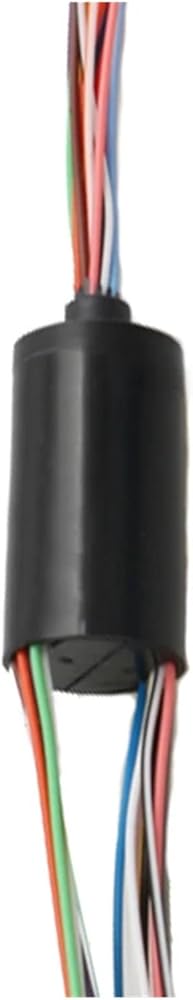

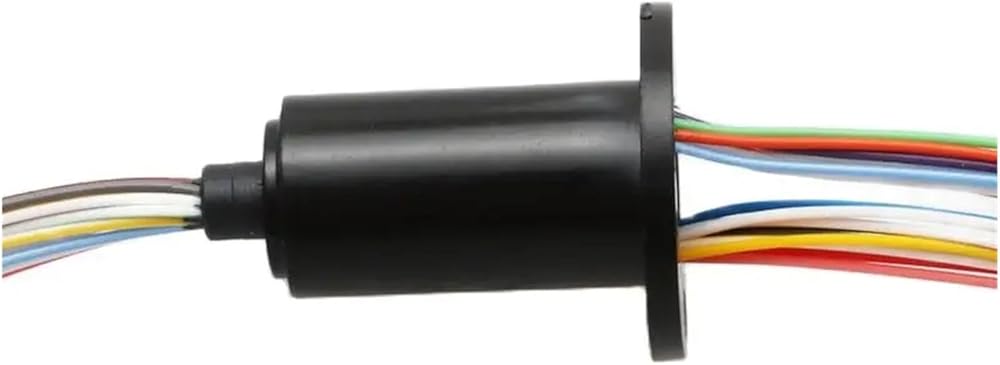

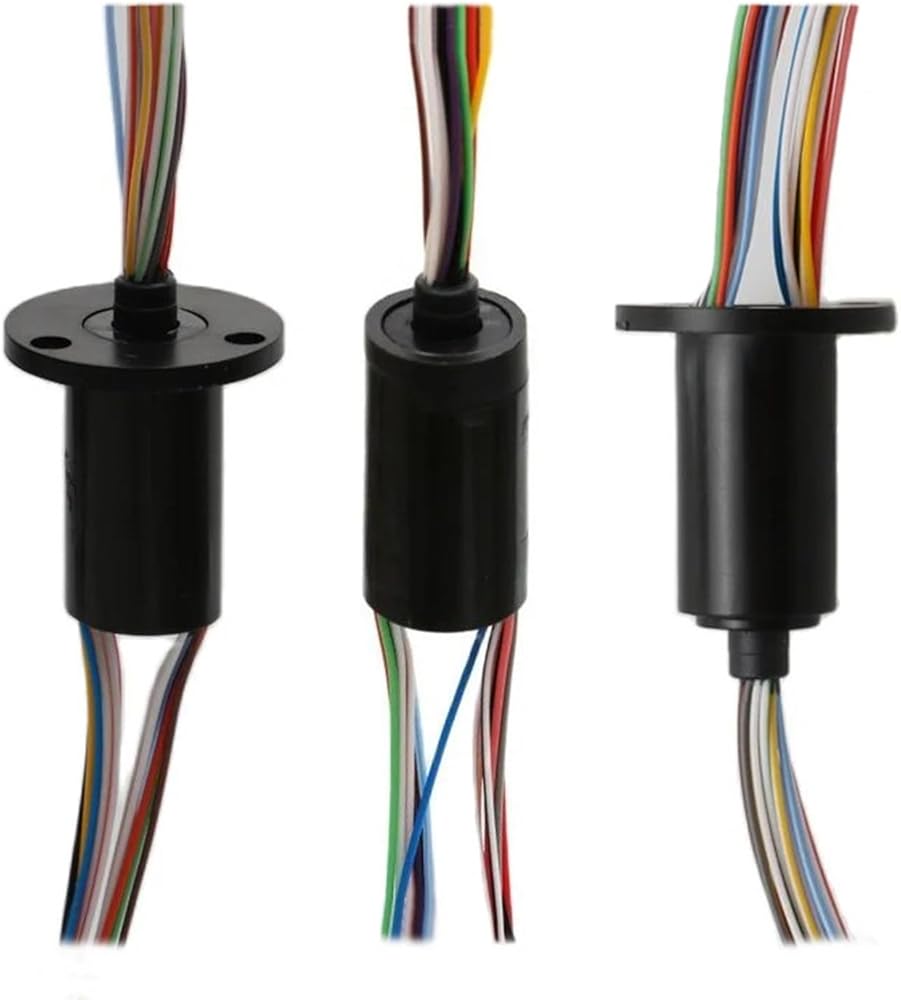

Mini slip ring diameter 12.5mm 18CH wire 2A slip ring rotary joint connector DIY for closed circuit monitoring pan/tilt
Specification:
- Speed: Max.200rpm
- Channel: 18CH
- Rated voltage: 220VAC/DC
- Rated current: 1.5A/channel
- Working temperature: -20℃~+60℃
- Contact material: gold/gold
- Wire specification: AWG30
- Cable length: standard 200mm
- Compressive strength: 500V@50Hz between two channels
- Insulation resistance: 1000mOhm /500VDC
- Working life: 500 million revolutions (depends on operating environment and speed)
