T9AS1D22-12 30A High Breaking Capacity PCB Mount Relay for HVAC, Power Supplies, and Domestic Appliances in Saudi Arabia T9AS1D22-12 30A High Breaking Capacity PCB Mount Relay for HVAC, Power Supplies, and Domestic Appliances in Saudi Arabia T9AS1D22-12 30A High Breaking Capacity PCB Mount Relay for HVAC, Power Supplies, and Domestic Appliances in Saudi Arabia T9AS1D22-12 30A High Breaking Capacity PCB Mount Relay for HVAC, Power Supplies, and Domestic Appliances in Saudi Arabia T9AS1D22-12 30A High Breaking Capacity PCB Mount Relay for HVAC, Power Supplies, and Domestic Appliances in Saudi Arabia T9AS1D22-12 30A High Breaking Capacity PCB Mount Relay for HVAC, Power Supplies, and Domestic Appliances in Saudi Arabia T9AS1D22-12 30A High Breaking Capacity PCB Mount Relay for HVAC, Power Supplies, and Domestic Appliances in Saudi Arabia

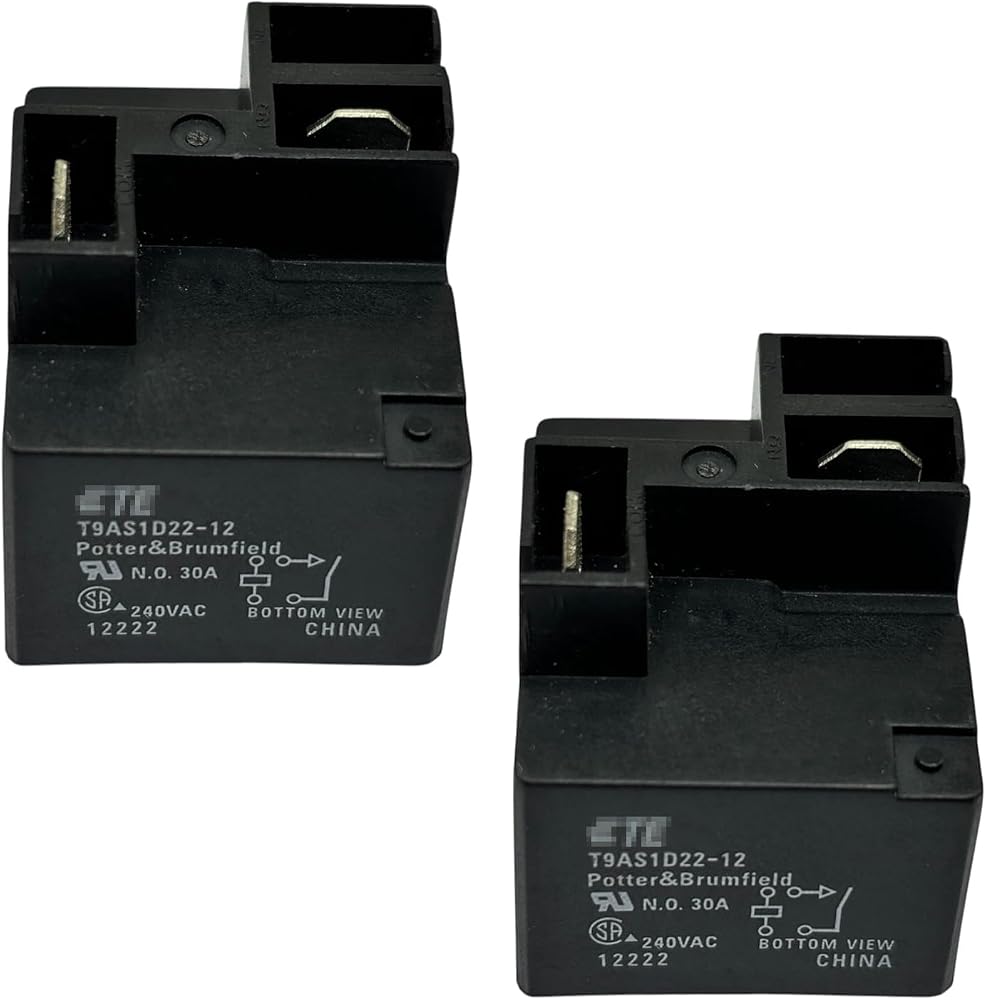

TWO T9AS1D22-12

SAR 37
Brand
oxinyra
Weight
35 g
SizeTWO T9AS1D22-12
– 1 +

Special Features

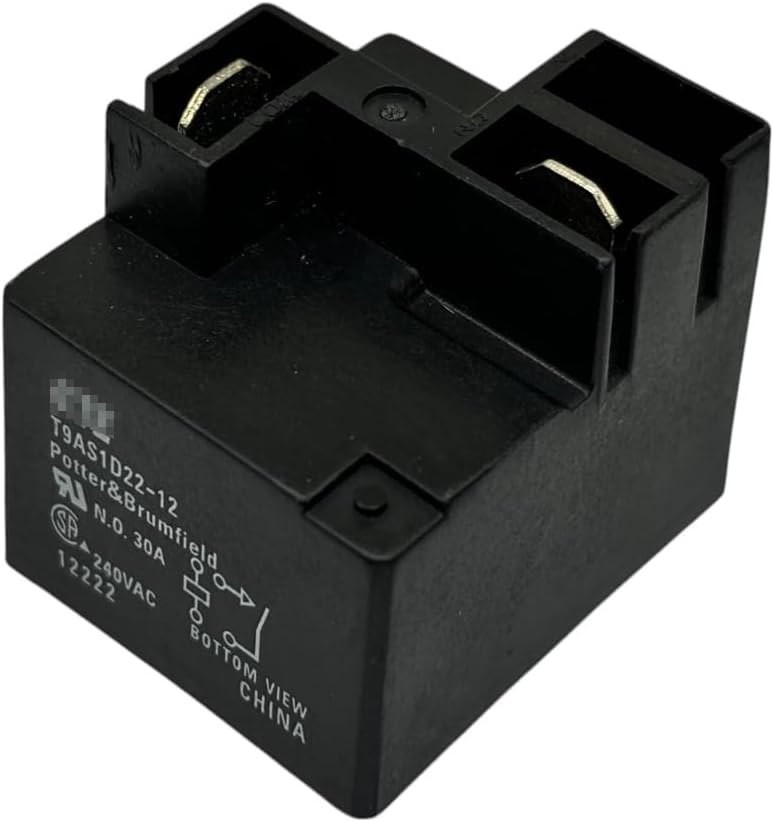

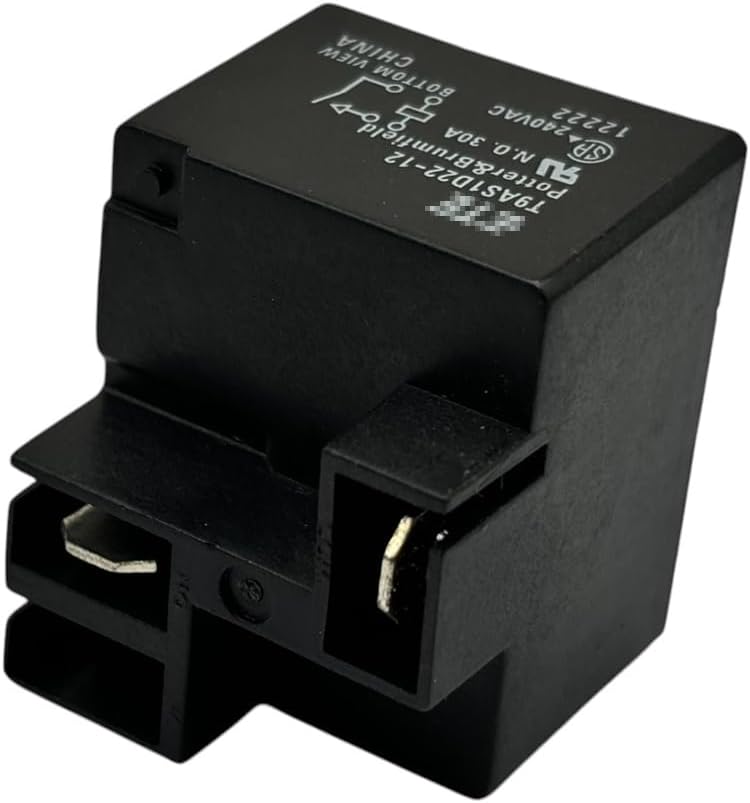

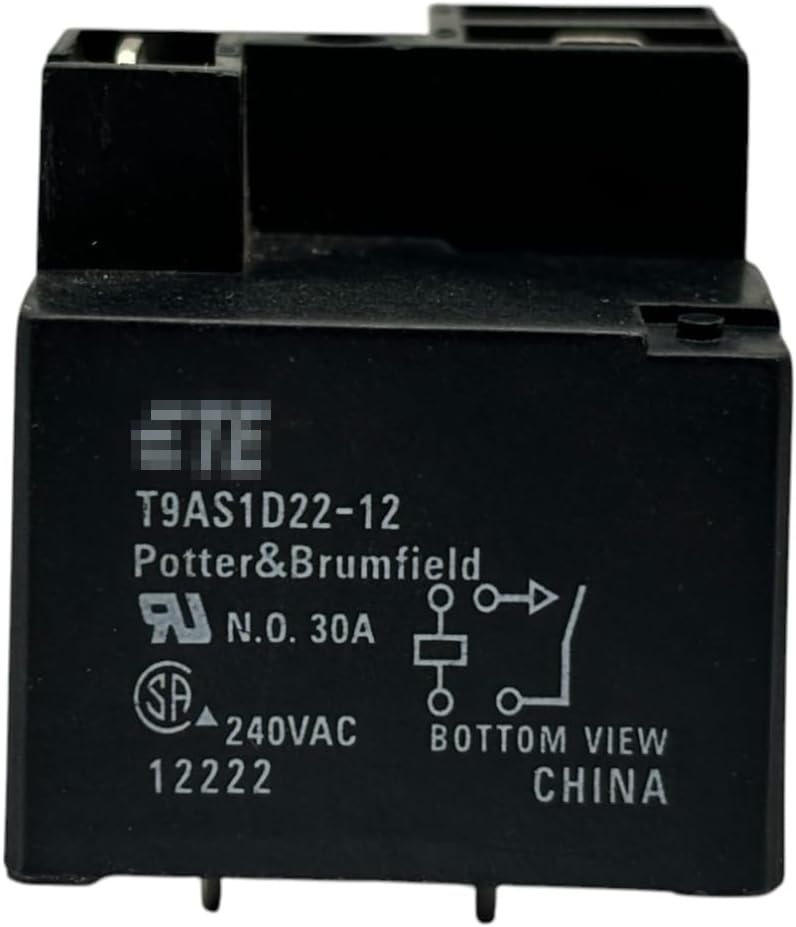

  • Power Relay T9AS1D22-12: The T9AS1D22-12 power relay is designed for various applications and offers reliable performance. It is a 4-pin relay capable of handling a maximum current of 30A at 240VAC.
  • Versatile Mounting Options: Designed for easy integration, this relay features a PCB mount, ensuring hassle-free installation and compatibility with various electronic systems.
  • Premium Quality: Crafted with top-quality materials and advanced technology, the T9AS1D22-12 relay offers superior durability, longevity, and performance, making it a reliable choice for your automotive needs.

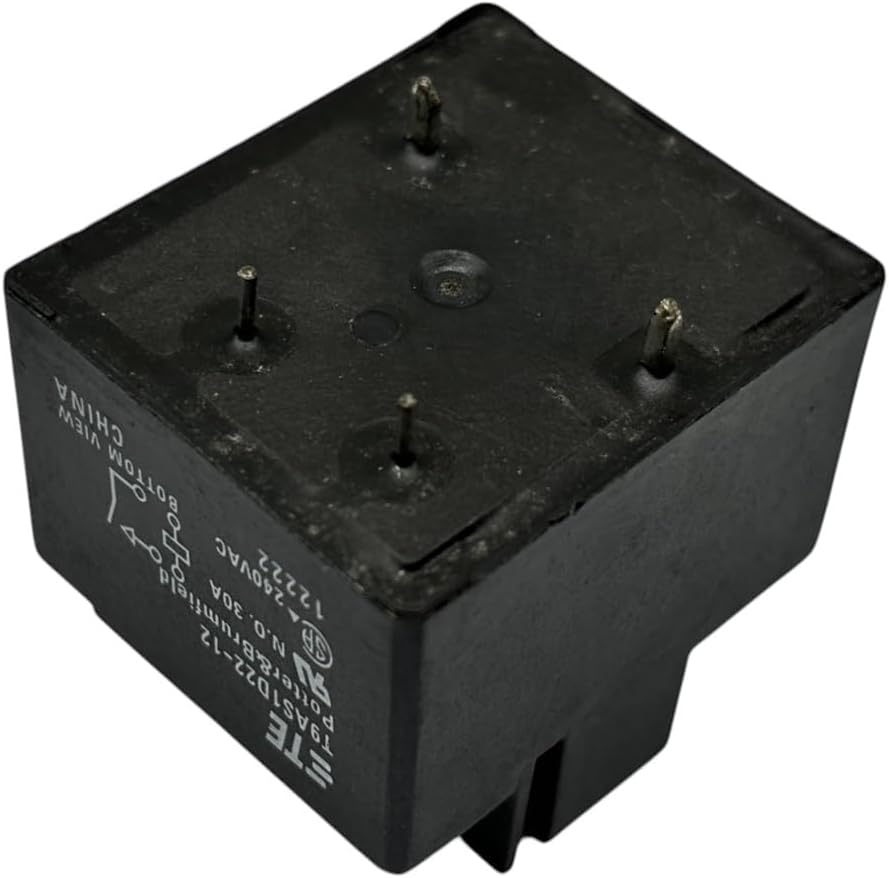

  • 4-Pin Configuration: The T9AS1D22-12 power relay features a 4-pin configuration, allowing for secure and convenient electrical connections. The pins are labeled for easy installation and ensure reliable signal transmission.
  • Wide Applications: This relay is ideal for use in HVAC systems, power supplies, domestic appliances, and measurement & control devices, providing efficient and safe operation. Compatible with TE Connectivity/ Potter & Brumfield Multi Purpose Relay.

Description

Connector Type: Quick Connect
Contact Material: Silver Alloy
Contact Type : Normally Open
Current Rating: 30 Amps
Mounting Type: Plug In Mount
Coil Special Features : UL Coil Insulation Class F
Contact Arrangement : 1 Form A (NO)
Contact Limiting Breaking Current (A): 30
Coil Power Rating DC (mW): 1000
Coil Resistance (Ω): 144
Coil Voltage Rating (VDC): 12
Contact Current Rating (A): 30
Contact Switching Load (Min) : 1000mA @ 5V
Contact Switching Voltage (Max) (VAC): 277
Contact Voltage Rating (VAC): 277
Insulation Initial Dielectric Between Contacts & Coil (Vrms): 2500
Enclosure Type : Sealed
Terminal Configuration : Quick Connect Terminals
