1PCS mini conductive slip ring diameter 6/6.5/7.5mm 2/4/8/12CH 1A 2A remote control drone universal anchor fish brushless motor rotating slip ring

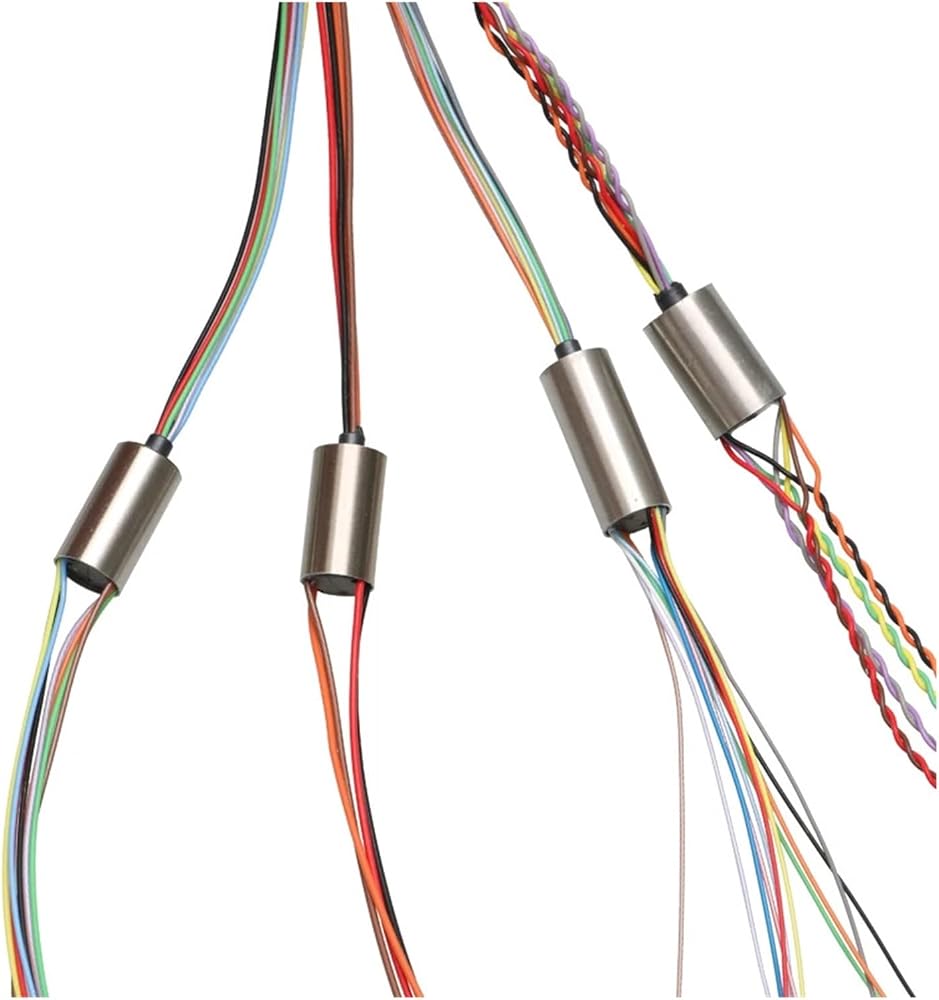

13 types for your reference:

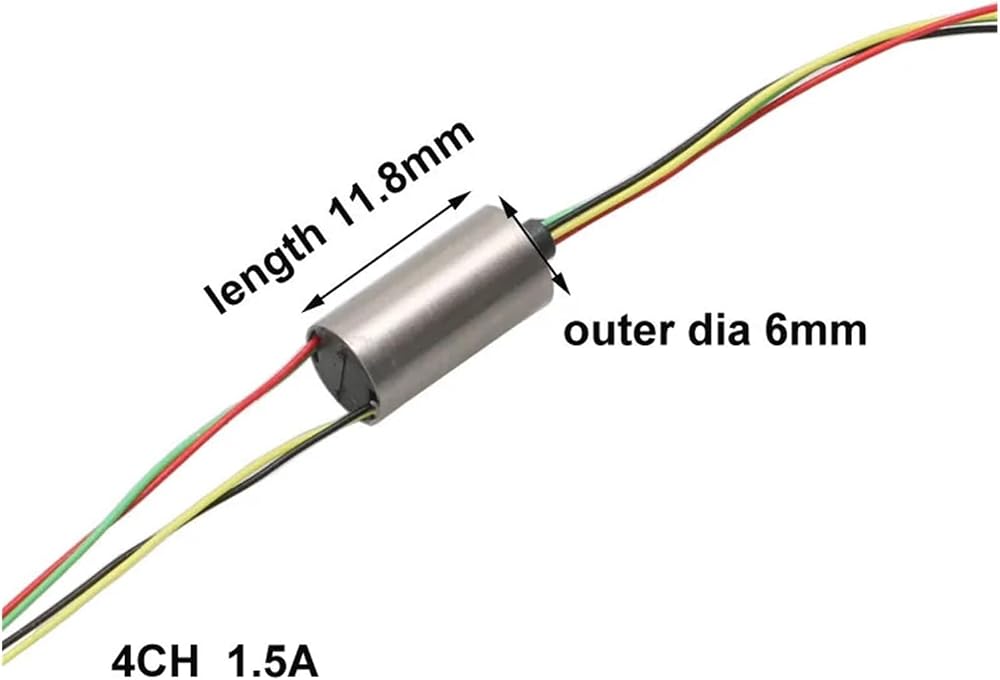

- Diameter 6mm 4CH 1.5A, length 11.8mm

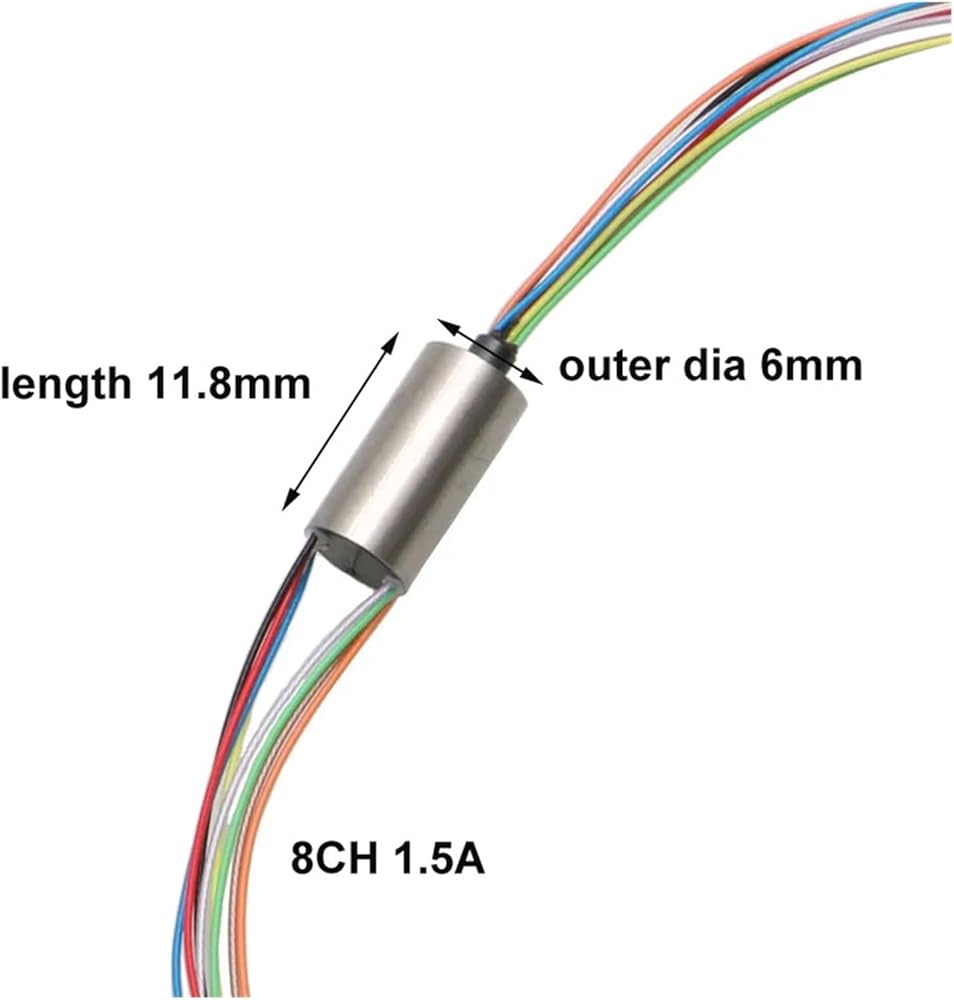

- Diameter 6mm 8CH 1.5A, length 11.8mm

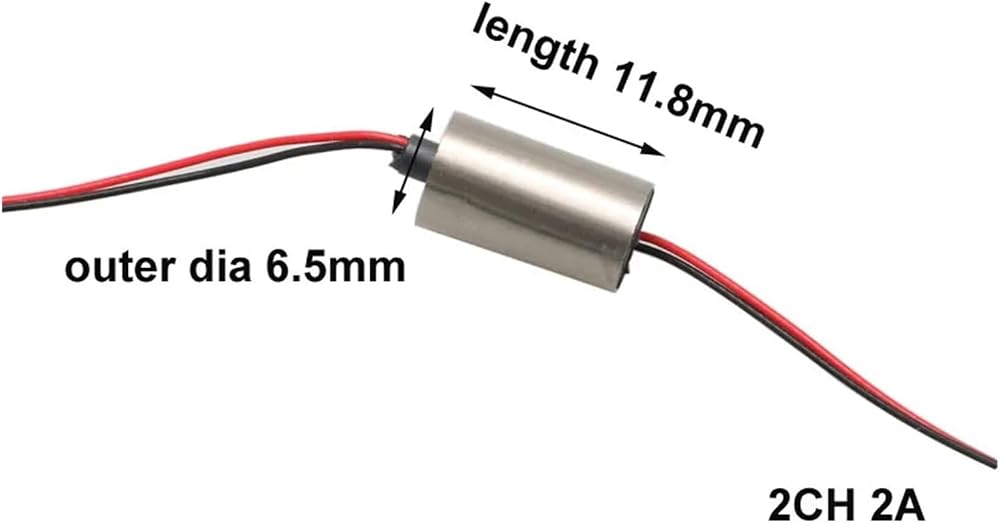

- Diameter 6.5mm 2CH 2A, length 11.8mm

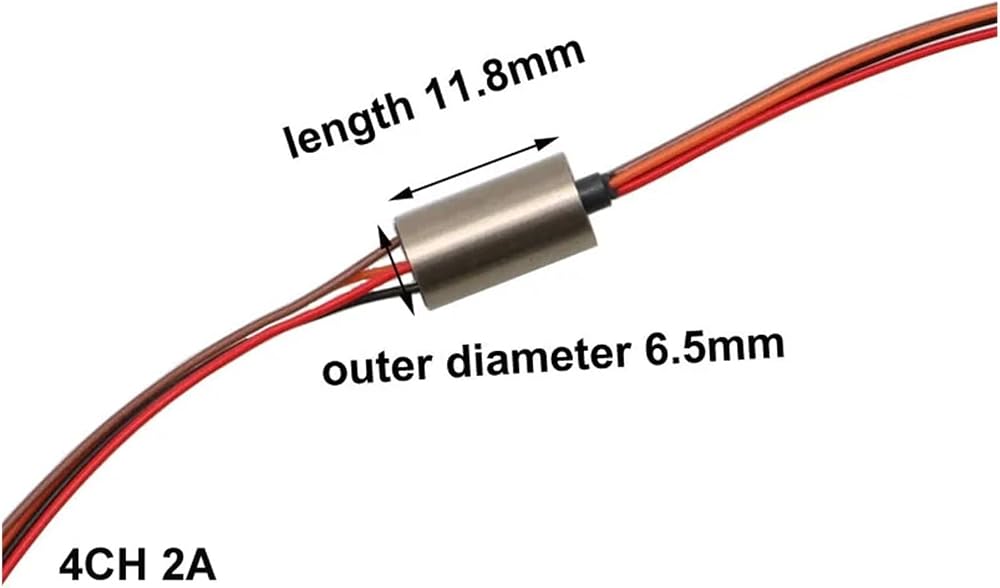

- Diameter 6.5mm 4CH 2A, length 11.8mm

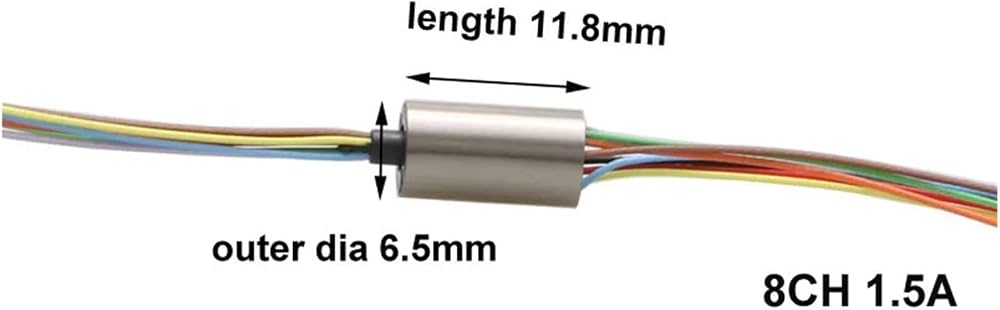

- Diameter 6.5mm 8CH 1.5A, length 11.8mm
- Diameter 6.5mm 12CH 1A, length 15.6mm
- Diameter 7.5mm 8CH 2A, length 11.8mm
- Diameter 6.5mm 4CH 1.5A, length 8mm
- Diameter 6.5mm 2CH 1.5A, length 8mm
- Diameter 12.4mm 4CH 2A, length 13.2mm
- Diameter 12.4mm 6CH 2A, length 13.2mm
- Diameter 12.4mm 8CH 2A, length 19.8mm
- Diameter 12.4mm 12CH 2A, length 19.8mm
Specification:
- Speed: 300RPM
- Channel: 2/4/8/12CH
- Rated voltage: 0~240VAC/DC
- Rated current: 1A 2A/channel
- Working temperature: -20℃~80℃
- Contact material: precious metal
- Wire specification: AWG28
-Cable length: standard 250mm
- Protection level: IP51
- Insulator strength: 500VAC@50Hz, 60 seconds
- Insulation resistance: 500MQ/500VDC
Note: Silver and black are sent randomly
Package Included:
1 x slip ring
