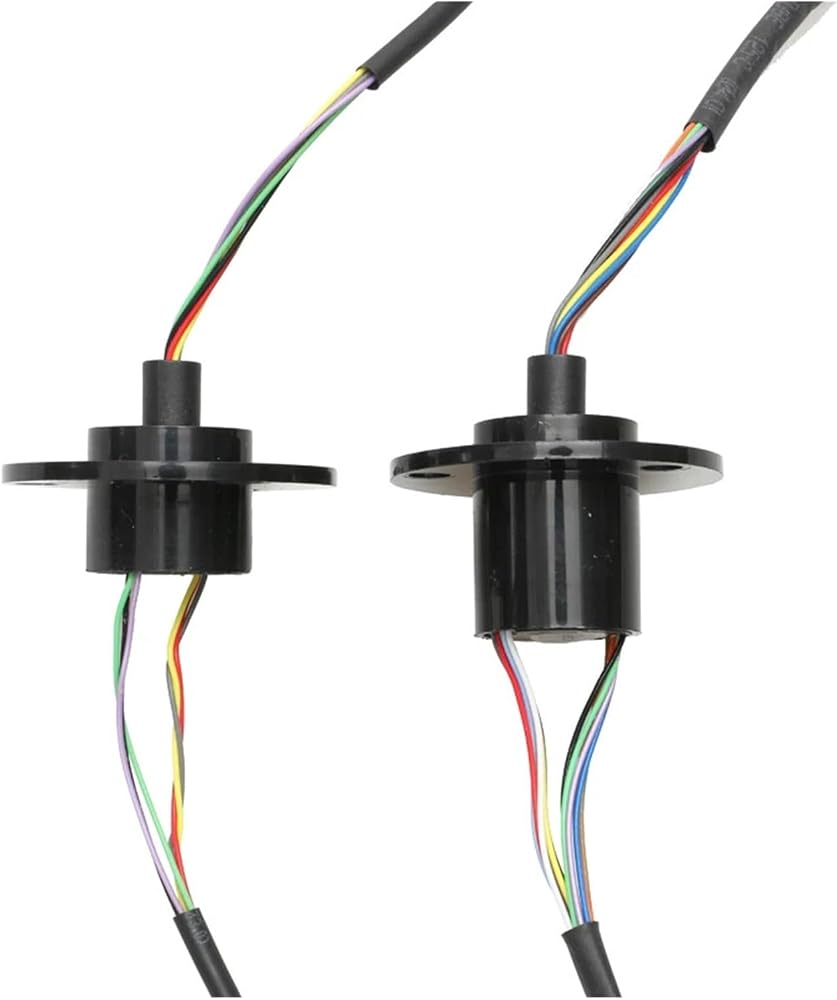

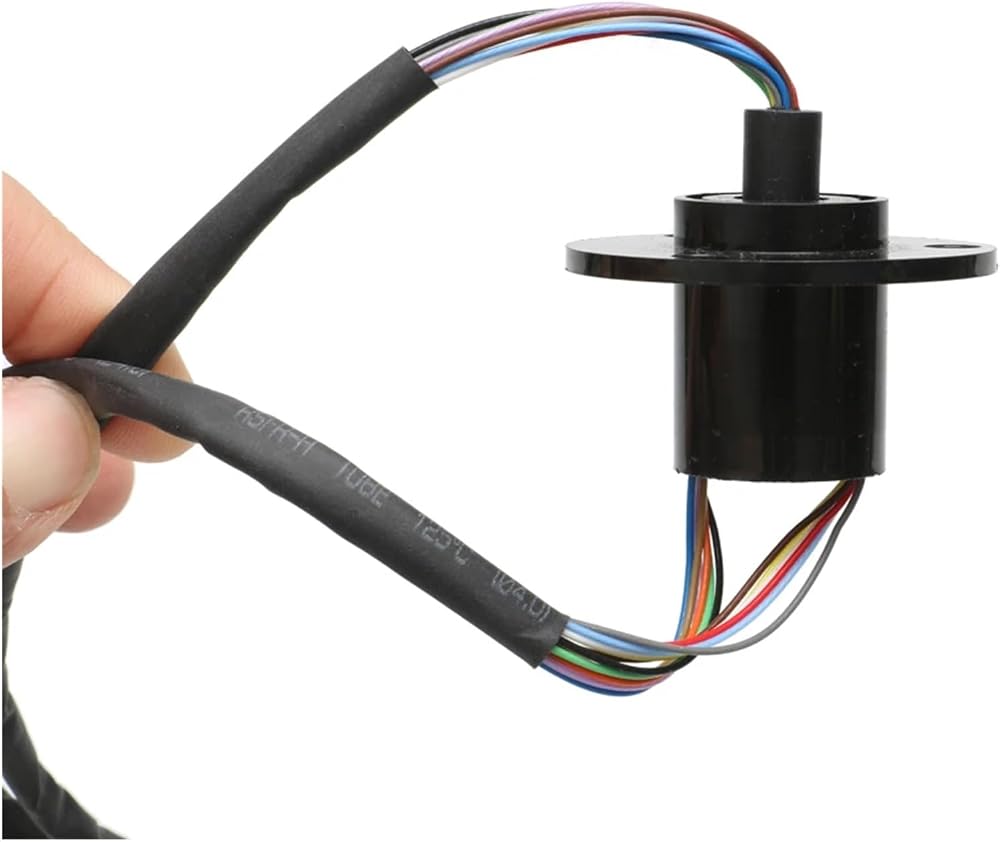

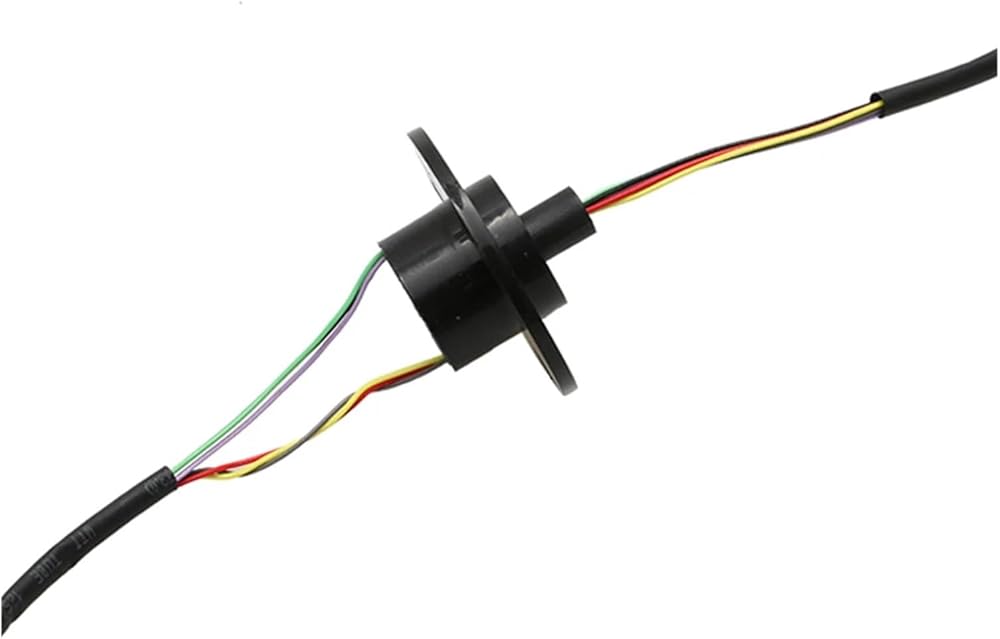

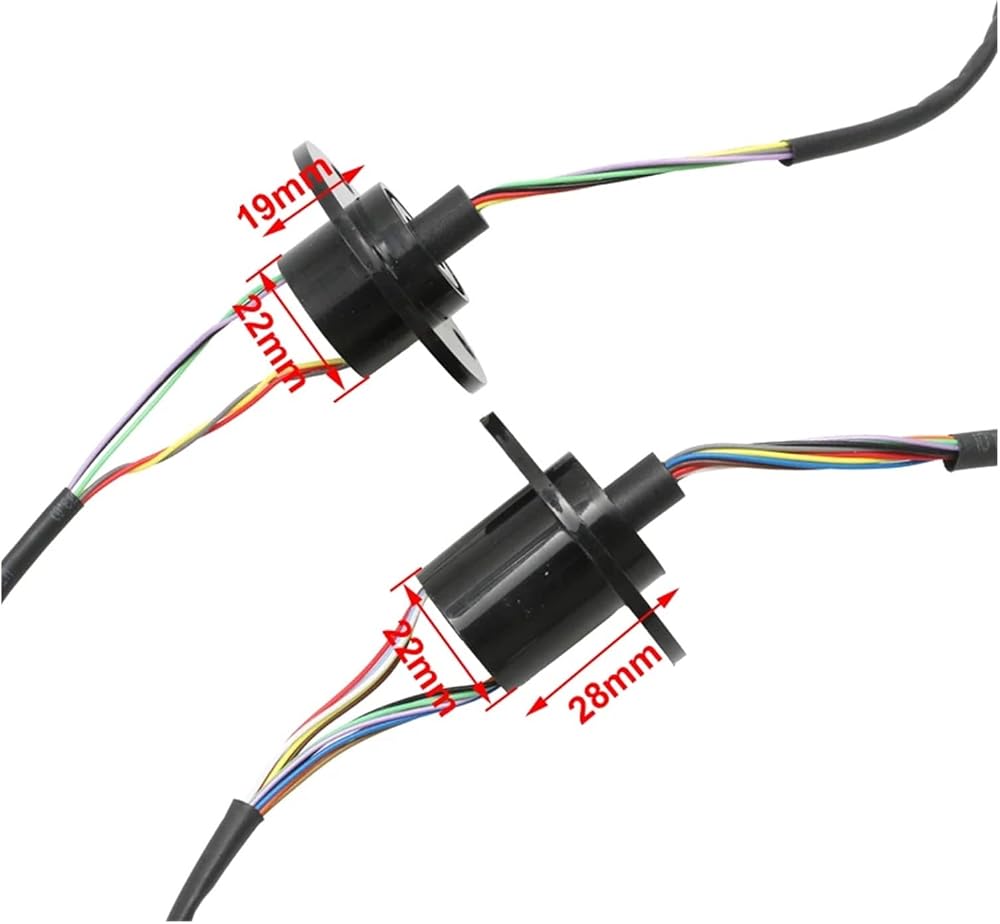

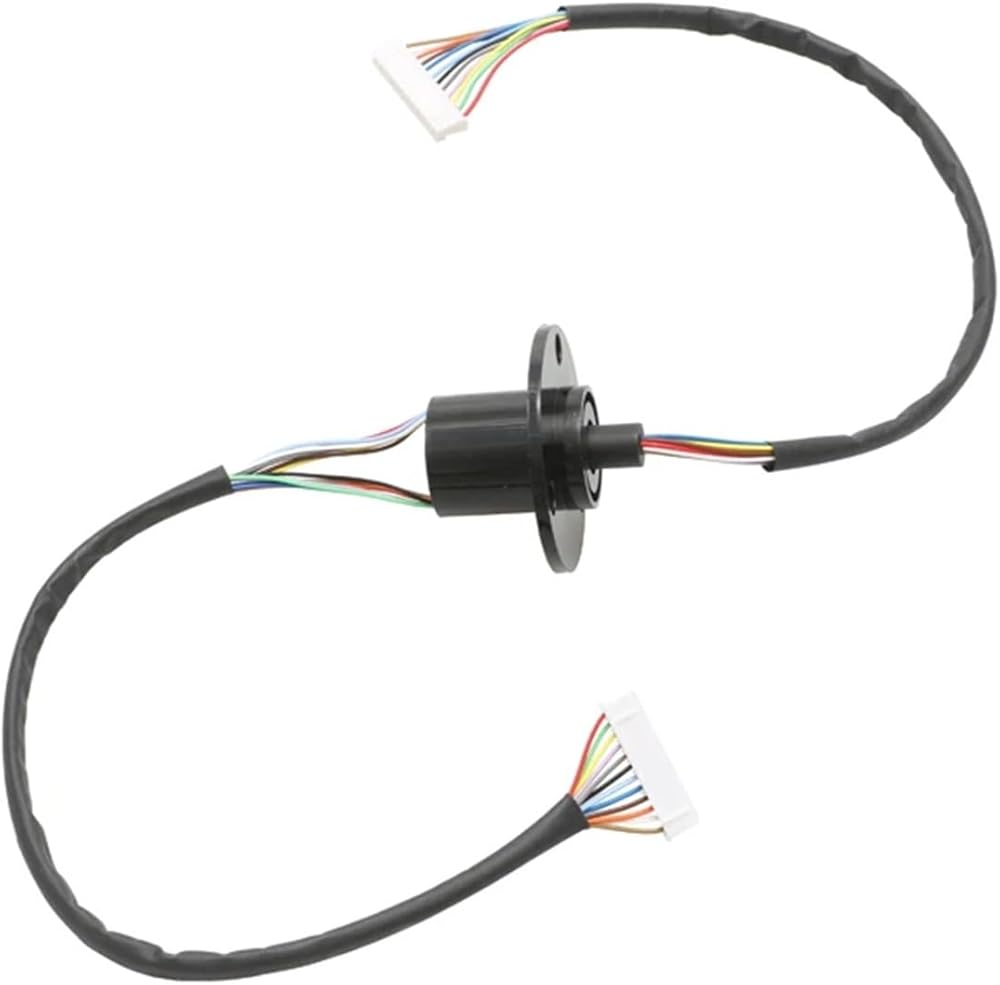

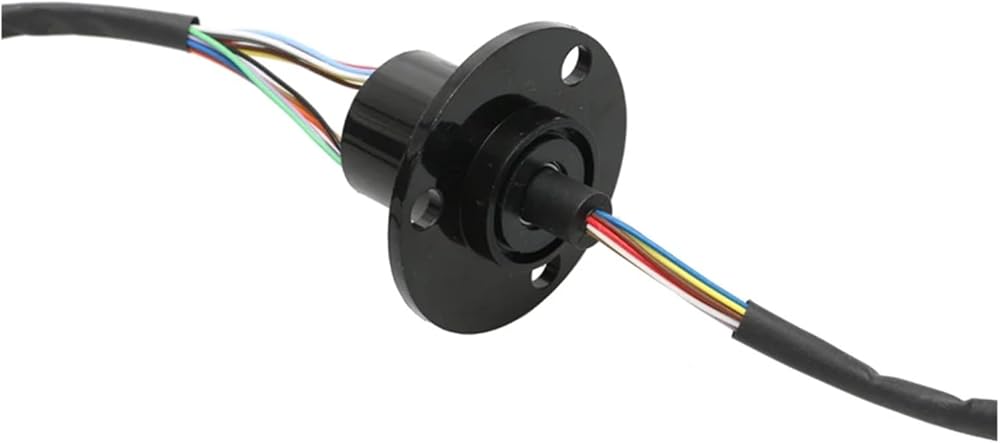

1 piece 6/12 channel wire 2A double contact plated slip ring diameter 22mm CCTV pan/tilt capsule conductive slip ring swivel joint

feature:
Low contact resistance
Low working noise
Running smoothly
longevity
Compact structure
360 degree unlimited rotation

data:
- Rated voltage: 240VDC/240VAC
- Channel: 6CH/12CH
- Rated current: 2A/ring
- Lead size: AWG26, color coded, FEP insulated, silver plated copper
- Lead length: 250mm (or as per requirement)
- Dielectric strength: 500VAC@50Hz, 60s
- Insulation resistance: 1000M/500VDC

Mechanical data:
- Running speed: 0-300RPM
- Temperature range: -20℃ to +80℃
- Operating humidity: 60% RH or higher
- Contact material: precious metal
- Shell material: engineering plastic

Package Included:
1 x slip ring
