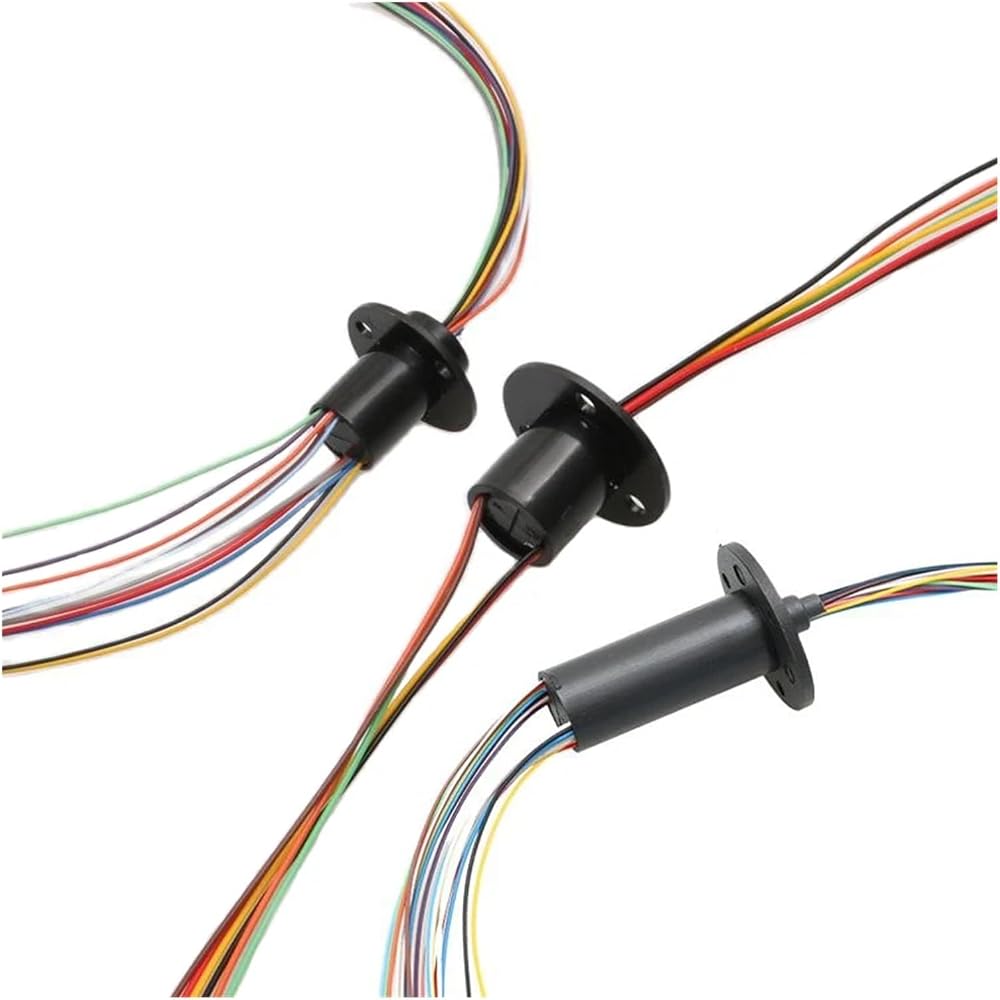

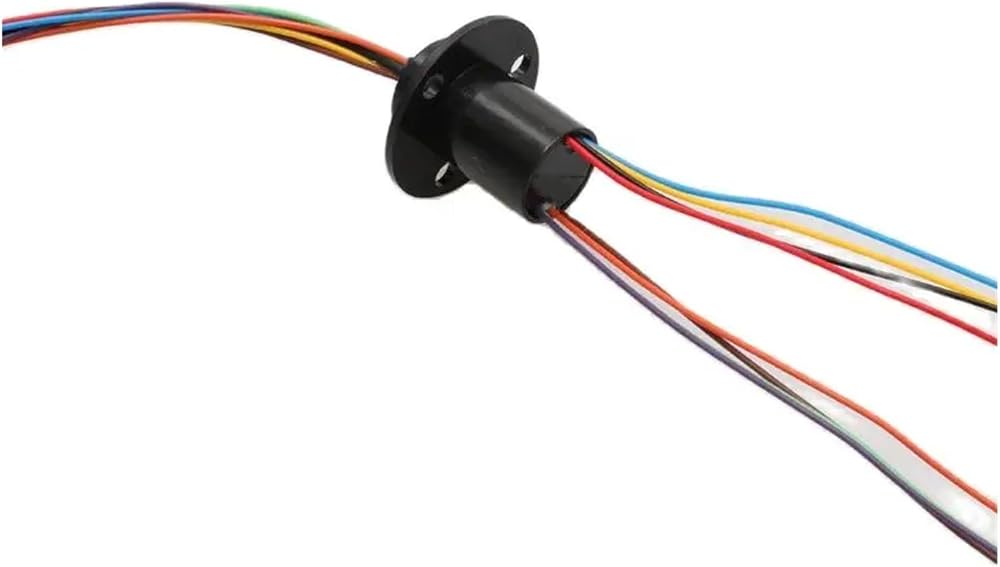

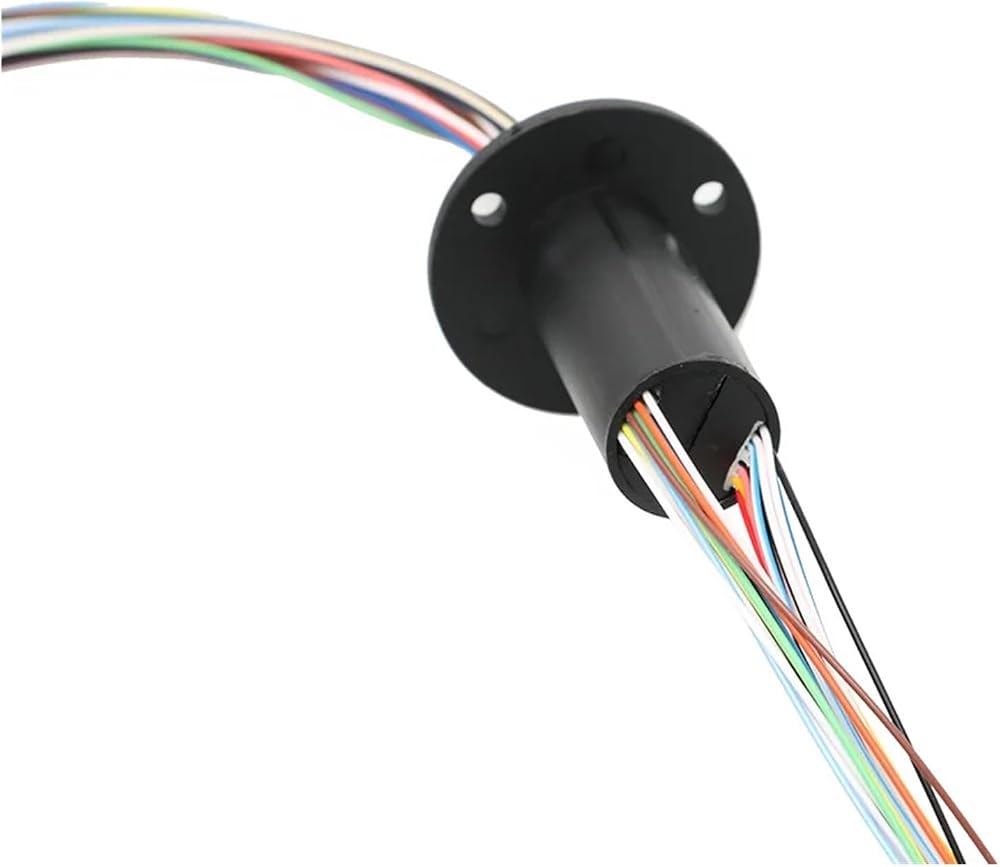

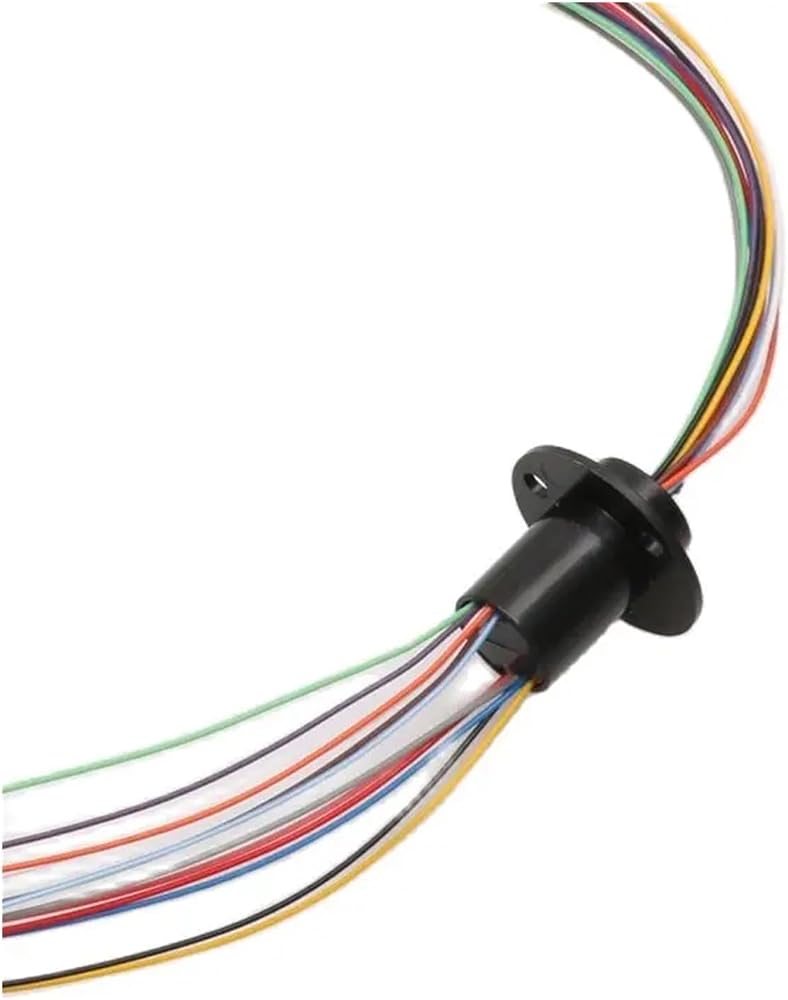

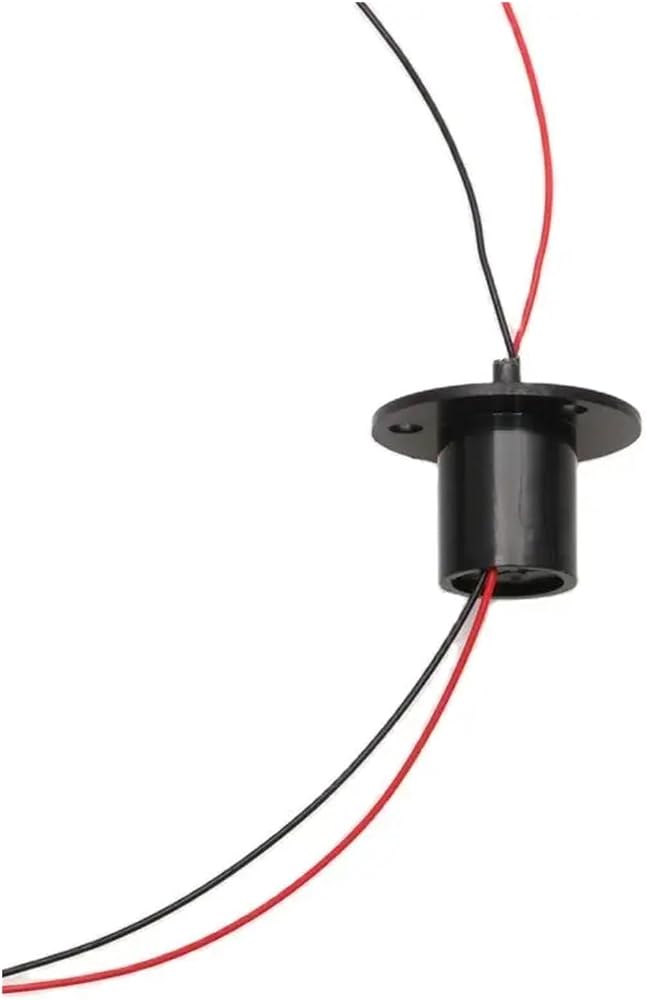

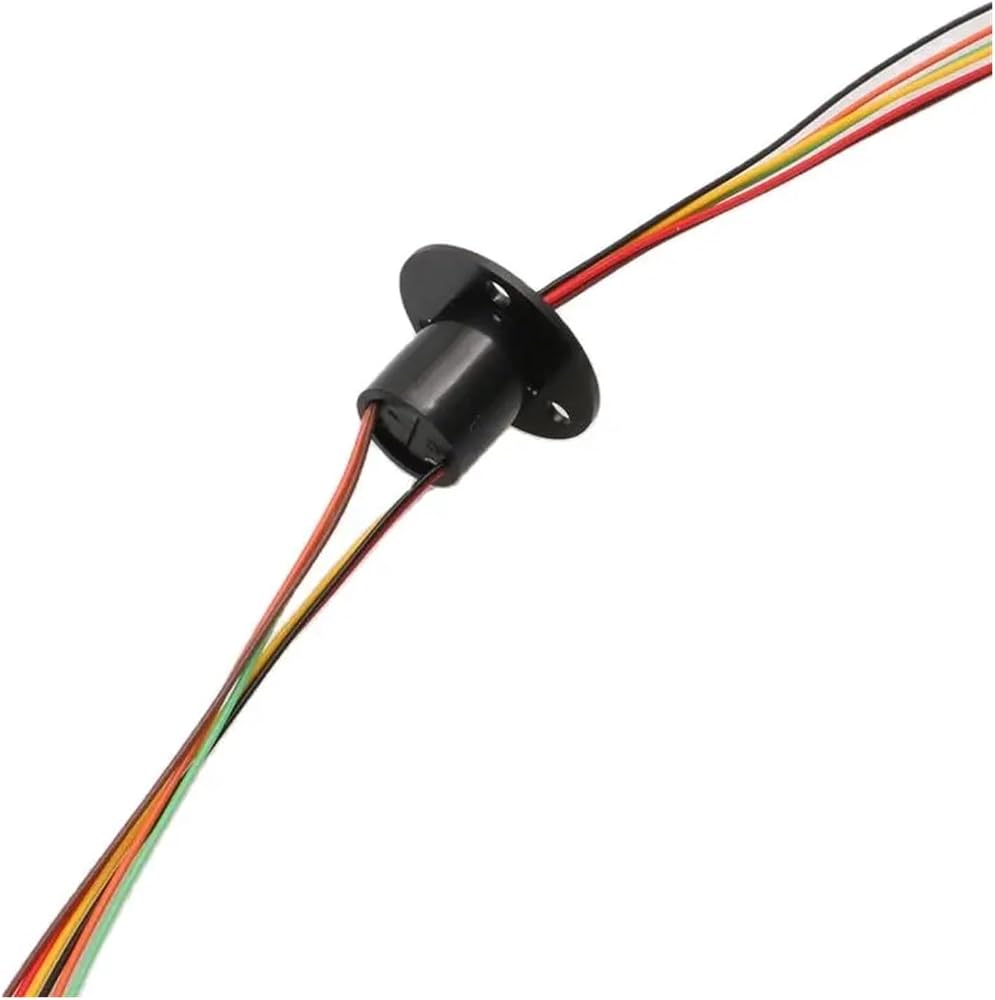

1 piece 2/4/6/8/12/18/24 Channel Wire Miniature Slip Ring 1.5A/2A Slip Ring Rotary Connector Connector Diameter. 12.5mm 12.8mm slip ring
Specification:
- Rotation speed: Max. 250 rpm
- Channel: 2-24 channels
- Protection level: IP54
- Rated voltage: 220VAC/DC
- Rated current: 1.5A/2A channel
- Insulation resistance: 500M ohm/500VDC
- Working temperature: -40℃~+80℃
- Contact material: precious metal
-Cable length: standard 250mm
- Dynamic resistance fluctuation value: minimum 10m Ohm
- Shell material: engineering plastic
- Working life: 5 million rpm (related to working environment and speed)
- Bearings: high-precision ball bearings
- Relative humidity: 60%
- Mechanical vibration: MIL-SID-810E
- Environmental certification: RoHS
Package includes:
1 piece x slip ring
