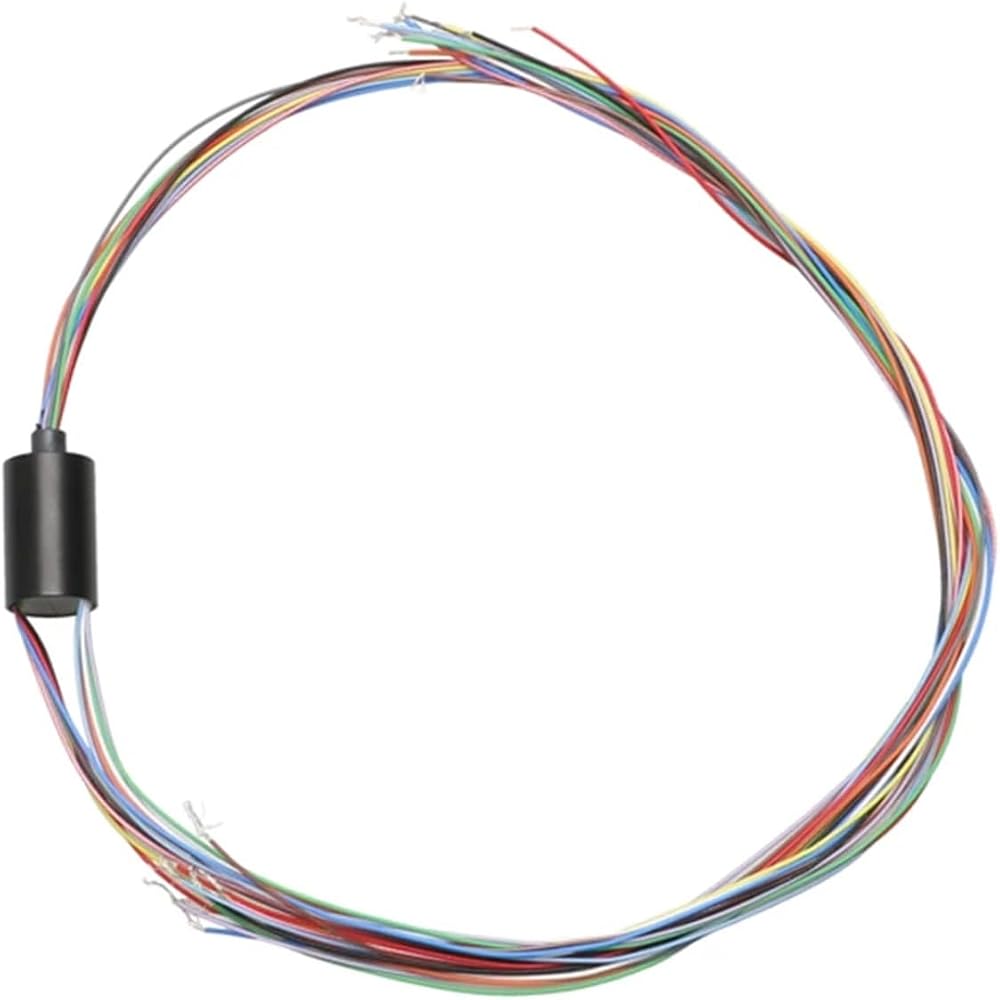

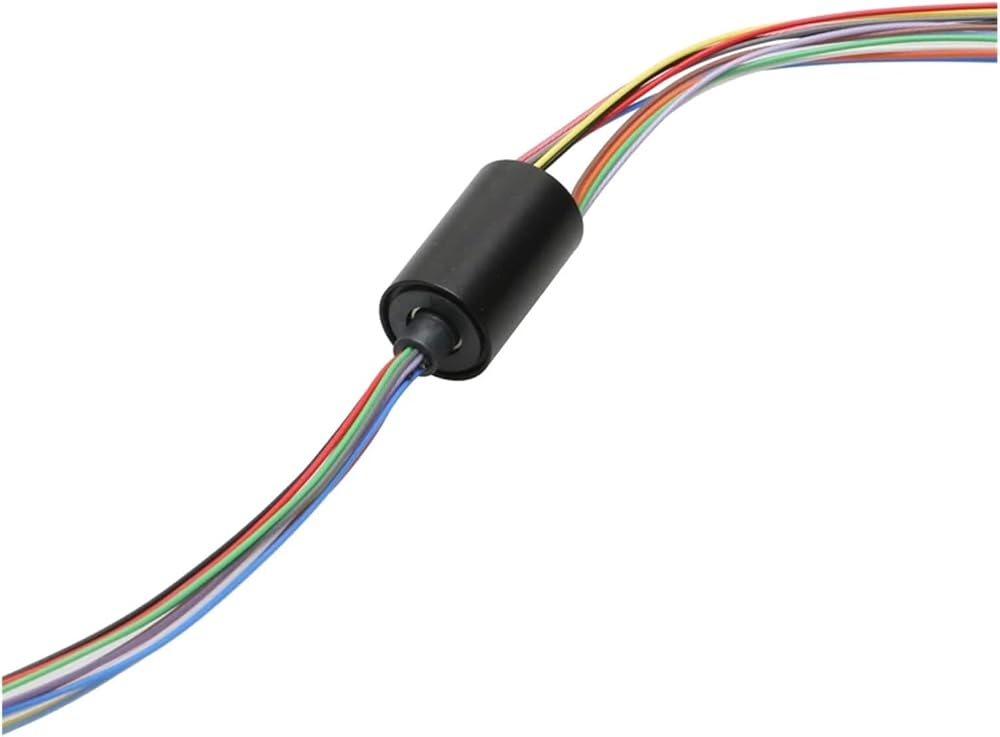

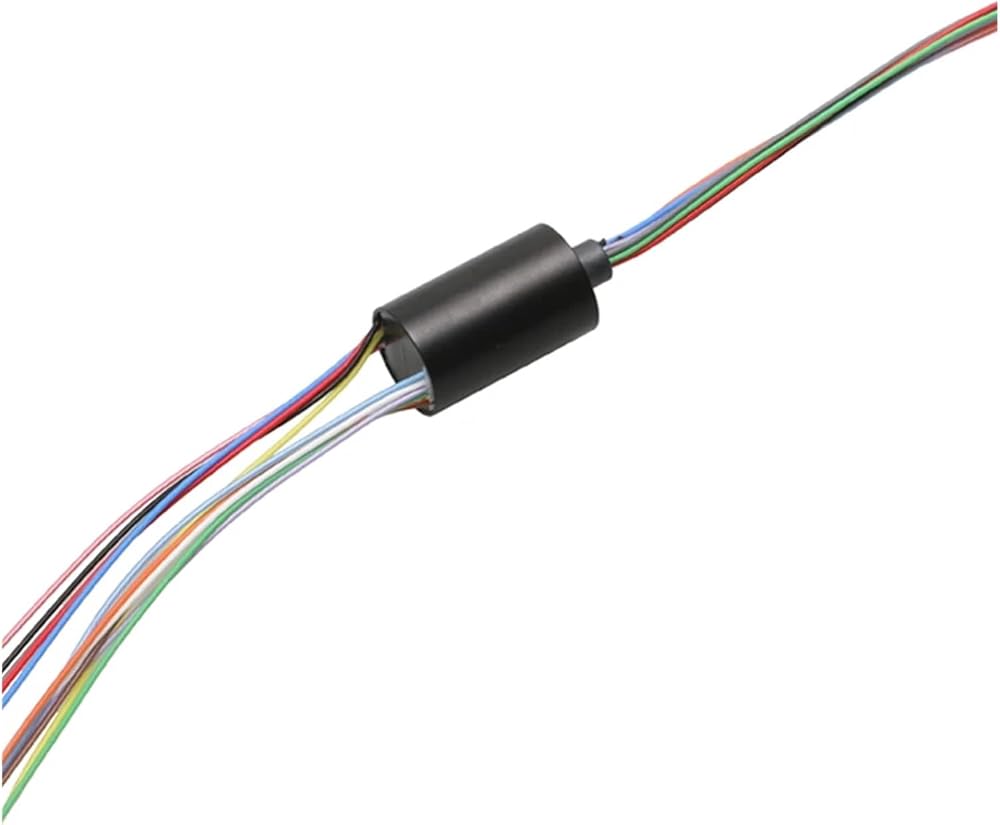

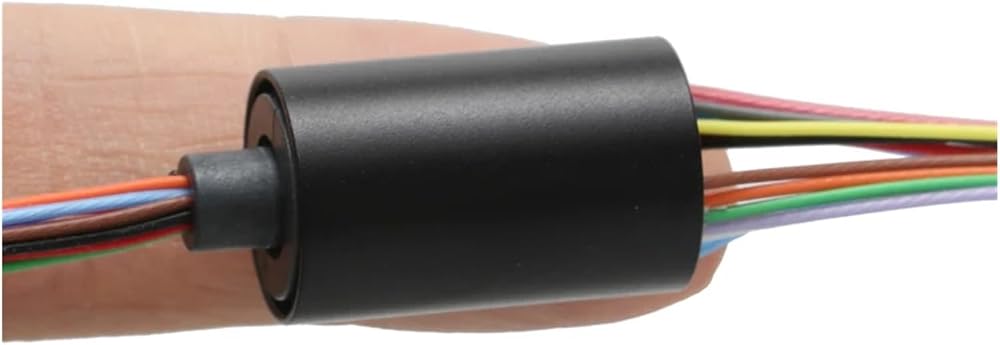

12-way wire 1.5A diameter 12.5mm mini slip ring conductive collector slip ring rotary joint suitable for remote control drone gimbal universal joint
Specification:

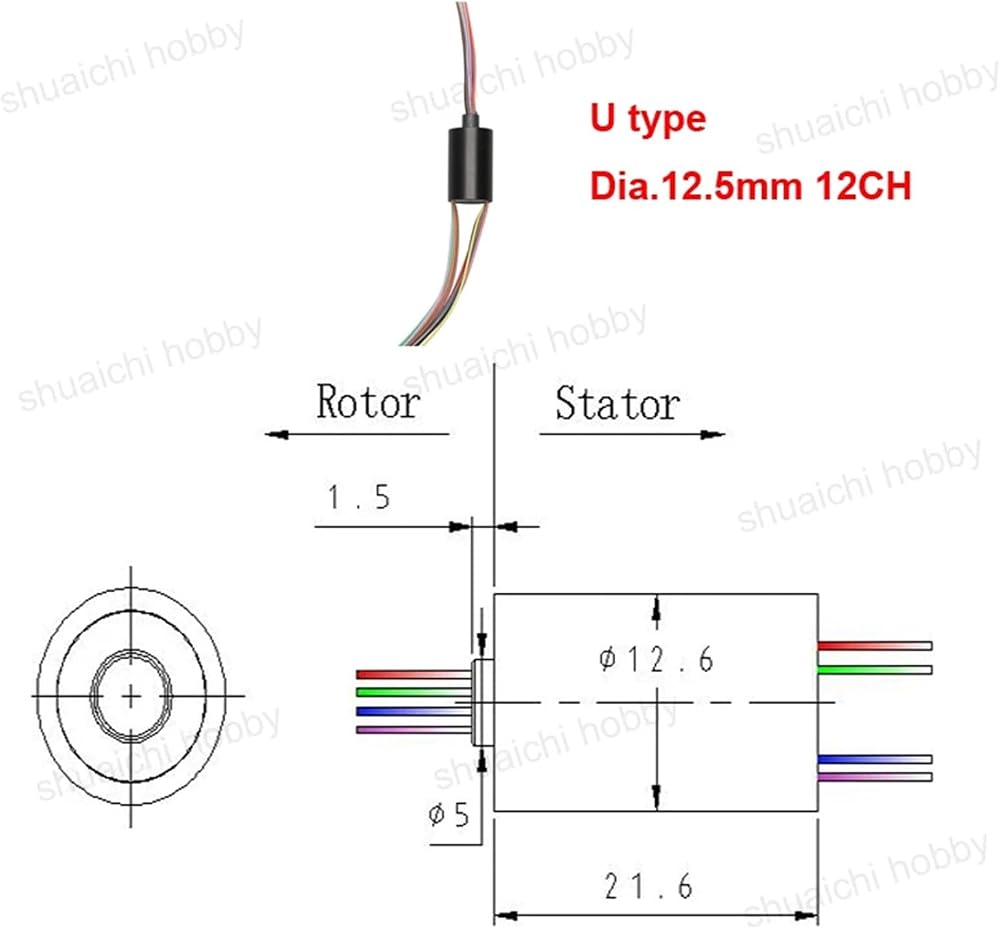

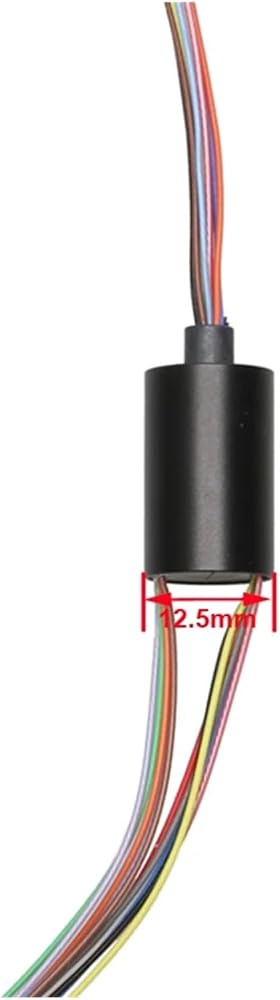

- Diameter: 12.5mm
- Speed: up to 200rpm
- Number of channels: 12CH
- Rated voltage: 220VAC/DC
- Rated current: 1.5A/channel
- Working temperature: -20℃～+60℃
- Contact material: gold/gold
- Wire material: silver plated
-Cable length: standard 200mm
- Compressive strength: 500V 50Hz between two channels
- Insulation resistance: 1000M/500VDC
- Dynamic resistance fluctuation value: minimum 10m
- Shell material: engineering plastic
- Working life: 5 million rpm (depends on working environment and rotation speed)
Package Included:
1 piece x slip ring
We provide OEM for large quantity orders. Please feel to contact us for more information
