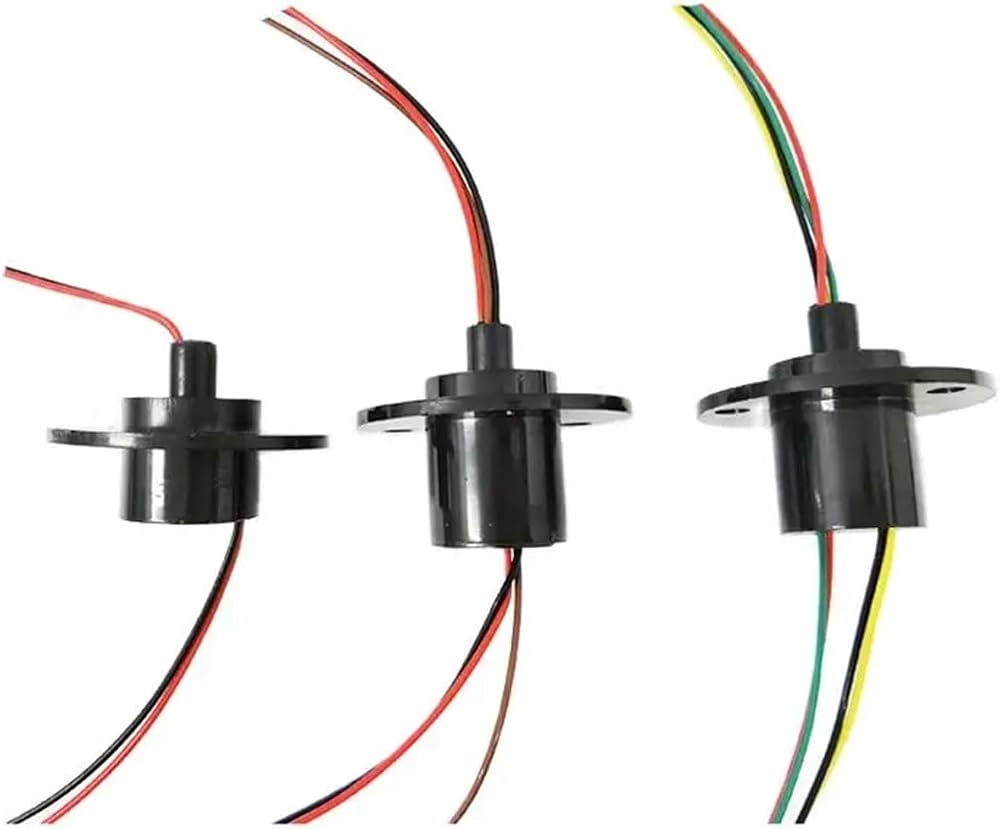

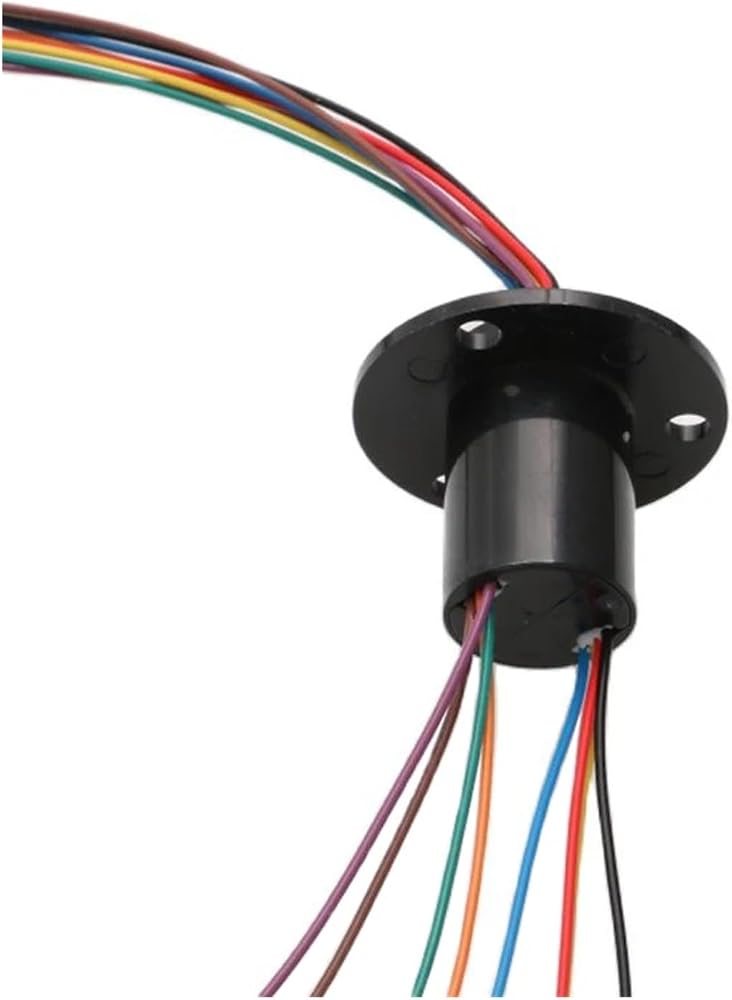

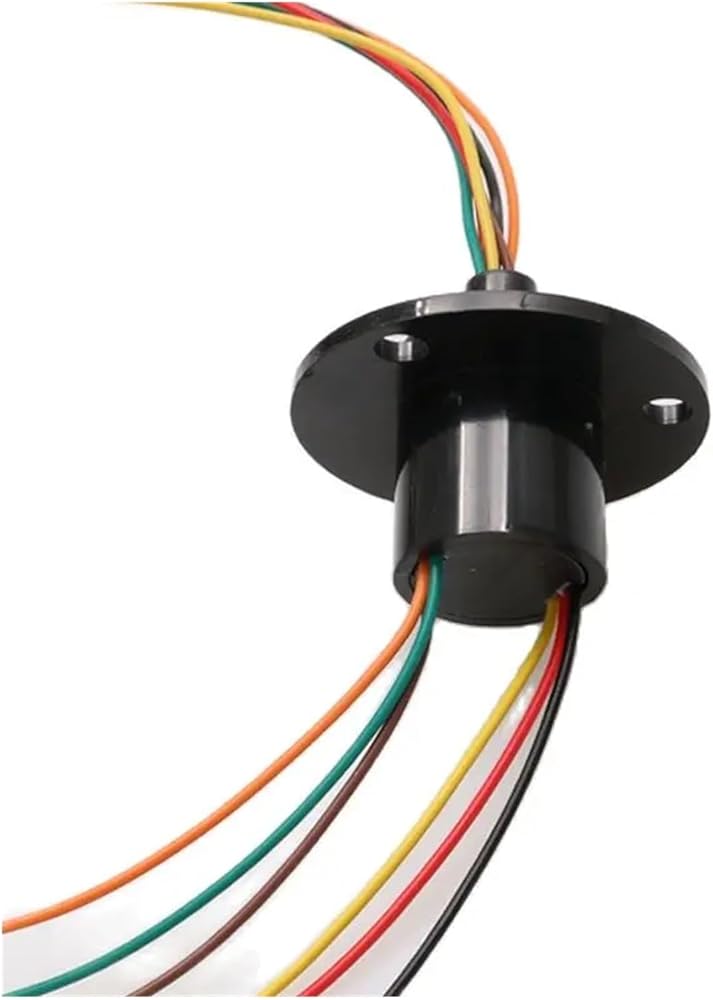

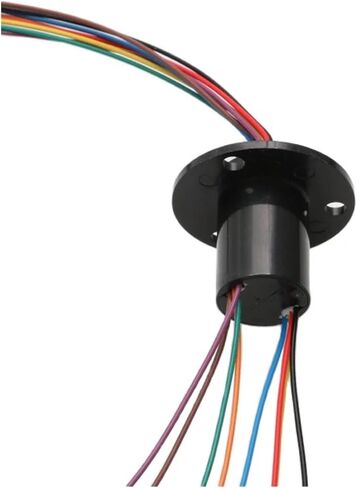

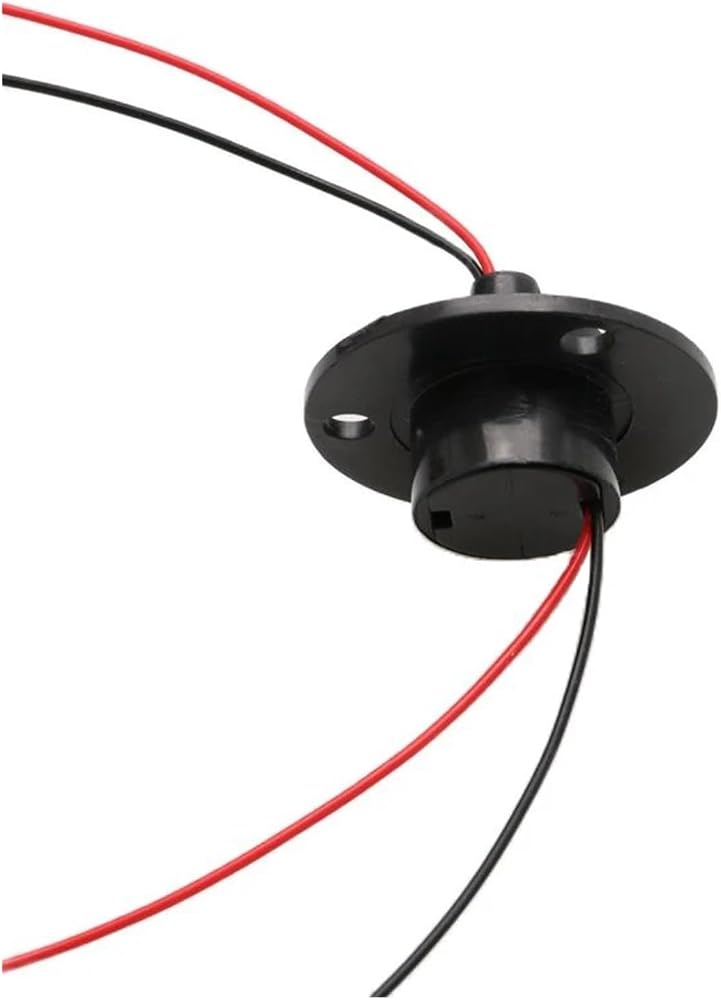

1PCS wind power slip ring 5A diameter 22mm 2/3/4/6/8/12CH channel wire conductive slip ring rotary joint amusement equipment accessories
feature:
- Fully meet the requirements of 360-degree unlimited rotation of image and data transmission, low operating noise, long life, small rotational torque, stable operation, extremely low dynamic resistance change, small size, compact structure
Specification:

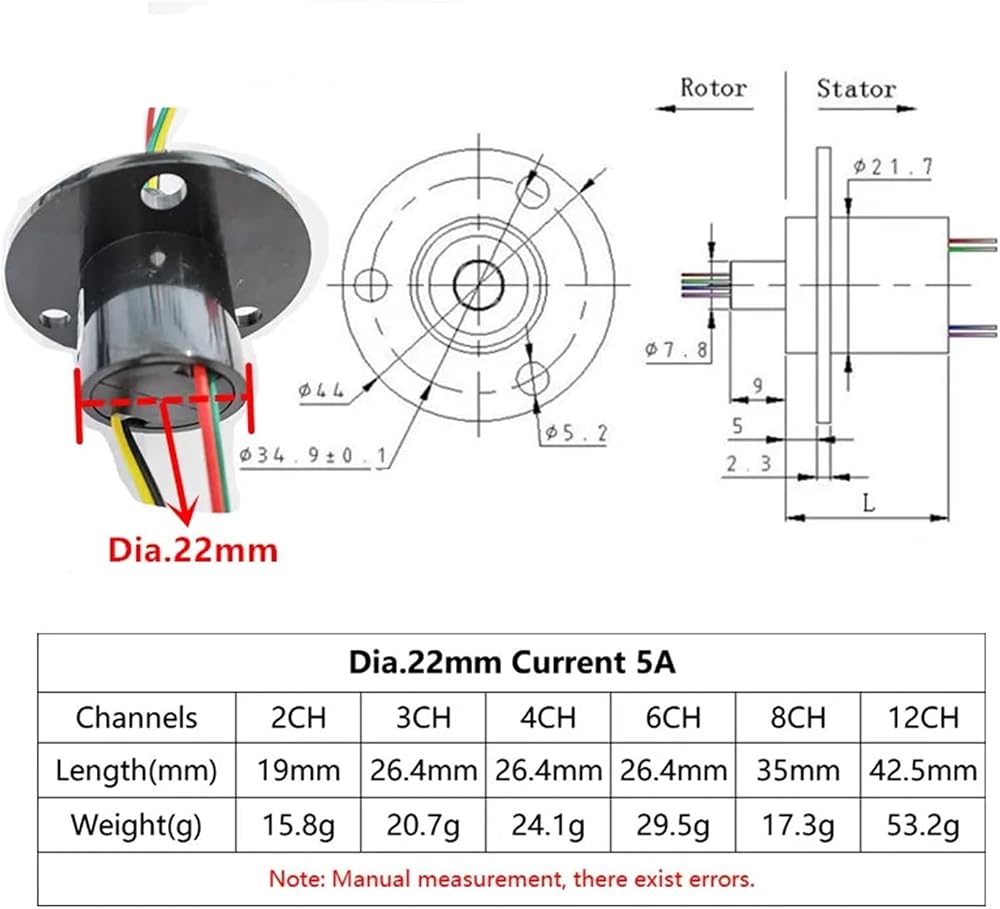

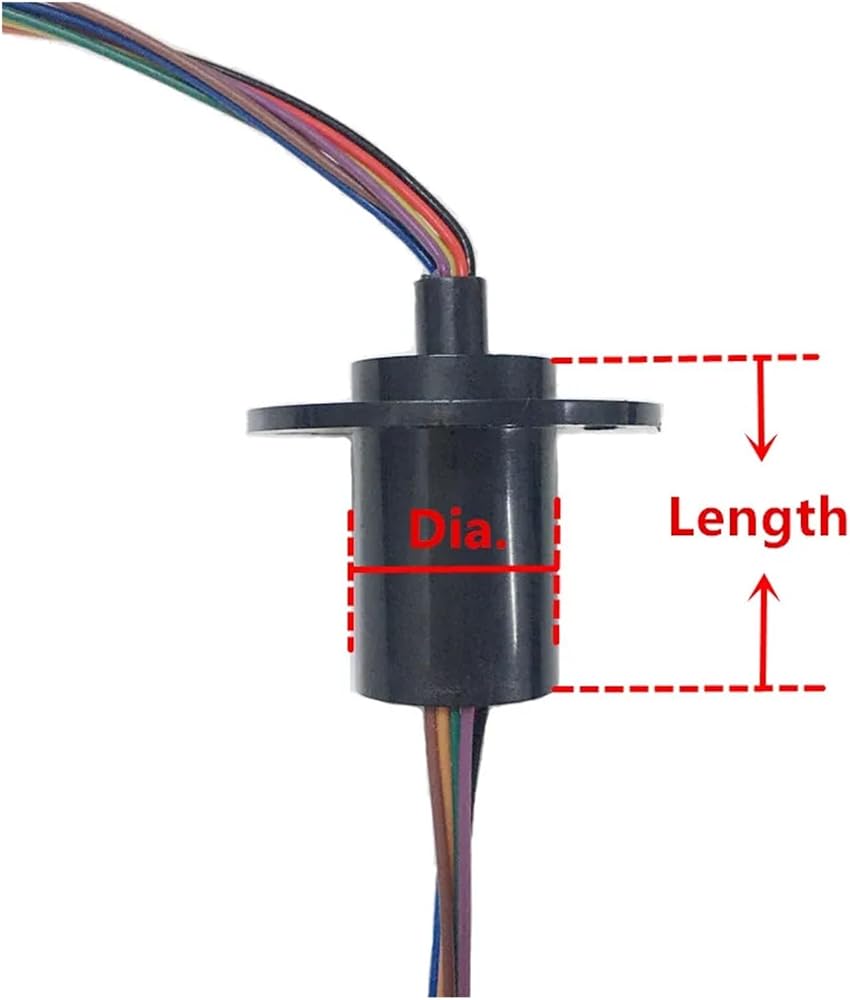

- Diameter: 22mm
- Speed: up to 200rpm
- Number of channels: 2/3/4/6/8/12 channels optional
- Rated voltage: 220VAC/DC
- Rated current: 5A/channel
- Working temperature: -20℃～+60℃
- Contact material: gold/gold
- Wire material: silver plated
-Cable length: standard 200mm
- Compressive strength: 500V 50Hz between two channels
- Insulation resistance: 1000M/500VDC
- Dynamic resistance fluctuation value: minimum 10m
- Shell material: engineering plastic
- Working life: 5 million rpm (depends on working environment and rotation speed)
