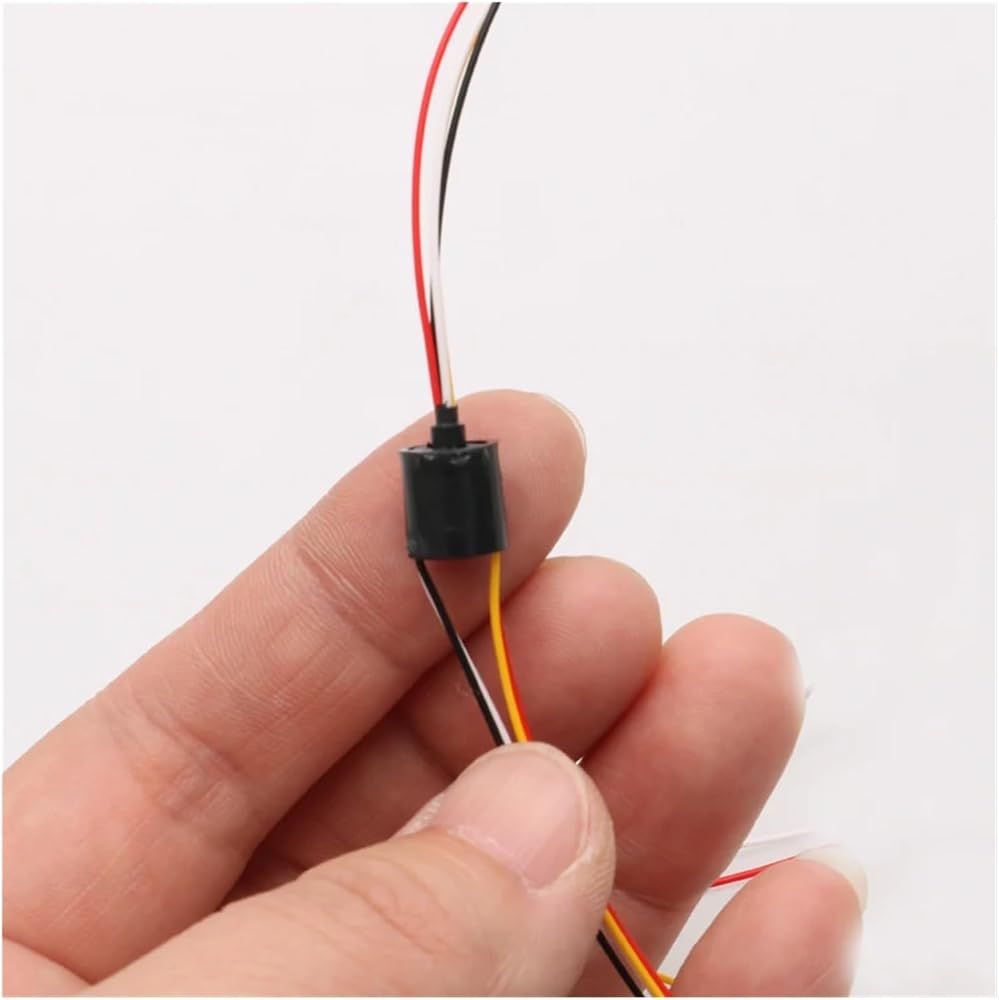

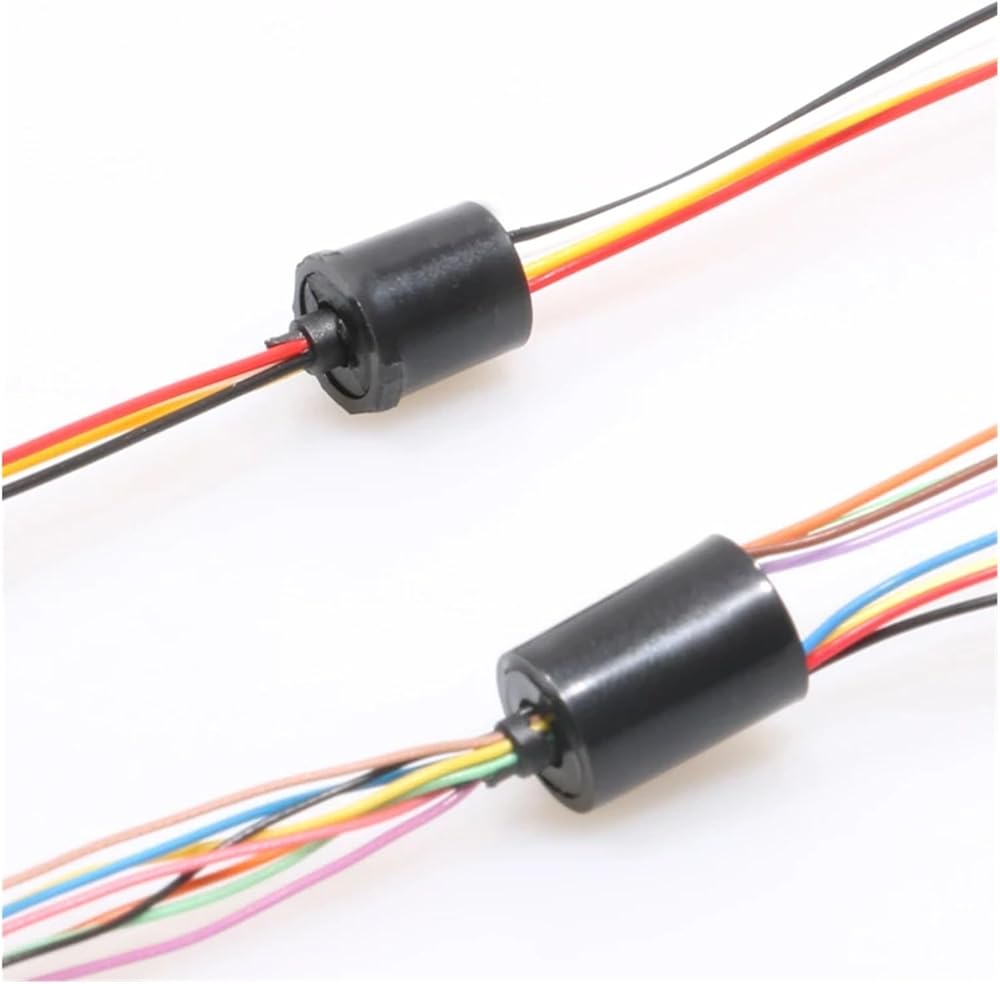

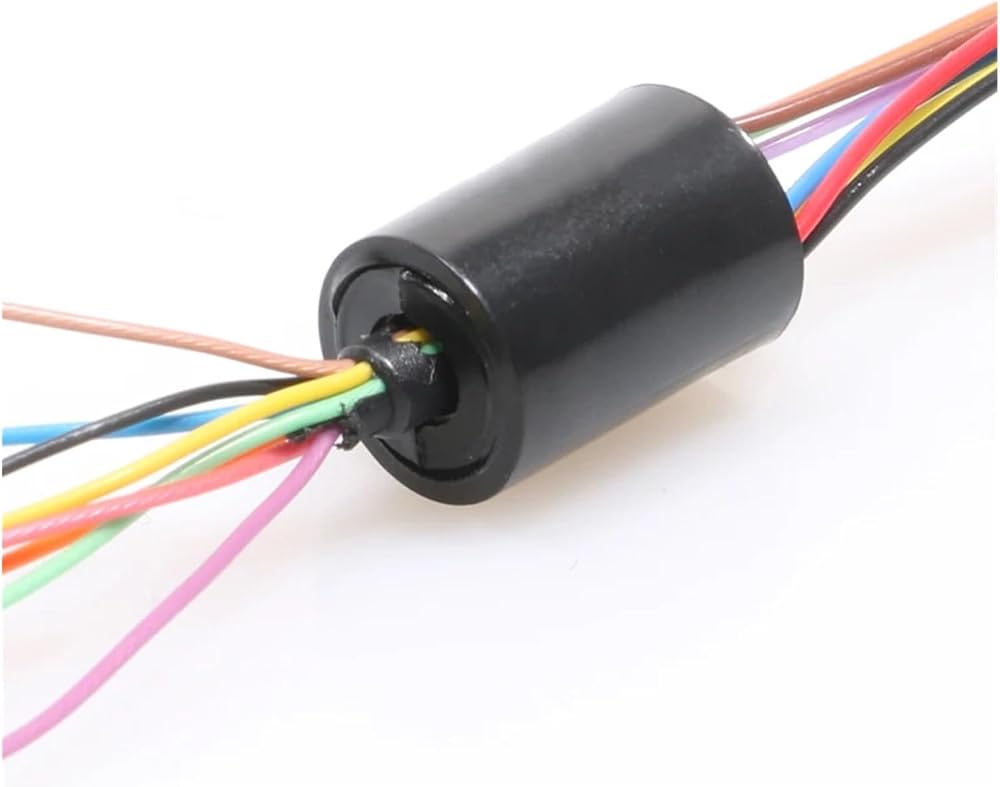

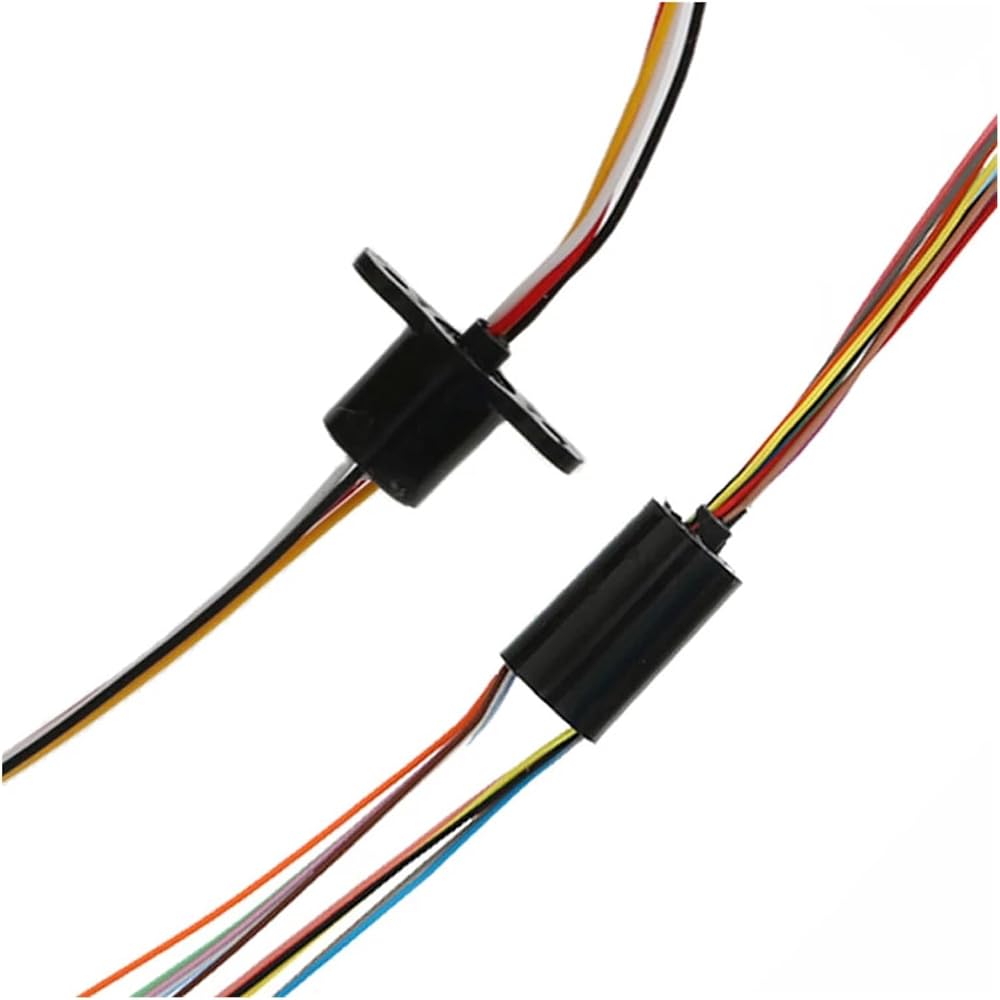

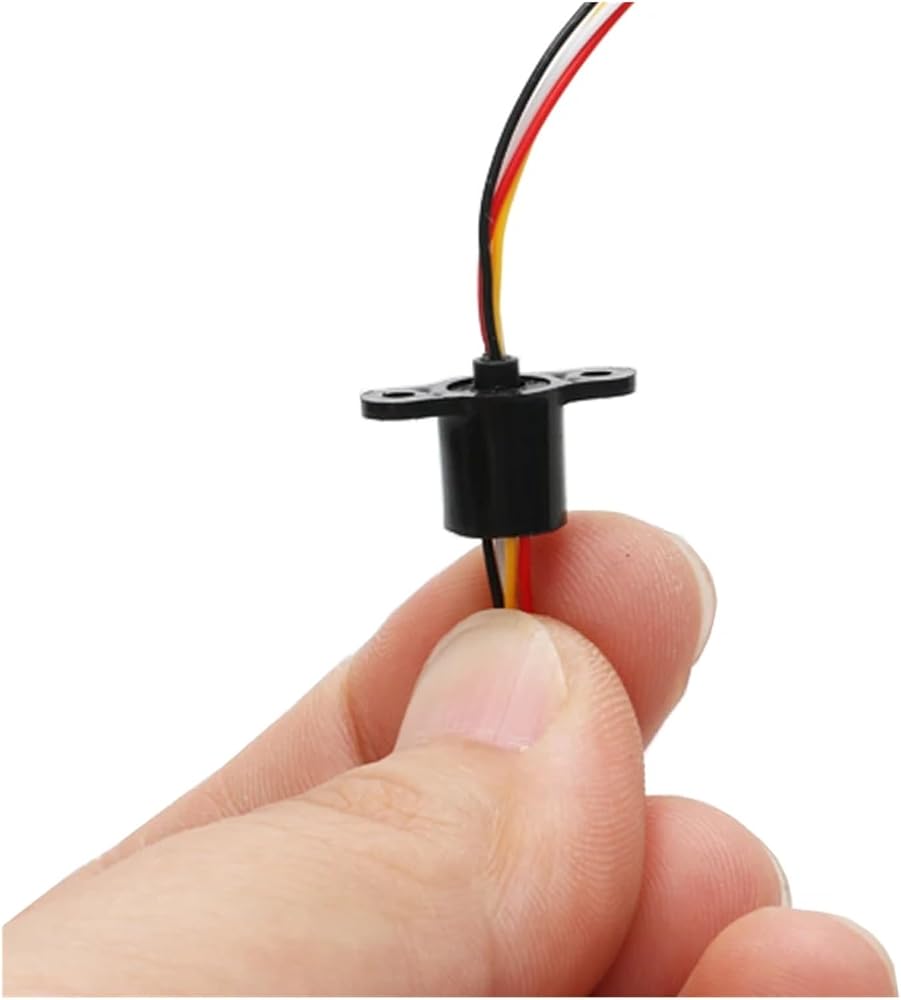

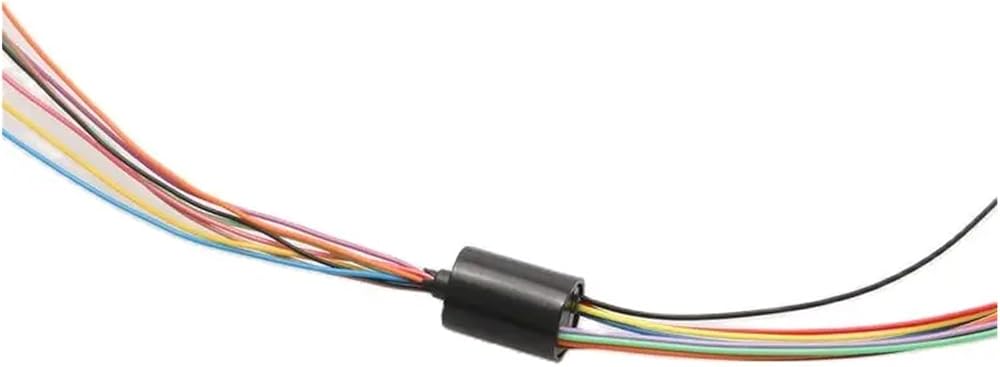

1 piece miniature slip ring 8.5 mm 4/8/12 channel 1A rotating collector ring slip ring for gimbal handheld gimbal remote control and rotor equipment

Specification:

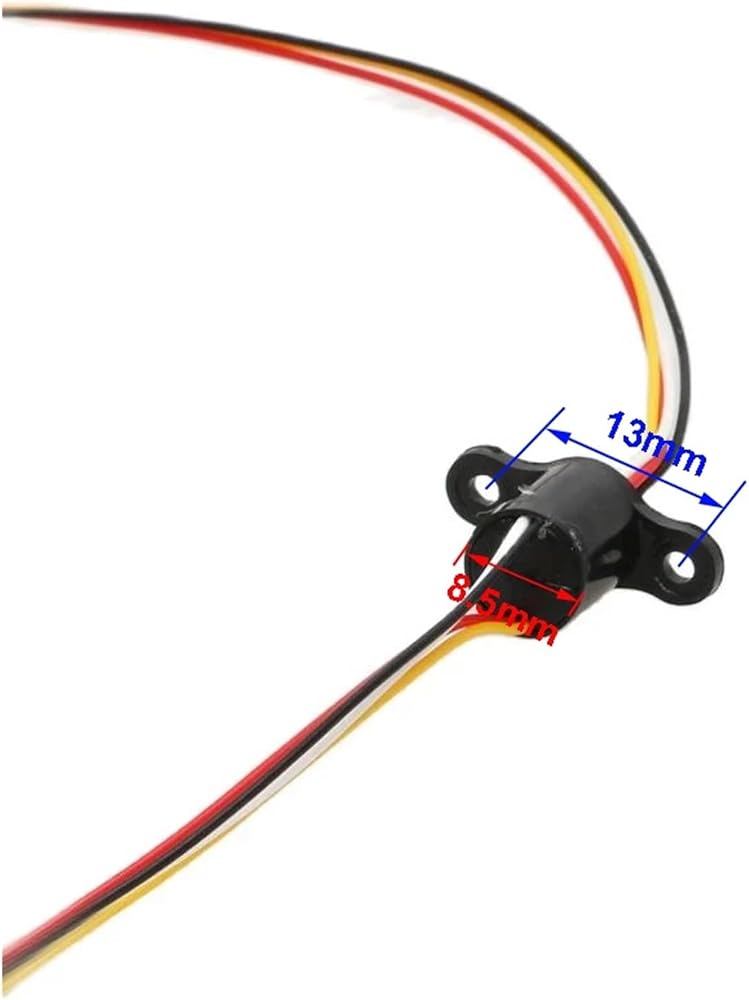

- Diameter: 8.5mm
- Speed: up to 200rpm
- Number of channels: 4CH/8CH/12CH
- Rated voltage: 220VAC/DC (U-type slip ring)/less than DC 36V (A-type slip ring)
- Rated current: 1A/channel
- Working temperature: -20℃～+60℃
- Contact material: gold/gold
- Wire material: silver plated
-Cable length: standard 200mm
- Compressive strength: 500V@50Hz between two channels
- Shell material: engineering plastic
- Working life: 5 million revolutions (depends on working environment and speed)

Package Included:
1 x slip ring
