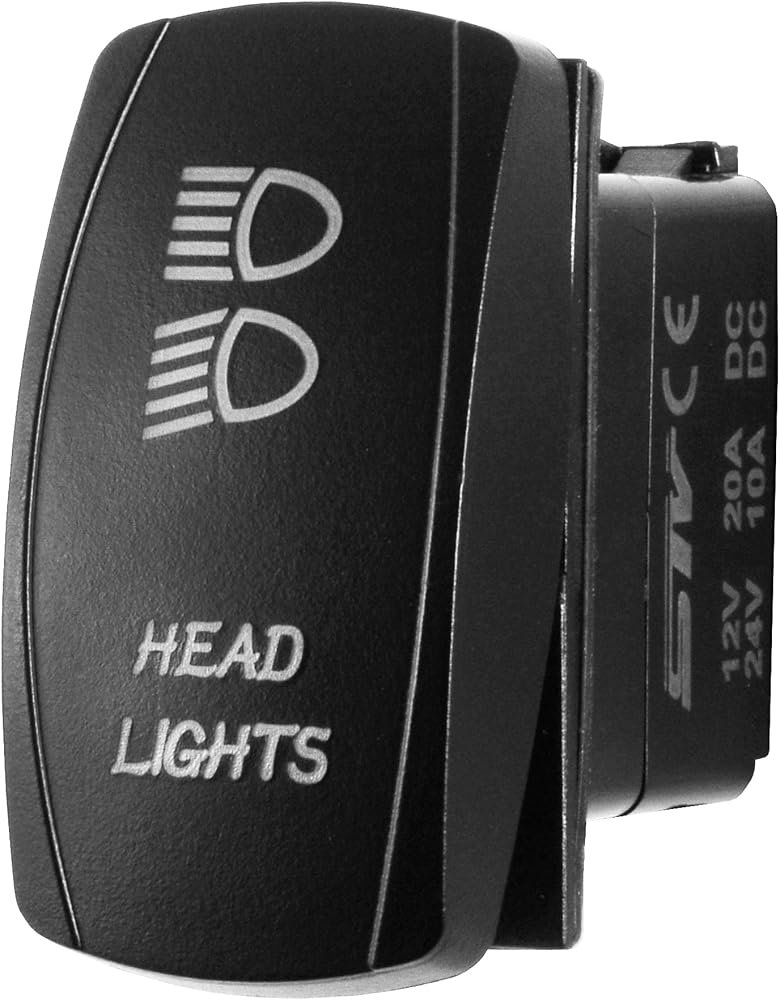

20 Amp 12 Volt OFF-ON-ON Rocker Switch HI/LO Beam

FEATURES:
Single Pole Double Throw OFF-ON-ON Switch.
Easy installation (wiring instructions included).
Illuminated laser etched with two L.E.D. Lights.
Very durable made of high-quality plastic.
Universal custom design, used in many applications to control: LED light bars, LED work lights, AWD, fog lamps, driving lights, headlights, tail lights, chase lights, off-road lights, horn, winch, rock lights, whip lights, fan, fuel pump, accessories etc

DESCRIPTION:

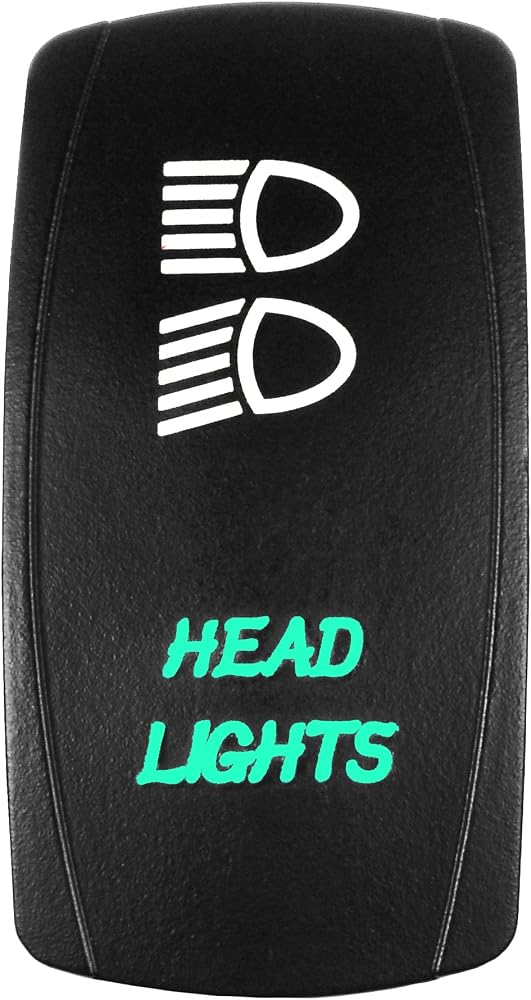

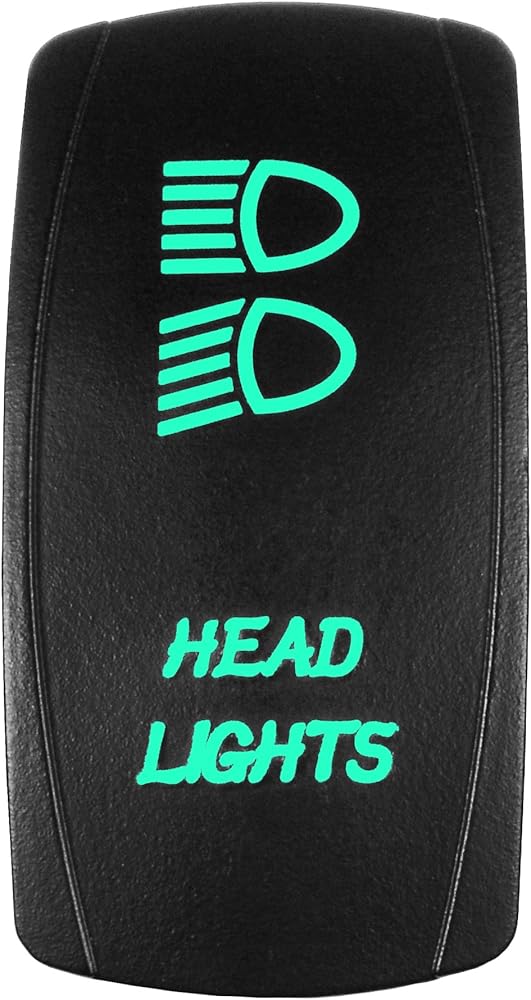

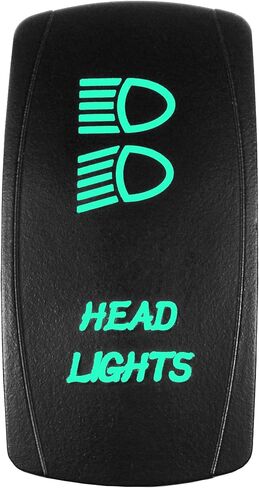

• Black hard surface rocker with illuminated LED's
• Surface size is 2" (50mm) x 1"(25mm)
• Standard size mounting hole 1.41"(36mm) x .86"(22mm). This is the standard size of most switch holes in modern vehicles.
• OFF/ON/ON means that you an run 2 different set of lights off one switch
• each pole controls a separate circuit
The switch is off in the bottom position. When moved to the center position the first circuit will be ON. You would press the switch to the upward (top) position to turn the second circuit ON.
• Both LEDs have separate grounds.

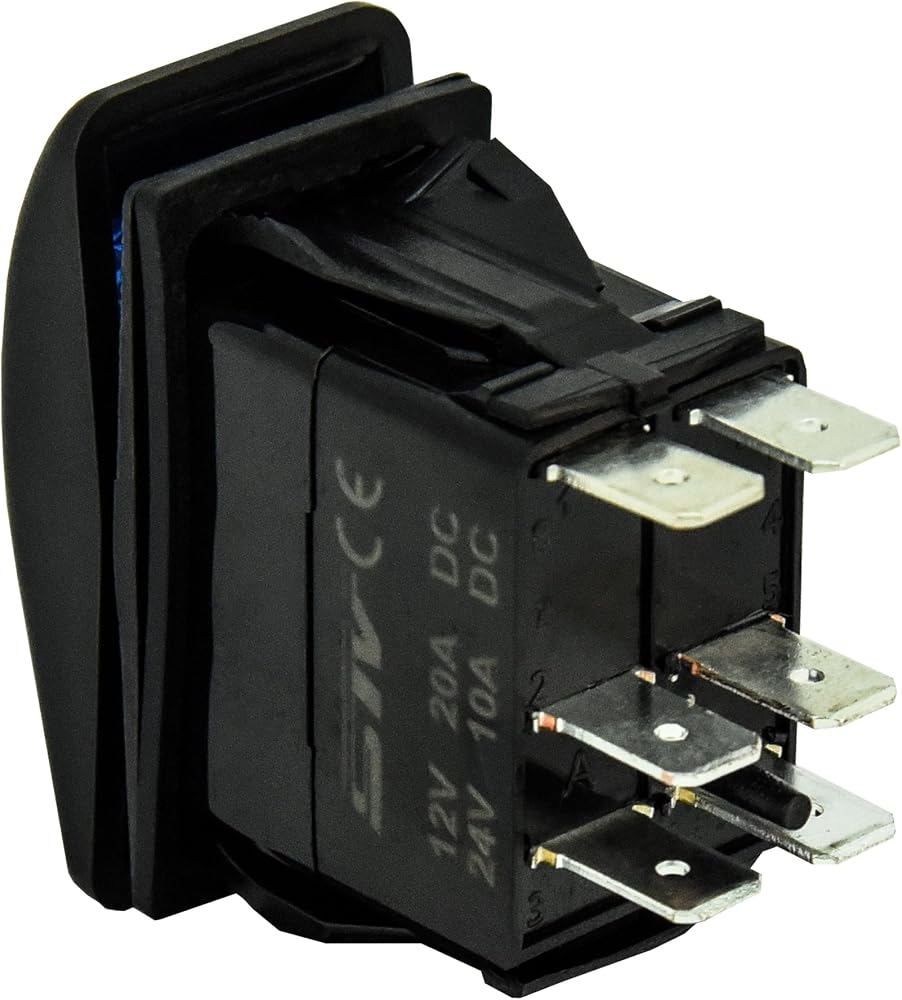

• No rear barriers between terminals.
• Waterproof rating of IP66.
• All symbols and designs are laser etched directly onto the switch face to ensure long image life.
• Rated at 20 Amps 12 Volts DC and 10 Amps 24 Volts DC.
PACKAGE INCLUDES:
1 rocker switch

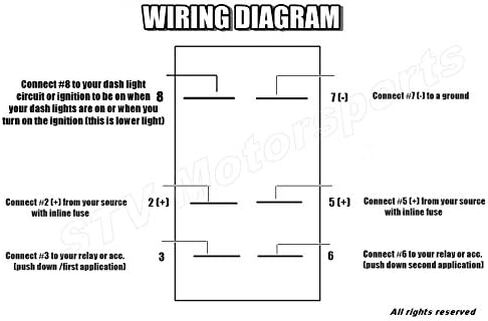

Wiring instructions
1 YEAR MANUFACTURER WARRANTY
