Motors
Specification:
2.Model: WFF-N20-09205

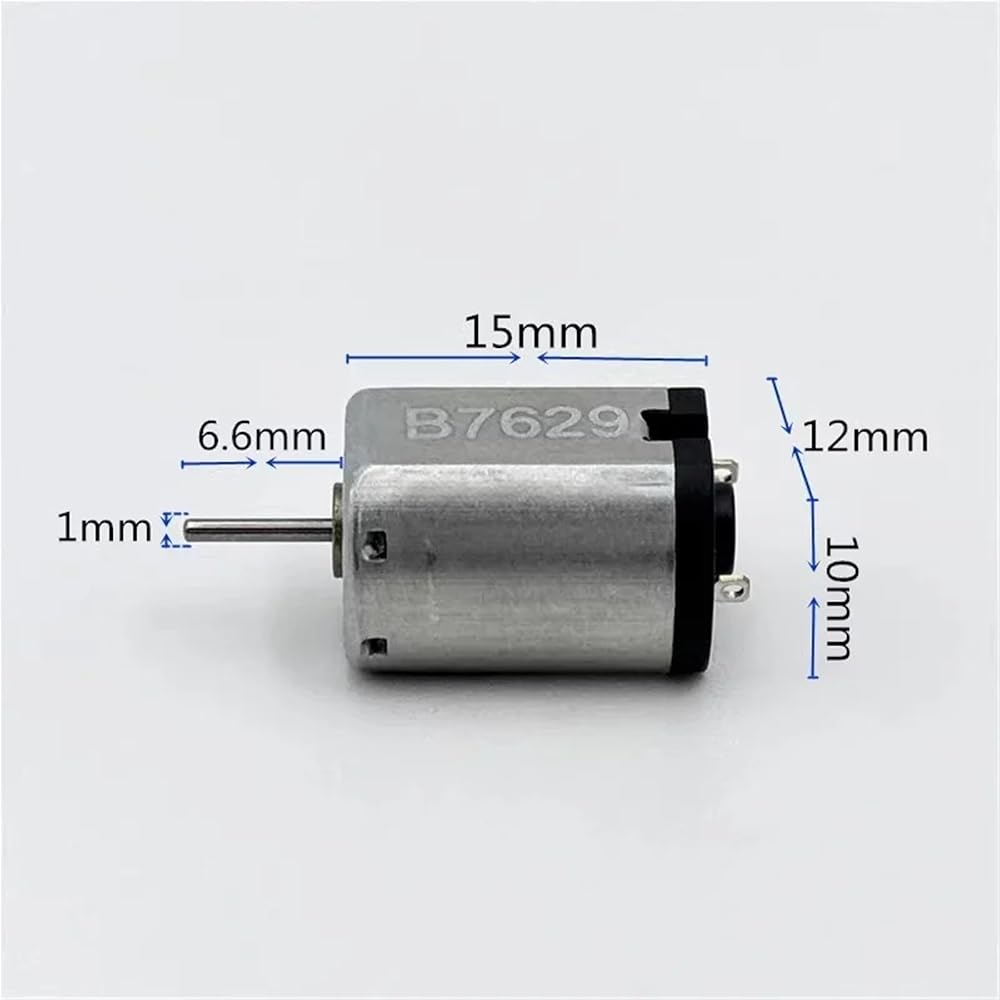

3.Motor size: 12mm*10mm*15mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 6.6mm (include step height)
6.Weight: 6g
7.Suitable voltage: 1.5V-5.0V
8.Test data:
Voltage:1.5V Current:12mA No-load speed:4800RPM
Voltage:3.0V Current:18mA No-load speed:10000RPM
Voltage:3.7V Current:20mA No-load speed:12200RPM
Voltage:5.0V Current:25mA No-load speed:16500RPM
9.Typical Applications: Home Appliances, Toothbrush, Electric Lock, Car AV Equipment.
=========================
Package List:
Motor x 1PC
==========
Hign-concerned Chemical : None
Model Number : WFF-N20-09205
Construction : Permanent Magnet
Type : Micro Motor
Protect Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Motor size : 12mm*10mm*15mm
Output shaft diameter : 1.0mm
Suitable voltage : 1.5V-5.0V
Speed range : 4800RPM-16500RPM
