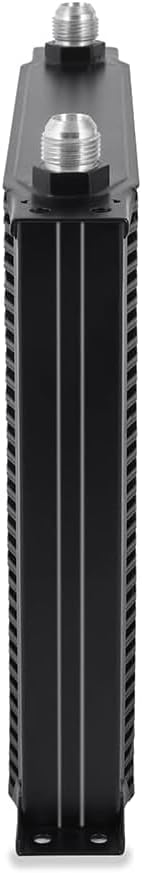

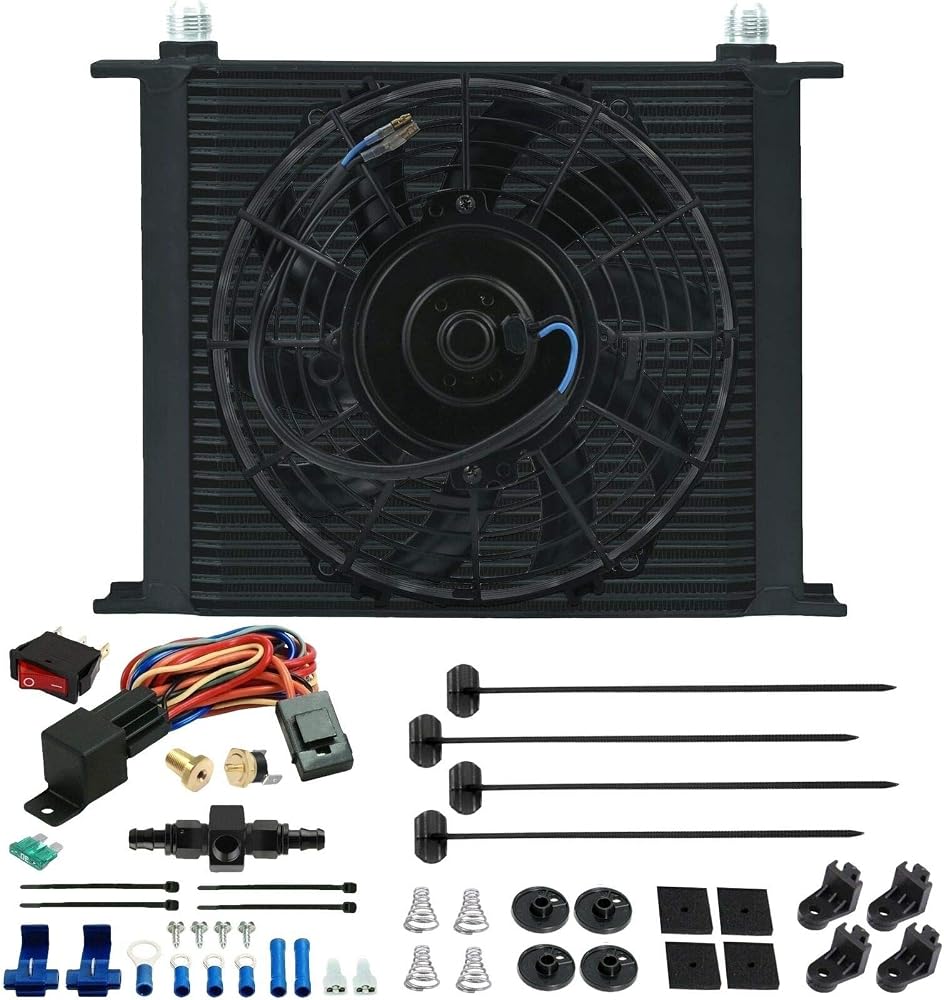

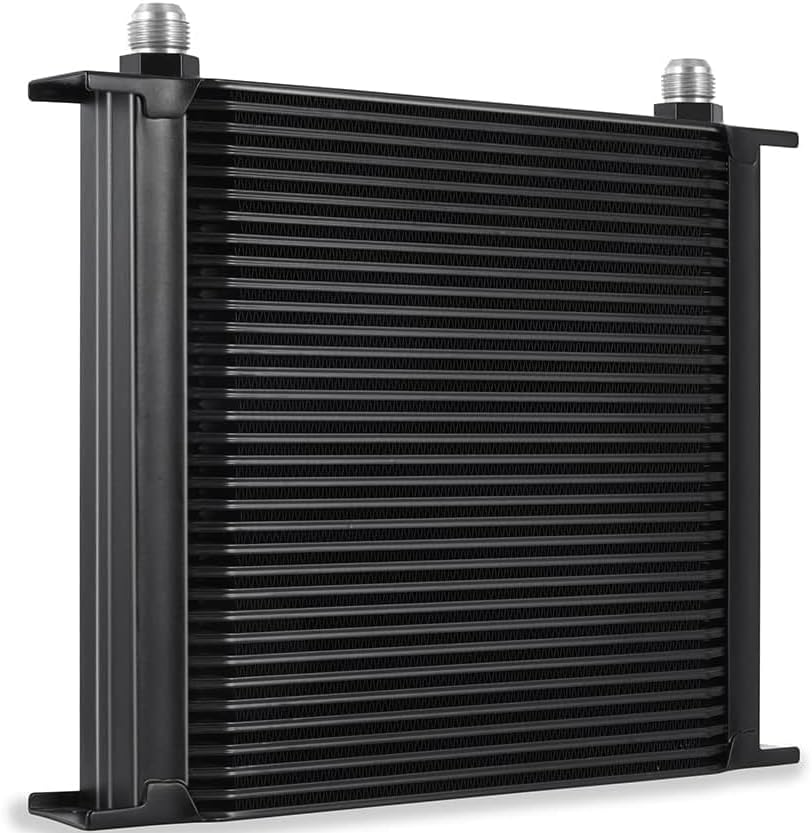

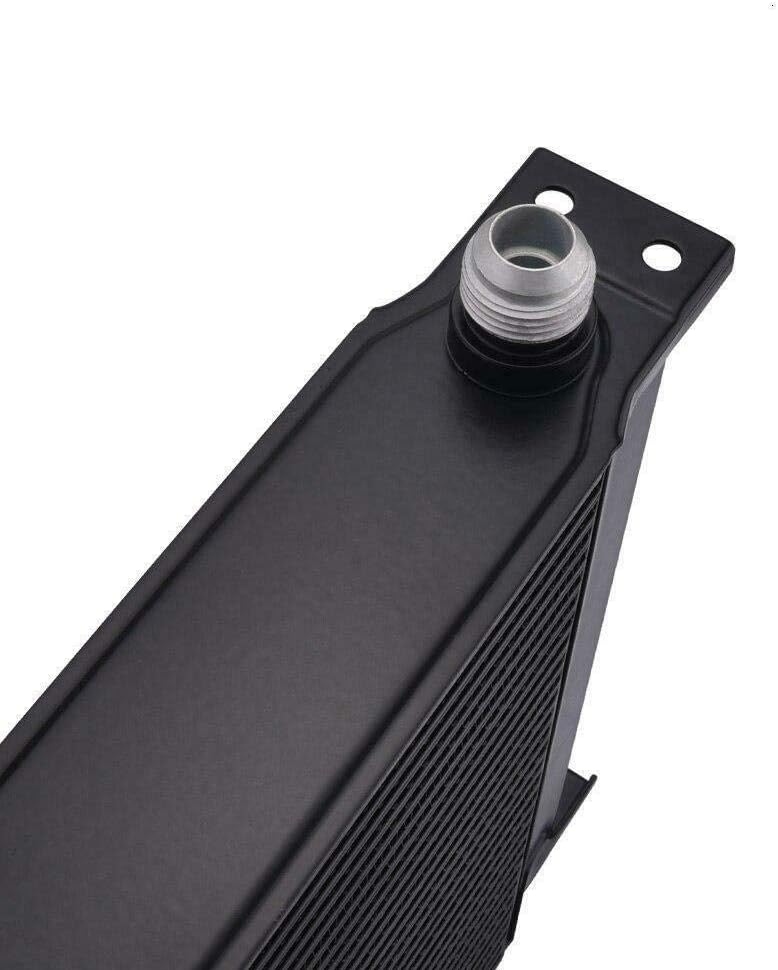

Fluid Cooler:
Universal 34 stacked plate aluminum heavy duty engine transmission cooler.
Minimal pressure drop and to be used for engine, transmission or fuel cooling.
Furnace brazed aluminum construction with 4 integrated mounting brackets.
Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
Dimensions: 2" x 10.9" x 13" with 6AN end fittings and 56000 BTU per hour.

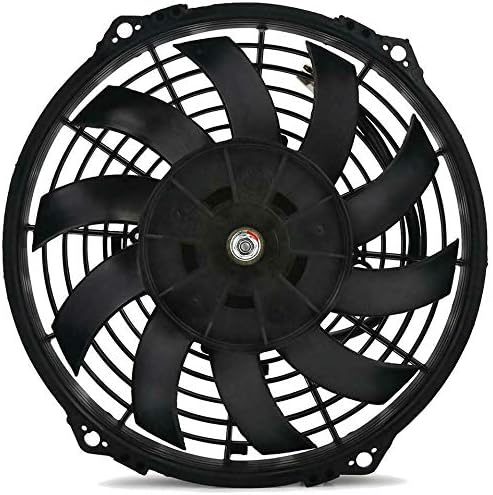

Electric Fan:Universal 12 volt high performance 9" inch slim electric cooling fan.
Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
Configured as an air puller by default or reversible to an air pusher.

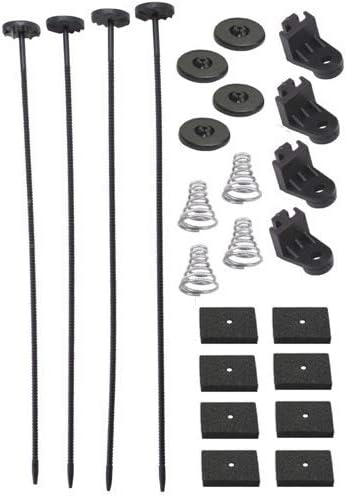

Includes mounting bracket feet and complete cooler fin tie strap kit.
Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

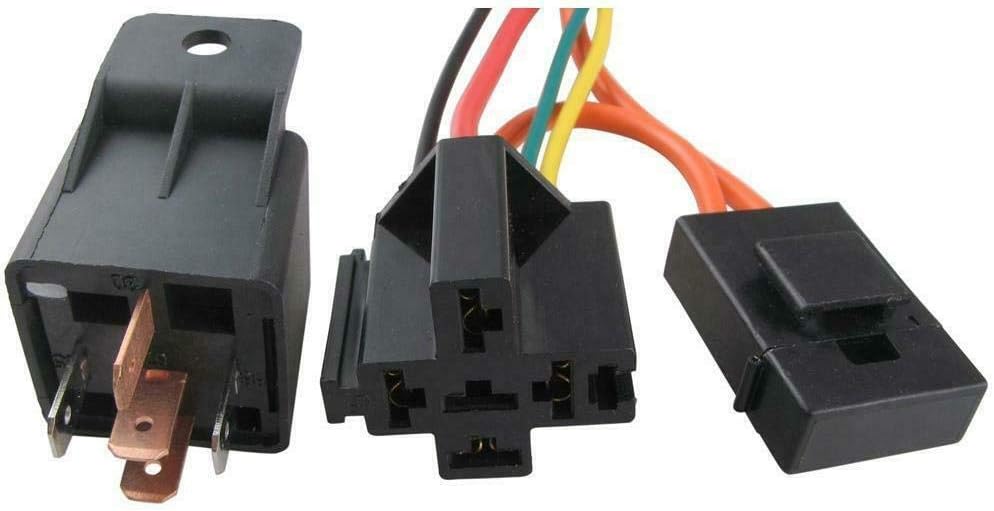

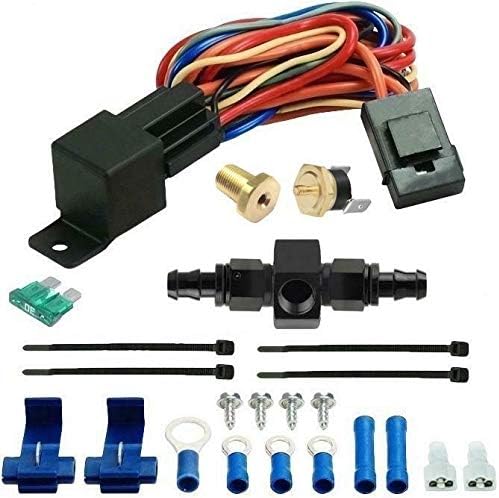

Wiring Kit:Universal automotive electric fan 5-pin 40A relay switch harness kit.
14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
Maximum 30 amp continuous draw with 30A in-line fuse protection.
A/C override or manual toggle switch wire built directly into harness.
Installation instructions, wiring diagram and components included.

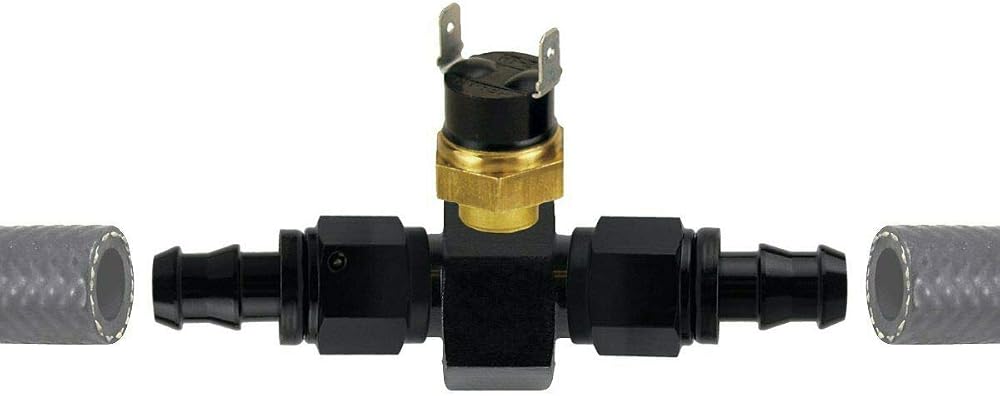

Fitting:Universal 6AN in-line electric fan thermostat temperature switch kit.
1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
Preset to power fan at 180'F turn-on and 165'F turn-off temperature.
Anodized aluminum barbed straight push-on hose fitting adapters.
Measures temp of any liquid including oil, water and coolant fluid.
