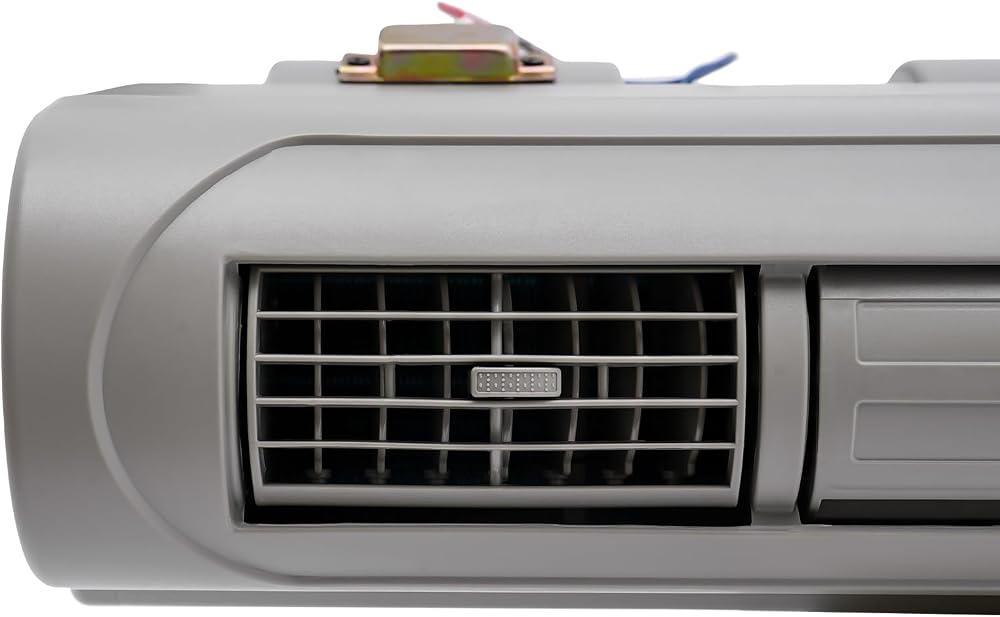

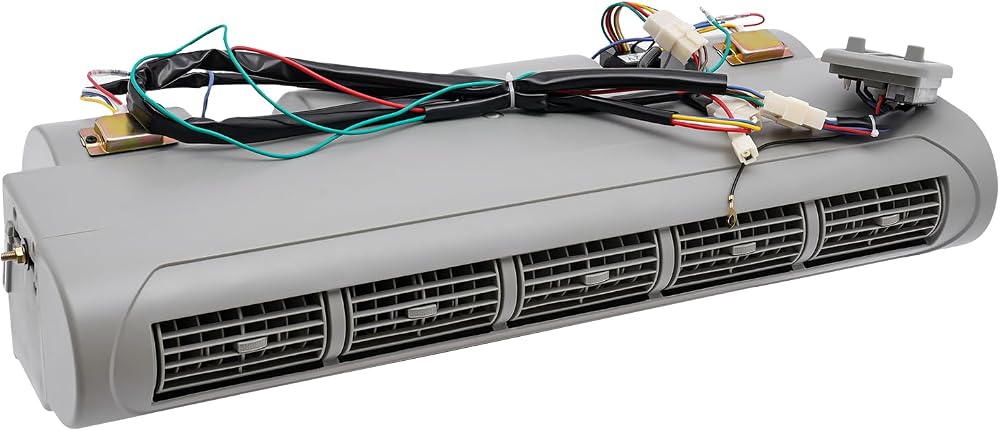

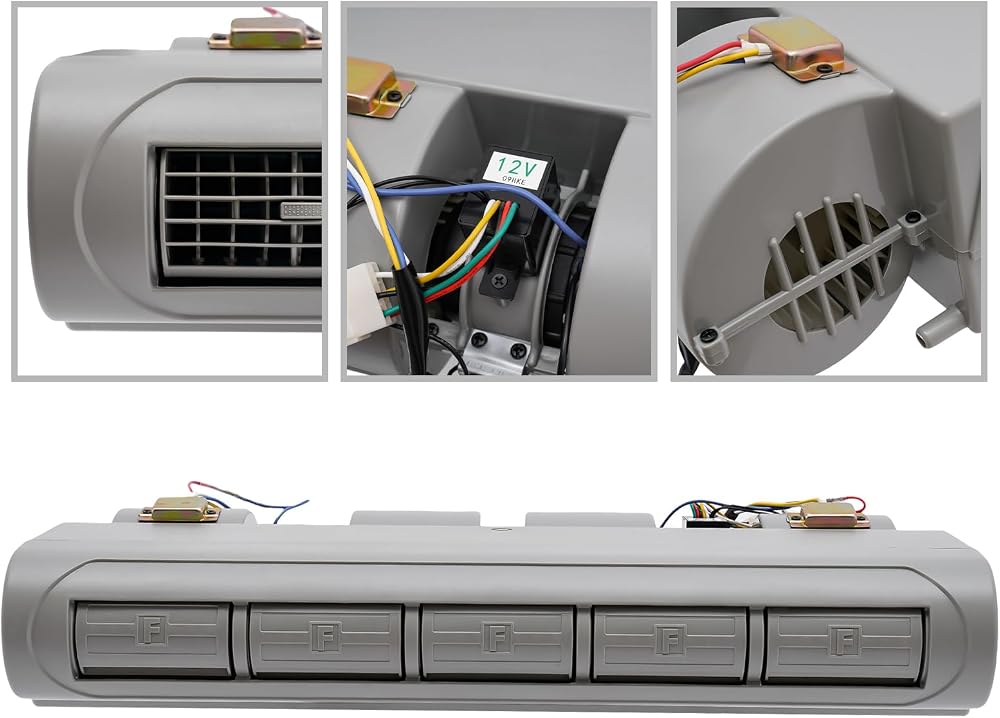

Universal Evaporator, 5 Shutters 12V Double Shaft Evaporator, 12V AC Evaporator

Specifications
Material: ABS, Aluminum Tubes
Color: Grey
Shape: Rectangular
Motor Type: 2* Pure Copper Motor
Motor Power: 2*80W
Speed: 3600rpm
Applicable Models: Universal

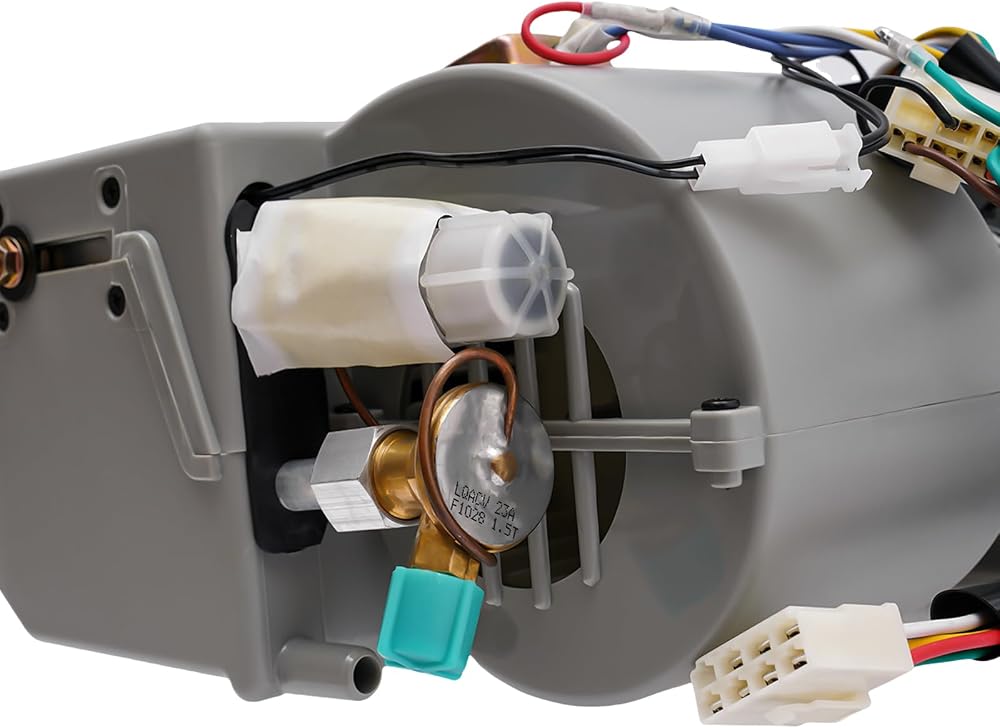

Expansion Valve: 1.2T
Features: 5 Shutters, Double Shaft

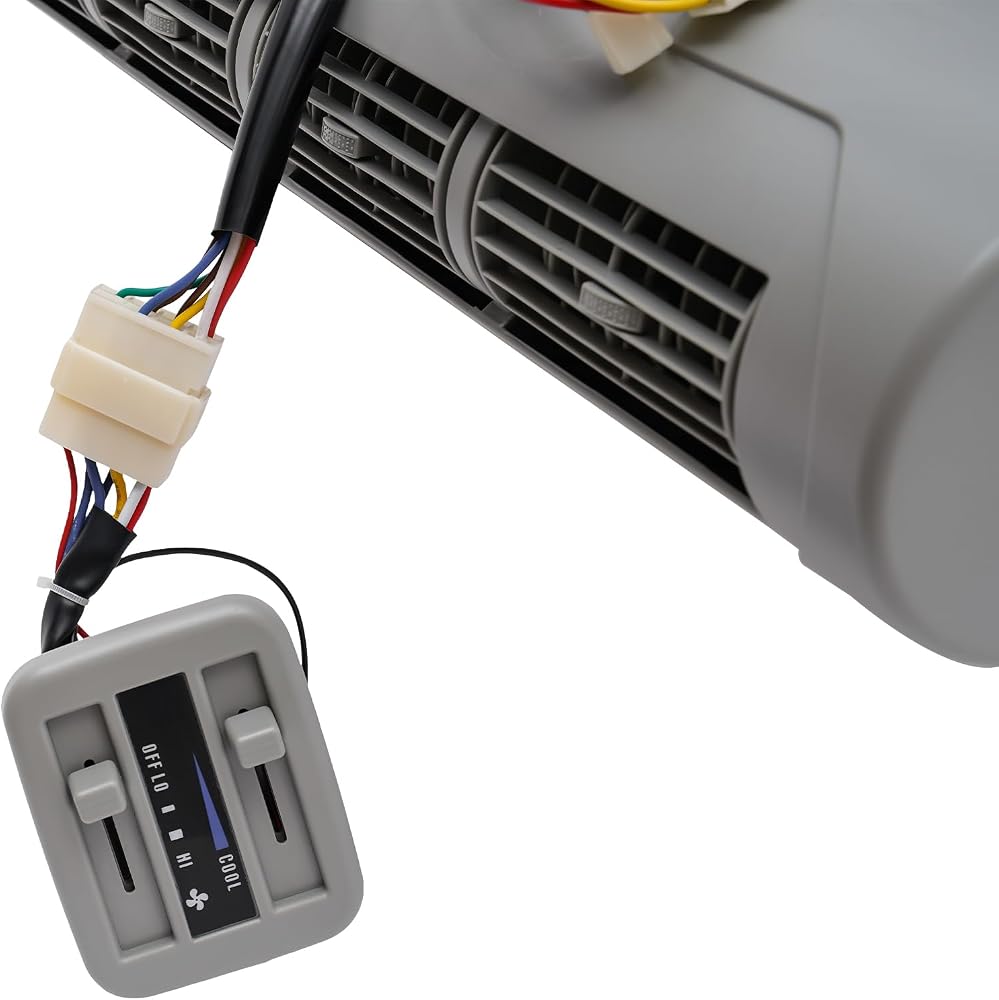

Air Flow: 3 Gears (3 Wind Speeds)
Cooling Capacity: 20697BTU
Max. Air Volume: 1017m³/hr/598CFM
Way of Use: Direct Replacement

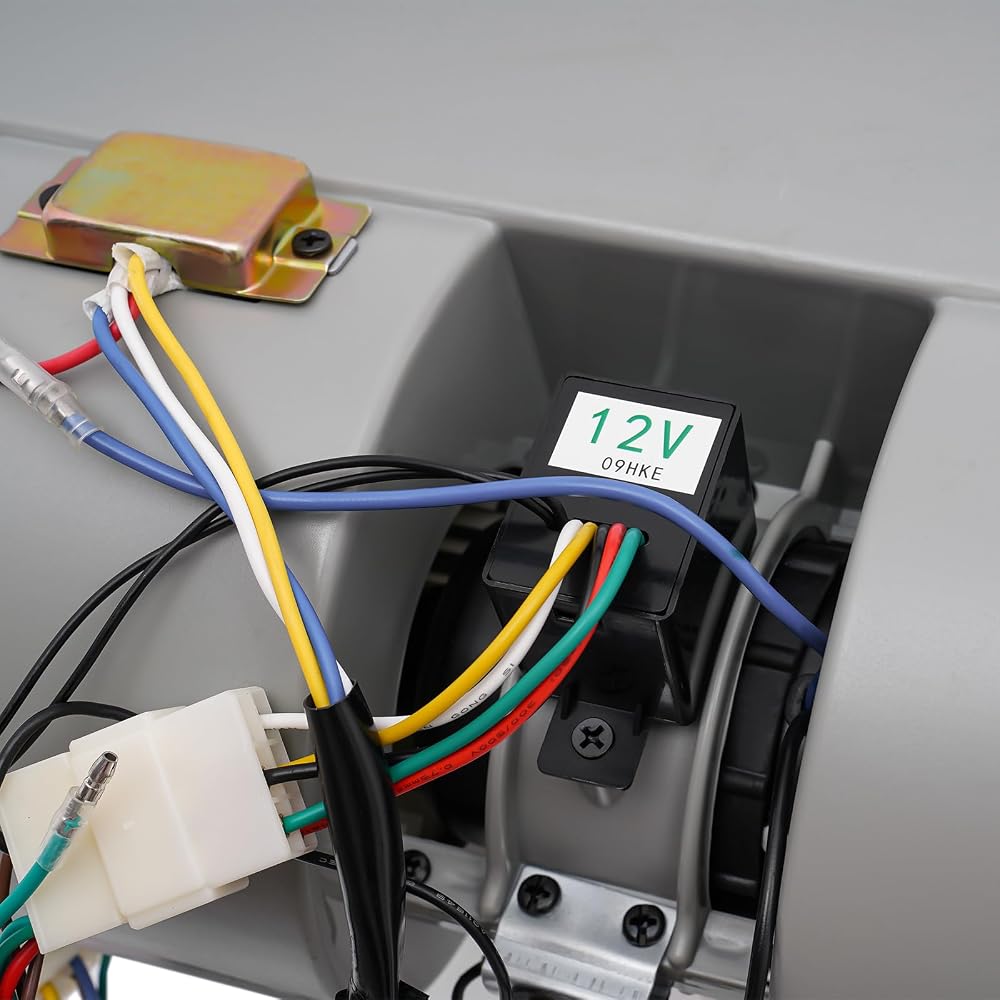

Voltage: 12V
Product Size: 67.5*27.5*13cm/26.57*10.83*5.1inch
PackageSize: 74*34*18.5cm/29.1*13.4*7.3inch
Gross Weight: 8kg/17.6lbs
Net Weight: About 7.45kg/16.42lbs

Notes
1.Please note that it is not a stand-alone unit and it needs to work with the compressor, condenser, and other components (all are not included).
2.Please note that there are water outlets on the left and right sides of the rear of the product. When installing, the water outlets should be located at a low level, otherwise, water leakage may occur. The recommended installation angle is 5°-35°. Please do not install horizontally, or vertically, with the water outlet facing upwards.
3.We strongly recommend professional installation.
4.Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.

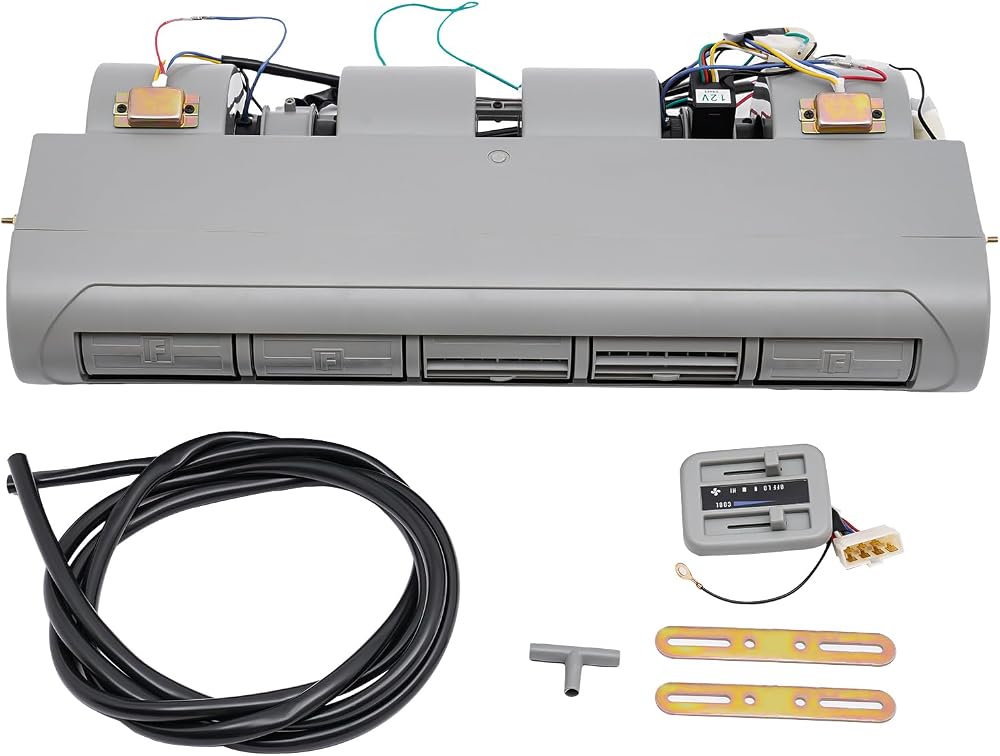

Included
1* AC Evaporator
1* Drain Hose
1* T-Tube
All Accessories For Assembly
